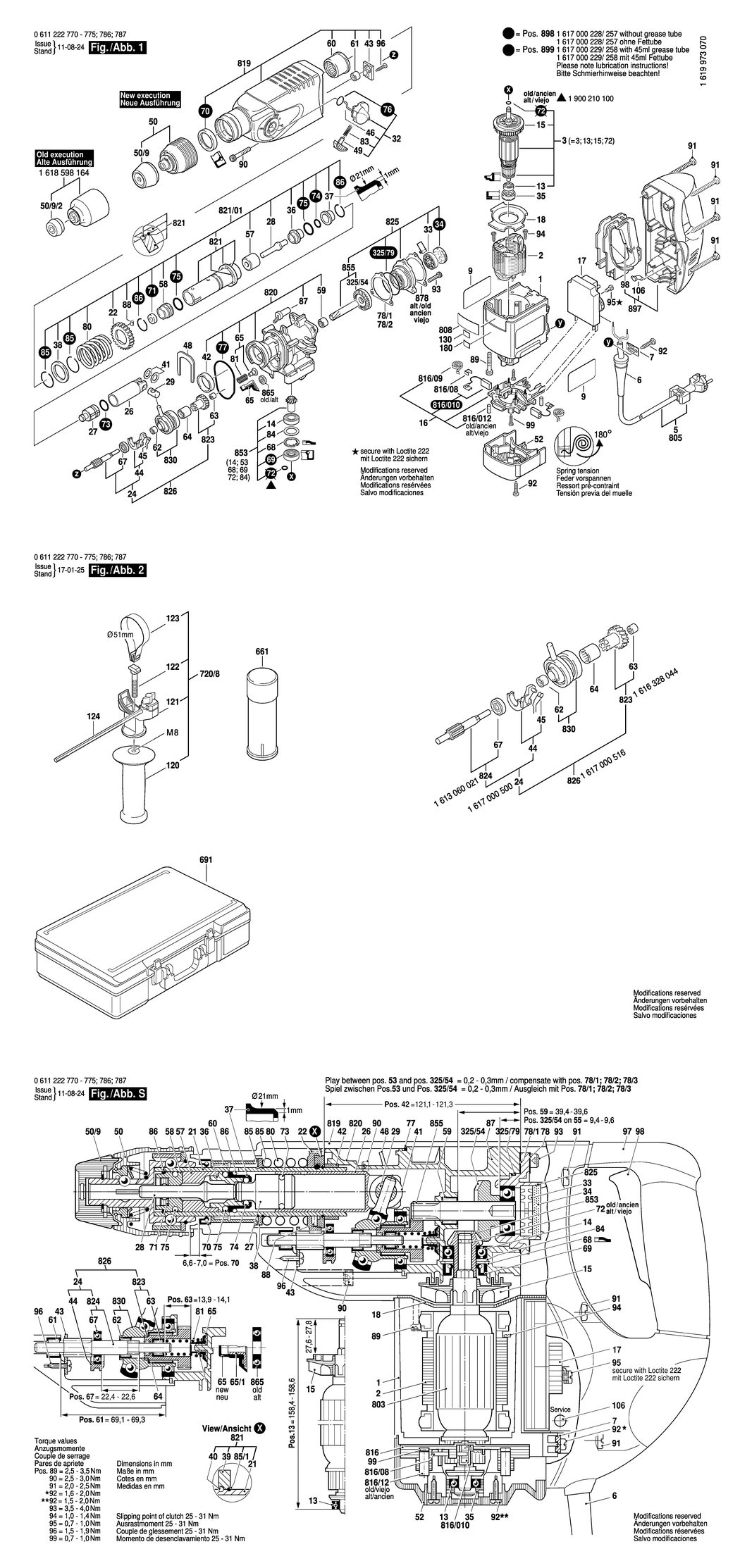

1 - MOTOR HOUSING
BSD-1615108064.A5
1615108064
|
£14.72
|
£17.67
|
|
|
2 - FIELD 230-240V
BSD-2604220549.A3
2604220549
|
£35.42
|
£42.51
|
|
|
3 - ARMATURE WITH FAN 220-230V
BSD-1614010128.A12
1614010128
|
£102.57
|
£123.08
|
|
|
6 - GROMMET dia9.7-dia12x89 MM
BSD-1610703053.A119
1610703053
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A651
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110697.A1
1611110697
|
-
|
|
|
|
13 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A120
1610905025
|
£6.52
|
£7.83
|
|
|
14 - GROOVE BALL BEARING 12x28x8
BSD-1900900289.A28
1900900289
|
£11.87
|
£14.24
|
|
|
15 - FAN
BSD-1606610132.A304
1606610132
|
£2.16
|
£2.59
|
|
|
16 - BRUSH HOLDER
BSD-1614336019.A3
1614336019
|
£35.42
|
£42.51
|
|
|
17 - SPEED GOVERNOR 230V
BSD-1617233018.A5
1617233018
|
£65.08
|
£78.10
|
|
|
18 - AIR-DEFLECTOR RING
BSD-1610591011.A7
1610591011
|
£1.95
|
£2.34
|
|
|
22 - CYLINDRICAL GEAR Z=50
BSD-1616317602.A48
1616317602
|
£12.04
|
£14.45
|
|
|
24 - TOOTHED SHAFT Z=3/9
BSD-1617000500.A22
1617000500
|
£47.95
|
£57.54
|
|
|
26 - HAMMER PISTON
BSD-1618700063.A7
1618700063
|
£16.41
|
£19.69
|
|
|
27 - STRIKER
BSD-1618710060.A21
1618710060
|
£16.41
|
£19.69
|
|
|
28 - STRIKER PIN
BSD-1613124043.A27
1613124043
|
£8.67
|
£10.41
|
|
|
29 - PISTON PIN
BSD-1613105012.A300
1613105012
|
£3.72
|
£4.47
|
|
|
32 - CLAMP HANDLE
BSD-1612026059.A1
1612026059
|
£7.36
|
£8.83
|
|
|
33 - PERFORATED DISK
BSD-1610190016.A24
1610190016
|
-
|
|
|
|
34 - FELT DISC
BSD-1610005000.A2
1610005000
|
£1.75
|
£2.10
|
|
|
35 - RUBBER RING
BSD-1610206021.A280
1610206021
|
£1.84
|
£2.21
|
|
|
36 - GUIDE BUSHING
BSD-1610390016.A19
1610390016
|
£9.49
|
£11.39
|
|
|
37 - DAMPING BUSHING dia21 MM
BSD-1610390032.A5
1610390032
|
£5.87
|
£7.04
|
|
|
38 - SUPPORTING DISC
BSD-1610102026.A99
1610102026
|
£2.61
|
£3.13
|
|
|
41 - SHIM WASHER 1.2 MM
BSD-1610101011.A158
1610101011
|
£1.75
|
£2.10
|
|
|
42 - PLAIN BEARING
BSD-1610202015.A88
1610202015
|
£2.80
|
£3.36
|
|
|
43 - TAB WASHER
BSD-1611098005.A53
1611098005
|
£2.94
|
£3.53
|
|
|
44 - SWITCHING ELEMENT
BSD-1615820092.A54
1615820092
|
£2.61
|
£3.13
|
|
|
45 - SWITCH SPRING
BSD-1614651014.A59
1614651014
|
£1.84
|
£2.21
|
|
|
46 - DRIVER PIN
BSD-1614690002.A59
1614690002
|
£1.84
|
£2.21
|
|
|
48 - HOLDING PLATE
BSD-1611016003.A193
1611016003
|
£2.27
|
£2.72
|
|
|
49 - SWITCH BUTTON
BSD-1612026054.A0
1612026054
|
£2.61
|
£3.13
|
|
|
50 - QUICK-CHANGE COLLET CHUCK
BSD-1618598198.A0
1618598198
|
-
|
|
|
|
52 - COVER
BSD-1615500292.A1
1615500292
|
£8.49
|
£10.19
|
|
|
57 - STOP BUSHING
BSD-1610390025.A10
1610390025
|
£11.30
|
£13.56
|
|
|
58 - GUIDE RING
BSD-1610390026.A24
1610390026
|
£13.78
|
£16.54
|
|
|
59 - NEEDLE BEARING
BSD-1610910080.A24
1610910080
|
£3.51
|
£4.21
|
|
|
60 - NEEDLE-ROLLER BEARING
BSD-1610910073.A82
1610910073
|
£11.87
|
£14.24
|
|
|
61 - NEEDLE BEARING
BSD-1610910098.A78
1610910098
|
£3.91
|
£4.69
|
|
|
62 - PLAIN BEARING
BSD-1610200020.A24
1610200020
|
£1.84
|
£2.21
|
|
|
63 - NEEDLE BEARING
BSD-1610910064.A136
1610910064
|
£2.64
|
£3.17
|
|
|
64 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913010.A92
1610913010
|
£4.48
|
£5.37
|
|
|
65 - PLAIN BEARING
BSD-1610591016.A3
1610591016
|
£2.94
|
£3.53
|
|
|
67 - GROOVE BALL BEARING
BSD-1610905016.A77
1610905016
|
£10.10
|
£12.12
|
|
|
68 - RETAINING RING
BSD-1610119009.A19
1610119009
|
£1.75
|
£2.10
|
|
|
69 - ROTARY SHAFT LIP SEAL
BSD-1610283041.A30
1610283041
|
£6.85
|
£8.22
|
|
|
70 - ROTARY SHAFT LIP SEAL
BSD-1610283023.A24
1610283023
|
£6.52
|
£7.83
|
|
|
71 - SCRAPER
BSD-1610290029.A47
1610290029
|
£3.91
|
£4.69
|
|
|
73 - O-RING 17.0x3.0 MM
BSD-1610210121.A7
1610210121
|
£2.74
|
£3.29
|
|
|
74 - O-RING 11.0x3.5 MM
BSD-1610210104.A92
1610210104
|
£2.74
|
£3.29
|
|
|
75 - O-RING 18.0x3.5 MM
BSD-1610210159.A22
1610210159
|
£2.80
|
£3.36
|
|
|
76 - O-RING 10.5x2.7 MM
BSD-1610210046.A56
1610210046
|
£2.16
|
£2.59
|
|
|
77 - O-RING 60.0x3.0 MM
BSD-1610210106.A93
1610210106
|
£2.74
|
£3.29
|
|
|
78/1 - SHIM 0.1 MM
BSD-1610134005.A9
1610134005
|
£1.84
|
£2.21
|
|
|
78/2 - SHIM 0.2 MM
BSD-1610134006.A25
1610134006
|
£1.84
|
£2.21
|
|
|
80 - COMPRESSION SPRING
BSD-1614634006.A19
1614634006
|
£5.87
|
£7.04
|
|
|
81 - COMPRESSION SPRING
BSD-1614611009.A11
1614611009
|
£1.75
|
£2.10
|
|
|
83 - COMPRESSION SPRING
BSD-1614611010.A16
1614611010
|
-
|
|
|
|
84 - SUPPORTING DISC 1.2 MM
BSD-1610101627.A33
1610101627
|
£1.84
|
£2.21
|
|
|
85 - RETAINING RING
BSD-1614601011.A96
1614601011
|
£1.84
|
£2.21
|
|
|
86 - RETAINING RING
BSD-1614601024.A17
1614601024
|
£1.75
|
£2.10
|
|
|
87 - SCREW BUSHING
BSD-1610390027.A9
1610390027
|
£1.84
|
£2.21
|
|
|
88 - ROLLER
BSD-1613200007.A65
1613200007
|
£1.84
|
£2.21
|
|
|
89 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8
BSD-2910141168.A140
2910141168
|
£3.80
|
£4.56
|
|
|
90 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8
BSD-2910141168.A141
2910141168
|
£3.80
|
£4.56
|
|
|
91 - TAPPING SCREW DIN 7971-ST4.8x38-F
BSD-2910211038.A50
2910211038
|
£1.84
|
£2.21
|
|
|
92 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A272
2912401019
|
£1.75
|
£2.10
|
|
|
93 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8
BSD-2910141162.A96
2910141162
|
£2.27
|
£2.72
|
|
|
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A599
2603435015
|
£2.27
|
£2.72
|
|
|
95 - PAN HEAD SCREW DIN 85-M3.5x6-4.8
BSD-2910091082.A30
2910091082
|
£1.84
|
£2.21
|
|
|
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A86
2912401018
|
£1.75
|
£2.10
|
|
|
98 - SWITCH-PAWL
BSD-1612026060.A4
1612026060
|
£5.87
|
£7.04
|
|
|
99 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A488
2910211005
|
£1.75
|
£2.10
|
|
|
106 - LIGHT CONDUCTOR
BSD-1615510000.A66
1615510000
|
£2.16
|
£2.59
|
|
|
120 - AUXILIARY HANDLE M8
BSD-1612025041.A44
1612025041
|
£21.42
|
£25.71
|
|
|
121 - SUPPORT CLAMP dia51 MM
BSD-1618040065.A1
1618040065
|
-
|
|
|
|
122 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A369
1613490002
|
£4.48
|
£5.37
|
|
|
123 - CLAMPING BAND dia51 MM
BSD-1611316015.A5
1611316015
|
£7.78
|
£9.33
|
|
|
124 - DEPTH-GAUGE SW 6x330 MM
BSD-1613001008.A139
1613001008
|
£9.11
|
£10.93
|
|
|
325/54 - CROWN GEAR Z=32
BSD-1616333029.A24
1616333029
|
£13.12
|
£15.75
|
|
|
325/79 - O-RING 40.0x1.5 MM
BSD-2600210003.A10
2600210003
|
£2.61
|
£3.13
|
|
|
661 - GREASE TUBE 30 ML
BSD-1615430009.A29
1615430009
|
£13.78
|
£16.54
|
|
|
691 - CARRYING CASE
BSD-1615438268.A8
1615438268
|
-
|
|
|
|
720/8 - AUXILIARY HANDLE M8
BSD-1612025048.A0
1612025048
|
£27.31
|
£32.77
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1614010128.A13
1614010128
|
£102.57
|
£123.08
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A586
1607000227
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A96
160111A3HC
|
£2.74
|
£3.29
|
|
|
816/08 - CONTACT STRAP
BSD-1611323002.A3
1611323002
|
£1.95
|
£2.34
|
|
|
816/09 - SPIRAL SPRING
BSD-1614652002.A26
1614652002
|
£1.84
|
£2.21
|
|
|
816/010 - CARBON-BRUSH SET
BSD-1617014124.A0
1617014124
|
£15.65
|
£18.78
|
|
|
816/012 - RUBBER BUFFER
BSD-1613212004.A49
1613212004
|
£3.72
|
£4.47
|
|
|
819 - IMPACT MECHANISM HOUSING
BSD-1617000988.A1
1617000988
|
£53.78
|
£64.54
|
|
|
820 - GEAR HOUSING
BSD-1617000315.A18
1617000315
|
£62.51
|
£75.01
|
|
|
821 - RATCHET SLEEVE
BSD-1617000978.A11
1617000978
|
-
|
|
|
|
821/01 - RATCHET SLEEVE
BSD-1617000979.A23
1617000979
|
£80.61
|
£96.73
|
|
|
823 - GEAR SLEEVE Z=25
BSD-1616328044.A31
1616328044
|
£29.14
|
£34.97
|
|
|
825 - BEARING FLANGE
BSD-1615805064.A26
1615805064
|
-
|
|
|
|
826 - TOOTHED SHAFT Z=3/9
BSD-1617000516.A24
1617000516
|
£71.84
|
£86.21
|
|
|
830 - DRIVE BEARING
BSD-1615819022.A23
1615819022
|
£66.68
|
£80.01
|
|
|
853 - PINION Z=15
BSD-1617000196.A9
1617000196
|
£45.67
|
£54.80
|
|
|
855 - JACK SHAFT Z=9
BSD-1617000982.A25
1617000982
|
-
|
|
|
|
865 - D-GROOVE BALL THR BEARING
BSD-1610920007.A19
1610920007
|
£3.80
|
£4.56
|
|
|
878 - PLAIN WASHER 0.5 MM
BSD-1610134008.A11
1610134008
|
£2.45
|
£2.94
|
|
|
897 - HANDLE
BSD-1617000989.A4
1617000989
|
£37.72
|
£45.27
|
|
|
898 - WEAR AND TEAR PART SET
BSD-1617000228.A0
1617000228
|
£31.64
|
£37.97
|
|
|
899 - WEAR AND TEAR PART SET
BSD-1617000229.A3
1617000229
|
£33.45
|
£40.14
|
|
