Bosch PBH 240 RE / 0603326703 / EU 230 Volt Spare Parts

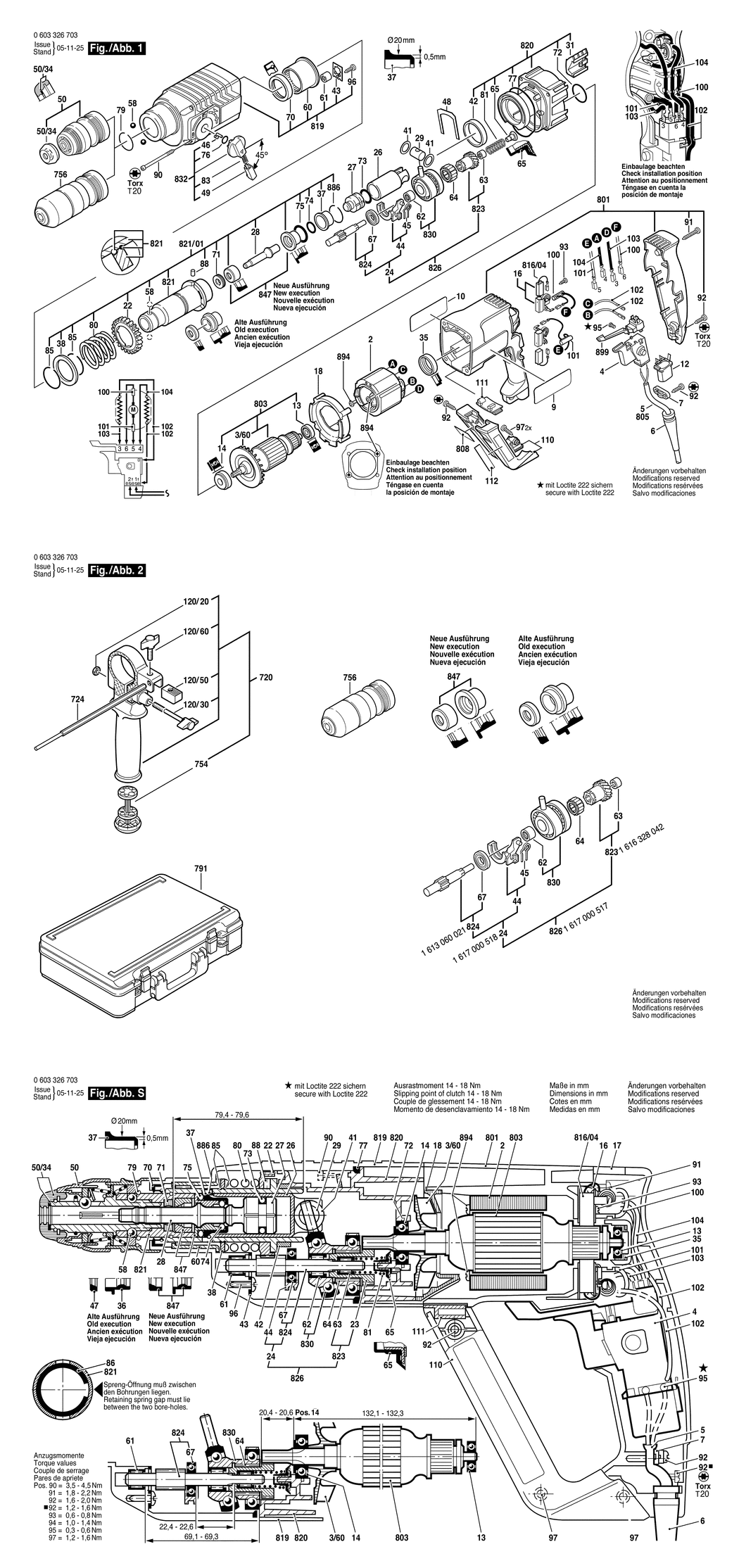

An exploded drawing and listing for the Bosch PBH 240 RE / 0603326703 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230-240V BSD-1614220115.A6 1614220115	£21.52	£25.83
3/60 - FAN BSD-1616610072.A133 1616610072	£2.16	£2.59
4 - SWITCH BSD-2607200209.A54 2607200209	£40.80	£48.96
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A132 2600703018	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A226 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110932.A0 1611110932	-
10 - REFERENCE PLATE BSD-1611110933.A2 1611110933	-
12 - SUPPRESSION FILTER BSD-1617328026.A16 1617328026	£7.36	£8.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A273 1610905025	£6.52	£7.83
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A465 1610905048	£8.67	£10.41
16 - BRUSH HOLDER BSD-1617000343.A7 1617000343	£11.30	£13.56
18 - AIR-DEFLECTOR RING BSD-1610522009.A2 1610522009	£1.32	£1.58
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A0 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A2 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A109 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A107 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124052.A11 1613124052	£10.10	£12.12
29 - PISTON PIN BSD-1613105012.A491 1613105012	£3.72	£4.47
31 - PROTECTIVE GRILLE BSD-1615510003.A94 1615510003	£2.61	£3.13
35 - RUBBER RING BSD-1610206021.A306 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390017.A113 1610390017	£5.30	£6.36
38 - SUPPORTING DISC BSD-1610102026.A146 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A366 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A139 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A139 1611098005	£2.80	£3.36
44 - SWITCHING ELEMENT BSD-1615820092.A148 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A139 1614651014	£1.75	£2.10
46 - DRIVER PIN BSD-1614690002.A0 1614690002	£1.75	£2.10
48 - HOLDING PLATE BSD-1611016003.A275 1611016003	£2.16	£2.59
49 - SWITCH BUTTON BSD-1612026035.A176 1612026035	£1.75	£2.10
50 - QUICK-CHANGE COLLET CHUCK BSD-1617000352.A2 1617000352	-
50/34 - PROTECTIVE CAP BSD-1610508047.A83 1610508047	£2.29	£2.75
58 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A421 1903230010	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A139 1610910073	£11.30	£13.56
61 - NEEDLE BEARING BSD-1610910098.A170 1610910098	£3.72	£4.47
62 - NEEDLE BEARING BSD-1610910074.A4 1610910074	£3.72	£4.47
63 - NEEDLE BEARING BSD-1610910064.A33 1610910064	£2.52	£3.02
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A137 1610913010	£4.26	£5.11
65 - PLAIN BEARING BSD-1610591016.A137 1610591016	£2.80	£3.36
67 - GROOVE BALL BEARING BSD-1610905016.A139 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A123 1610283019	£7.36	£8.83
71 - SCRAPER BSD-1610290029.A137 1610290029	£3.72	£4.47
72 - O-RING 24.0x2.5 MM BSD-1610210068.A350 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A246 1610210187	£2.16	£2.59
74 - O-RING 11.0x3.5 MM BSD-1610210104.A148 1610210104	£2.61	£3.13
75 - O-RING 18.0x3.5 MM BSD-1610210105.A0 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A239 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A148 1610210106	£2.61	£3.13
79 - RETAINING RING BSD-1614601026.A26 1614601026	£1.75	£2.10
80 - COMPRESSION SPRING BSD-1614634005.A111 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A2 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A373 1614611006	£3.72	£4.47
85 - RETAINING RING BSD-1614601011.A148 1614601011	£1.75	£2.10
88 - ROLLER BSD-1613200007.A146 1613200007	£1.75	£2.10
90 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A97 1603435036	£1.75	£2.10
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A133 2603490026	£1.75	£2.10
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A324 2603490023	£1.75	£2.10
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A296 2910211005	£1.75	£2.10
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2012 2603410001	£1.75	£2.10
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A296 2912401018	£1.75	£2.10
97 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A99 2603490021	£1.75	£2.10
100 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A107 2604465086	£5.58	£6.70
101 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A86 2604465097	£5.58	£6.70
102 - CABLE L=130 MM BSD-2604448005.A27 2604448005	£1.75	£2.10
103 - CONNECTING CABLE L=55 MM BSD-1614448017.A14 1614448017	£2.16	£2.59
104 - CONNECTING CABLE L=78 MM BSD-2604448137.A38 2604448137	-
110 - STRAP-SHAPED HANDLE BSD-1615132067.A0 1615132067	£3.80	£4.56
111 - BRACKET HOLDER BSD-1618040070.A0 1618040070	-
112 - REFERENCE PLATE BSD-1601118B75.A25 1601118B75	£1.95	£2.34
120/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A251 2915011007	-
120/30 - WING SCREW M6x(15)55 BSD-1613480007.A107 1613480007	£1.75	£2.10
120/50 - CLAMPING PLATE M6 BSD-2608040014.A25 2608040014	-
120/60 - WING SCREW M6x20 MM BSD-1613480008.A330 1613480008	£1.75	£2.10
720 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A63 1619P10682	£12.49	£14.99
724 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A266 1613001005	-
754 - DRILL HOLDER BSD-2607000122.A78 2607000122	-
754 - DRILL HOLDER BSD-2607018117.A20 2607018117	-
756 - KEYLESS CHUCK BSD-1617000332.A16 1617000332	£93.88	£112.65
791 - CARRYING CASE BSD-2605438301.A2 2605438301	-
801 - MOTOR HOUSING BSD-1617000498.A4 1617000498	-
803 - ARMATURE WITH FAN 230-240V BSD-1614010703.A1 1614010703	£54.42	£65.30
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A79 1614460026	£18.96	£22.75
808 - NAMEPLATE BSD-160111A3H5.A6 160111A3H5	£2.61	£3.13
816/04 - CARBON-BRUSH SET BSD-1617014134.A75 1617014134	£8.67	£10.41
819 - GEAR HOUSING BSD-1615806131.A0 1615806131	£24.45	£29.34
820 - INTERMEDIATE FLANGE BSD-1617000981.A108 1617000981	£27.23	£32.68
821 - TOOL HOLDING FIXTURE BSD-1617000325.A11 1617000325	£40.80	£48.96
821/01 - TOOL HOLDING FIXTURE BSD-1617000326.A2 1617000326	£63.50	£76.20
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A107 1616328042	£40.80	£48.96
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A113 1617000517	£72.18	£86.62
830 - DRIVE BEARING BSD-1615819018.A109 1615819018	£51.22	£61.47
832 - CLAMP HANDLE BSD-1612026037.A70 1612026037	£10.82	£12.99
847 - GUIDE RING BSD-1617000348.A107 1617000348	£14.91	£17.89
886 - RETAINING RING BSD-1614601024.A147 1614601024	£1.75	£2.10
894 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A233 2603435015	£2.16	£2.59
899 - CHANGE-OVER SWITCH BSD-2607200231.A102 2607200231	£16.41	£19.69
