Black & Decker BEMW471BH Type 1 Mower Spare Parts

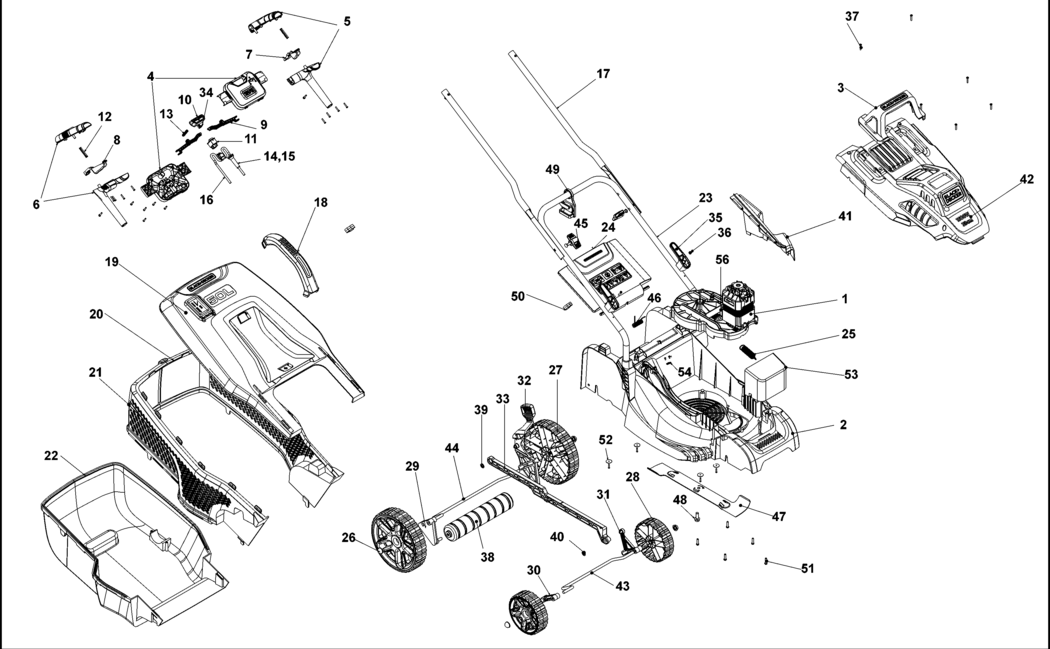

An exploded drawing and spare parts listing for the Black & Decker BEMW471BH Type 1 Mower

	Ex VAT	Inc VAT
1 - TRANSMISSION SA BDE-N586333.A0 N586333	£131.46	£157.75
2 - BOARD BDE-N501421.A1 N501421	£37.35	£44.82
3 - HANDLE BDE-N525936.A2 N525936	£3.30	£3.96
4 - HOUSING SWITCH BDE-N549270.A0 N549270	£9.41	£11.29
5 - HANDLE SA LH BDE-N549274.A1 N549274	£7.18	£8.62
6 - HANDLE SA RH BDE-N549276.A1 N549276	£7.18	£8.62
7 - TRIGGER BDE-N528681.A5 N528681	£1.50	£1.80
8 - TRIGGER BDE-N528682.A1 N528682	£1.50	£1.80
9 - LINK BDE-N529479.A0 N529479	£1.50	£1.80
10 - BUTTON LOCK-OFF BDE-N529480.A6 N529480	£1.50	£1.80
11 - SWITCH BDE-90562582.A8 90562582	£3.80	£4.56
12 - SPRING BDE-N549280.A3 N549280	£1.50	£1.80
13 - SPRING BDE-N568719.A1 N568719	£1.50	£1.80
15 - NO LONGER AVAILABLE GB BDE-000000-00.A31503 000000-00	-
16 - CABLE BDE-N549261.A2 N549261	£7.85	£9.42
17 - TUBE UPPER BDE-N527749.A0 N527749	£7.18	£8.62
17 - TUBE UPPER BDE-N527749.A1 N527749	£7.18	£8.62
18 - HANDLE BDE-90567333.A19 90567333	£2.78	£3.34
19 - COVER BDE-N550119 N550119	£12.17	£14.60
20 - GRASSBOX LEFT BDE-90566705.A0 90566705	£7.18	£8.62
21 - GRASSBOX RIGHT BDE-90566706.A6 90566706	£7.18	£8.62
22 - GRASSBOX BDE-90568884.A1 90568884	£16.03	£19.24
22 - GRASSBOX BDE-N572321 N572321	£14.57	£17.48
23 - TUBE LOWER BDE-N546454.A0 N546454	£17.48	£20.97
24 - GRASSFLAP BDE-90566704-02.A3 90566704-02	£7.18	£8.62
25 - SPRING TORSION BDE-N564205.A2 N564205	£1.50	£1.80
26 - WASHER LOCK BDE-90574276.A25 90574276	£1.50	£1.80
27 - WHEEL BDE-N525968.A6 N525968	£7.18	£8.62
27 - WHEEL BDE-N525968.A7 N525968	£7.18	£8.62
28 - WHEEL FRONT BDE-N525967.A0 N525967	£2.78	£3.34
28 - WHEEL FRONT BDE-N525967.A1 N525967	£2.78	£3.34
29 - BRACKET BDE-90561676-01.A14 90561676-01	£2.26	£2.71
30 - BRACKET BDE-90561653.A18 90561653	£1.50	£1.80
31 - BRACKET BDE-90561677.A1 90561677	£1.50	£1.80
32 - LEVER BDE-90567592-02.A5 90567592-02	£5.88	£7.06
33 - LEVER BDE-90562575.A4 90562575	£5.88	£7.06
35 - CLIP CABLE BDE-90571019-01.A9 90571019-01	£1.50	£1.80
35 - CLIP CABLE GB BDE-90571019-01.A10 90571019-01	£1.50	£1.80
36 - SCREW BDE-90589823.A23 90589823	£1.50	£1.80
36 - SCREW GB BDE-90589823.A24 90589823	£1.50	£1.80
37 - SCREW BDE-747329.A906 747329	£1.50	£1.80
38 - ROLLER GB BDE-90565682.A3 90565682	£5.88	£7.06
39 - WASHER LOCK BDE-90579432.A12 90579432	£1.50	£1.80
40 - WASHER LOCK BDE-90579431.A9 90579431	£1.50	£1.80
41 - COVER BDE-90566707.A1 90566707	£5.88	£7.06
42 - COVER SA BDE-N546819.A1 N546819	£16.03	£19.24
43 - AXLE FRONT BDE-90561651.A6 90561651	£5.88	£7.06
44 - AXLE REAR BDE-90561605.A1 90561605	£7.18	£8.62
45 - NUT PACK BDE-N548691.A8 N548691	£1.66	£1.99
46 - SPRING BDE-90569681.A7 90569681	£1.50	£1.80
47 - BLADE BDE-N520727.A1 N520727	£14.57	£17.48
48 - BOLT BDE-90516533.A10 90516533	£1.50	£1.80
49 - CLIP CABLE BDE-90568882-01.A2 90568882-01	£1.50	£1.80
50 - CLAMP BDE-90571653.A1 90571653	£1.50	£1.80
51 - SCREW BDE-330019-13.A275 330019-13	£1.50	£1.80
52 - WASHER BDE-90573272.A9 90573272	£1.50	£1.80
53 - WEIGHT BDE-N547161.A0 N547161	£17.48	£20.97
54 - CORD CLAMP BDE-821070.A255 821070	£1.50	£1.80
55 - SCREW BDE-573148-02.A0 573148-02	-
56 - TUBE BDE-90606208.A1 90606208	£1.50	£1.80
56 - TUBE BDE-90606208.A2 90606208	£1.50	£1.80
