Black & Decker KD990 Type 2 Rotary Hammer Spare Parts

Home Details Reviews Delivery

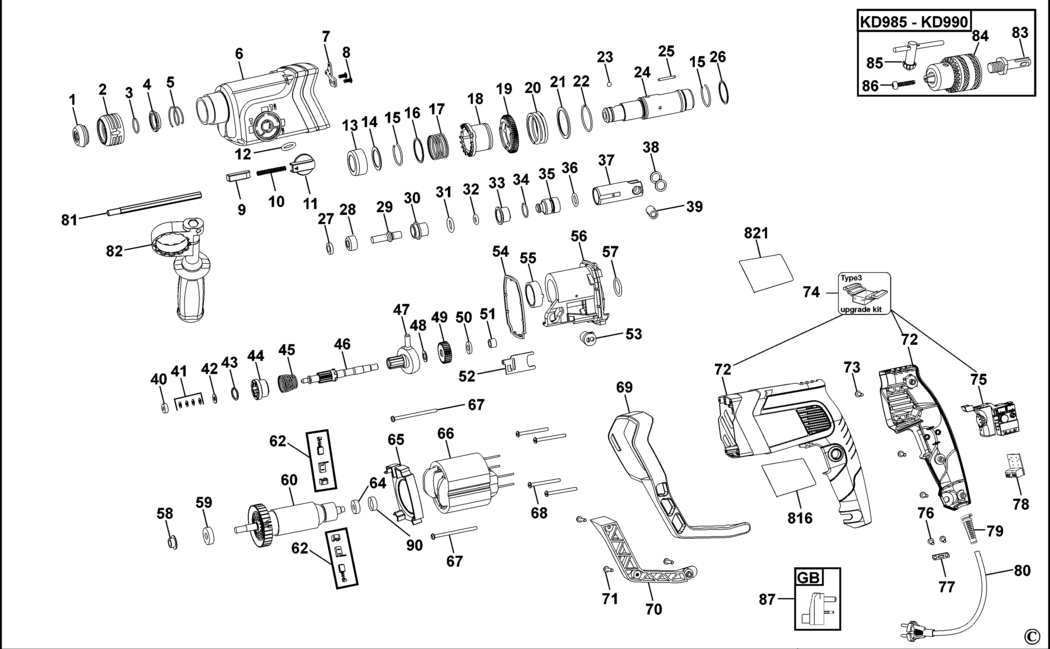

An exploded drawing and spare parts listing for the Black & Decker KD990 Type 2 Rotary Hammer

	Ex VAT	Inc VAT
1 - TIP BDE-90524563.A16 90524563	£1.66	£1.99
2 - COLLAR BDE-90524565.A10 90524565	£1.66	£1.99
3 - CLIP BDE-90553468.A4 90553468	£1.66	£1.99
4 - HOLDER BDE-90553469.A4 90553469	£1.66	£1.99
5 - SPRING BDE-90553470.A4 90553470	£1.66	£1.99
6 - GEARCASE BDE-90524523.A0 90524523	£14.57	£17.48
7 - BRAKE BDE-90553471.A10 90553471	£1.66	£1.99
8 - SCREW BDE-90553472.A9 90553472	£1.66	£1.99
9 - SELECTOR BDE-90524526N 90524526N	£1.66	£1.99
10 - SPRING BDE-90553473.A4 90553473	£1.66	£1.99
11 - KNOB BDE-90524525.A8 90524525	-
12 - SEAL BDE-90553474.A5 90553474	£1.66	£1.99
13 - BEARING BDE-90553475.A9 90553475	£4.83	£5.80
14 - WASHER BDE-90553476.A10 90553476	£1.66	£1.99
15 - RING BDE-90553477.A9 90553477	£1.66	£1.99
16 - RING BDE-90553478.A10 90553478	£1.66	£1.99
17 - SPRING BDE-90553479.A9 90553479	£1.66	£1.99
18 - SLEEVE BDE-90553480.A10 90553480	£7.18	£8.62
19 - GEAR BDE-90553481.A9 90553481	£7.18	£8.62
20 - SPRING BDE-90553482.A10 90553482	£1.66	£1.99
21 - RING BDE-90553483.A9 90553483	£1.66	£1.99
22 - RING BDE-90553484.A10 90553484	£1.66	£1.99
23 - BALL STEEL BDE-90550363.A16 90550363	£1.66	£1.99
24 - SHAFT BDE-90553486.A3 90553486	£34.00	£40.80
25 - PIN BDE-90553487.A8 90553487	£1.66	£1.99
26 - WASHER BDE-90553488.A3 90553488	£1.66	£1.99
27 - SEAL BDE-90553674.A11 90553674	£1.66	£1.99
28 - BLOCK BDE-90553490.A4 90553490	£2.32	£2.78
29 - COLUMN BDE-90553491.A4 90553491	£2.87	£3.44
30 - SLEEVE BDE-90553492.A4 90553492	£2.26	£2.71
31 - O RING BDE-90553493.A4 90553493	£1.66	£1.99
32 - O RING BDE-90553494.A4 90553494	£1.66	£1.99
33 - SLEEVE BDE-90553495.A4 90553495	£2.78	£3.34
34 - WIRE STEEL BDE-90553496.A4 90553496	£1.66	£1.99
35 - RAM BDE-90553497.A4 90553497	£7.40	£8.88
36 - O RING BDE-90553505.A7 90553505	£1.66	£1.99
37 - CYLINDER BDE-90553506.A1 90553506	£7.85	£9.42
38 - WASHER BDE-90549884.A24 90549884	£1.66	£1.99
39 - PIN BDE-90553557.A16 90553557	£3.92	£4.70
40 - BEARING BDE-90553558.A3 90553558	£2.32	£2.78
41 - WASHER BDE-90553559.A7 90553559	£1.66	£1.99
42 - RING BDE-90553508.A19 90553508	£1.66	£1.99
43 - RING BDE-90553509.A0 90553509	£1.66	£1.99
44 - CLUTCH BDE-90553510.A17 90553510	£7.40	£8.88
45 - SPRING BDE-90553511.A2 90553511	£1.66	£1.99
46 - TRANSMISSION SA BDE-90553512.A8 90553512	£7.40	£8.88
47 - BEARING BDE-90553513.A0 90553513	£19.90	£23.88
48 - WASHER BDE-90553514.A8 90553514	£1.66	£1.99
49 - GEAR BDE-90553515.A0 90553515	£7.40	£8.88
50 - BEARING BDE-90553516.A8 90553516	£3.80	£4.56
51 - BEARING BDE-90553517.A0 90553517	£3.80	£4.56
52 - PLATE BDE-90553518.A8 90553518	£1.66	£1.99
53 - KNOB BDE-90553519.A0 90553519	£1.66	£1.99
54 - RUBBER SEAL BDE-90553520.A8 90553520	£2.32	£2.78
55 - SLEEVE BEARING BDE-90553521.A0 90553521	£3.80	£4.56
56 - HOLDER BDE-90553522.A8 90553522	£12.53	£15.04
57 - O RING BDE-90553523.A0 90553523	£1.66	£1.99
58 - SEAL BDE-90553524.A8 90553524	£1.66	£1.99
59 - BEARING BDE-90553525.A0 90553525	£3.92	£4.70
60 - ARMATURE SA BDE-90534211.A8 90534211	£41.24	£49.49
62 - BRUSH & HOLDER 230V BDE-90592921-01.A9 90592921-01	£7.40	£8.88
64 - BEARING BDE-90553593.A4 90553593	£3.92	£4.70
65 - BAFFLE FAN BDE-90524500.A8 90524500	£1.66	£1.99
66 - FIELD SA BDE-90534218.A0 90534218	£34.00	£40.80
67 - SCREW BDE-330065-11.A6 330065-11	£1.66	£1.99
68 - SCREW BDE-330065-16.A4 330065-16	£1.66	£1.99
69 - HANDLE LH BDE-90528090.A2 90528090	£14.57	£17.48
70 - HANDLE RH BDE-90528089.A0 90528089	£9.41	£11.29
71 - SCREW BDE-330065-07.A21 330065-07	£1.66	£1.99
72 - CLAMSHELL SA BDE-N505470.A2 N505470	£37.35	£44.82
73 - SCREW BDE-330065-07.A22 330065-07	£1.66	£1.99
74 - CLAMSHELL SA inc 72+75 BDE-N505470.A1 N505470	£37.35	£44.82
75 - SWITCH SA BDE-90606284N.A3 90606284N	£12.53	£15.04
76 - SCREW BDE-330065-05.A24 330065-05	£1.66	£1.99
77 - CORD CLAMP BDE-329301-00.A47 329301-00	£1.66	£1.99
78 - PCB SA BDE-90552756.A1 90552756	£6.06	£7.27
79 - CORD PROTECTOR BDE-629648-00.A13 629648-00	£1.66	£1.99
80 - CORDSET GB BDE-90528535.A2 90528535	£18.00	£21.60
81 - DEPTH STOP BDE-580787-00.A265 580787-00	£1.66	£1.99
82 - SIDE HANDLE BDE-90533273.A0 90533273	£7.85	£9.42
83 - ADAPTOR BDE-352065.A30 352065	£15.01	£18.01
84 - CHUCK 13MM BDE-621050-00.A3 621050-00	£11.18	£13.41
85 - CHUCK KEY 13MM BDE-621400-00.A5 621400-00	£1.66	£1.99
86 - SCREW BDE-1005216-00.A2 1005216-00	£1.66	£1.99
87 - PLUG GB BDE-588384-01.A4 588384-01	£7.40	£8.88
90 - SLEEVE BEARING BDE-90553594.A4 90553594	£1.66	£1.99
816 - BRAND LABEL BDE-90524542.A0 90524542	£1.66	£1.99
821 - RATING PLATE GB BDE-90555032 90555032	£1.66	£1.99

Attribute Name	Value
Brand	Black & Decker
