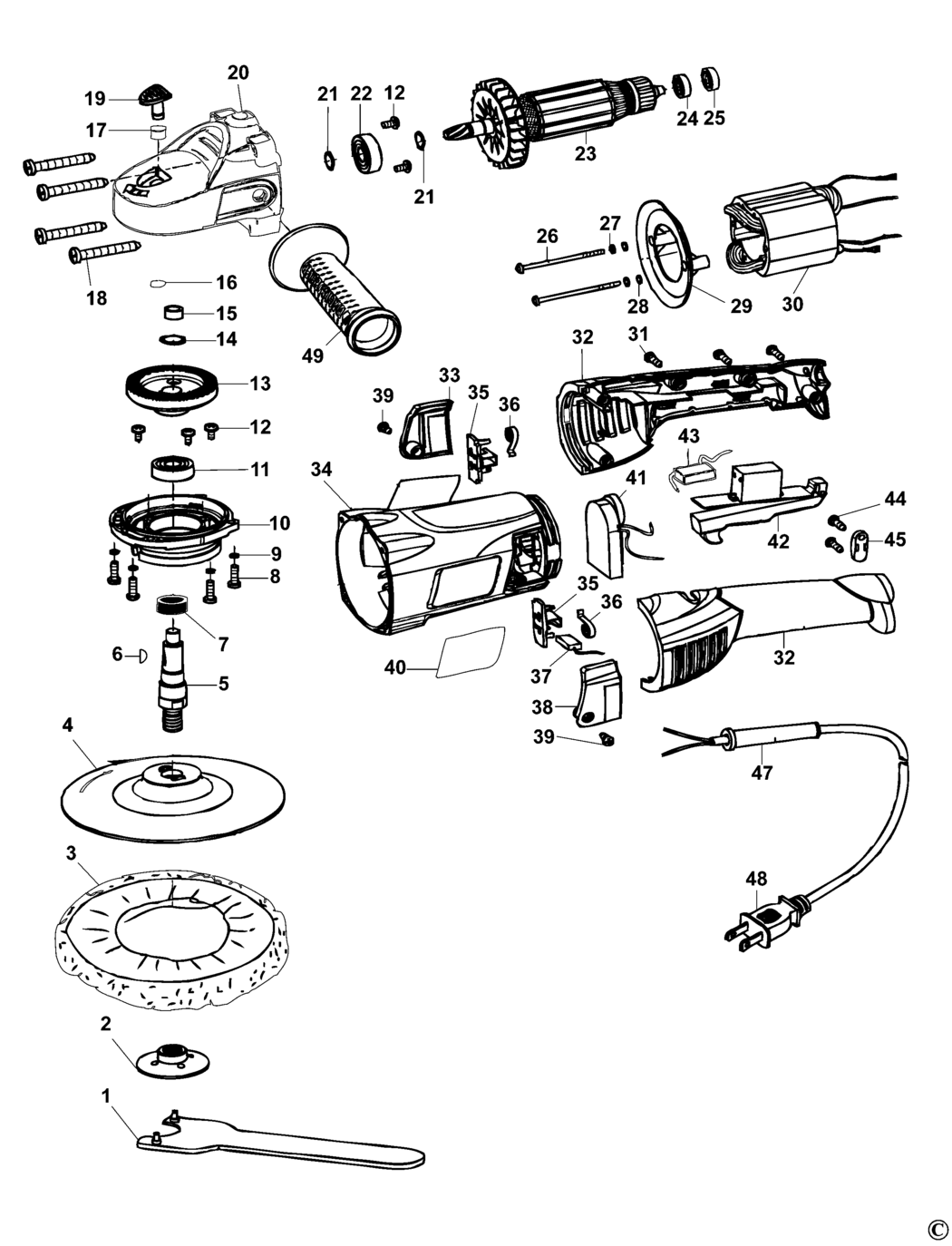

An exploded drawing and spare parts listing for the Black & Decker WP1500K Type 1 Polisher
Ex VAT Inc VAT
1 - WRENCH 4 MM BDE-5140090-55.A0 5140090-55 £3.30 £3.96
2 - OUTER FLANGE BDE-5140090-56.A4 5140090-56 £4.69 £5.63
3 - BONNET BDE-5140090-57.A0 5140090-57 £16.03 £19.24
4 - PAD VELCRO Optional BDE-5170017-31 5170017-31 £7.18 £8.62
4 - PAD BDE-5140090-58.A5 5140090-58 £12.17 £14.60
5 - SPINDLE BDE-5140090-59.A0 5140090-59 £7.18 £8.62
6 - WOODRUFF KEY BDE-5140090-60.A5 5140090-60 £1.50 £1.80
7 - SEAL BDE-5140090-61.A0 5140090-61 £1.50 £1.80
8 - SCREW BDE-5140090-62.A5 5140090-62 £1.50 £1.80
8 - SCREW BDE-5140090-62.A6 5140090-62 £1.50 £1.80
9 - WASHER BDE-5140090-63.A0 5140090-63 £1.50 £1.80
9 - WASHER BDE-5140090-63.A1 5140090-63 £1.50 £1.80
10 - HOUSING GEAR BDE-5140090-64.A5 5140090-64 £7.85 £9.42
11 - BEARING BDE-5140090-65.A0 5140090-65 £7.85 £9.42
12 - SCREW.SPECIAL BDE-5140090-66.A5 5140090-66 £1.50 £1.80
12 - SCREW.SPECIAL BDE-5140090-66.A6 5140090-66 £1.50 £1.80
13 - GEAR BDE-5140090-67.A0 5140090-67 £16.03 £19.24
14 - RING BDE-5140090-68.A5 5140090-68 £1.50 £1.80
15 - SLEEVE BEARING BDE-5140090-69.A0 5140090-69 £1.82 £2.19
16 - RING BDE-5140090-70.A5 5140090-70 £1.50 £1.80
17 - SPRING BDE-5140090-71.A0 5140090-71 £1.50 £1.80
18 - SCREW BDE-5140090-72.A5 5140090-72 £1.50 £1.80
18 - SCREW BDE-5140090-72.A6 5140090-72 £1.50 £1.80
19 - LOCK PIN BDE-5140090-73.A0 5140090-73 £1.50 £1.80
20 - HOUSING GEAR SA BDE-5140090-74.A4 5140090-74 £19.90 £23.88
21 - RING BDE-5140090-68.A6 5140090-68 £1.50 £1.80
21 - RING BDE-5140090-75.A0 5140090-75 £1.50 £1.80
22 - BEARING BDE-5140090-76.A5 5140090-76 £5.88 £7.06
23 - ARMATURE 220V BDE-5140090-77.A0 5140090-77 £99.47 £119.36
24 - BEARING BDE-5140090-76.A6 5140090-76 £5.88 £7.06
24 - BEARING BDE-5140090-79.A4 5140090-79 £1.82 £2.19
25 - SLEEVE BEARING BDE-5140090-80.A1 5140090-80 £1.50 £1.80
26 - SCREW BDE-5140090-81.A4 5140090-81 £1.50 £1.80
26 - SCREW BDE-5140090-81.A5 5140090-81 £1.50 £1.80
27 - WASHER BDE-5140090-63.A2 5140090-63 £1.50 £1.80
27 - WASHER BDE-5140090-82.A1 5140090-82 £1.50 £1.80
28 - WASHER BDE-5140090-83.A4 5140090-83 £1.50 £1.80
28 - WASHER BDE-5140090-83.A5 5140090-83 £1.50 £1.80
29 - BAFFLE FAN BDE-5140090-84.A1 5140090-84 £1.50 £1.80
30 - FIELD BDE-5140090-85.A4 5140090-85 £51.90 £62.28
31 - SCREW BDE-5140090-87.A1 5140090-87 £1.50 £1.80
31 - SCREW BDE-5140090-87.A2 5140090-87 £1.50 £1.80
32 - HANDLE SA BDE-5140090-88.A1 5140090-88 -
33 - BRUSH COVER BDE-5140090-89.A1 5140090-89 -
34 - FIELD CASE BDE-5140090-90.A1 5140090-90 -
35 - BRUSH HOLDER BDE-5140090-91.A1 5140090-91 £3.80 £4.56
35 - BRUSH HOLDER BDE-5140090-91.A2 5140090-91 £3.80 £4.56
36 - BRUSH SPRING BDE-5140090-92.A4 5140090-92 £1.50 £1.80
36 - BRUSH SPRING BDE-5140090-92.A5 5140090-92 £1.50 £1.80
37 - BRUSH 220V BDE-5140090-93.A1 5140090-93 £7.18 £8.62
39 - SCREW BDE-5140090-95.A3 5140090-95 £1.50 £1.80
39 - SCREW BDE-5140090-72.A8 5140090-72 £1.50 £1.80
40 - BRAND LABEL BDE-1004561-07 1004561-07 -
41 - SWITCH VARIABLE BDE-5140090-54.A3 5140090-54 £14.57 £17.48
41 - SWITCH VARIABLE BDE-5140090-98 5140090-98 -
42 - SWITCH BDE-5140091-00.A0 5140091-00 £9.41 £11.29
43 - CAPACITOR BDE-5140091-01.A2 5140091-01 £1.50 £1.80
44 - SCREW BDE-5140091-02.A0 5140091-02 £1.50 £1.80
44 - SCREW BDE-5140090-72.A7 5140090-72 £1.50 £1.80
45 - CORD CLAMP BDE-5140091-03.A5 5140091-03 £1.50 £1.80
47 - CORD PROTECTOR BDE-5140091-04.A0 5140091-04 £1.50 £1.80
48 - CORDSET BDE-5170010-70 5170010-70 -
49 - SIDE HANDLE BDE-5140091-09 5140091-09 -
802 - KITBOX BDE-5170010-71 5170010-71 -
