Metabo HC 300 W Planer / 0113030000 10 / EU 230V Spare Parts

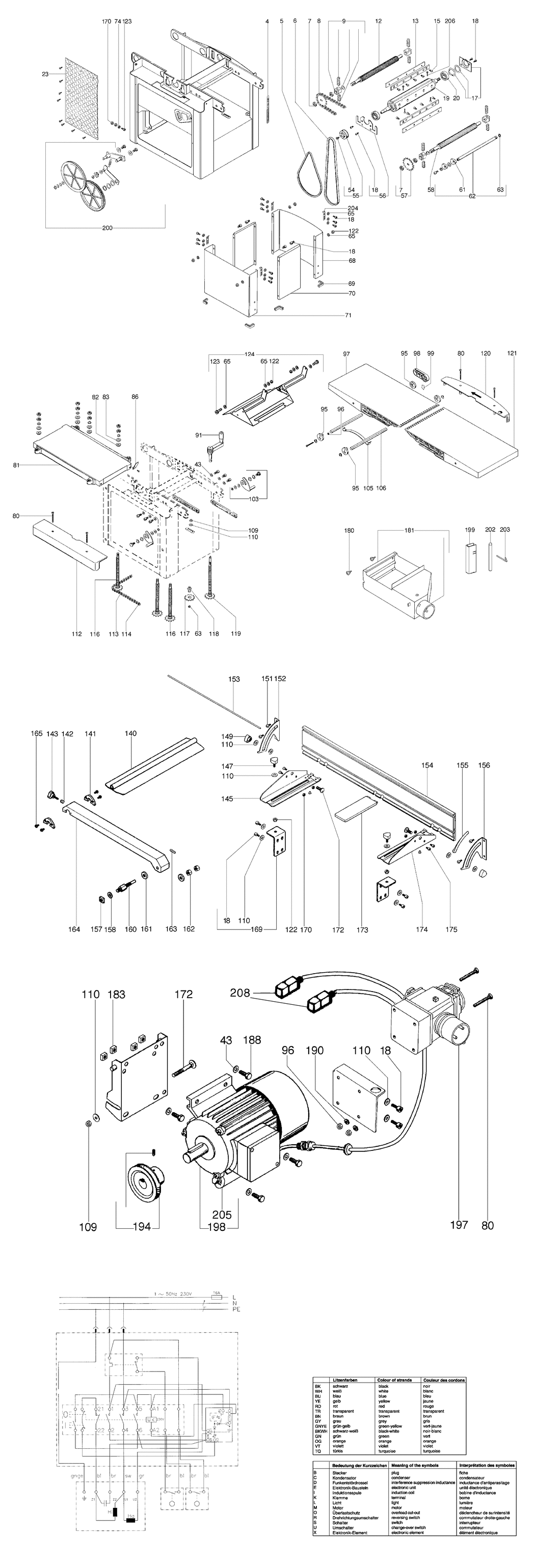

An exploded diagram and spare parts listing for the Metabo HC 300 W / 0113030000 10 / EU 230V

	Ex VAT	Inc VAT
4 - SCAL HC300 MET-1142702327.A3001 1142702327	-
5 - V-BELT 6/YX640L HC300 MET-7230702335.A3001 7230702335	-
6 - V-BELT 10/ZX830L HC300 MET-7230702343.A3000 7230702343	-
7 - HEXAGON THIN NUT MET-6205088367.A3001 6205088367	-
8 - ROLLER CHAIN 52 GLIEDER HC300 MET-7236702353.A3001 7236702353	-
9 - LAGERBRUECKE HC300 MET-1011702364.A3001 1011702364	-
12 - INFEED ROLLER HC 300 MET-1385702376.A3001 1385702376	-
13 - CUTTERBLOCK WEDGE II SATZ (2STÃœCK) HC300 MET-1482702380.A3001 1482702380	-
15 - CAP SCREW MET-141121940.A3013 141121940	£3.20	£3.84
17 - BEARING FLANGE HC300 MET-1011702399.A3000 1011702399	-
18 - CAP SCREW MET-141113840.A3000 141113840	£3.20	£3.84
19 - CUTTERBLOCK HC300 MET-1385702406.A3000 1385702406	-
20 - BALL BEARING MET-7100010164.A3000 7100010164	£8.70	£10.44
23 - LID ASSEMBLY HC300 MET-1382702413.A3001 1382702413	-
43 - WASHER MET-141151340.A3008 141151340	£1.50	£1.80
54 - COUNTERSUNK SCREW MET-6132087995.A3000 6132087995	£1.50	£1.80
55 - V-BELT PULLEY HC300 MET-7240702422.A3001 7240702422	-
56 - LOCKING PLATE HC300 MET-1382702430.A3001 1382702430	-
57 - CHAIN SPROCKET HC300 MET-7246702440.A3001 7246702440	-
58 - OUTFEED ROLLER HC300 MET-1385702457.A3001 1385702457	-
61 - RECOIL LOCK HC300 MET-1482702461.A3001 1482702461	-
62 - AXLE HC300 MET-1485702470.A3000 1485702470	-
63 - RETAINING RING MET-141180060.A3000 141180060	£1.50	£1.80
65 - WASHER MET-141151940.A3016 141151940	£1.50	£1.80
68 - SIDE PANE HC300 MET-1382702480.A3000 1382702480	-
69 - SOCKELFUESSE-SATZ HC300 MET-1011702496.A3001 1011702496	-
70 - FRONT+REAR PANEL HC300 MET-1382702502.A3001 1382702502	-
71 - SIDE PANEL HC300 MET-1382702510.A3000 1382702510	-
74 - SERRATED LOCK WASHER MET-141150410.A3004 141150410	£3.20	£3.84
80 - RAISED CHEESE HEAD SCREW M 5X65 VERZ. TK MET-6123695427.A3001 6123695427	£1.50	£1.80
81 - THICKNESSER BED HC300 MET-1380702521.A3000 1380702521	-
82 - BUSHING HC300 MET-1388702539.A3001 1388702539	-
83 - WASHER MET-6300016705.A3001 6300016705	£1.50	£1.80
86 - POINTER HC300 MET-1388702547.A3000 1388702547	-
91 - CRANK HANDLE ASSY HC300 MET-1011702550.A3000 1011702550	-
95 - CAM PLATE HC300 MET-1382702561.A3001 1382702561	-
96 - HEXAGONAL LOCK NUT MET-141130930.A3004 141130930	£1.50	£1.80
97 - JOINTING TABLE HC300 MET-1380702572.A3001 1380702572	-
98 - HANDLE FEED ADJUST MET-7005702580.A3001 7005702580	-
99 - SCALE HC300 MET-1142702599.A3001 1142702599	-
103 - CAM PLATE ASSEMBLY HC300 MET-1011702607.A3001 1011702607	-
105 - PRESSURE SPRING HC300 MET-7052702610.A3000 7052702610	-
106 - CAM BOLT HC300 MET-1385702627.A3000 1385702627	-
109 - HEXAGONAL NUT MET-141131010.A3002 141131010	£1.50	£1.80
110 - WASHER MET-6305002486.A3003 6305002486	-
112 - COVER HC300 MET-1381702630.A3001 1381702630	-
113 - ROLLER CHAIN 129 GLIEDER M.SCHLOÃŸ HC300 MET-7236702647.A3001 7236702647	-
114 - ROLLENKETTENSCHLOSS MET-7236702655.A3000 7236702655	-
116 - SPINDLE HC300 MET-1485702667.A3001 1485702667	-
117 - CHAIN SPROCKET HC300 MET-7246702670.A3000 7246702670	£20.12	£24.14
118 - TENSION BOLT HC300 MET-1485702683.A3000 1485702683	-
119 - SPINDLE HC300 MET-1485702691.A3001 1485702691	-
120 - COVER HC300 MET-1381702703.A3000 1381702703	-
121 - JOINTING TABLE HC300 MET-1380702718.A3000 1380702718	-
122 - HEXAGONAL LOCK NUT MET-141130650.A3004 141130650	£3.20	£3.84
123 - CAP SCREW MET-141113870.A3001 141113870	£3.20	£3.84
124 - CHIP EJECTION HOOD HC300 MET-1011702720.A3000 1011702720	-
140 - GLIDE PROFILE HC300 MET-1383702735.A3000 1383702735	-
141 - BUSHING HC300 MET-1381702746.A3000 1381702746	-
142 - CAP HC300 MET-1388702750.A3000 1388702750	-
143 - KNURLED THUMB SCREW M 6X25 VERZ. MET-6143071144.A3000 6143071144	£3.20	£3.84
145 - FENCE SEGMEN HC300 MET-1382702766.A3000 1382702766	-
147 - STARKNOB SCREW M 8X23 (DIN 933) VERZINKT MET-7001144191.A3000 7001144191	£3.82	£4.59
149 - STARKNOB NUT MET-7000017730.A3001 7000017730	£3.20	£3.84
151 - FILLISTER HEAD SCREW MET-141110640.A3002 141110640	-
152 - GUIDE PLATE HC300 MET-1382702774.A3001 1382702774	-
153 - PIN HC300 MET-1388702784.A3000 1388702784	-
154 - FENCE HC300 MET-1383702794.A3000 1383702794	-
155 - ARBOR TILT SCALE HC300 MET-1142702807.A3000 1142702807	-
156 - GUIDE PLATE HC300 MET-1382702812.A3000 1382702812	-
157 - HEXAGON THIN NUT MET-6205084779.A3000 6205084779	-
158 - WASHER MET-141150050.A3000 141150050	£1.50	£1.80
160 - BEARING SHAFT HC300 MET-1385702821.A3000 1385702821	-
161 - SAUCER SPRING MET-141150540.A3000 141150540	£1.50	£1.80
162 - HEXAGONAL NUT MET-141130130.A3000 141130130	£3.20	£3.84
163 - PRESSURE SPRING HC300 MET-7051702837.A3000 7051702837	-
164 - LEVER BLADE TILT HC300 MET-1382702847.A3000 1382702847	-
165 - FILLISTER HEAD SCREW MET-6172028215.A3004 6172028215	£1.50	£1.80
169 - FENCE BRACKET HC300 MET-1011702852.A3000 1011702852	-
170 - HEXAGONAL NUT MET-141130100.A3019 141130100	£1.50	£1.80
172 - TRUSS HEAD SCREW MET-6110017942.A3002 6110017942	£1.50	£1.80
173 - COVER PLATE HC300 MET-1382702863.A3000 1382702863	-
174 - FENCE SEGMEN HC300 MET-1382702871.A3001 1382702871	-
180 - KNURLED THUMB SCREW THIN TYPE M 5X16 VE MET-7009120054.A3000 7009120054	£3.82	£4.59
181 - DUST CHUTE HC300 MET-1011702887.A3001 1011702887	-
183 - SQUARE NUT MET-141131020.A3001 141131020	£3.20	£3.84
188 - HEXAGON HEAD SCREW MET-141110320.A3001 141110320	£3.20	£3.84
190 - WASHER MET-141150020.A3005 141150020	£1.50	£1.80
194 - AXLE HC300 MET-1388702890.A3000 1388702890	-
197 - SWITCH SSK UC230V HC300 MET-8131702907.A3000 8131702907	-
198 - MOTOR PLANER/THICKNESSER HC 230V HC300 MET-1011702925.A3000 1011702925	-
199 - PLANER BLADE SETTING GAUGE BL 2X43X45 MET-1382699986.A3000 1382699986	-
200 - POWER FEED ATTACHMENT HC300 MET-1011702950.A3001 1011702950	-
202 - PIN HC300 MET-1385702961.A3000 1385702961	-
203 - ALLEN HEXAGON KEY MET-9102016766.A3001 9102016766	-
204 - CONNECTING PLATE HC300 MET-1388702970.A3001 1388702970	-
205 - CAPACITOR 40UF/450V ET MET-8050683819.A3001 8050683819	-
206 - SLOTTED CHEESE HEAD SCREW M 4X25 VERZ. MET-6120025196.A3001 6120025196	-
208 - LIMIT SWITC 250VAC 10A MET-8116098270.A3001 8116098270	-
