Metabo DS 175 / 19175000 / EU 230V Spare Parts

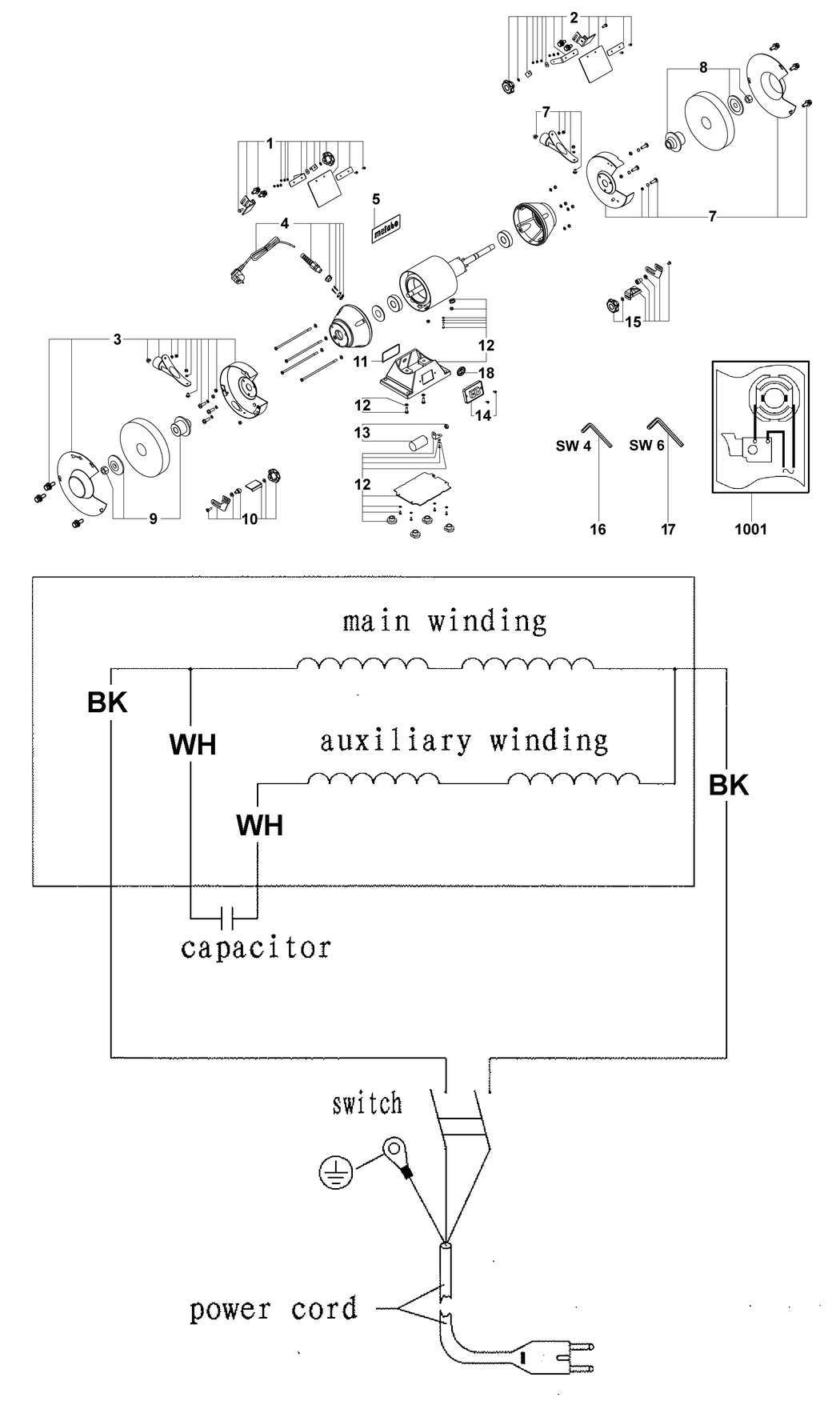

An exploded diagram and spare parts listing for the Metabo DS 175 / 19175000 / EU 230V

	Ex VAT	Inc VAT
1 - EYE PROTECTION CPL.LEFT MET-316046530.A0 316046530	£13.63	£16.36
2 - EYE PROTECTION RIGHT CPL. MET-316046540.A1 316046540	£13.63	£16.36
3 - WHEEL GUARD CPL.LEFT MET-316046490.A0 316046490	£54.94	£65.93
4 - CABLE WITH PLUG MET-344498200.A2 344498200	£17.55	£21.06
5 - METABO LABEL MET-338122270.A1 338122270	-
7 - WHEEL GUARD COMPL.RIGHT MET-316046510.A0 316046510	-
8 - FLANGE RIGHT CPL. MET-316046520.A1 316046520	-
9 - CLAMPING FLANGE COMPL.LEFT MET-316046500.A0 316046500	-
10 - SUPPORTING ANGLE CPL.LEFT MET-316046550.A0 316046550	£6.38	£7.65
11 - NAME PLATE MET-338053530.A0 338053530	-
12 - FOOT COMPL. MET-316046560.A2 316046560	£61.08	£73.30
13 - CONDENSER COMPL. MET-343254610.A0 343254610	£9.62	£11.54
14 - SWITCH COMPL. MET-343409350.A0 343409350	£32.88	£39.45
15 - SUPPORTING ANGLE RIGHT CPL. MET-316046570.A1 316046570	-
16 - HEXAGONAL KEY MET-344161530.A29 344161530	£3.20	£3.84
17 - HEXAGONAL KEY MET-344161510.A22 344161510	£3.20	£3.84
18 - INDICATION LABEL FULL-VIEW SAFETY GOGGLE MET-338122630.A11 338122630	-
1001 - WIRING DIAGRAM 230V MET-338505170.A3 338505170	-
