Hitachi / Hikoki TCS27EPAP Engine Chain Saw Spare Parts

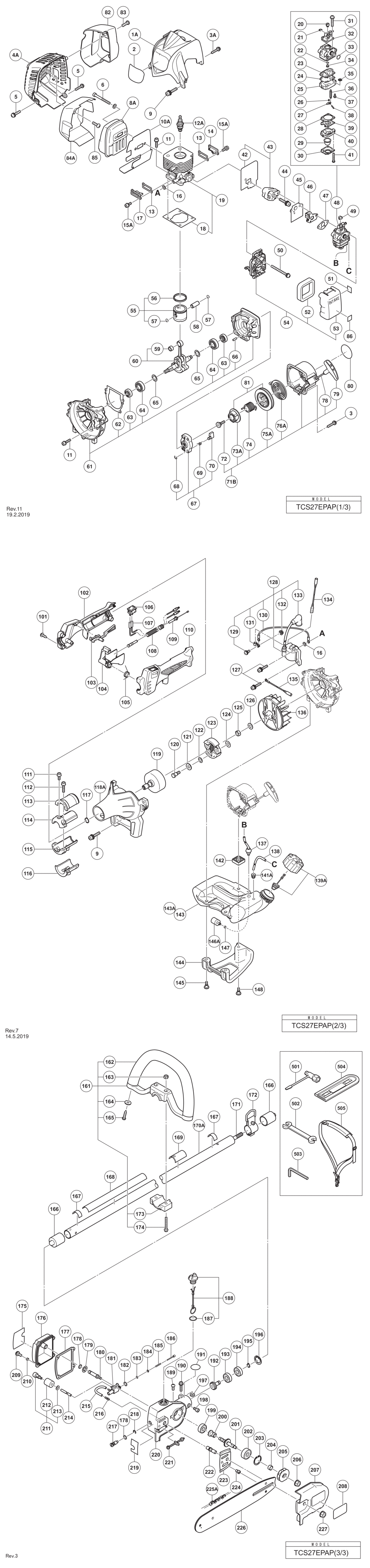

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCS27EPAP Engine Chain Saw

	Ex VAT	Inc VAT
1A - CYLINDER COVER HIT-6697921.A11 6697921	£8.59	£10.31
2 - TANAKA LABEL HIT-6696339.A10 6696339	-
3A - M4 SCREW (BLACK) HIT-6699780.A10 6699780	-
4A - MUFFLER COVER SINCE 11.2013 HIT-6600336.A9 6600336	£10.02	£12.02
5 - SCREW 5X16/PS HIT-6695386.A16 6695386	£1.67	£2.00
6 - HEX. HOLE BOLT M6X65 HIT-6695067.A37 6695067	£1.67	£2.00
7 - BOLT WASHER 6 HIT-6684639.A186 6684639	£1.67	£2.00
8A - MUFFLER (B) HIT-6600004.A4 6600004	-
9 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A14 6698950	-
10A - HEAT PROTECTION PANEL SINCE 11.2013 HIT-6600324.A8 6600324	-
11 - HEX. HOLE BOLT 5X20S HIT-6695491.A9 6695491	£1.67	£2.00
*12A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A72 6699316	£12.43	£14.92
*12A - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A13 6699322	£3.73	£4.48
13 - COVER PACKING HIT-6697684.A0 6697684	-
14 - SCAVENGING COVER (A) HIT-6698484.A22 6698484	-
15A - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A6 6684595	£1.67	£2.00
16 - WASHER T1.6 HIT-6684600.A61 6684600	-
17 - SCAVENGING COVER (B) HIT-6698485.A0 6698485	-
18 - CYLINDER GASKET HIT-6697681.A7 6697681	-
19 - CYLINDER SET PN INCLUD.18 HIT-6697679.A4 6697679	£39.62	£47.54
20 - SWIVEL HIT-6684697.A1 6684697	-
21 - STOP RING HIT-6684696.A218 6684696	-
22 - O-RING HIT-6684695.A1 6684695	£1.67	£2.00
23 - PUMP GASKET HIT-6684692.A0 6684692	£17.28	£20.73
24 - PUMP DIAPHRAGM HIT-6684693.A203 6684693	£5.70	£6.84
25 - PUMP BODY HIT-6699942.A4 6699942	-
26 - METERING LEVER SPRING HIT-6696323.A8 6696323	-
27 - CONTROL LEVER HIT-6685217.A29 6685217	-
28 - DIAPHRAGM GASKET HIT-6684691.A99 6684691	£5.70	£6.84
29 - PRIMING BODY HIT-6684689.A101 6684689	£5.87	£7.04
30 - DIAPHRAGM COVER HIT-6684688.A0 6684688	£5.70	£6.84
31 - THROTTLE SET SCREW HIT-6684698.A72 6684698	-
32 - THROTTLE VALVE HIT-6684883.A19 6684883	£32.24	£38.69
33 - O-RING P-15 HIT-6695670.A17 6695670	-
34 - MAIN JET #32 HIT-6699943.A6 6699943	-
35 - INLET SCREEN HIT-6684700.A240 6684700	-
36 - NEEDLE VALVE HIT-6685215.A45 6685215	£6.79	£8.15
37 - HINGE PIN SET SCREW HIT-6691305.A4 6691305	-
38 - HINGE PIN HIT-6685219.A45 6685219	-
39 - METERING DIAPHRAGM HIT-6684690.A0 6684690	£24.05	£28.86
40 - PRIMING PUMP COMP. HIT-6684687.A99 6684687	£9.27	£11.12
41 - SET SCREW HIT-6684699.A0 6684699	-
42 - INTAKE PACKING HIT-6697691.A0 6697691	-
43 - CARBURETOR INSULATOR SET PN INCLUD.42 HIT-6698954.A4 6698954	-
44 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A58 6698844	£1.67	£2.00
45 - CARBURETOR PACKING HIT-6684616.A0 6684616	£1.67	£2.00
46 - THROTTLE WIRE FIXING PLATE HIT-6684629.A16 6684629	-
47 - CARBURETOR GASKET HIT-6684615.A47 6684615	£1.67	£2.00
48 - CARBURETOR ASS'Y INCLUD.20-41 HIT-6698960.A10 6698960	£47.62	£57.14
50 - PLUS SCREW 5X60WS HIT-6695431.A10 6695431	-
51 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A25 6600327	-
52 - CLEANER ELEMENT HIT-6690347.A5 6690347	£7.15	£8.58
53 - AIR CLEANER CAP HIT-6690139.A13 6690139	£7.15	£8.58
54 - AIR FILTER ASS'Y INCLUD.52 HIT-6698961.A0 6698961	£8.46	£10.15
55 - PISTON SET PN INCLUD.56 HIT-6697683.A7 6697683	£15.61	£18.73
56 - PISTON RING HIT-6686121.A32 6686121	£6.47	£7.76
57 - CIR CLIP HIT-6684590.A10 6684590	£1.67	£2.00
58 - PISTON PIN HIT-6684591.A78 6684591	£3.29	£3.95
59 - NEEDLE BEARING HK0810B HIT-6695590.A0 6695590	-
60 - CRANK SHAFT ASS'Y INCLUD.59 HIT-6698969.A3 6698969	-
61 - CRANK CASE ASS'Y INCLUD.62-64 HIT-6697687.A7 6697687	-
62 - CRANK CASE PACKING HIT-6697688.A0 6697688	£1.67	£2.00
63 - OIL SEAL TB 12227 HIT-6684607.A43 6684607	£4.07	£4.88
64 - BALL BEARING 6001 C3 HIT-6684608.A154 6684608	£5.70	£6.84
65 - CRANK SHAFT WASHER HIT-6697685.A7 6697685	-
66 - KNOCK PIN 4X12 HIT-6695521.A34 6695521	-
67 - STARTER PULLEY ASS'Y INCLUD.68-70 HIT-6684681.A6 6684681	£18.16	£21.79
68 - D4E RETAINING RING HIT-6685101.A75 6685101	-
69 - STARTER PAWL SPRING HIT-6684684.A119 6684684	£3.29	£3.95
70 - STARTER PAWL HIT-6684685.A0 6684685	£5.07	£6.08
71B - RECOIL STARTER BODY ASS'Y INCLUD.72-76A HIT-6601570.A46 6601570	£23.15	£27.78
72 - SET SCREW HIT-6684679.A8 6684679	£2.98	£3.57
73A - CAM PLATE SINCE TL000001 HIT-6699996.A25 6699996	£4.28	£5.13
74 - DAMPER SPRING HIT-6684677.A0 6684677	£5.70	£6.84
75A - STARTER ROPE REEL SINCE TL000001 HIT-6699997.A64 6699997	-
76A - RECOIL SPRING HIT-6684675.A149 6684675	£8.82	£10.58
79 - STARTER HANDLE HIT-6684680.A109 6684680	£5.87	£7.04
80 - NAME PLATE HIT-000000.A4504 000000	-
81 - CAMPLATE ASS'Y INCLUD.73A HIT-6699691.A6 6699691	£7.75	£9.30
82 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600335.A6 6600335	£13.36	£16.03
83 - TAPPING SCREW D4 SINCE 11.2013 HIT-6600332.A6 6600332	£1.67	£2.00
84A - MUFFLER HEAT COVER SINCE 11.2013 HIT-6600422.A5 6600422	-
85 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A16 6600325	-
86 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A24 6600327	-
86 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A37 6699000	-
101 - TAPPING SCREW D4 HIT-6697190.A12 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A21 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A12 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A16 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A5 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A9 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A5 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A5 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A5 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A13 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A62 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A9 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A0 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A47 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A0 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A10 6684665	£3.58	£4.29
117 - STOP RING C-12 OUTER HIT-6684664.A0 6684664	£1.67	£2.00
118A - FAN CASE HIT-6697922.A2 6697922	-
119 - CLUTCH DRUM COMP. HIT-6684663.A10 6684663	£22.38	£26.85
120 - STEP BOLT HIT-6689627.A46 6689627	£1.67	£2.00
121 - BENT WASHER 8 HIT-6684648.A28 6684648	£1.67	£2.00
122 - CLUTCH PLATE (A) HIT-6689528.A18 6689528	£1.67	£2.00
123 - CLUTCH SET HIT-6697655.A19 6697655	£9.68	£11.62
124 - CLUTCH WASHER B HIT-6697619.A11 6697619	£1.67	£2.00
125 - HEX. NUT M8 HIT-6684612.A1 6684612	-
126 - BOLT WASHER M8 HIT-6684611.A114 6684611	-
127 - HEX. HOLE BOLT 4X18WS HIT-6695508.A7 6695508	£1.67	£2.00
*128 - IGNITION COIL ASS'Y INCLUD.133 HIT-6698492.A10 6698492	£28.42	£34.11
*128 - IGNITION COIL (A) ASS'Y INCLUD.123-133 FOR EUROPE HIT-6699941.A0 6699941	-
130 - EARTH CORD FOR EUROPE HIT-6699940.A4 6699940	-
131 - CLIP FOR EUROPE HIT-6699939.A3 6699939	-
132 - FLANGE NUT M4 FOR EUROPE HIT-6699938.A4 6699938	-
*133 - CORD FOR USA HIT-6696833.A11 6696833	-
133 - CORD HIT-000000.A4505 000000	-
134 - CORD HIT-6698964.A2 6698964	-
135 - CORD HIT-6697690.A9 6697690	-
136 - MAGNETO ROTOR COMP. HIT-6698396.A25 6698396	£11.52	£13.82
*137 - SHIELD TUBE 3X5X180 HIT-6684618.A8 6684618	£6.12	£7.35
*137 - SHIELD TUBE SET FOR USA HIT-6698970.A0 6698970	-
138 - FUEL PIPE 3X5X85 HIT-6684880.A5 6684880	£1.67	£2.00
139A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A18 6698402	£6.94	£8.33
140 - TANK CAP CHAIN HIT-6684625.A101 6684625	-
141A - RETURN GROMMET HIT-6684627.A80 6684627	£1.67	£2.00
142 - SPACER HIT-6698496.A3 6698496	-
*143 - TANK FOR USA HIT-6698377.A0 6698377	-
143A - TANK (B) HIT-6600317.A22 6600317	£12.36	£14.83
144 - STAND HIT-6694787.A12 6694787	£3.56	£4.27
145 - FLANGE BOLT HIT-6696557.A24 6696557	£1.67	£2.00
146A - PUMP FILTER BODY COMP HIT-66A3864.A66 66A3864	-
147 - CLIP 1 HIT-6684619.A9 6684619	£1.67	£2.00
148 - BOLT (W/FLANGE) L27.8 HIT-6698991.A12 6698991	-
161 - LOOP HANDLE ASS'Y ANTI-VIB. INCLUD.162-165 HIT-6696088.A8 6696088	-
162 - HANDLE GRIP HIT-6691098.A27 6691098	£10.90	£13.08
163 - HEX.NUT 6 HIT-6684835.A9 6684835	£1.67	£2.00
164 - BRAKE SHAFT WASHER HIT-6689681.A25 6689681	£1.67	£2.00
165 - TAPPING SCREW 5X20 HIT-6695255.A19 6695255	-
166 - CAP (A) HIT-6698515.A32 6698515	-
167 - LEVEL MARK HIT-6684851.A6 6684851	-
168 - CAUTION PLATE TANAKA HIT-000000.A2668 000000	-
169 - LEVEL MARK HIT-6684852.A35 6684852	-
170A - MAIN PIPE COMP. HIT-6699654.A0 6699654	-
171 - DRIVE SHAFT 1829L HIT-6689443.A0 6689443	-
172 - HANGER D24 EXCEPT FOR USA HIT-6689277.A10 6689277	-
173 - HANDLE BRACKET A HIT-6691134.A11 6691134	£3.10	£3.72
174 - BOLT 6X43/P (BLACK) HIT-6684838.A37 6684838	£1.67	£2.00
175 - OIL ADJUSTMENT MARK HIT-6694578.A0 6694578	£1.67	£2.00
176 - OIL TANK COVER HIT-6686138.A2 6686138	£2.81	£3.37
177 - OIL TANK PACKING HIT-6699567.A8 6699567	£2.77	£3.32
178 - O-RING P-5 HIT-6695661.A23 6695661	£1.67	£2.00
179 - 8 PUSH NUT HIT-6695239.A9 6695239	-
180 - STEP BOLT A HIT-6689757.A11 6689757	-
181 - OIL PUMP COMP. HIT-6686487.A7 6686487	£39.35	£47.22
183 - O-RING 1.4 HIT-6695656.A6 6695656	-
184 - WASHER 2 HIT-6695187.A9 6695187	-
185 - OIL PUMP SPRING HIT-6690381.A7 6690381	-
186 - OIL PUMP PISTON COMP. HIT-6686608.A7 6686608	-
187 - O-RING P-15 HIT-6698966.A13 6698966	£1.67	£2.00
188 - OIL TANK CAP ASS'Y INCLUD.187 HIT-6692050.A6 6692050	£15.87	£19.04
189 - SCREW 6X8 HIT-6695458.A2 6695458	-
190 - HEX. HOLE BOLT 5X22/S HIT-6695492.A21 6695492	-
192 - PINION HIT-6698967.A0 6698967	-
193 - BALL BEARING 609 HIT-6684734.A29 6684734	-
194 - BALL BEARING 609Z ST HIT-6684735.A11 6684735	£15.48	£18.57
195 - STOP RING C-9 1 HIT-6695281.A22 6695281	-
196 - STOP RING C-24 1 HIT-6684732.A40 6684732	£1.67	£2.00
198 - HEX. HOLE BOLT 5X10 HIT-6695042.A3 6695042	£1.67	£2.00
199 - BALL BEARING 627 C3 HIT-6695568.A9 6695568	£8.95	£10.74
200 - CAM HIT-6690428.A9 6690428	-
201 - GEAR HIT-6698968.A3 6698968	-
202 - BALL BEARING 638Z HIT-6697603.A4 6697603	-
203 - STOP RING C-28 1 HIT-6684741.A3 6684741	-
204 - COLLAR HIT-6685962.A8 6685962	-
205 - SPROCKET COMP. 1 HIT-6689117.A6 6689117	£47.37	£56.84
206 - FLANGE NUT 6 HIT-6695170.A38 6695170	£1.67	£2.00
207 - SIDE COVER COMP. HIT-6686038.A11 6686038	£9.67	£11.60
209 - SMALL SCREW 4X12WS HIT-6695403.A17 6695403	-
210 - COLLAR 3 HIT-000000.A2669 000000	-
211 - FILTER ASS'Y INCLUD.212 HIT-6690913.A8 6690913	-
212 - OIL FILTER HIT-6690917.A0 6690917	£1.67	£2.00
213 - WASHER 5 HIT-6684661.A10 6684661	£1.67	£2.00
214 - FUEL PIPE 3X5X60 HIT-6692414.A5 6692414	-
215 - FUEL PIPE 3X5X75 HIT-6692415.A6 6692415	-
216 - BANJO 1 HIT-6686637.A6 6686637	-
217 - OIL PUMP ADJUSTER HIT-6691066.A9 6691066	£8.79	£10.55
218 - STOP RING E-6 HIT-6695311.A8 6695311	£1.67	£2.00
219 - OIL MARK HIT-6694576.A3 6694576	-
220 - CASE HIT-6685793.A6 6685793	£12.52	£15.03
221 - CHAIN TENSIONER HIT-6687063.A4 6687063	£5.70	£6.84
222 - CHAIN BAR TIGHTENING BOLT HIT-6686803.A4 6686803	£8.53	£10.24
223 - GUIDE PLATE HIT-6697596.A7 6697596	£4.38	£5.26
224 - CHAIN BAR KNOCK PIN HIT-6687130.A9 6687130	-
225A - SAW CHAIN HIT-6699679.A3 6699679	£20.67	£24.80
226 - GUIDE BAR S/N HIT-6686875.A3 6686875	£33.19	£39.83
227 - CHAIN BAR CLAMP NUT HIT-6687105.A23 6687105	£1.67	£2.00
501 - COMBI. BOX SPANNER 13X19 MINUS HIT-6693809.A34 6693809	-
502 - WRENCH 8X10 HIT-6684766.A21 6684766	-
503 - HEX. BAR WRENCH 4MM HIT-6684813.A19 6684813	-
504 - GUIDE BAR COVER 1 HIT-6694796.A6 6694796	£11.79	£14.15
505 - SHOULDER BELT HIT-6692867.A2 6692867	£8.37	£10.04
601 - EXT-200 HIT-000000.A2672 000000	-
602 - EX-300 HIT-000000.A2673 000000	-
603 - REPAIR KIT (D-4) TILL 10.2013 FOR EUROPE HIT-6600037.A1 6600037	-

Attribute Name	Value
Brand	Hikoki

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCS27EPAP Engine Chain Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCS27EPAP Engine Chain Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
