Bosch GOF 2000 CE / 3601F49070 / GB 230 Volt Spare Parts

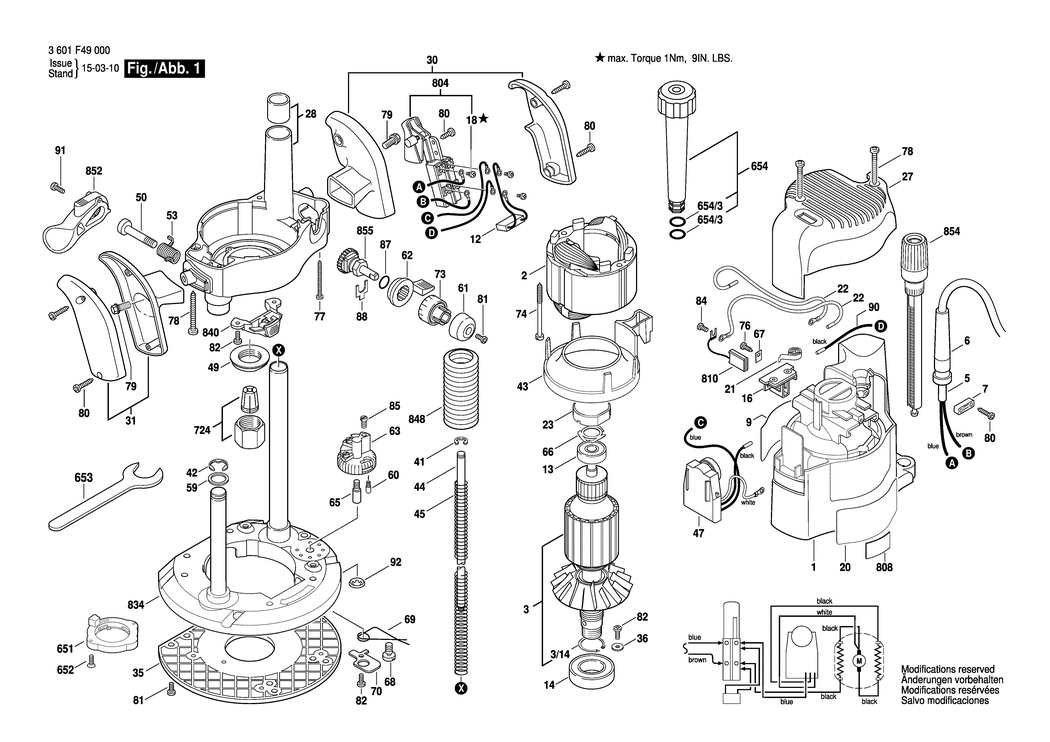

An exploded drawing and listing for the Bosch GOF 2000 CE / 3601F49070 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610996079.A2 2610996079	£31.64	£37.97
2 - FIELD 230V BSD-2610927767.A0 2610927767	£68.42	£82.10
3 - ARMATURE 230V BSD-2610927769.A2 2610927769	£187.56	£225.07
3/14 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A138 2916650014	£1.75	£2.10
5 - POWER SUPPLY CORD GB 4.25m 2 x 1.0mm H0 7RN-F BSD-2610997017.A2 2610997017	-
6 - GROMMET dia 9.4 MM BSD-3600707503.A64 3600707503	£3.72	£4.47
7 - CABLE CLIP BSD-2601035001.A742 2601035001	£1.75	£2.10
9 - WARNING PLATE BSD-2610998878.A1 2610998878	£3.72	£4.47
12 - CONDENSER BSD-2610997184.A6 2610997184	£8.67	£10.41
13 - BALL BEARING BSD-2610917489.A3 2610917489	£10.10	£12.12
14 - GROOVE BALL BEARING BSD-3600900526.A2 3600900526	£31.64	£37.97
16 - BRUSH HOLDER BSD-1604336008.A107 1604336008	£21.52	£25.83
18 - SCREW BSD-2610904114.A0 2610904114	-
20 - NAMEPLATE BSD-2610998879.A7 2610998879	£3.72	£4.47
21 - SPIRAL SPRING BSD-1614652001.A32 1614652001	£3.72	£4.47
22 - CABLE BSD-2610925811.A3 2610925811	£2.16	£2.59
23 - RUBBER BUSHING BSD-2610921057.A1 2610921057	£2.61	£3.13
27 - HOUSING COVER BSD-2610996083.A6 2610996083	£13.12	£15.75
28 - HOUSING BSD-2610996148.A0 2610996148	£72.18	£86.62
30 - HANDLE BSD-2610996106.A7 2610996106	£18.96	£22.75
31 - HANDLE BSD-2610996107.A1 2610996107	£18.96	£22.75
35 - BASE PLATE BSD-2610023231.A1 2610023231	£10.82	£12.99
36 - PLAIN WASHER DIN 9021-B 4.3-ST BSD-2916011892.A0 2916011892	£1.75	£2.10
41 - LOCKING WASHER BSD-3600149500.A2 3600149500	£2.61	£3.13
42 - RETAINING SNAP RING BSD-2610931544.A0 2610931544	£1.75	£2.10
43 - BAFFLE BSD-2610996118.A7 2610996118	£7.36	£8.83
44 - LOCK BOLT BSD-2610996119.A1 2610996119	£4.26	£5.11
45 - COMPRESSION SPRING BSD-2610996120.A7 2610996120	£3.72	£4.47
47 - SPEED GOVERNOR BSD-1607233177.A0 1607233177	£36.63	£43.96
49 - NUT BSD-2610997139.A6 2610997139	£11.30	£13.56
50 - LOCKING BOLT BSD-2610996125.A1 2610996125	£7.36	£8.83
53 - CLAMPING SPRING BSD-2610996128.A7 2610996128	£2.16	£2.59
59 - WASHER BSD-2610913476.A7 2610913476	£1.75	£2.10
60 - RATCHET CAP BSD-2600590006.A1080 2600590006	£1.75	£2.10
61 - KNOB BSD-3603231539.A7 3603231539	£2.33	£2.80
62 - LOCKING LEVER BSD-2610996135.A2 2610996135	£6.52	£7.83
63 - DEPTH-GAUGE BSD-2610997010.A6 2610997010	£10.10	£12.12
65 - DEPTH-GAUGE BSD-2610909058.A1 2610909058	£7.36	£8.83
66 - SPRING WASHER BSD-2610921140.A2 2610921140	£2.61	£3.13
67 - TAB WASHER BSD-1601030022.A330 1601030022	£1.75	£2.10
68 - BUTTON BSD-2610997003.A5 2610997003	£4.26	£5.11
69 - SPRING CLIP BSD-2610996138.A6 2610996138	£1.75	£2.10
70 - COVER PLATE BSD-2610996139.A2 2610996139	£2.61	£3.13
73 - INDICATOR RING BSD-2610997012.A2 2610997012	£4.26	£5.11
74 - SCREW BSD-2610918049.A10 2610918049	£2.16	£2.59
76 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A400 2603490021	£1.75	£2.10
77 - SCREW BSD-2610996142.A6 2610996142	£1.75	£2.10
78 - SCREW B 4.8x45 MM BSD-3603415560.A59 3603415560	£1.75	£2.10
79 - SCREW BSD-2610996143.A2 2610996143	£1.75	£2.10
80 - SCREW BSD-2610913441.A9 2610913441	£1.75	£2.10
81 - SCREW BSD-2610915161.A55 2610915161	£3.34	£4.01
82 - THREAD-FORMING TAP. SCREW DIN 7500 CM 4x10 BSD-2914411046.A3 2914411046	-
84 - OVAL-HEAD SCREW DIN 7985-M4x8-8.8-H BSD-2910951118.A63 2910951118	£1.75	£2.10
85 - SOCKET HEAD CAP SCREW BSD-3603410504.A52 3603410504	£2.52	£3.02
87 - O-RING BSD-2610913573.A6 2610913573	£1.75	£2.10
88 - WASHER BSD-2610997008.A8 2610997008	£1.75	£2.10
90 - CABLE BSD-2610925812.A2 2610925812	£1.75	£2.10
91 - SCREW BSD-2610913825.A7 2610913825	£1.75	£2.10
92 - NUT BSD-2610909072.A2 2610909072	£1.75	£2.10
651 - GUIDE SLEEVE BSD-2610991370.A19 2610991370	£31.64	£37.97
652 - COUNTERSUNK-HEAD SCREW DIN 965-M4x12-8.8 BSD-2910871122.A15 2910871122	-
653 - SINGLE-HEAD ENG. WRENCH BSD-2610992417.A16 2610992417	£16.41	£19.69
654 - ADJUSTMENT KNOB BSD-2610907529.A8 2610907529	£4.26	£5.11
654/3 - LOCATING RING BSD-2610015629.A1 2610015629	£1.75	£2.10
724 - COLLET 6 MM BSD-2608570103.A24 2608570103	£25.82	£30.99
724 - COLLET 1/4 BSD-2608570104.A12 2608570104	£24.49	£29.39
724 - COLLET 8 MM BSD-2608570105.A20 2608570105	£27.12	£32.54
724 - COLLET 3/8 BSD-2608570106.A12 2608570106	£27.99	£33.59
724 - COLLET 12 MM BSD-2608570107.A24 2608570107	£27.12	£32.54
724 - COLLET 10 MM BSD-2608570125.A6 2608570125	-
804 - ON-OFF SWITCH BSD-2610997157.A1 2610997157	£33.74	£40.49
808 - NAMEPLATE BSD-2610946678.A0 2610946678	-
810 - CARBON-BRUSH SET BSD-2610997152.A7 2610997152	£18.96	£22.75
834 - BASE PLATE BSD-2610996147.A6 2610996147	£134.16	£160.99
840 - LOCKING DEVICE BSD-2610910606.A6 2610910606	-
848 - BELLOWS BSD-2610923615.A5 2610923615	£7.36	£8.83
852 - LOCKING LEVER BSD-2610997148.A6 2610997148	£21.42	£25.71
854 - FINE-ADJUSTING DEVICE BSD-2610910608.A2 2610910608	£31.64	£37.97
855 - CONVERSION GEAR BSD-2610996149.A8 2610996149	£21.52	£25.83
