Metabo TKHS 315M/2 50 WNB / 0103153039 11 / GB 110V Spare Parts

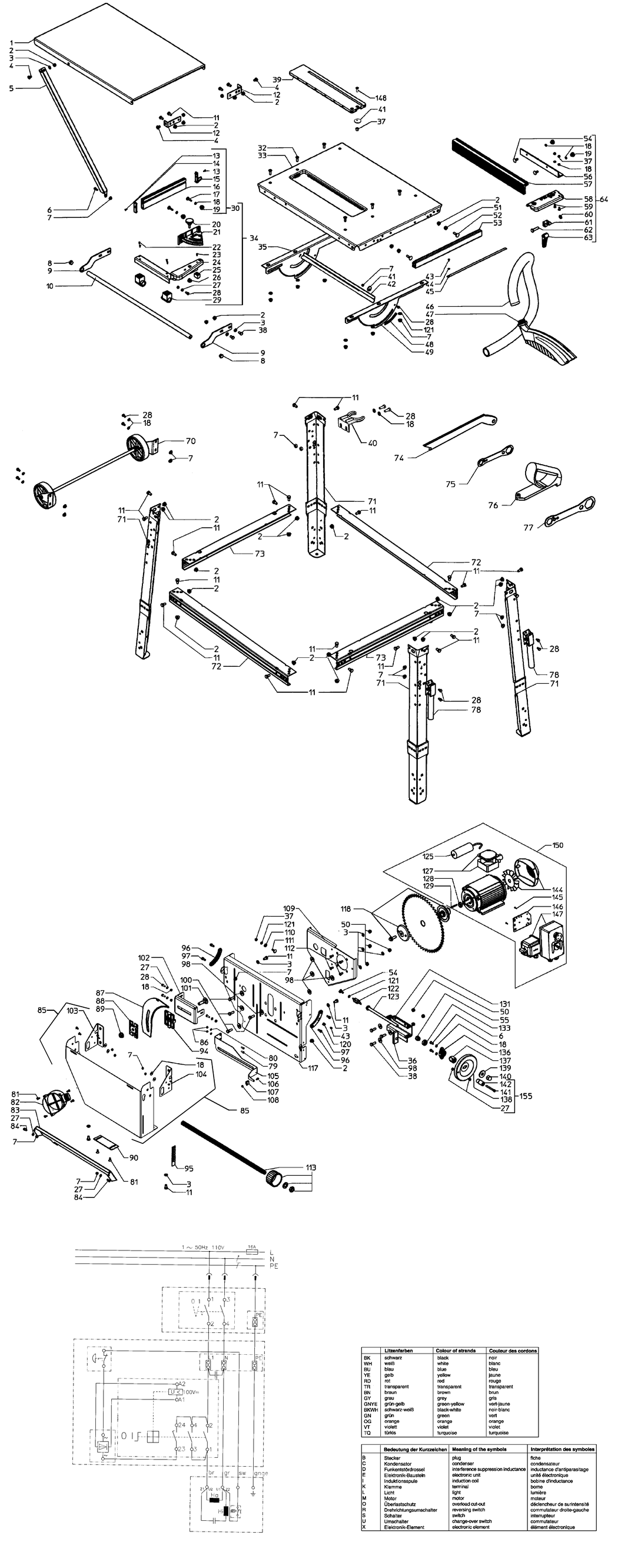

An exploded diagram and spare parts listing for the Metabo TKHS 315M/2 50 WNB / 0103153039 11 / GB 110V

	Ex VAT	Inc VAT
1 - EXTENSION PLATE BL 2 00X572X832 TKHS315M MET-1382693309.A26 1382693309	£60.03	£72.04
2 - FLANGE NUT MET-6209110995.A0 6209110995	£1.50	£1.80
3 - WASHER MET-141151340.A110 141151340	£1.50	£1.80
4 - BEARING BOLT MET-1395200611.A41 1395200611	£4.76	£5.71
5 - SUPPORT BL 1 00X70X764 MET-1382678121.A22 1382678121	£22.96	£27.55
6 - HEX.SOCKET COUNTERS.HEAD SCREW M 6X10 VE MET-6132685086.A5 6132685086	£1.50	£1.80
7 - FLANGE NUT MET-6209114230.A53 6209114230	£1.50	£1.80
8 - PLUG RD20/15-17X11 MET-1381693917.A3 1381693917	£2.94	£3.53
9 - BRACKET PRESSURE ROLLER BD 2 MET-1382693828.A9 1382693828	£13.63	£16.36
10 - CROSSCUT FENCE GUIDE ROD RD 20X2X820 TKH MET-1485693889.A24 1485693889	£26.35	£31.62
11 - HEX HEAD SCREW MET-6103001178.A68 6103001178	£1.50	£1.80
12 - ANGLE BRACKET BL 2 50X30X116 MET-1382693856.A51 1382693856	£17.55	£21.06
13 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A93 141123420	£1.50	£1.80
14 - END PIECE MET-2391091725.A9 2391091725	£3.20	£3.84
15 - PLUG QUERANSCHLAG MET-1391200145.A15 1391200145	£4.76	£5.71
16 - FENCE EXTRUSION 300 MM MET-1393005315.A22 1393005315	£22.61	£27.13
17 - TRUSS HEAD SCREW MET-141124490.A11 141124490	£2.94	£3.53
18 - WASHER MET-141151940.A154 141151940	£1.50	£1.80
19 - KNURLED NUT MET-6241125058.A13 6241125058	£3.20	£3.84
20 - STARKNOB SCREW M 8X23 (DIN 933) VERZINKT MET-7001144191.A6 7001144191	£3.82	£4.59
21 - STOP RULE MET-1390018033.A6 1390018033	£22.61	£27.13
22 - CROSS RECD PAN HEAD TAP.SCREW ST 3 5X16 MET-6172032905.A11 6172032905	£1.50	£1.80
23 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A53 6174155800	£1.50	£1.80
24 - STOP RULE LOWER BL 2 MET-1382409775.A15 1382409775	£26.35	£31.62
25 - GLIDE PIECE MET-1381410559.A20 1381410559	£3.20	£3.84
26 - CAGE NUT M 8 BLECHSTÄRKE 1 MET-6264139374.A42 6264139374	£3.20	£3.84
27 - HEXAGONAL NUT MET-141130100.A7 141130100	£1.50	£1.80
28 - HEXAGON HEAD SCREW MET-141113290.A88 141113290	£1.50	£1.80
29 - GUIDE PIECE QUERANSCHLAG MET-1381409879.A6 1381409879	£4.76	£5.71
30 - FENCE EXTRUSION 300 MM MET-1010017811.A17 1010017811	£26.35	£31.62
32 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A48 6130019585	£1.50	£1.80
33 - TABLE PANEL BL 2 00X668X868 TKHS315M MET-1382693287.A17 1382693287	£55.90	£67.08
34 - MITRE FENCE ASSEMBLY ET MET-1010186710.A9 1010186710	£63.44	£76.13
35 - CHIP CASE GUIDE PANEL BL 2 00X163X440 HI MET-1482693691.A20 1482693691	£36.59	£43.91
36 - BRACKET FL 25X10X65 TKHS315M MET-1482693179.A20 1482693179	£22.61	£27.13
37 - HEXAGONAL LOCK NUT MET-141130650.A140 141130650	£3.20	£3.84
38 - HEXAGON HEAD SCREW MET-141114860.A114 141114860	£3.20	£3.84
39 - REMOVABLE TABLE SECTION MET-1381406667.A20 1381406667	£19.18	£23.02
40 - HOSE CARRIER TKHS 315 D&D ET MET-1382721906.A5 1382721906	£4.76	£5.71
41 - CAM PLATE BL 2 99XRD25/RDI 6 MET-1482408962.A21 1482408962	£1.50	£1.80
42 - GUARD PLATE TKHS 315 D&D ET MET-1382721892.A14 1382721892	£8.37	£10.04
43 - FILLISTER HEAD SCREW MET-6172028215.A70 6172028215	£1.50	£1.80
44 - WASHER MET-141150110.A51 141150110	£1.50	£1.80
45 - SCALE 0 30X13X413 0 MET-1142694260.A3 1142694260	£8.37	£10.04
46 - CORRUGATED HOSE RDI 36 2X1500 PROFIL D MET-7854158010.A5 7854158010	£26.35	£31.62
47 - SAW BLADE GUARD W/SUCTION PORT TKHS315M MET-1010692594.A5 1010692594	-
48 - ARBOR TILT SCALE 0 25X13 47-0 GRAD MET-1142694464.A22 1142694464	£6.38	£7.65
49 - CHIP CASE GUIDE PANEL BL 2 00X163X440 VO MET-1482693683.A6 1482693683	£36.59	£43.91
50 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A86 6202002305	£1.50	£1.80
51 - SPACER SLEEVE MET-1485412910.A21 1485412910	£3.20	£3.84
52 - TRUSS HEAD SCREW MET-6110000659.A28 6110000659	£1.50	£1.80
53 - FENCE GUIDE EXTRUSION 463 MM TKHS315M MET-1383694279.A21 1383694279	£30.06	£36.07
54 - TRUSS HEAD SCREW MET-6110031325.A34 6110031325	£1.50	£1.80
55 - NUT MET-1485693161.A3 1485693161	£3.20	£3.84
56 - ANGLE KGT 501 MET-1383680260.A23 1383680260	£36.59	£43.91
57 - RIP FENCE EXTRUSION 570 MM MET-1383158458.A19 1383158458	£42.65	£51.18
58 - LOCKING ELEMENT MET-1382680053.A5 1382680053	£54.94	£65.93
59 - COUNTERSUNK SCREW MET-6132087995.A15 6132087995	£1.50	£1.80
60 - STARLOCK MET-7016050711.A63 7016050711	£1.50	£1.80
61 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A27 1392205620	£3.20	£3.84
62 - BOLT WITH HEAD MET-6632111175.A14 6632111175	£3.82	£4.59
63 - CAM LOCK LEVER MET-2390205484.A43 2390205484	£9.62	£11.54
64 - PARALLEL GUIDE KGT501/TKHS MET-1010680243.A21 1010680243	£71.39	£85.67
70 - WHEEL SET TKHS315M GUMMIBEREIFT MET-1010692586.A15 1010692586	£32.88	£39.45
71 - LEG BL 1 5X142X842 TKHS315M MET-1382693597.A18 1382693597	£32.88	£39.45
72 - STANCHION BL 1 5X118X844 LANG MET-1382407080.A16 1382407080	£17.55	£21.06
73 - STANCHION BL 1 5X118X644 KURZ / TKHS315M MET-1382693813.A16 1382693813	£17.55	£21.06
74 - PUSH STICK MET-343433180.A51 343433180	-
75 - OPEN END SPANNER BL 3X43/15X145 SW 19X14 MET-1392038481.A38 1392038481	£5.62	£6.75
76 - SLIDING HANDLE RED MET-1388680470.A35 1388680470	£42.65	£51.18
77 - KEY MET-1492102829.A43 1492102829	£11.78	£14.13
78 - HANDLE BAR (PAIR) TKHS315C/M MET-1010689330.A12 1010689330	£11.78	£14.13
79 - RAISED CHEESE HEAD SCREW MET-6123612815.A27 6123612815	£1.50	£1.80
80 - WASHER MET-141150120.A16 141150120	£1.50	£1.80
81 - FILLISTER HEAD SCREW MET-6172001830.A61 6172001830	£1.50	£1.80
82 - DUST EXTRACTION PORT TKHS315C/M MET-1381689227.A45 1381689227	£9.62	£11.54
83 - COVER BL 1 50X116X613 MET-1382694160.A21 1382694160	£26.35	£31.62
84 - CAP SCREW MET-141113840.A48 141113840	£3.20	£3.84
85 - CHIPCASE BL 2 00X350X600 TKHS315M MET-1382694119.A15 1382694119	£63.44	£76.13
86 - CAP SCREW MET-6127059207.A9 6127059207	£1.50	£1.80
87 - SPLITTING BLADE TKHS315M MET-1382693643.A4 1382693643	-
88 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A19 1382213749	£3.20	£3.84
89 - FLANGE NUT MET-6209002432.A0 6209002432	£3.82	£4.59
90 - SLIDE PLATE BL 1 5X48X137 MET-1382407110.A10 1382407110	£3.20	£3.84
94 - RIVING KNIFE CARRIER VORNE TKHS315M MET-1380693255.A20 1380693255	£15.41	£18.49
95 - SCALE 0 25X20X114 0-85 MM MET-1142694472.A1 1142694472	£5.62	£6.75
96 - SWIVEL SEGMENT TKHS-M MET-1380729756.A6 1380729756	£6.38	£7.65
97 - HEXAGON HEAD SCREW MET-6103121416.A89 6103121416	£1.54	£1.85
98 - WASHER MET-6305002486.A126 6305002486	-
100 - HEXAGON HEAD SCREW MET-141110320.A26 141110320	£3.20	£3.84
101 - CUP SQUARE NECK SCREW M 12X50 VERZ. MET-6110019007.A1 6110019007	£3.20	£3.84
102 - RIVING KNIFE CARRIER PLATE TKHS 315 D&D MET-1382721876.A5 1382721876	£19.18	£23.02
103 - ANGLE BRACKET TKHS 315 D&D ET MET-1482721857.A13 1482721857	-
104 - ANGLE BRACKET TKHS 315 D&D ET MET-1482721849.A6 1482721849	£11.78	£14.13
105 - POINTER BLADE TILT TKHS 315 D&D E MET-1382721868.A1 1382721868	-
106 - RAISED CHEESE HEAD SCREW MET-141124560.A21 141124560	£2.94	£3.53
107 - POINTER RAL 3000-3003 MET-2391203523.A7 2391203523	£1.50	£1.80
108 - HEXAGONAL LOCK NUT MET-141130930.A16 141130930	£1.50	£1.80
109 - MOTOR PLATE TKHS 315 D&D ET MET-1382721884.A0 1382721884	£19.18	£23.02
110 - CUP SPRING MET-141155660.A27 141155660	£1.50	£1.80
111 - CUP SQUARE NECK SCREW MET-6110000608.A21 6110000608	£1.50	£1.80
112 - HEX.SOCKET COUNTERS.HEAD SCREW MET-6132661454.A22 6132661454	£1.50	£1.80
113 - RACK COMPL. MET-316097060.A15 316097060	£22.96	£27.55
117 - CHIP CASE TKHS315 D&D MET-1382722031.A18 1382722031	£73.52	£88.23
118 - BLADE COLLAR ASSEMBLY ET MET-1010689240.A10 1010689240	£22.96	£27.55
120 - ANGLE POINTER BL 1 50X10X21 MET-1482681987.A22 1482681987	£3.20	£3.84
121 - WASHER MET-141150130.A194 141150130	£1.50	£1.80
122 - WING NUT M 6 MET-7005155791.A32 7005155791	£3.82	£4.59
123 - HEXAGON HEAD SCREW M 12-10 207LANG VER MET-6103722010.A4 6103722010	£7.36	£8.83
125 - CAPACITOR 120UF TKHS 315 D&D MET-8050722180.A1 8050722180	-
127 - TERMINAL BOX TKHS 315 D&D ET MET-1010721969.A1 1010721969	£13.63	£16.36
128 - SPACER BUSHING TKHS315 D&D MET-6442722020.A7 6442722020	£3.20	£3.84
129 - FEATHER KE A 6X4X50 MET-6721041830.A8 6721041830	£1.50	£1.80
131 - HEIGHT-ADJUSTMENT BL 2 99 TKHS315M MET-1382694038.A11 1382694038	£32.88	£39.45
133 - DEEP GROOVE BALL BEARING MET-143115740.A26 143115740	£6.38	£7.65
136 - BEARING SEA TKHS 315 D&D ET MET-1388721916.A1 1388721916	£4.76	£5.71
137 - TENSION NU TKHS 315 D&D ET MET-6260721923.A1 6260721923	£3.82	£4.59
138 - HANDWHEEL BL 2X RD 165 MET-1010702140.A31 1010702140	£19.18	£23.02
139 - WASHER B 13 VERZ. MET-6305002508.A1 6305002508	£1.50	£1.80
140 - CAP NUT M 12 VERZ. MET-6201002158.A6 6201002158	£3.20	£3.84
141 - HEXAGON SOCKET HEAD CAP SCREW MET-6121112564.A21 6121112564	£1.50	£1.80
142 - TURNING TANG MET-7004017433.A21 7004017433	£4.76	£5.71
144 - FAN WING+FAN COVER TKHS 315 D&D ET MET-1010722000.A7 1010722000	£11.78	£14.13
145 - CROSS RECD PAN HEAD TAP.SCREW ST 3 9X16 MET-6172075604.A4 6172075604	£1.50	£1.80
146 - SWITCH PLATE BD 2 00X85X125 MET-1382407063.A5 1382407063	£3.82	£4.59
147 - SWITCH ASSEMBLY 110 V GB TKHS 315 D&D MET-8133722174.A1 8133722174	£170.22	£204.26
148 - COUNTERSUNK SCREW MET-6132087995.A13 6132087995	£1.50	£1.80
150 - MOTOR CIRCULAR SAW BENCH T 2 MET-1010722167.A1 1010722167	£356.88	£428.26
155 - HANDWHEEL KPL. TKHS315M MET-1010702140.A19 1010702140	£19.18	£23.02
