Metabo PK 255/2 50 WNB / 0102582209 12 / EU 230V Spare Parts

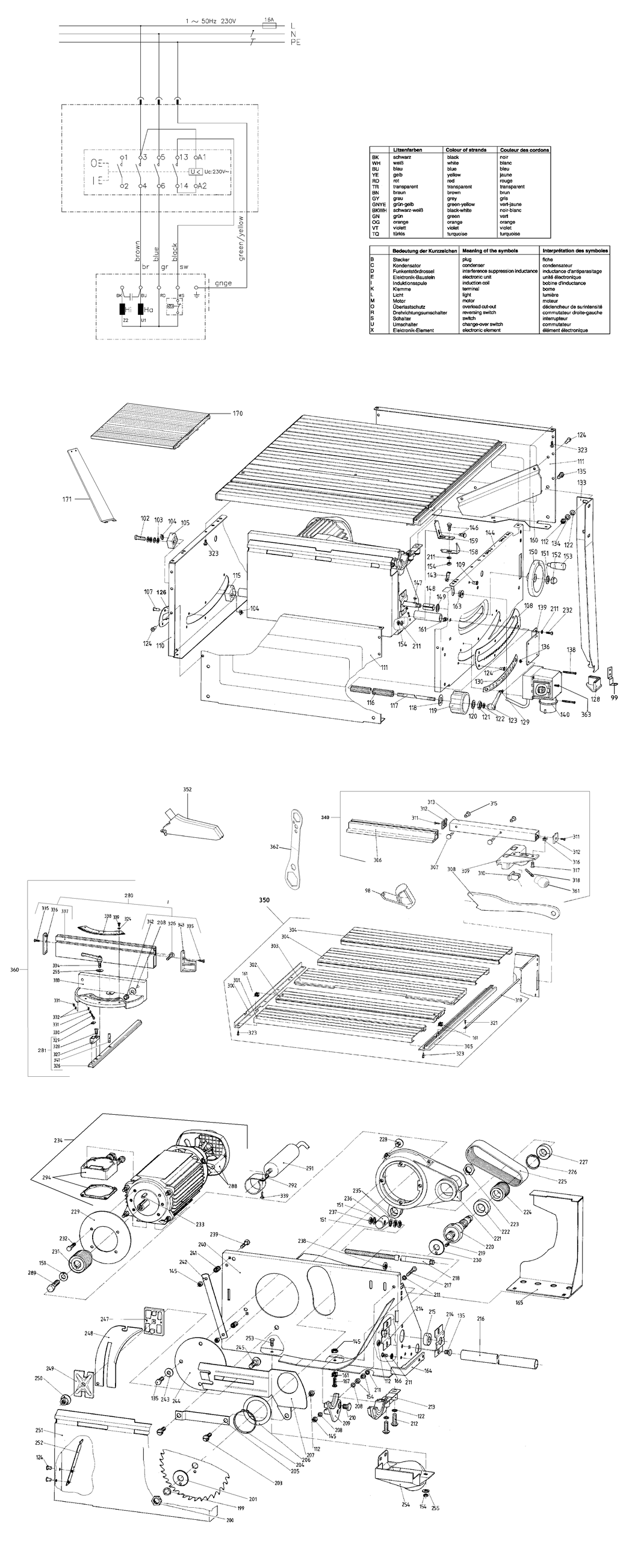

An exploded diagram and spare parts listing for the Metabo PK 255/2 50 WNB / 0102582209 12 / EU 230V

	Ex VAT	Inc VAT
98 - SLIDING HANDLE RED MET-1388680470.A18 1388680470	£42.65	£51.18
99 - FASTENING ANGLE PK MET-1382723739.A1 1382723739	£17.55	£21.06
102 - CAP SCREW MET-141114030.A7 141114030	-
103 - CUP SPRING MET-7053016795.A13 7053016795	£1.50	£1.80
104 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A2 6202002305	£1.50	£1.80
105 - LOCKING ELEMENT A MET-1380207482.A5 1380207482	£6.19	£7.43
108 - TOOTHED PLATE MET-1492200723.A3 1492200723	-
109 - BLIND RIVET MUSHROOM HEAD MET-6621010407.A5 6621010407	£1.50	£1.80
110 - REAR PANEL MET-1392200246.A5 1392200246	-
111 - SIDE PANEL MET-1392200211.A5 1392200211	-
112 - HEXAGONAL NUT MET-141131010.A2 141131010	£1.50	£1.80
115 - LOCKING ELEMENT B MET-1380207474.A0 1380207474	£6.19	£7.43
116 - RACK MET-1393200746.A2 1393200746	£17.95	£21.54
117 - FEED ROD MET-1495207516.A2 1495207516	£8.62	£10.34
118 - MEDIUM WASHER MET-6300087696.A7 6300087696	£1.50	£1.80
119 - SELECTOR WHEEL MET-1391200390.A7 1391200390	£8.37	£10.04
120 - WASHER MET-141156740.A4 141156740	£2.94	£3.53
121 - HEXAGON THIN NUT MET-6205032396.A4 6205032396	£1.50	£1.80
122 - WASHER MET-141151340.A41 141151340	£1.50	£1.80
123 - RATCHET LOCK LEVER FEMALE MET-7006028653.A4 7006028653	£9.62	£11.54
124 - BLIND RIVET MUSHROOM HEAD MET-6621010407.A4 6621010407	£1.50	£1.80
126 - TOOTHED PLATE MET-1482685826.A2 1482685826	-
128 - RUBBER FOOT MET-7057019365.A3 7057019365	£4.64	£5.57
129 - FILLISTER HEAD SCREW MET-6172016683.A3 6172016683	£1.50	£1.80
130 - ARBOR TILT SCALE 1 00 45-0 GRAD MET-1141200468.A1 1141200468	£7.44	£8.93
133 - LEG MET-1392200254.A0 1392200254	£17.07	£20.48
134 - SERRATED LOCK WASHER MET-6304001745.A13 6304001745	£1.50	£1.80
135 - HEX HEAD SCREW MET-6103001178.A41 6103001178	£1.50	£1.80
136 - FLANGE NUT MET-6209620098.A9 6209620098	-
138 - RAISED CHEESE HEAD SCREW MET-6123067132.A0 6123067132	£1.50	£1.80
139 - SWITCH PLATE BL 2 99X84X140 MET-1382217345.A3 1382217345	-
140 - SWITCH SSK MET-8132722812.A1 8132722812	£51.54	£61.85
143 - CABLE CLIP MET-7052078118.A48 7052078118	£1.50	£1.80
144 - FRONT PANEL MET-1392200238.A0 1392200238	-
145 - HEXAGONAL LOCK NUT MET-141130650.A77 141130650	£3.20	£3.84
146 - CUP SQUARE NECK SCREW MET-6110000608.A3 6110000608	£1.50	£1.80
147 - WOODRUFF KEY MET-6720008538.A2 6720008538	£1.50	£1.80
148 - SPACER SLEEVE MET-6442200309.A3 6442200309	£3.11	£3.73
149 - WASHER MET-6300019984.A1 6300019984	£1.50	£1.80
150 - HANDWHEEL MET-7003087322.A3 7003087322	£22.40	£26.88
151 - WASHER MET-6300016705.A43 6300016705	£1.50	£1.80
152 - CAP NU MET-6201074264.A4 6201074264	£3.11	£3.73
153 - TURNING TANG MET-7004017433.A13 7004017433	£4.76	£5.71
154 - HEXAGONAL NUT MET-141130100.A120 141130100	£1.50	£1.80
158 - BEVEL TILT INDICATOR MET-1482214718.A2 1482214718	-
159 - BEVEL TILT INDICATOR BRACKET MET-1482214700.A3 1482214700	£2.60	£3.12
160 - PUSH STICK SHEATH MET-1382214699.A4 1382214699	-
161 - CAGE NUT MET-6264166657.A2 6264166657	-
163 - GROMMET MET-8241062237.A0 8241062237	-
164 - BRACKET MET-1382214737.A1 1382214737	£9.82	£11.79
165 - GEAR GUARD 1 50X389X253 MET-1492739800.A0 1492739800	-
166 - HEX HEAD SCREW MET-6103001127.A34 6103001127	£1.50	£1.80
167 - HEXAGON HEAD SCREW MET-141110280.A12 141110280	£1.50	£1.80
170 - TABLE ZUSATZTISCH-PK255 MET-1010723490.A1 1010723490	£70.49	£84.59
171 - SUPPORT TVL MET-1382723313.A2 1382723313	£32.61	£39.13
199 - SHIM RING MET-6306028055.A4 6306028055	£1.50	£1.80
200 - HEXAGON THIN NUT MET-6205008460.A4 6205008460	£3.89	£4.67
201 - TWO-WAY FLANGE MET-1485727120.A2 1485727120	-
203 - BEARING BOLT MET-1395200611.A22 1395200611	£4.76	£5.71
204 - RETAINING RING FOR SHAFTS MET-6400087588.A3 6400087588	£3.11	£3.73
205 - PILOT LINK PLATE MET-1392200343.A1 1392200343	£2.60	£3.12
206 - BALL BEARING SHIM RING MET-7140006941.A2 7140006941	£3.89	£4.67
207 - RIVING KNIFE CARRIER PLATE MET-1392207151.A3 1392207151	£11.20	£13.44
208 - WASHER MET-141151940.A65 141151940	£1.50	£1.80
209 - SWIVEL SEGMENT PAIR MET-2390200199.A2 2390200199	£22.96	£27.55
210 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A28 6103005270	-
211 - SERRATED LOCK WASHER MET-141150410.A97 141150410	£3.20	£3.84
212 - CAP SCREW MET-141114030.A8 141114030	-
213 - TABLE SECTION MET-2390200202.A3 2390200202	£22.96	£27.55
214 - BEARING PLATE MET-1392200289.A4 1392200289	£2.60	£3.12
215 - DEEP GROOVE BALL BEARING MET-7100136915.A7 7100136915	£9.62	£11.54
216 - SETTING TUBE MET-1393207503.A2 1393207503	£17.07	£20.48
217 - HEXAGON HEAD SCREW MET-141116250.A12 141116250	£1.50	£1.80
218 - FEED SPINDLE RD 16X565 MET-1495024381.A1 1495024381	-
219 - SPRING PIN MET-141162580.A4 141162580	£1.50	£1.80
220 - SAW BLADE SPINDLE MET-1385213669.A1 1385213669	£73.52	£88.23
221 - GEAR HOUSING MET-1390200753.A2 1390200753	-
222 - DEEP GROOVE BALL BEARING MET-7100016812.A1 7100016812	£11.20	£13.44
223 - HEXAGON THIN NUT MET-6205052753.A2 6205052753	£2.60	£3.12
224 - POLY-RIB PULLEY MET-1395200050.A4 1395200050	£17.95	£21.54
225 - POLY-RIB BELT MET-7233087313.A1 7233087313	£22.40	£26.88
226 - RETAINING RING SHAFT MET-6401121364.A3 6401121364	-
227 - DEEP GROOVE BALL BEARING MET-7100016995.A2 7100016995	£15.41	£18.49
228 - SCREW COMPL. MET-316051570.A5 316051570	-
229 - CAM PLATE MET-1392200360.A4 1392200360	£7.36	£8.83
230 - BLADE COLLAR MET-1485727112.A1 1485727112	-
231 - POLY-RIB PULLEY MET-1395200980.A3 1395200980	£36.59	£43.91
232 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A25 6127059193	£1.50	£1.80
234 - ELECTRIC MOTOR µ MET-8012688459.A0 8012688459	-
235 - HEXAGON NUT MET-6200017992.A4 6200017992	£1.50	£1.80
236 - PULL BOLT MET-1395200271.A1 1395200271	-
237 - HEXAGON NUT PREV. TORQUE TYPE MET-6202024139.A44 6202024139	£1.50	£1.80
238 - HEX NUT MET-141132030.A52 141132030	£2.94	£3.53
239 - TRUSS HEAD SCREW MET-6110029436.A0 6110029436	£1.50	£1.80
240 - CHIP CASE MET-1010214773.A5 1010214773	£53.37	£64.04
241 - PRESSURE SPRING MET-7051207240.A49 7051207240	£1.50	£1.80
242 - GUIDE BRACKET MET-1482213754.A0 1482213754	-
243 - CUP SPRING MET-7053075104.A20 7053075104	£1.50	£1.80
244 - COVER PLATE MET-1392200084.A1 1392200084	£6.19	£7.43
245 - CUP SQUARE NECK SCREW MET-6110000691.A5 6110000691	£3.20	£3.84
247 - RIVING KNIFE CARRIER MET-2380075353.A21 2380075353	£13.63	£16.36
248 - RIVING KNIFE MET-1392738947.A1 1392738947	£61.08	£73.30
249 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A45 1382213749	£3.20	£3.84
250 - FLANGE NUT MET-6209002432.A31 6209002432	£3.82	£4.59
251 - CHIP CASE COVER BL 1 5X318X637 MET-1382213803.A3 1382213803	-
252 - HOOK MET-1392200386.A1 1392200386	-
253 - HEXAGON HEAD SCREW MET-141113290.A113 141113290	£1.50	£1.80
254 - DUST EXTRACTION PORT MET-1391200501.A3 1391200501	£9.82	£11.79
280 - FENCE EXTRUSION 300 MM MET-1010017811.A0 1010017811	£26.35	£31.62
281 - GUIDE RAIL MET-2010011364.A0 2010011364	£20.12	£24.14
288 - FAN WING+FAN COVER TKHS 315 D&D ET MET-1010722000.A14 1010722000	£11.78	£14.13
289 - HEX HEAD SCREW MET-6103001267.A10 6103001267	£3.20	£3.84
291 - CONDENSER MET-8050011810.A3 8050011810	£26.35	£31.62
292 - CAPACITOR CLAMP BL 0 88X35X178 MET-1332025186.A1 1332025186	£4.64	£5.57
294 - TERMINAL BOX ASSEMBLY 2 MET-1010726545.A17 1010726545	£19.18	£23.02
300 - TABLE END EXTRUSION 661 MM MET-1383217233.A4 1383217233	-
301 - TABLE EXTRUSION GROOVED TISCH-PK MET-1383723422.A1 1383723422	-
302 - TABLE INSERT EXTRUSION TISCH-PK255 MET-1383723414.A2 1383723414	-
303 - TABLE EXTRUSION TISCH-PK255 MET-1383723449.A1 1383723449	-
304 - TABLE EXTRUSION TISCH-PK255/PKF MET-1383723430.A2 1383723430	£54.44	£65.33
305 - TABLE GUIDE EXTRUSION 661 MM MET-1383217217.A1 1383217217	-
306 - AUXILIARY FENCE EXTRUSION 700 MM MET-1383214447.A4 1383214447	£48.88	£58.66
307 - TRUSS HEAD SCREW MET-6110019490.A4 6110019490	£2.94	£3.53
308 - PUSH STICK MET-1394201630.A36 1394201630	£9.62	£11.54
309 - CLAMPING PAD MET-1380220845.A1 1380220845	£63.36	£76.03
310 - LOCK PLATE MET-1380222031.A3 1380222031	£8.70	£10.44
311 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A39 6174155800	£1.50	£1.80
312 - EXTRUSION END CAP MET-1381220822.A1 1381220822	£3.82	£4.59
313 - FENCE CARRIER EXTRUSION MET-1383220862.A8 1383220862	£26.85	£32.22
315 - KNURLED NUT MET-6241125058.A34 6241125058	£3.20	£3.84
316 - SQUARE NUT MET-141131020.A34 141131020	£3.20	£3.84
317 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A30 6131009460	-
318 - HEX. SOCKET SET SCREW DOG PT. MET-6163198736.A13 6163198736	£5.62	£6.75
319 - SCALE 0 50X9 MET-1142217330.A4 1142217330	£7.44	£8.93
320 - COUNTERSUNK HEAD TAPPING SCREW MET-6174093740.A1 6174093740	£1.50	£1.80
321 - FILLISTER HEAD SCREW MET-6172091014.A30 6172091014	£1.50	£1.80
322 - TIN NUT MET-6265167657.A18 6265167657	£2.60	£3.12
323 - HEX.HEAD COLLAR DRILLING SCREW MET-6144063978.A6 6144063978	£1.50	£1.80
324 - WASHER MET-141150010.A38 141150010	£1.50	£1.80
325 - TRUSS HEAD SCREW MET-141124490.A28 141124490	£2.94	£3.53
326 - GUIDE RAIL MET-1492027223.A3 1492027223	£22.96	£27.55
327 - ANGLE STOP MET-1391200439.A1 1391200439	£3.82	£4.59
328 - CROSS RECESSED FLAT HEAD SCREW MET-6131059530.A2 6131059530	£1.50	£1.80
329 - ADHESIVE LABEL 1 00X12X9 0 MET-1141200450.A3 1141200450	£3.20	£3.84
330 - HEXAGON SOCKET HEAD CAP SCREW MET-6121102640.A3 6121102640	£1.50	£1.80
331 - HEXAGONAL NUT MET-141130070.A12 141130070	£1.50	£1.80
332 - SERRATED LOCK WASHER MET-141150430.A23 141150430	£1.50	£1.80
333 - MITRE FENCE BODY MET-1390200419.A1 1390200419	-
334 - RATCHET LOCK LEVER MET-7006003847.A1 7006003847	£9.62	£11.54
335 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A61 141123420	£1.50	£1.80
336 - END PIECE MET-2391091725.A7 2391091725	£3.20	£3.84
337 - FENCE EXTRUSION 300 MM MET-1393005315.A19 1393005315	£22.61	£27.13
338 - ADHESIVE LABEL 1 00 48-0-48 GRAD MET-1141200441.A0 1141200441	£8.37	£10.04
339 - FILLISTER HEAD SCREW MET-6172028215.A103 6172028215	£1.50	£1.80
340 - RIP FENCE ASSEMBLY ET MET-1010639413.A2 1010639413	£76.70	£92.04
341 - SLOTTED HEADLESS SCREW MET-6160000340.A1 6160000340	£1.50	£1.80
342 - KNURLED NUT MET-6241125058.A35 6241125058	£3.20	£3.84
343 - PLUG QUERANSCHLAG MET-1391200145.A1 1391200145	£4.76	£5.71
350 - TABLE COMPLETE PK 255 MET-1010723473.A1 1010723473	£219.85	£263.82
352 - WHEEL GUARD COMPL. MET-316052430.A25 316052430	£17.55	£21.06
360 - MITRE FENCE PK+BAS MIT WERKSTÜCKANLAGE MET-0910008048.A1 0910008048	-
361 - KNOB RED MET-1388698264.A14 1388698264	£7.36	£8.83
362 - KEY MET-1492102829.A17 1492102829	£11.78	£14.13
363 - RAISED CHEESE HEAD SCREW MET-141124560.A5 141124560	£2.94	£3.53
