Metabo PK 200 / 0102001001 14 / EU 230V Spare Parts

Home Details Reviews Delivery

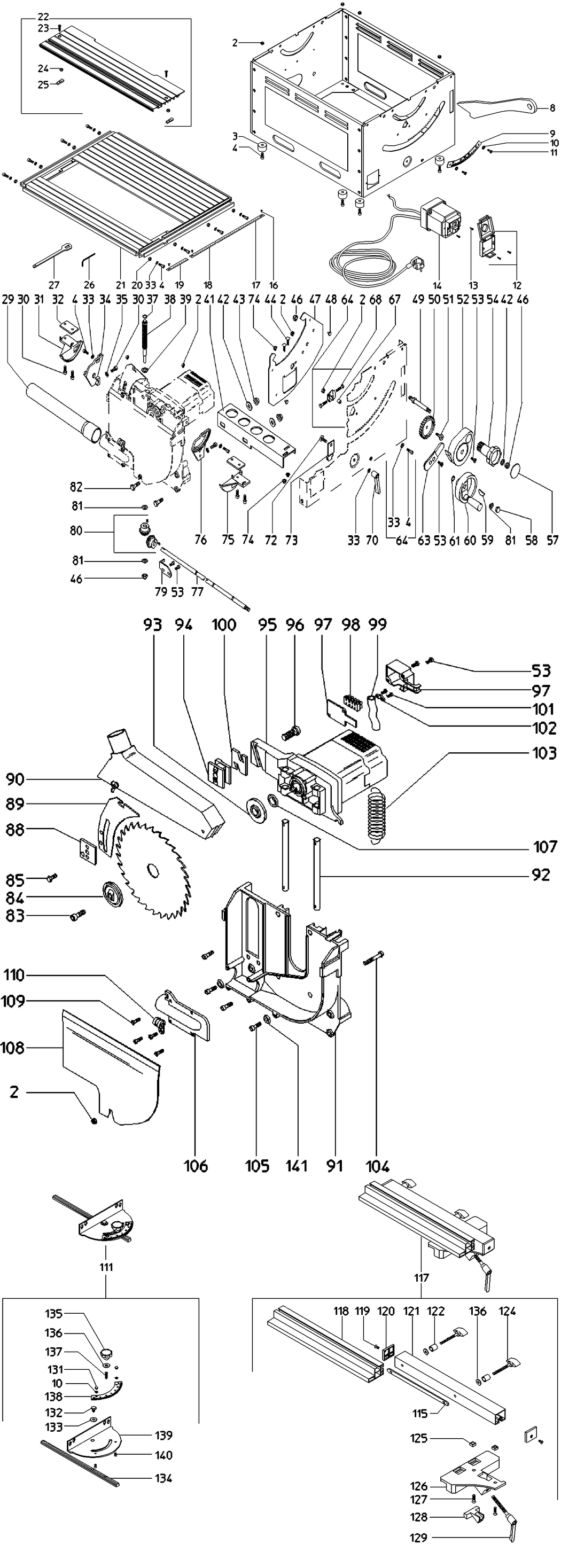

An exploded diagram and spare parts listing for the Metabo PK 200 / 0102001001 14 / EU 230V

	Ex VAT	Inc VAT
2 - HEXAGONAL LOCK NUT MET-141130650.A165 141130650	£3.20	£3.84
3 - RUBBER FOOT RD 30X17 5 80 SHORE MET-7057208753.A8 7057208753	£3.20	£3.84
4 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A14 6127059193	£1.50	£1.80
8 - PUSH STICK MET-1394201630.A6 1394201630	£9.62	£11.54
9 - ANGLE SCALE MET-1142215647.A6 1142215647	£6.38	£7.65
10 - WASHER MET-141150010.A107 141150010	£1.50	£1.80
11 - RAISED CHEESE HEAD SCREW MET-6143639612.A7 6143639612	-
12 - PADLOCKABLE SWITCH GUARD MET-8118411022.A3 8118411022	£7.36	£8.83
13 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6172001805.A3 6172001805	£1.50	£1.80
14 - SWITCH KSK WN K700/TAZ/NKAZ/KAZ/KL MET-8131221399.A0 8131221399	-
16 - FILLISTER HEAD SCREW MET-6172091014.A68 6172091014	£1.50	£1.80
17 - SCALE 0 50X9 MET-1142221965.A2 1142221965	£6.19	£7.43
18 - SCALE 0 50X9 MET-1142221043.A1 1142221043	£6.19	£7.43
19 - SCALE 0 50X9 MET-1142221027.A2 1142221027	£5.38	£6.45
20 - FLANGE NUT MET-6209114230.A166 6209114230	£1.50	£1.80
21 - TABLE ASSEMBLY PK200 MET-1010651111.A2 1010651111	£117.26	£140.71
22 - EXTRUSION REMOV.TABLE SECTION KOMPLETT MET-1010657616.A1 1010657616	£54.44	£65.33
23 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A5 6174155800	£1.50	£1.80
24 - O-RING 4X1 5 70 SHORE MET-7632183687.A4 7632183687	-
25 - TIN NUT MET-6265167657.A6 6265167657	£2.60	£3.12
26 - ALLEN HEXAGON KEY MET-9102016766.A5 9102016766	-
27 - WRENCH BLADE COLLAR MET-9105222162.A0 9105222162	£3.89	£4.67
29 - TUBE DUST COLLECTION RDA 37X290 MET-1381221845.A1 1381221845	-
30 - CAP SCREW MET-141113840.A82 141113840	£3.20	£3.84
31 - TABLE SECTION HINTEN MET-1380220977.A3 1380220977	-
32 - FASTENING STRAP FL 16X5X48 /2XM6 MET-1482222788.A10 1482222788	£5.62	£6.75
33 - WASHER MET-141151940.A267 141151940	£1.50	£1.80
34 - SWIVEL SEGMENT HINTEN MET-1380220950.A3 1380220950	£8.62	£10.34
35 - CUP SPRING MET-141155660.A40 141155660	£1.50	£1.80
37 - RETAINING WASHER RD 8 VERZ. MET-6404091580.A6 6404091580	£1.50	£1.80
38 - THREADED ROD M 14LH X132 HÖHENVERSTELLUN MET-1485221480.A1 1485221480	-
39 - WASHER MET-141150050.A116 141150050	£1.50	£1.80
41 - LEVER BLADE TILT BL 2 MET-1382220915.A3 1382220915	-
42 - WASHER MET-6305002486.A25 6305002486	-
43 - FLANGE NUT MET-6209110995.A85 6209110995	£1.50	£1.80
44 - CUP SQUARE NECK SCREW M 5X16 VERZ. MET-6110125036.A1 6110125036	£1.50	£1.80
46 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A147 6202002305	£1.50	£1.80
47 - SWIVEL PLATE BL 2 99X263X236 MET-1482220920.A3 1482220920	-
48 - GLIDE PIECE MET-2391202772.A82 2391202772	£1.50	£1.80
49 - GEARWHEEL AXLE SW 13X87 MET-1485215308.A1 1485215308	£7.44	£8.93
50 - GEARWHEEL RD 62X19 MET-1380215329.A0 1380215329	£9.62	£11.54
51 - GEARWHEEL SW 13X28 MET-1485221740.A1 1485221740	£11.20	£13.44
52 - COVER BEVEL GEAR DRIVE MET-1381221462.A3 1381221462	-
53 - RAISED CHEESE HEAD SCREW MET-6123612815.A11 6123612815	£1.50	£1.80
54 - HANDWHEEL BLADE TILT MET-1381215330.A4 1381215330	£5.62	£6.75
57 - HANDWHEEL COVER MET-1381212846.A6 1381212846	£1.50	£1.80
58 - CAP NUT SELF-LOCKING MET-6208073395.A13 6208073395	£1.50	£1.80
59 - WOODRUFF KEY MET-6720008511.A11 6720008511	£1.50	£1.80
60 - HANDWHEEL KOMPLETT UK/TKU ET MET-1010657543.A0 1010657543	£36.59	£43.91
61 - RETAINING RING MET-141180040.A2 141180040	£1.50	£1.80
63 - SEGMENT PIECE MET-1381220938.A0 1381220938	£2.60	£3.12
64 - TILT STOP ASSEMBLY KOMPLETT UK/TKU MET-1010657535.A2 1010657535	-
67 - SPACER SLEEVE MET-6442059304.A6 6442059304	£1.50	£1.80
68 - SELF-TAPP. HEXAG. H. SCREW MET-141122680.A21 141122680	-
70 - CLAMPING LEVER MET-7006072385.A12 7006072385	£8.37	£10.04
72 - CUP SQUARE NECK SCREW MET-6110000594.A23 6110000594	£1.50	£1.80
73 - BRAKE PAD BD 2 99X25X59 MET-1482221803.A1 1482221803	-
74 - NUT AND WASHER ASSEMBLY MET-6209018460.A11 6209018460	£1.50	£1.80
75 - TABLE SECTION VORNE MET-1380220969.A0 1380220969	£8.62	£10.34
76 - SWIVEL SEGMENT VORNE MET-1380220942.A0 1380220942	£8.62	£10.34
77 - ADVANCING SHAFT RD 10X385 MET-1485221090.A2 1485221090	£17.07	£20.48
79 - SETTING PLATE BD 2 99X30X63 MET-1482222656.A1 1482222656	£2.60	£3.12
80 - REPAIR KIT KEGELRÄDER-HÖHENVER. MET-1010657527.A0 1010657527	-
81 - WASHER MET-141151340.A187 141151340	£1.50	£1.80
82 - HEXAGON HEAD SCREW MET-141110320.A1 141110320	£3.20	£3.84
83 - CAP SCREW MET-6121000839.A42 6121000839	£1.50	£1.80
84 - BLADE COLLAR OUTER MET-1482221900.A2 1482221900	£7.36	£8.83
85 - HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC MET-6103001356.A20 6103001356	£1.50	£1.80
88 - RIVING KIFE PLATE MET-1482221595.A8 1482221595	£3.20	£3.84
89 - RIVING KNIFE MET-1482221587.A7 1482221587	£22.96	£27.55
90 - WHEEL GUARD COMPL. MET-316052430.A6 316052430	£17.55	£21.06
91 - MOTORHEAD CARRIAGE MET-1380221400.A0 1380221400	£70.49	£84.59
92 - GUIDE MET-1385221491.A2 1385221491	£19.18	£23.02
93 - BLADE COLLAR INNER MET-1485221618.A27 1485221618	£17.55	£21.06
94 - RIVING KNIFE CARRIER MET-1380221434.A3 1380221434	£19.18	£23.02
95 - ELECTRIC MOTOR 1 8KW 230/1/50 AM20 DREHZ MET-1010720520.A3 1010720520	-
96 - POSITIONING SCREW MET-1485221570.A1 1485221570	£5.62	£6.75
97 - TERMINAL BOX ASSEMBLY MET-1381221209.A1 1381221209	£7.04	£8.45
98 - TERMINAL BLOCK 1 5 MM² NR.134S / VDE MET-8216628625.A0 8216628625	-
99 - SLEEVE CABLE SUPPORT TYP 15-561 MET-1341016980.A1 1341016980	£3.20	£3.84
100 - SPACER PLATE BL 0 5X40X40 MET-1382666042.A0 1382666042	£4.64	£5.57
101 - SELF-TAP. FILL. H. SCREW MET-141116840.A11 141116840	£1.50	£1.80
102 - STRAIN RELIEF MET-8242033664.A2 8242033664	£1.50	£1.80
103 - TENSION SPRING RD 2X34X30 MET-7051221952.A0 7051221952	£6.19	£7.43
104 - HEXAGON HEAD SCREW MET-141116250.A1 141116250	£1.50	£1.80
105 - CAP SCREW MET-141113870.A40 141113870	£3.20	£3.84
106 - DUST EXTRACTION PORT MET-1381221454.A0 1381221454	£3.89	£4.67
107 - SHIM RING 16X22X0 2 VERZ. MET-6306670482.A2 6306670482	£1.50	£1.80
108 - COVER PLATE BL 1 50X196X276 MET-1382221725.A2 1382221725	£14.71	£17.65
109 - FILLISTER HEAD SCREW MET-6172001830.A45 6172001830	£1.50	£1.80
110 - CABLE CLIP MET-8242051328.A48 8242051328	£3.82	£4.59
111 - MITRE FENCE PRE-ASSEMBLED MET-1010603265.A3 1010603265	-
115 - GLIDE RAIL FL 16X5X230 PARALLELANSCHLAG MET-1482214548.A4 1482214548	£7.44	£8.93
117 - RIP FENCE PRE-ASSEMBLED MET-1010603257.A0 1010603257	£94.04	£112.85
118 - AUXILIARY FENCE EXTRUSION 400 MM MET-1383220838.A2 1383220838	£20.12	£24.14
119 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A7 6174155800	£1.50	£1.80
120 - EXTRUSION END CAP MET-1381220822.A9 1381220822	£3.82	£4.59
121 - FENCE CARRIER EXTRUSION MET-1383220862.A1 1383220862	£26.85	£32.22
122 - SPACER SLEEVE RD 15/6X18 MET-6442025779.A23 6442025779	£1.50	£1.80
124 - THUMB SCREW M 6X68 MET-6150190299.A9 6150190299	-
125 - SQUARE NUT MET-141131020.A11 141131020	£3.20	£3.84
126 - CLAMPING PAD MET-1380220845.A10 1380220845	£63.36	£76.03
127 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A53 6131009460	-
128 - LOCK PLATE MET-1380222031.A5 1380222031	£8.70	£10.44
129 - RATCHET LOCK LEVER M8X100 UK/TKU /ET MET-1010657560.A2 1010657560	-
131 - CAP NUT M 4 VERZ. MET-6201001437.A7 6201001437	£1.50	£1.80
132 - HEX FIT BOLT MET-6104220876.A2 6104220876	£3.82	£4.59
133 - CUP SPRING MET-7053016795.A4 7053016795	£1.50	£1.80
134 - GUIDE RAIL 300 MM MET-1482221129.A0 1482221129	£22.61	£27.13
135 - STARKNOB NUT M 6 (DIN 934) VERZINKT MET-7000025466.A3 7000025466	£3.20	£3.84
136 - WASHER MET-141150130.A49 141150130	£1.50	£1.80
137 - HEX. SOCKET SET SCREW FLAT PT M 6X20 VE MET-141124480.A9 141124480	£2.94	£3.53
138 - ANGLE SCALE 1 00 2X0-45 GRAD MET-1142221132.A2 1142221132	£6.38	£7.65
139 - ANGLE BRACKET BL 2 99X125 MET-1382221148.A0 1382221148	£14.71	£17.65
140 - CROSS RECESSED FLAT HEAD SCREW M 4X8 VER MET-6131001531.A3 6131001531	-
141 - O-RING 6X2 70 SHORE A MET-7632610097.A0 7632610097	£1.50	£1.80
7500 - SPARE PARTS LIST 8-SEITIG /A4 ART.-NR. 0 MET-1153637969.A2 1153637969	-
