Metabo BKH 450 Plus 5 50 DNB / 0104705000 12 / 3 / 400V/50Hz Spare Parts

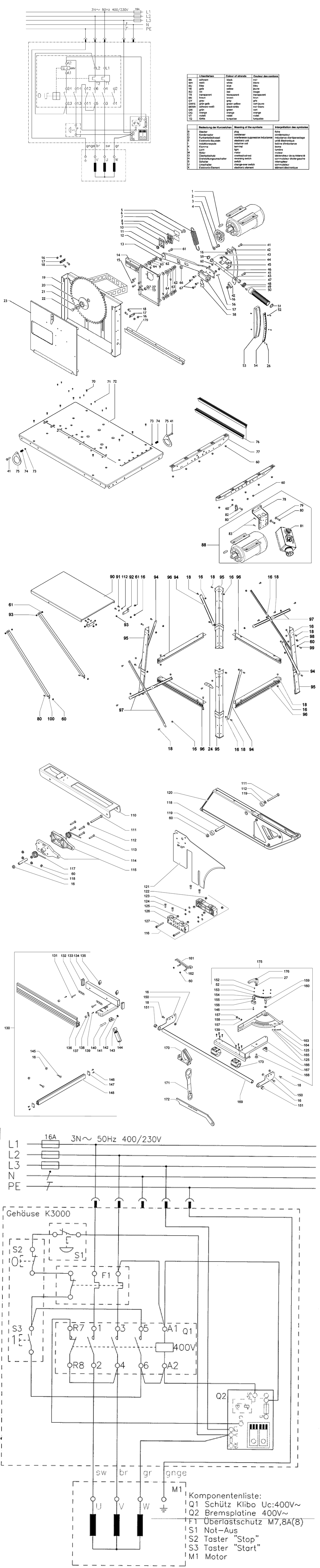

An exploded diagram and spare parts listing for the Metabo BKH 450 Plus 5 50 DNB / 0104705000 12 / 3 / 400V/50Hz

	Ex VAT	Inc VAT
1 - PARALLEL KEY MET-6721059322.A35 6721059322	£1.50	£1.80
2 - BLADE COLLAR INNER RD 30 MET-1380214560.A12 1380214560	£36.59	£43.91
3 - COLLAR SCREW M 10 SW 19X37 MET-1395205176.A1 1395205176	-
4 - WASHER MET-6300019984.A6 6300019984	£1.50	£1.80
5 - TENSION SPRING RDA 40X190 MET-7051205370.A2 7051205370	-
6 - CUP SQUARE NECK SCREW M 12X40 VERZ. MET-6110149253.A16 6110149253	-
7 - SHIM PLATE BL 0 5X59X79 MET-1392205647.A0 1392205647	£3.20	£3.84
8 - RIVING KNIFE CARRIER BKH 450 PLUS MET-1380742027.A0 1380742027	-
9 - CUP SPRING MET-7053063343.A17 7053063343	£1.50	£1.80
10 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A32 1382213749	£3.20	£3.84
11 - FLANGE NUT MET-6209002432.A50 6209002432	£3.82	£4.59
12 - LEVER BL 2 99X90X663 MET-1392205086.A2 1392205086	-
13 - HEX NUT MET-141132030.A48 141132030	£2.94	£3.53
14 - MOTOR SEAT MET-2010200850.A2 2010200850	-
15 - HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC MET-6103001356.A71 6103001356	£1.50	£1.80
16 - FLANGE NUT MET-6209110995.A54 6209110995	£1.50	£1.80
17 - LOCKING PLAT BL 2X24X60 MET-1392205329.A0 1392205329	-
18 - HEX HEAD SCREW MET-6103001178.A34 6103001178	£1.50	£1.80
19 - CHIP CASE KPL. BKH-PLUS MET-1010732006.A0 1010732006	-
20 - BLADE COLLAR OUTER MET-1380214578.A4 1380214578	£48.88	£58.66
21 - WASHER B 13 VERZ. MET-6305002508.A46 6305002508	£1.50	£1.80
22 - HEXAGON HEAD SCREW M 12X1 5 LINKS X30 VE MET-6103083956.A4 6103083956	-
23 - CAP COMPL MET-1010740041.A0 1010740041	-
27 - WASHER MET-141150050.A39 141150050	£1.50	£1.80
41 - HEXAGON HEAD SCREW MET-141113330.A34 141113330	£3.20	£3.84
42 - SEAT ARCHED PLATE 22X21 MET-2390205263.A0 2390205263	-
43 - BEARING BUSH RD 20/25/30X15 MIT BUND MET-2391203167.A2 2391203167	£1.50	£1.80
44 - ARCHED PLATE BL 4X388X40 MET-1492102810.A2 1492102810	-
45 - CLAMPING PAD CAP MET-2391205380.A2 2391205380	-
46 - CLAMPING SHAFT RD 20X247 MET-1495102323.A2 1495102323	-
47 - BUSHING RD 28X17 MET-1495105233.A0 1495105233	-
48 - TORSION SPRING RDI 32 RDA 40 X4 MET-7051205361.A0 7051205361	£15.41	£18.49
49 - FEATHER KEY A 6X6X36 MET-6721019738.A2 6721019738	£1.50	£1.80
50 - TURN HANDLE RD 50X220 MET-2391205259.A2 2391205259	£17.55	£21.06
51 - SERRATED EDGE WASHER ZA 20 MET-6403107385.A2 6403107385	£1.50	£1.80
52 - WASHER MET-141150010.A42 141150010	£1.50	£1.80
53 - SCALE ARC 35X50X318 MET-2391205704.A0 2391205704	-
54 - SCALE HEIGHT ADJUSTMENT 1 MET-1110205682.A0 1110205682	-
55 - FILLISTER HEAD SCREW MET-6172001830.A74 6172001830	£1.50	£1.80
56 - CLAMPING SLEEVE 6X36 MET-6503016379.A0 6503016379	£1.50	£1.80
57 - CLAMPING PA 42X52 5X110 MET-2390205212.A0 2390205212	-
58 - POINTER BL 2X53X77 MET-1492103558.A0 1492103558	-
59 - STARLOCK WITH CAP RD 20 MET-7016026551.A2 7016026551	-
60 - FLANGE NUT MET-6209114230.A73 6209114230	£1.50	£1.80
61 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A35 6103005270	-
62 - HEXAGON NUT PREV. TORQUE TYPE MET-6202024139.A34 6202024139	£1.50	£1.80
63 - WASHER MET-6300016705.A40 6300016705	£1.50	£1.80
64 - PLASTIC WASHER RDI 12 2X30X31 MET-2391205186.A0 2391205186	-
66 - SQUARE SLEEVE 20/20X12 MET-1495105241.A2 1495105241	-
67 - CUP SQUARE NECK SCREW M 6X45 VERZ. MET-6110000624.A1 6110000624	£1.50	£1.80
70 - CROSS RECESSED FLAT HEAD SCREW M 6X16 VE MET-6131047582.A30 6131047582	£1.50	£1.80
71 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A47 141123420	£1.50	£1.80
72 - TABLE PANEL BL 2 50X736X1071 MET-1382731391.A2 1382731391	-
73 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A71 6202002305	£1.50	£1.80
74 - PRESSURE SPRING MET-7051207240.A29 7051207240	£1.50	£1.80
75 - LIFTING EYE 2 99X90X112 MET-1492103230.A58 1492103230	-
76 - TABLE INSERT EXTRUSION 549 MET-1393205551.A30 1393205551	£22.61	£27.13
77 - CROSSHEAD BL 2 50X86X656 MET-1392205035.A30 1392205035	-
78 - SWITCH PLATE BL 2 99X85X180 MET-1382214133.A8 1382214133	-
79 - WASHER MET-141150130.A134 141150130	£1.50	£1.80
80 - HEXAGON HEAD SCREW MET-141113290.A98 141113290	£1.50	£1.80
81 - SWITCH SSK UC400V M=7 8A PHW K3000B/ST6/ MET-8132731935.A15 8132731935	£157.18	£188.61
82 - CABLE CLIP MET-8242051328.A31 8242051328	£3.82	£4.59
83 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6186602763.A5 6186602763	£1.50	£1.80
88 - MOTOR SITE SAW BKH 5 MET-1010603796.A14 1010603796	-
89 - HEXAGONAL LOCK NUT MET-141130650.A48 141130650	£3.20	£3.84
90 - EXTENSION PLATE BL 2 00X572X832 TKHS315M MET-1382693309.A21 1382693309	£60.03	£72.04
91 - HEXAGON HEAD SCREW MET-141114860.A70 141114860	£3.20	£3.84
92 - ANGLE BRACKET BL 2 50X30X116 MET-1382693856.A75 1382693856	£17.55	£21.06
93 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A34 6103005270	-
94 - DIAGONAL STRUT BL 2 5X30X591 MET-1382641074.A4 1382641074	-
95 - BEIN BKH/BKS MET-1010730674.A8 1010730674	-
96 - STANCHION BL 1 5X118X703 MET-1382641031.A4 1382641031	£22.61	£27.13
97 - DIAGONAL STRUT BL 2 5X30X830 MET-1382641058.A54 1382641058	£22.96	£27.55
98 - SCREW 6KT 17X30 M 8 MET-1395205516.A26 1395205516	-
99 - CAP SCREW MET-6127059207.A47 6127059207	£1.50	£1.80
100 - SUPPORT BL 1 00X70X885 TVL-BKH/BKS MET-1382706559.A26 1382706559	-
110 - TABLE PANEL CPL. MET-1382731340.A20 1382731340	£42.65	£51.18
111 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6103030259.A26 6103030259	£1.50	£1.80
112 - WASHER MET-141151340.A39 141151340	£1.50	£1.80
113 - HEXAGON HEAD SCREW M 6X35 VERZ. MET-6103004916.A35 6103004916	£1.50	£1.80
114 - LEG SPRING D=1 5 X 180 MET-7051731284.A52 7051731284	£11.78	£14.13
115 - BEARING BLOCK KPL. BKH/BKS-PLUS MET-1010731972.A48 1010731972	£22.61	£27.13
116 - RIP FENCE MET-1010731964.A10 1010731964	£73.52	£88.23
117 - LEG SPRING D=1 5 X 180 MET-7051731292.A6 7051731292	£11.78	£14.13
118 - BUSHING RD 18X5 MET-1485731306.A24 1485731306	£6.38	£7.65
119 - BUSHING RD 18X5 MET-1381731312.A32 1381731312	£2.94	£3.53
120 - WHEEL GUARD KPL BKH/BKS PLUS MET-1010731956.A48 1010731956	£86.42	£103.71
121 - SPLITTING BLADE BL 3 00X214X304 BKH/BKS4 MET-1482731372.A12 1482731372	£100.42	£120.50
122 - HEXAGONAL LOCK NUT MET-141130650.A49 141130650	£3.20	£3.84
123 - GLIDE PIECE MET-2391202772.A6 2391202772	£1.50	£1.80
124 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A25 6130019585	£1.50	£1.80
125 - HEXAGONAL NUT MET-141130100.A115 141130100	£1.50	£1.80
126 - SUPPORTBLOCK 140X30X53 MET-1381730669.A32 1381730669	-
127 - CAP SCREW MET-141113940.A52 141113940	£1.50	£1.80
130 - RIP FENCE MET-1010731743.A10 1010731743	£100.42	£120.50
131 - CUP SQUARE NECK SCREW M 6X40 VERZ. MET-6110000616.A54 6110000616	£1.50	£1.80
132 - GUIDE PLATE FLIPSTOP MET-1392201587.A74 1392201587	£1.50	£1.80
133 - LAMELLAR PLUG 60X25 VL SCHWARZ MET-1391019971.A44 1391019971	£3.20	£3.84
134 - RIP FENCE MET-1010731450.A46 1010731450	-
135 - WING NUT MET-7005658068.A75 7005658068	£3.20	£3.84
136 - AUXILIARY FENCE EXTRUSION MET-1383730720.A28 1383730720	-
137 - SPACER SLEEVE RD 15/6X12 MET-6442100576.A28 6442100576	-
138 - CABLE CLIP MET-7052078118.A42 7052078118	£1.50	£1.80
139 - SELF-TAP. FILL. H. SCREW MET-141122870.A59 141122870	-
140 - BOLT WITH HEAD MET-6632111175.A47 6632111175	£3.82	£4.59
141 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A51 1392205620	£3.20	£3.84
142 - STARLOCK MET-7016050711.A86 7016050711	£1.50	£1.80
143 - CAM-LOCK LEVER MET-1380731386.A52 1380731386	-
144 - HANDLE WITH RED INSERT MET-1381731843.A24 1381731843	-
145 - CUP SQUARE NECK SCREW M 8X25 VERZ. MET-6110000640.A31 6110000640	£1.50	£1.80
146 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A74 6172015687	£1.50	£1.80
147 - END PIECE BL 2X26X35 MET-1492091649.A26 1492091649	£1.50	£1.80
148 - FENCE GUIDE EXTRUSION 543 5 MM MET-1383731590.A30 1383731590	£42.65	£51.18
150 - HALTER BL 2 99X79X207 MET-1482730767.A34 1482730767	-
151 - LAMELLENSTOPFEN RD 25 1-3 MET-1381730715.A24 1381730715	-
152 - FILLISTER HEAD SCREW MET-6172028215.A101 6172028215	£1.50	£1.80
153 - ANGLE SCALE MET-1110205593.A10 1110205593	-
154 - FILLISTER HEAD SCREW MET-6172091014.A42 6172091014	£1.50	£1.80
155 - VERNIER SCALE 1 MET-1110205607.A48 1110205607	-
156 - CARRIER VERNIER SCALE MET-2391205615.A58 2391205615	-
157 - HEXAGON THIN NUT MET-6205029131.A6 6205029131	£1.50	£1.80
158 - GRUB SCREW MET-6161029309.A64 6161029309	£1.50	£1.80
159 - HEXAGON FIT BOLT SW 19X42 MET-1395205400.A28 1395205400	£7.36	£8.83
160 - WAVE SPRING WASHER B 12 VERZ. MET-6302085941.A0 6302085941	£1.50	£1.80
161 - EXTENTION MITRE FENCE MET-2380730793.A46 2380730793	-
162 - HEXAGON HEAD SCREW MET-6103121416.A57 6103121416	£1.54	£1.85
163 - MITRE FENCE MET-1390205739.A26 1390205739	-
164 - HEXAGON HEAD SCREW MET-141110290.A20 141110290	£3.20	£3.84
165 - WASHER MET-141151940.A46 141151940	£1.50	£1.80
166 - MITRE FENCE MET-2010200922.A0 2010200922	-
167 - GLIDE PIEC MET-2391205470.A0 2391205470	-
168 - CUP SQUARE NECK SCREW M 10X30 VERZ. MET-6110091603.A12 6110091603	£1.50	£1.80
169 - FUEHRUNG QUERANSCHLAG RD 25X2 0X1040 MET-1485730741.A32 1485730741	-
170 - SLIDING HANDLE RED MET-1388680470.A6 1388680470	£42.65	£51.18
171 - KEY MET-1492102829.A0 1492102829	£11.78	£14.13
172 - PUSH STICK MET-1394201630.A57 1394201630	£9.62	£11.54
173 - GUIDE PIECE MET-2391205283.A0 2391205283	£9.62	£11.54
175 - MITRE FENC MET-1010014146.A48 1010014146	£79.10	£94.92
176 - RATCHET LOCK LEVER FEMALE M 10 IG 18 MM MET-7006073730.A29 7006073730	£13.63	£16.36
177 - HEX NUT MET-141132030.A47 141132030	£2.94	£3.53
178 - RATING PLATE MET-338063970.A0 338063970	-
179 - EXTENSION MET-339137030.A0 339137030	-
1001 - VERDRAHTUNGSPLAN 400/230V MET-338506000.A0 338506000	-
