1 - ARMATURE COMPL. 230V
MET-316062280.A1
316062280
|
£68.35
|
£82.02
|
|
|
2 - FIELD COMPL.
MET-311012230.A8
311012230
|
£30.06
|
£36.07
|
|
|
3 - CABLE WITH PLUG
MET-344499650.A13
344499650
|
-
|
|
|
|
4 - CABLE SLEEVE
MET-344097360.A96
344097360
|
£2.94
|
£3.53
|
|
|
5 - CABLE CLIP
MET-343362490.A983
343362490
|
£3.20
|
£3.84
|
|
|
6 - SELF-TAP. FILL. H. SCREW
MET-141117060.A373
141117060
|
£3.20
|
£3.84
|
|
|
7 - STRAND COMPL.
MET-344498880.A67
344498880
|
£1.50
|
£1.80
|
|
|
8 - MOTOR HOUSING
MET-315013660.A28
315013660
|
£15.41
|
£18.49
|
|
|
9 - SWITCH ROD
MET-343430940.A8
343430940
|
£1.50
|
£1.80
|
|
|
10 - SWITCH SLIDE H/L
MET-343397810.A72
343397810
|
£1.50
|
£1.80
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A132
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A277
344097870
|
£1.50
|
£1.80
|
|
|
13 - BAFFLE
MET-343436590.A79
343436590
|
£3.82
|
£4.59
|
|
|
14 - BALL BEARING 8X22X7
MET-143114880.A81
143114880
|
£9.62
|
£11.54
|
|
|
15 - 2 PART MOTOR CAP
MET-343430910.A21
343430910
|
£11.78
|
£14.13
|
|
|
16 - SELF-TAP. FILL. H. SCREW
MET-141113180.A99
141113180
|
£1.50
|
£1.80
|
|
|
17 - SELF-TAP. FILL. H. SCREW
MET-141117060.A372
141117060
|
£3.20
|
£3.84
|
|
|
19 - BEARING FLANGE
MET-315202620.A37
315202620
|
£22.61
|
£27.13
|
|
|
20 - OPEN-END SPANNER
MET-344160400.A33
344160400
|
£6.38
|
£7.65
|
|
|
22 - HANDLE
MET-344099150.A6
344099150
|
£9.62
|
£11.54
|
|
|
23 - SPINDLE HEAD COMPL.
MET-316051730.A12
316051730
|
£51.54
|
£61.85
|
|
|
24 - ELECTRONIC UNIT 230V
MET-343082840.A6
343082840
|
£42.65
|
£51.18
|
|
|
25 - SWITCH
MET-343409640.A10
343409640
|
£9.62
|
£11.54
|
|
|
26 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316046890.A55
316046890
|
£15.42
|
£18.51
|
|
|
27 - CARBON BRUSH SET CUT-OFF
MET-316046900.A0
316046900
|
£15.41
|
£18.49
|
|
|
28 - PART NOT NEEDED
MET-399999990.A1850
399999990
|
-
|
|
|
|
29 - COLLET 6MM WITH FLANGE NUT (DOUBLE FLAT)
MET-630820000.A19
630820000
|
£22.49
|
£26.99
|
|
|
30 - CARRIER CPL.
MET-316062270.A11
316062270
|
£19.18
|
£23.02
|
|
|
31 - BUFFER
MET-344099140.A43
344099140
|
£3.82
|
£4.59
|
|
|
35 - RATING PLATE
MET-338067300.A0
338067300
|
-
|
|
|
|
36 - PART NOT NEEDED
MET-399999990.A1857
399999990
|
-
|
|
|
|
61 - SPINDLE HEAD COMPL.
MET-316065220.A5
316065220
|
£54.94
|
£65.93
|
|
|
62 - BALL BEARING
MET-143115930.A10
143115930
|
£9.62
|
£11.54
|
|
|
63 - BALL BEARING 10X30X9
MET-143111090.A5
143111090
|
£19.18
|
£23.02
|
|
|
64 - RETAINING RING
MET-141180370.A65
141180370
|
£1.50
|
£1.80
|
|
|
65 - COMPENSATING WASHER
MET-143115490.A59
143115490
|
£1.50
|
£1.80
|
|
|
66 - COUPLING
MET-341071300.A12
341071300
|
£8.37
|
£10.04
|
|
|
70 - COMPENSATING WASHER
MET-143115470.A5
143115470
|
£1.50
|
£1.80
|
|
|
71 - LUEFTER MIT STAUBSCHUTZKORB
MET-316051700.A49
316051700
|
£7.36
|
£8.83
|
|
|
75 - SPINDLE LOCK
MET-316059800.A5
316059800
|
£13.63
|
£16.36
|
|
|
80 - FAN
MET-330002060.A13
330002060
|
-
|
|
|
|
98 - O-RING
MET-143195530.A25
143195530
|
£2.94
|
£3.53
|
|
|

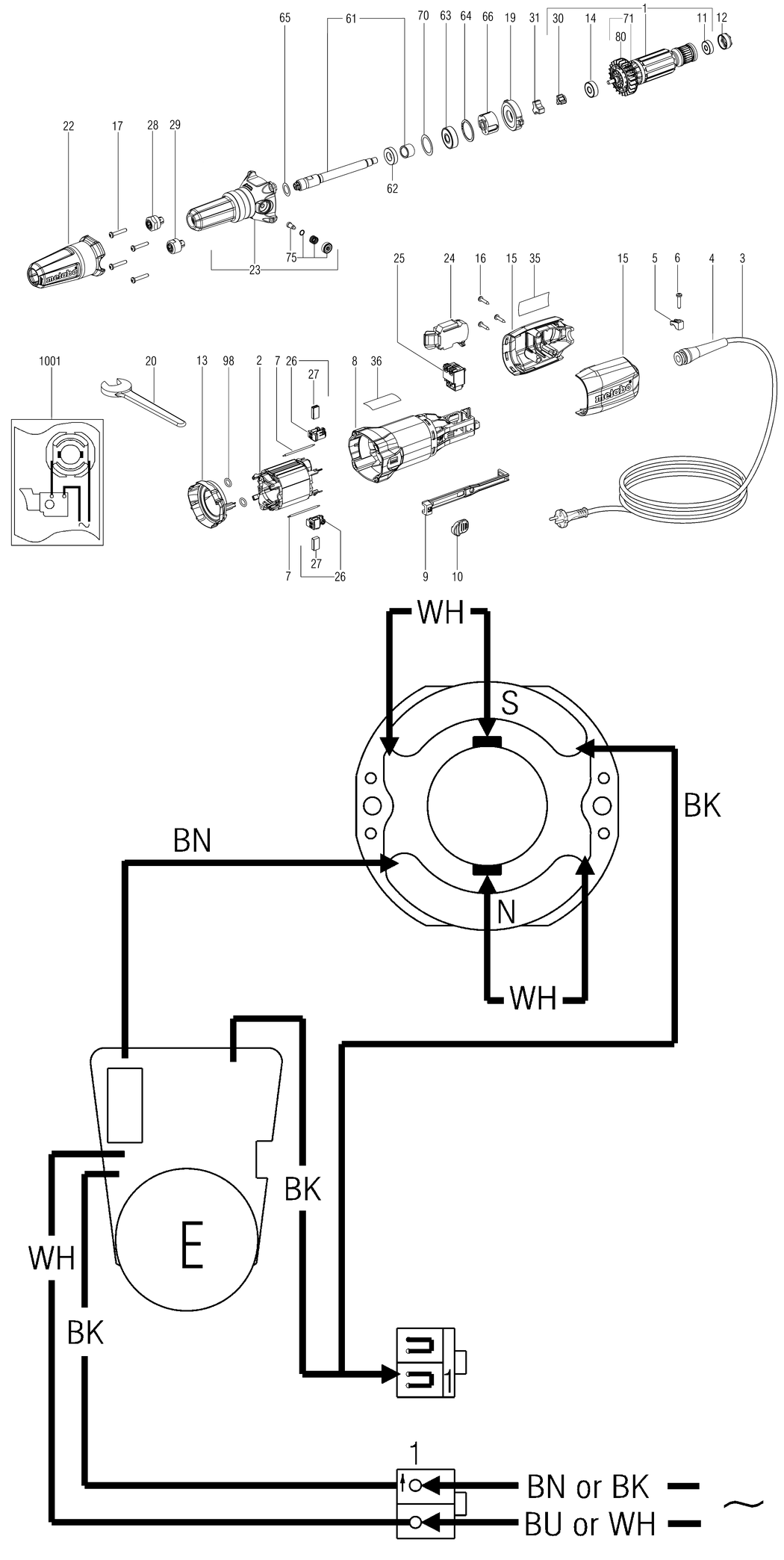

1001 - WIRING DIAGRAM
MET-338505710.A28
338505710
|
-
|
|
|
