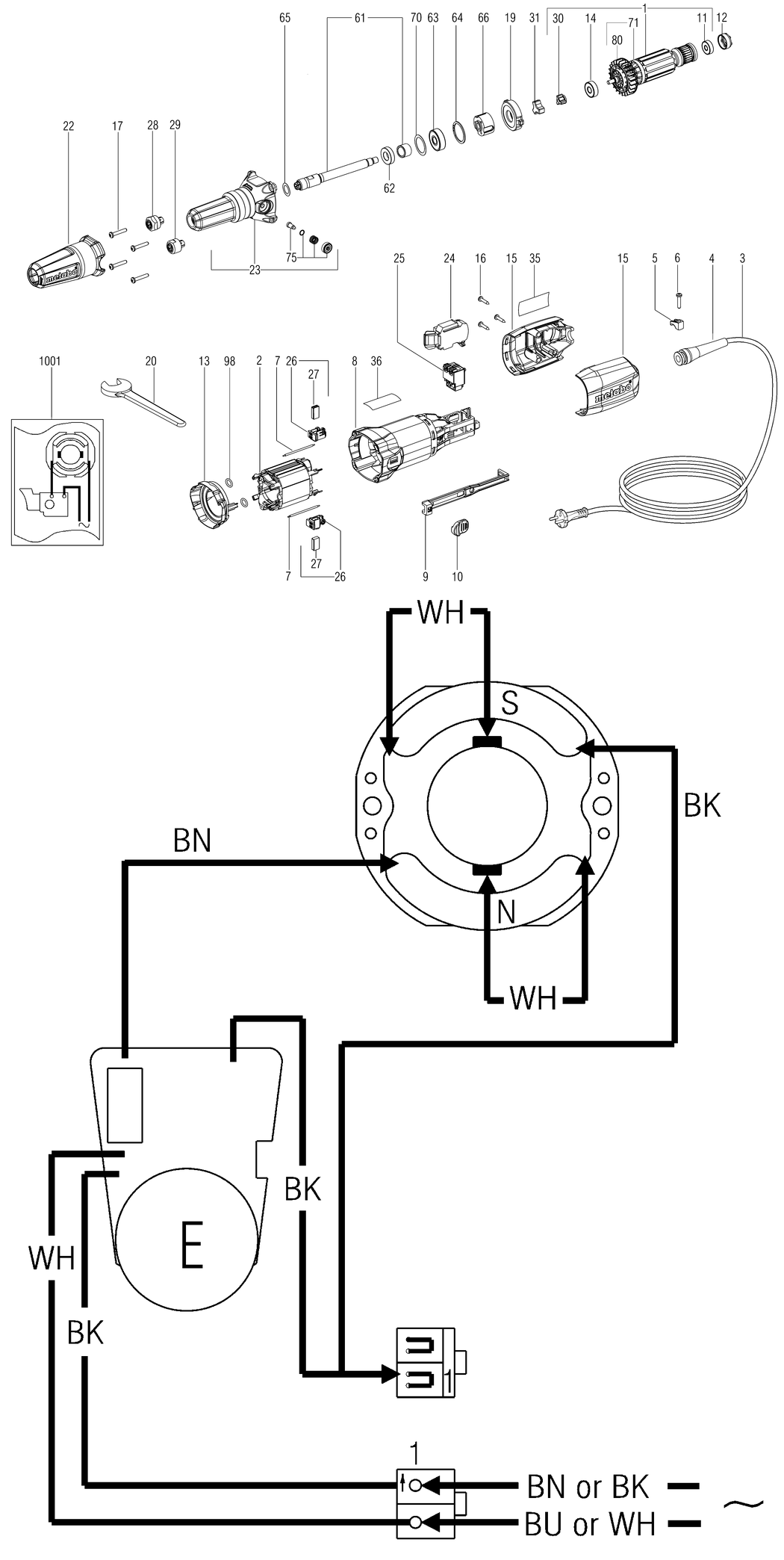

1 - ARMATURE COMPL. 230V
MET-316062280.A3
316062280
|
£68.35
|
£82.02
|
|
|
2 - FIELD COMPL.
MET-311012230.A11
311012230
|
£30.06
|
£36.07
|
|
|
3 - CABLE WITH PLUG
MET-344494010.A13
344494010
|
£22.96
|
£27.55
|
|
|
4 - CABLE SLEEVE
MET-344097360.A99
344097360
|
£2.94
|
£3.53
|
|
|
5 - CABLE CLIP
MET-343362490.A989
343362490
|
£3.20
|
£3.84
|
|
|
6 - SELF-TAP. FILL. H. SCREW
MET-141117060.A387
141117060
|
£3.20
|
£3.84
|
|
|
7 - STRAND COMPL.
MET-344498880.A61
344498880
|
£1.50
|
£1.80
|
|
|
8 - MOTOR HOUSING
MET-315013660.A31
315013660
|
£15.41
|
£18.49
|
|
|
9 - SWITCH ROD
MET-343430940.A12
343430940
|
£1.50
|
£1.80
|
|
|
10 - SWITCH SLIDE H/L
MET-343397810.A75
343397810
|
£1.50
|
£1.80
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A136
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A271
344097870
|
£1.50
|
£1.80
|
|
|
13 - BAFFLE
MET-343436590.A73
343436590
|
£3.82
|
£4.59
|
|
|
14 - BALL BEARING 8X22X7
MET-143114880.A74
143114880
|
£9.62
|
£11.54
|
|
|
15 - 2 PART MOTOR CAP
MET-343430910.A14
343430910
|
£11.78
|
£14.13
|
|
|
16 - SELF-TAP. FILL. H. SCREW
MET-141113180.A103
141113180
|
£1.50
|
£1.80
|
|
|
17 - SELF-TAP. FILL. H. SCREW
MET-141117060.A384
141117060
|
£3.20
|
£3.84
|
|
|
19 - BEARING FLANGE
MET-315202620.A35
315202620
|
£22.61
|
£27.13
|
|
|
20 - OPEN-END SPANNER
MET-344160400.A38
344160400
|
£6.38
|
£7.65
|
|
|
22 - HANDLE
MET-344099150.A1
344099150
|
£9.62
|
£11.54
|
|
|
23 - SPINDLE HEAD COMPL.
MET-316051730.A16
316051730
|
£51.54
|
£61.85
|
|
|
24 - ELECTRONIC UNIT 230V
MET-343082840.A9
343082840
|
£42.65
|
£51.18
|
|
|
25 - SWITCH
MET-343409640.A16
343409640
|
£9.62
|
£11.54
|
|
|
26 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316046890.A52
316046890
|
£15.42
|
£18.51
|
|
|
27 - CARBON BRUSH SET CUT-OFF
MET-316046900.A5
316046900
|
£15.41
|
£18.49
|
|
|
28 - COLLET 1/4 WITH FLANGE NUT(DOUBLE FLAT)
MET-630821000.A1
630821000
|
-
|
|
|
|
29 - COLLET 6MM WITH FLANGE NUT (DOUBLE FLAT)
MET-630820000.A21
630820000
|
£22.49
|
£26.99
|
|
|
30 - CARRIER CPL.
MET-316062270.A6
316062270
|
£19.18
|
£23.02
|
|
|
31 - BUFFER
MET-344099140.A47
344099140
|
£3.82
|
£4.59
|
|
|
35 - RATING PLATE
MET-338058240.A0
338058240
|
-
|
|
|
|
36 - PART NOT NEEDED
MET-399999990.A1865
399999990
|
-
|
|
|
|
61 - SPINDLE HEAD COMPL.
MET-316065220.A7
316065220
|
£54.94
|
£65.93
|
|
|
62 - BALL BEARING
MET-143115930.A5
143115930
|
£9.62
|
£11.54
|
|
|
63 - BALL BEARING 10X30X9
MET-143111090.A7
143111090
|
£19.18
|
£23.02
|
|
|
64 - RETAINING RING
MET-141180370.A62
141180370
|
£1.50
|
£1.80
|
|
|
65 - COMPENSATING WASHER
MET-143115490.A53
143115490
|
£1.50
|
£1.80
|
|
|
66 - COUPLING
MET-341071300.A20
341071300
|
£8.37
|
£10.04
|
|
|
70 - COMPENSATING WASHER
MET-143115470.A11
143115470
|
£1.50
|
£1.80
|
|
|
71 - LUEFTER MIT STAUBSCHUTZKORB
MET-316051700.A45
316051700
|
£7.36
|
£8.83
|
|
|
75 - SPINDLE LOCK
MET-316059800.A10
316059800
|
£13.63
|
£16.36
|
|
|
80 - FAN
MET-330002060.A10
330002060
|
-
|
|
|
|
98 - O-RING
MET-143195530.A24
143195530
|
£2.94
|
£3.53
|
|
|
1001 - WIRING DIAGRAM
MET-338505710.A36
338505710
|
-
|
|
|
