1 - FACE PLATE
MET-343378360.A4
343378360
|
-
|
|
|
|
2 - LOCKING DISC
MET-339005680.A6
339005680
|
£3.20
|
£3.84
|
|
|
3 - CONTROL KNOB
MET-343377570.A3
343377570
|
-
|
|
|
|
4 - SWITCH TOGGLE
MET-343378370.A1
343378370
|
£5.62
|
£6.75
|
|
|
6 - LAMP RAIL
MET-343072320.A37
343072320
|
£13.63
|
£16.36
|
|
|
7 - SELF-TAPP. FILL. H. SCREW
MET-141120090.A4
141120090
|
-
|
|
|
|
8 - POWER SOCKET
MET-344495140.A1
344495140
|
£63.36
|
£76.03
|
|
|
9 - WASHER
MET-341147580.A19
341147580
|
-
|
|
|
|
12 - MOTOR POWER SOCKET
MET-316034210.A23
316034210
|
-
|
|
|
|
13 - CONTACT WIRE
MET-339131340.A1
339131340
|
-
|
|
|
|
14 - MOTOR POWER PLUG
MET-316034240.A1
316034240
|
-
|
|
|
|
17 - METABO LABEL
MET-338116660.A1
338116660
|
-
|
|
|
|
18 - CHIPBOARD SCREW
MET-141120130.A52
141120130
|
£3.20
|
£3.84
|
|
|
19 - GASKET
MET-339012360.A43
339012360
|
£15.41
|
£18.49
|
|
|
20 - FLAT SPRING
MET-342002960.A30
342002960
|
£3.82
|
£4.59
|
|
|
21 - LATCH
MET-343377410.A23
343377410
|
£8.37
|
£10.04
|
|
|
22 - METABO LABEL
MET-338116700.A2
338116700
|
-
|
|
|
|
23 - BODY COMPL.
MET-316034200.A1
316034200
|
£71.39
|
£85.67
|
|
|
25 - SPINDLE
MET-341147570.A0
341147570
|
£1.50
|
£1.80
|
|
|
26 - SWITCH SPRING
MET-342050950.A42
342050950
|
£13.63
|
£16.36
|
|
|
27 - VACUUM HOSE
MET-344096320.A13
344096320
|
£3.82
|
£4.59
|
|
|
28 - COVER
MET-343377450.A1
343377450
|
£32.88
|
£39.45
|
|
|
29 - HANDLE
MET-343377460.A23
343377460
|
£15.41
|
£18.49
|
|
|
30 - CABLE CLIP
MET-343378310.A29
343378310
|
-
|
|
|
|
31 - CABLE WITH PLUG
MET-344495180.A8
344495180
|
-
|
|
|
|
32 - RATING PLATE
MET-338043240.A1
338043240
|
-
|
|
|
|
34 - RETRAINING SHEET
MET-339131680.A0
339131680
|
-
|
|
|
|
35 - VIBRATOR
MET-343072340.A21
343072340
|
£79.10
|
£94.92
|
|
|
36 - GASKET
MET-344093420.A23
344093420
|
£3.20
|
£3.84
|
|
|
37 - CONTACT STRAP
MET-339131320.A23
339131320
|
-
|
|
|
|
38 - TERMINAL RAIL
MET-343050030.A14
343050030
|
£3.20
|
£3.84
|
|
|
39 - PRESSURE SPRING
MET-342001850.A0
342001850
|
£3.20
|
£3.84
|
|
|
40 - PRESSURE PLATE
MET-341147560.A24
341147560
|
-
|
|
|
|
41 - ELBOW LEVER
MET-341147670.A0
341147670
|
-
|
|
|
|
42 - MOTOR HOUSING
MET-343377390.A1
343377390
|
-
|
|
|
|
46 - ELECTRODE CPL.
MET-316037940.A23
316037940
|
£6.38
|
£7.65
|
|
|
47 - SOUND DAMPER
MET-344101240.A0
344101240
|
£6.38
|
£7.65
|
|
|
50 - MOTOR UNIT COMPL.
MET-317002990.A37
317002990
|
£184.46
|
£221.35
|
|
|
51 - SEALING RING
MET-344093030.A1
344093030
|
£11.78
|
£14.13
|
|
|
52 - PROTECTIVE FILTER
MET-344101280.A0
344101280
|
£3.82
|
£4.59
|
|
|
54 - 2 FILTER CARTRIDGES PAPER
MET-631933000.A0
631933000
|
£44.99
|
£53.99
|
|
|
55 - SOUND DAMPER
MET-344101250.A24
344101250
|
£22.96
|
£27.55
|
|
|
56 - 2 SUCTION HOSE 35MM DIA.
MET-630314000.A24
630314000
|
£30.82
|
£36.99
|
|
|
57 - HOSE CONNECTOR
MET-343373980.A31
343373980
|
£7.47
|
£8.96
|
|
|
58 - SUCTION HOSE dia 35 MM L 3.5 M
MET-631362000.A19
631362000
|
£43.32
|
£51.99
|
|
|
59 - EXTRACTION ADAPTER METABO
MET-630798000.A0
630798000
|
£8.32
|
£9.99
|
|
|
61 - WHEEL
MET-343378410.A0
343378410
|
£22.61
|
£27.13
|
|
|
62 - SPINDLE
MET-341515010.A1
341515010
|
£22.96
|
£27.55
|
|
|
63 - CASTER
MET-341250120.A23
341250120
|
£13.63
|
£16.36
|
|
|
64 - CONTAINER CPL.
MET-316032900.A10
316032900
|
£140.20
|
£168.24
|
|
|
65 - LATCH
MET-343378390.A12
343378390
|
£8.37
|
£10.04
|
|
|
66 - PLUG
MET-343369660.A1
343369660
|
£3.20
|
£3.84
|
|
|
67 - SPRING PLUG
MET-341147650.A12
341147650
|
£9.62
|
£11.54
|
|
|
68 - BEARING BOLT
MET-341514990.A23
341514990
|
£3.20
|
£3.84
|
|
|
69 - LOCKING BUTTON
MET-341147590.A1
341147590
|
£4.76
|
£5.71
|
|
|
70 - LOCKING PIECE
MET-343378320.A1
343378320
|
£3.20
|
£3.84
|
|
|
71 - SPRING
MET-342021810.A24
342021810
|
£1.50
|
£1.80
|
|
|
73 - SUPPORTING PLATE
MET-343377560.A1
343377560
|
-
|
|
|
|
74 - PRINTED CIRCUIT
MET-343078330.A4
343078330
|
£142.38
|
£170.85
|
|
|
75 - FLOOR NOZZLE 370 MM
MET-630329000.A7
630329000
|
£25.82
|
£30.99
|
|
|
76 - LATCH
MET-343377360.A9
343377360
|
£4.76
|
£5.71
|
|
|
77 - METABOX HOLDER
MET-343377350.A0
343377350
|
£26.85
|
£32.22
|
|
|
79 - STRAP
MET-341147640.A1
341147640
|
£51.54
|
£61.85
|
|
|
80 - ELBOW LEVER
MET-341147630.A11
341147630
|
£3.20
|
£3.84
|
|
|
81 - WASHER
MET-341147680.A11
341147680
|
£2.94
|
£3.53
|
|
|
82 - EXHAUST MASH
MET-343378340.A4
343378340
|
-
|
|
|
|
83 - 5 PAPER FILTER BAGS
MET-631936000.A3
631936000
|
£34.99
|
£41.99
|
|
|
84 - INDICATION LABEL
MET-338117060.A4
338117060
|
-
|
|
|
|
85 - ELECTRONIC UNIT
MET-316034790.A0
316034790
|
-
|
|
|
|
87 - FOAM RUBBER
MET-344096390.A23
344096390
|
£5.62
|
£6.75
|
|
|
89 - STICKER M
MET-144208690.A11
144208690
|
-
|
|
|
|

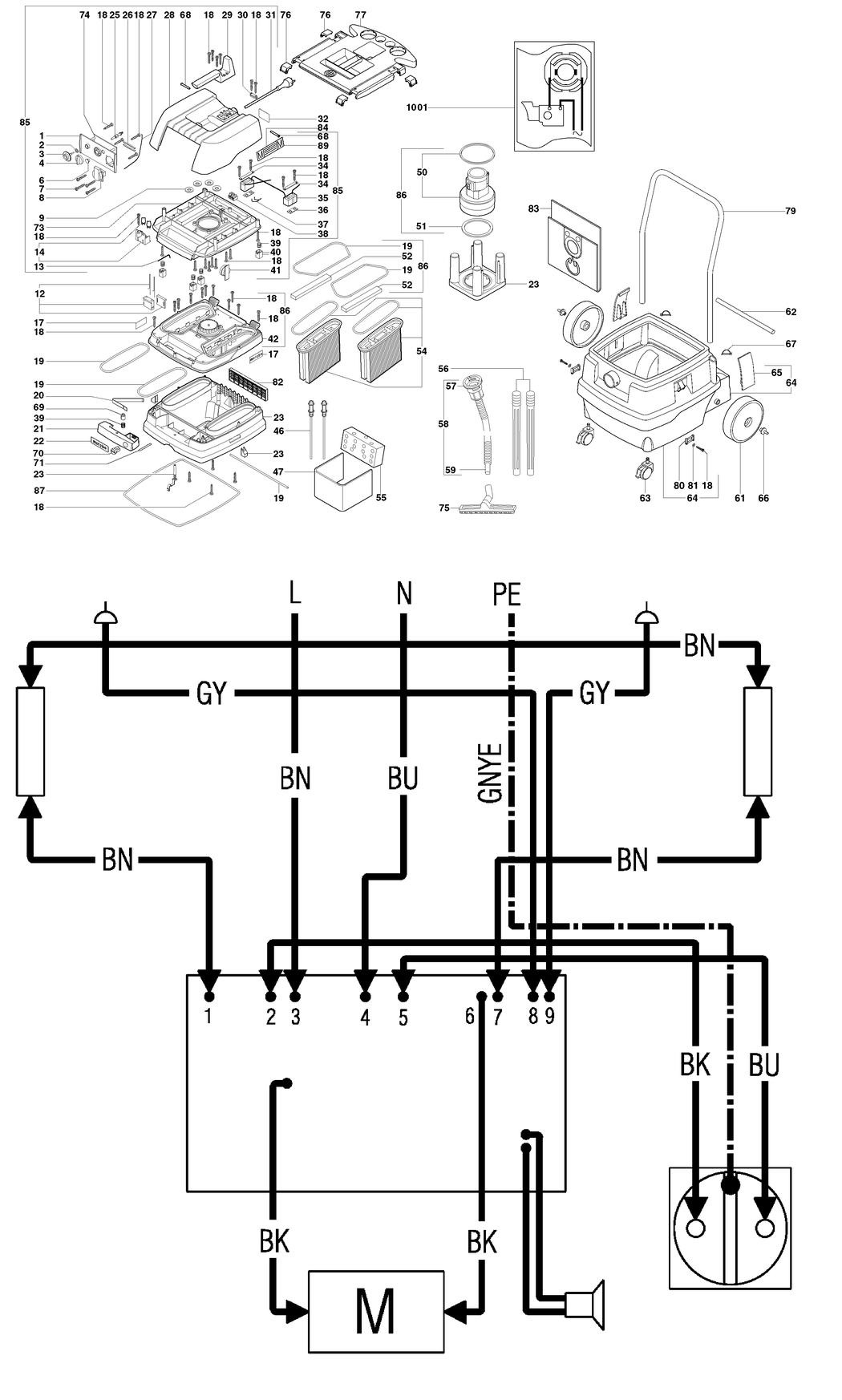

1001 - DIAGRAM
MET-338504310.A0
338504310
|
-
|
|
|
