1 - FACE PLATE
MET-343378350.A3
343378350
|
-
|
|
|
|
2 - LOCKING DISC
MET-339005680.A4
339005680
|
£3.20
|
£3.84
|
|
|
4 - SWITCH TOGGLE
MET-343378370.A6
343378370
|
£5.62
|
£6.75
|
|
|
5 - CONTROL KNOB
MET-343377580.A0
343377580
|
£8.70
|
£10.44
|
|
|
7 - SELF-TAPP. FILL. H. SCREW
MET-141120090.A2
141120090
|
-
|
|
|
|
8 - SOCKET W. SCREWS
MET-344494520.A2
344494520
|
£36.59
|
£43.91
|
|
|
9 - WASHER
MET-341147580.A13
341147580
|
-
|
|
|
|
12 - MOTOR POWER SOCKET
MET-316034210.A13
316034210
|
-
|
|
|
|
13 - CONTACT WIRE
MET-339131340.A31
339131340
|
-
|
|
|
|
14 - MOTOR POWER PLUG
MET-316034240.A11
316034240
|
-
|
|
|
|
17 - METABO LABEL
MET-338116660.A2
338116660
|
-
|
|
|
|
18 - CHIPBOARD SCREW
MET-141120130.A36
141120130
|
£3.20
|
£3.84
|
|
|
19 - GASKET
MET-339012360.A24
339012360
|
£15.41
|
£18.49
|
|
|
20 - FLAT SPRING
MET-342002960.A16
342002960
|
£3.82
|
£4.59
|
|
|
21 - LATCH
MET-343377410.A16
343377410
|
£8.37
|
£10.04
|
|
|
22 - METABO LABEL
MET-338116680.A6
338116680
|
-
|
|
|
|
23 - BODY COMPL.
MET-316034200.A12
316034200
|
£71.39
|
£85.67
|
|
|
25 - SPINDLE
MET-341147570.A11
341147570
|
£1.50
|
£1.80
|
|
|
26 - SWITCH SPRING
MET-342050950.A25
342050950
|
£13.63
|
£16.36
|
|
|
28 - COVER
MET-343377450.A7
343377450
|
£32.88
|
£39.45
|
|
|
29 - HANDLE
MET-343377460.A17
343377460
|
£15.41
|
£18.49
|
|
|
30 - CABLE CLIP
MET-343378310.A8
343378310
|
-
|
|
|
|
31 - CABLE WITH PLUG
MET-344495200.A1
344495200
|
-
|
|
|
|
32 - RATING PLATE
MET-338043060.A0
338043060
|
-
|
|
|
|
34 - RETRAINING SHEET
MET-339131680.A10
339131680
|
-
|
|
|
|
35 - VIBRATOR
MET-343072340.A17
343072340
|
£79.10
|
£94.92
|
|
|
36 - GASKET
MET-344093420.A10
344093420
|
£3.20
|
£3.84
|
|
|
37 - CONTACT STRAP
MET-339131320.A20
339131320
|
-
|
|
|
|
38 - TERMINAL RAIL
MET-343050030.A40
343050030
|
£3.20
|
£3.84
|
|
|
39 - PRESSURE SPRING
MET-342001850.A14
342001850
|
£3.20
|
£3.84
|
|
|
40 - PRESSURE PLATE
MET-341147560.A2
341147560
|
-
|
|
|
|
42 - MOTOR HOUSING
MET-343377390.A15
343377390
|
-
|
|
|
|
46 - ELECTRODE CPL.
MET-316037940.A22
316037940
|
£6.38
|
£7.65
|
|
|
47 - SOUND DAMPER
MET-344101240.A14
344101240
|
£6.38
|
£7.65
|
|
|
50 - BLOWER
MET-317003070.A1
317003070
|
£184.46
|
£221.35
|
|
|
51 - SEALING RING
MET-344093030.A14
344093030
|
£11.78
|
£14.13
|
|
|
52 - PROTECTIVE FILTER
MET-344101280.A14
344101280
|
£3.82
|
£4.59
|
|
|
54 - 2 FILTER CARTRIDGES PAPER
MET-631933000.A10
631933000
|
£44.99
|
£53.99
|
|
|
55 - SOUND DAMPER
MET-344101250.A10
344101250
|
£22.96
|
£27.55
|
|
|
56 - 2 SUCTION HOSE 35MM DIA.
MET-630314000.A6
630314000
|
£30.82
|
£36.99
|
|
|
57 - HOSE CONNECTOR
MET-343373980.A22
343373980
|
£7.47
|
£8.96
|
|
|
58 - SUCTION HOSE dia 35 MM L 2.5 M
MET-631752000.A2
631752000
|
£29.16
|
£34.99
|
|
|
59 - EXTRACTION ADAPTER METABO
MET-630798000.A26
630798000
|
£8.32
|
£9.99
|
|
|
61 - WHEEL
MET-343377610.A11
343377610
|
£13.63
|
£16.36
|
|
|
62 - SPINDLE
MET-341514970.A7
341514970
|
£14.71
|
£17.65
|
|
|
63 - CASTER
MET-341250120.A12
341250120
|
£13.63
|
£16.36
|
|
|
64 - CONTAINER CPL.
MET-316032880.A7
316032880
|
£114.40
|
£137.28
|
|
|
65 - LATCH
MET-343377590.A0
343377590
|
£4.99
|
£5.99
|
|
|
66 - PLUG
MET-343369660.A14
343369660
|
£3.75
|
£4.50
|
|
|
67 - CONTAINER CPL.
MET-316032890.A0
316032890
|
-
|
|
|
|
68 - BEARING BOLT
MET-341514990.A0
341514990
|
£3.20
|
£3.84
|
|
|
69 - LOCKING BUTTON
MET-341147590.A22
341147590
|
£4.76
|
£5.71
|
|
|
70 - LOCKING PIECE
MET-343378320.A17
343378320
|
£3.20
|
£3.84
|
|
|
71 - SPRING
MET-342021810.A0
342021810
|
£1.50
|
£1.80
|
|
|
73 - SUPPORTING PLATE
MET-343377560.A17
343377560
|
-
|
|
|
|
74 - ELECTRONIC CPL.
MET-343078380.A0
343078380
|
-
|
|
|
|
75 - FLOOR NOZZLE 370 MM
MET-630329000.A4
630329000
|
£25.82
|
£30.99
|
|
|
76 - LATCH
MET-343377360.A2
343377360
|
£4.76
|
£5.71
|
|
|
77 - METABOX HOLDER
MET-343377350.A7
343377350
|
£26.85
|
£32.22
|
|
|
78 - 5 PAPER FILTER BAGS
MET-630343000.A7
630343000
|
£22.49
|
£26.99
|
|
|
79 - FOAM RUBBER
MET-344096390.A10
344096390
|
£5.62
|
£6.75
|
|
|
80 - ELECTRONIC UNIT
MET-316034340.A0
316034340
|
£196.24
|
£235.49
|
|
|
81 - MOTOR UNIT
MET-316034290.A0
316034290
|
-
|
|
|
|

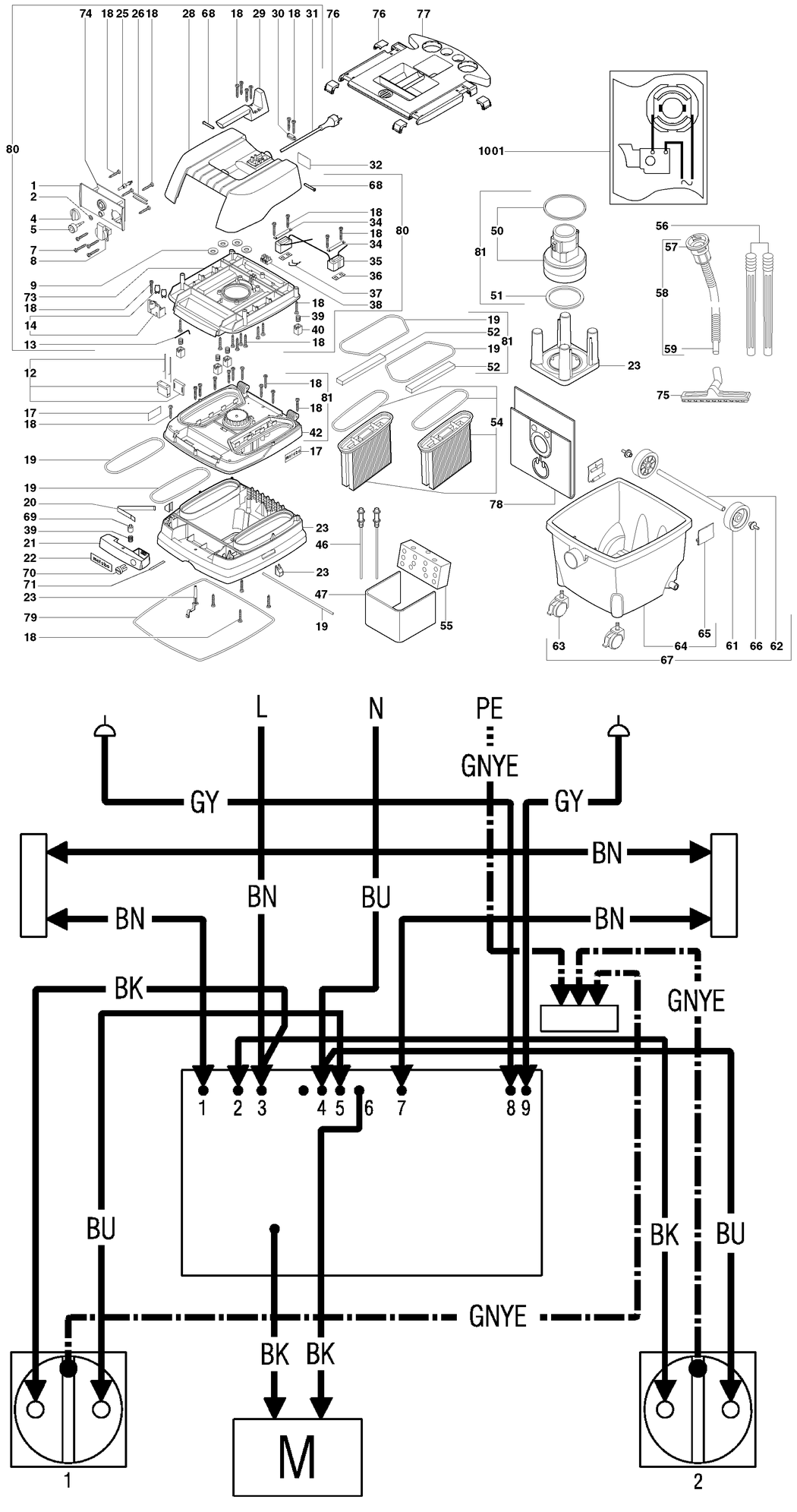

1001 - DIAGRAM
MET-338504330.A0
338504330
|
-
|
|
|
