1 - ARMATURE COMPL. 120V
MET-310010970.A1
310010970
|
-
|
|
|
|
2 - FIELD COIL W.FIELD COIL 120 V
MET-311011970.A2
311011970
|
-
|
|
|
|
3 - SWITCH 2-POLE X2
MET-343410250.A11
343410250
|
£9.62
|
£11.54
|
|
|
4 - CABLE SLEEVE
MET-344100970.A384
344100970
|
£3.20
|
£3.84
|
|
|
5 - CABLE WITH UL-CSA-PLUG
MET-344492750.A55
344492750
|
£22.61
|
£27.13
|
|
|
6 - CABLE CLIP
MET-343362490.A623
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013580.A3
315013580
|
-
|
|
|
|
8 - INTERMEDIATE FLANGE
MET-343434300.A4
343434300
|
-
|
|
|
|
9 - BAFFLE
MET-339151200.A135
339151200
|
£2.94
|
£3.53
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A44
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A408
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A263
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A35
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A418
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A170
341100940
|
£3.20
|
£3.84
|
|
|
17 - SHIFT LEVER COMPL.
MET-316053960.A9
316053960
|
£7.36
|
£8.83
|
|
|
18 - MOTOR CAP 2 PARTS BLACK
MET-316070240.A9
316070240
|
£15.41
|
£18.49
|
|
|
19 - FOAM RUBBER SELF-ADHESIVE 20 X 8 X 6
MET-344101400.A10
344101400
|
-
|
|
|
|
21 - CLAMPING FLANGE
MET-341031290.A58
341031290
|
£9.62
|
£11.54
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A173
339204500
|
£11.78
|
£14.13
|
|
|
24 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A170
316046590
|
£11.78
|
£14.13
|
|
|
26 - SPRING CLIP
MET-342022490.A151
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A198
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A208
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141124890.A3
141124890
|
-
|
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141116980.A364
141116980
|
£1.50
|
£1.80
|
|
|
34 - RATING PLATE
MET-338072700.A0
338072700
|
-
|
|
|
|
36 - WARNING LABEL 52X22
MET-338122090.A66
338122090
|
-
|
|
|
|
40 - SPINDLE SHAFT 5/8
MET-341604440.A45
341604440
|
-
|
|
|
|
41 - CLAMPING NUT COMPL.
MET-316055450.A46
316055450
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A92
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A283
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A51
141153920
|
£1.50
|
£1.80
|
|
|
49 - SELF-TAP. FILL. H. SCREW
MET-141117060.A512
141117060
|
£3.20
|
£3.84
|
|
|
50 - FLANGE COMPL.
MET-343433280.A175
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A185
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054960.A35
316054960
|
£19.18
|
£23.02
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A25
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A17
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054230.A7
316054230
|
£73.52
|
£88.23
|
|
|
56 - BRUSH HOLDER COMPL.
MET-316055230.A14
316055230
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054860.A19
316054860
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316055200.A14
316055200
|
£11.78
|
£14.13
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A39
316066040
|
£15.41
|
£18.49
|
|
|
62 - O-RING
MET-143196000.A290
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A507
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A178
343433130
|
£1.66
|
£1.99
|
|
|
65 - BOLT
MET-341515640.A175
341515640
|
£2.94
|
£3.53
|
|
|
75 - O-RING
MET-143192150.A15
143192150
|
£1.50
|
£1.80
|
|
|
92 - O-RING
MET-143195640.A39
143195640
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A120
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A535
344130560
|
£19.18
|
£23.02
|
|
|

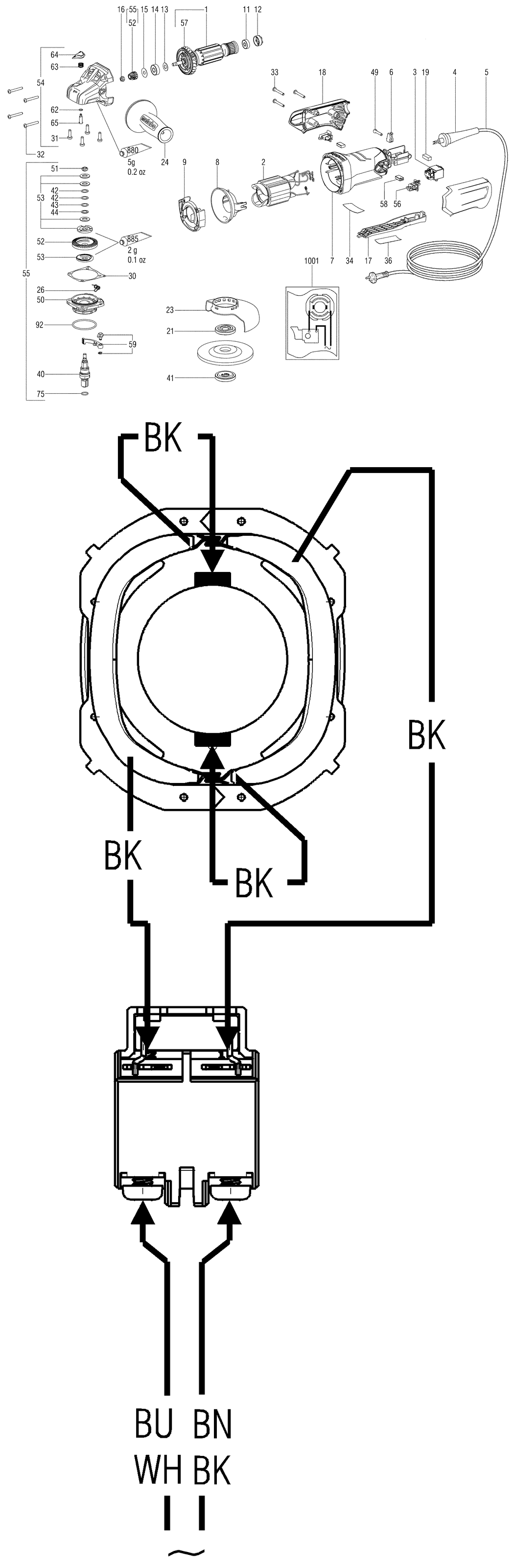

1001 - DIAGRAM
MET-338505940.A27
338505940
|
-
|
|
|
