Metabo KHE 96 / 00596390 / GB 110V Spare Parts

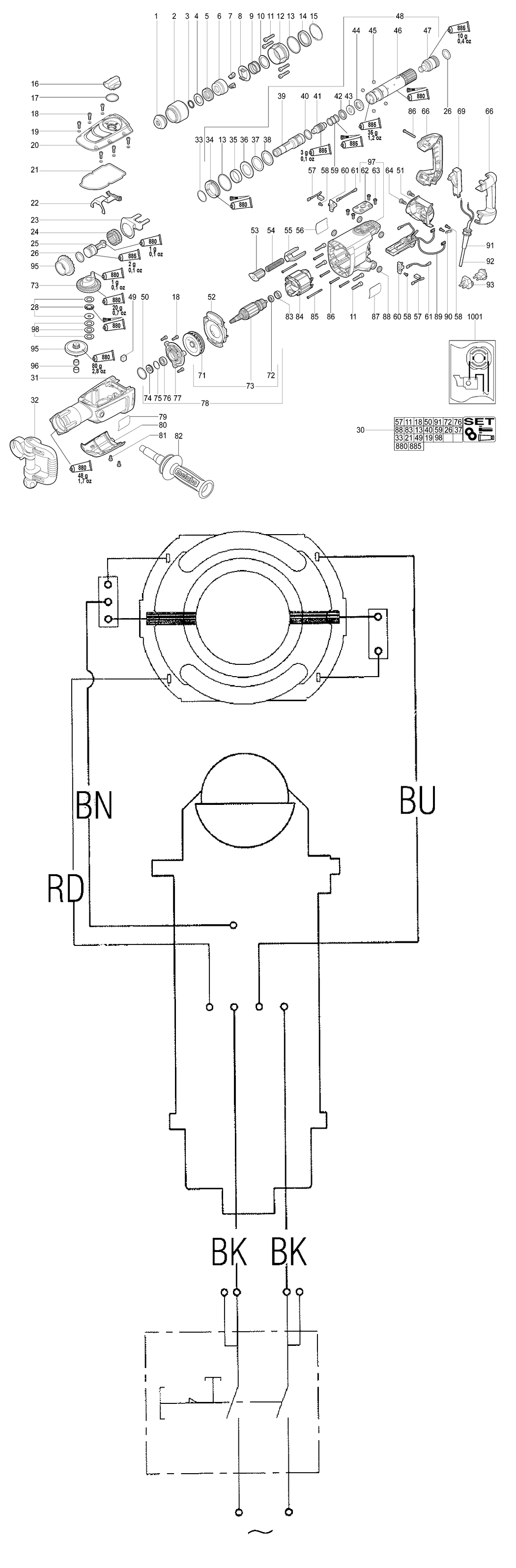

An exploded diagram and spare parts listing for the Metabo KHE 96 / 00596390 / GB 110V

	Ex VAT	Inc VAT
1 - RUBBER CAP MET-344097970.A11 344097970	£15.41	£18.49
2 - SLEEVE MET-343394280.A8 343394280	£22.96	£27.55
3 - CIRCLIP MET-141155450.A9 141155450	£1.50	£1.80
4 - RING MET-341012850.A14 341012850	£32.88	£39.45
5 - DAMPING RING MET-344097980.A16 344097980	£22.61	£27.13
6 - SLEEVE MET-341058650.A21 341058650	£68.35	£82.02
7 - CARRIER MET-339007080.A15 339007080	£32.88	£39.45
8 - INTERMEDIATE PLATE MET-339133170.A13 339133170	£48.88	£58.66
9 - PRESSURE SPRING MET-342003480.A14 342003480	£4.76	£5.71
10 - WASHER MET-341012920.A8 341012920	-
11 - CAP SCREW MET-141114040.A7 141114040	£1.50	£1.80
12 - RETAINING RING MET-339132760.A10 339132760	£9.62	£11.54
13 - O-RING MET-344098140.A9 344098140	£1.50	£1.80
14 - SHAFT SEALING RING MET-339011620.A4 339011620	£7.36	£8.83
15 - RETAINING RING MET-141180450.A9 141180450	£3.20	£3.84
16 - CONTROL KNOB MET-343394250.A17 343394250	£15.41	£18.49
17 - O-RING MET-344098090.A47 344098090	£1.50	£1.80
18 - CAP SCREW MET-141123570.A14 141123570	£2.94	£3.53
19 - WASHER MET-141150020.A67 141150020	£1.50	£1.80
20 - GEAR-BOX COVER MET-315415900.A8 315415900	£64.30	£77.16
21 - SEAL MET-344098050.A11 344098050	£11.78	£14.13
22 - SHIFT FORK MET-339133150.A14 339133150	£63.36	£76.03
23 - RETAINING SHEET MET-339133160.A12 339133160	£48.88	£58.66
24 - SETTING RING MET-343394270.A18 343394270	£5.62	£6.75
25 - PISTON COMPL. MET-316042440.A23 316042440	£48.88	£58.66
26 - O-RING MET-344098180.A14 344098180	£1.50	£1.80
28 - BEARING MET-320050630.A8 320050630	£15.41	£18.49
30 - MAINTENANCE KIT MET-316042470.A3 316042470	£79.10	£94.92
31 - GEAR HOUSING COMPL. MET-315104700.A10 315104700	£198.70	£238.44
32 - SIDE SUPPORT HANDLE COMPL. MET-316042080.A14 316042080	£54.94	£65.93
33 - CIRCLIP MET-342022080.A13 342022080	£2.94	£3.53
34 - RING MET-341070580.A3 341070580	£30.06	£36.07
35 - RING MET-341012840.A11 341012840	-
36 - SUPPORTING DISC MET-341070570.A23 341070570	£8.37	£10.04
37 - O-RING MET-344098190.A12 344098190	£17.55	£21.06
38 - STOP RING MET-339006940.A16 339006940	-
39 - DRILL DRIVING SLEEVE MET-341058630.A21 341058630	£79.43	£95.32
40 - O-RING MET-344098150.A17 344098150	£1.50	£1.80
41 - STRIKER PIN MET-316042420.A23 316042420	£63.36	£76.03
42 - STOP RING MET-341012820.A11 341012820	£19.18	£23.02
43 - RING NBR MET-344098040.A15 344098040	£6.38	£7.65
44 - STOP RING MET-341012830.A15 341012830	£22.96	£27.55
45 - PIN MET-341058640.A5 341058640	-
46 - SLEEVE MET-341058620.A5 341058620	-
47 - STRIKER COMPL. MET-316042430.A3 316042430	£61.08	£73.30
48 - SPINDLE COMPL. SDS-M MET-316042410.A3 316042410	£296.58	£355.89
49 - FELT SEAL MET-344098060.A15 344098060	-
50 - O-RING MET-344098110.A12 344098110	£1.50	£1.80
51 - HOUSING COVER COMPL. MET-343392340.A13 343392340	-
52 - BAFFLE MET-339151090.A18 339151090	£13.63	£16.36
53 - PRESSURE PLATE MET-343394230.A18 343394230	-
54 - PRESSURE SPRING MET-342003470.A12 342003470	-
55 - BEVEL GEAR MET-343394240.A8 343394240	£4.76	£5.71
56 - RATING PLATE MET-338049430.A1 338049430	£3.20	£3.84
57 - CARBON BRUSH SET MET-316042480.A22 316042480	£48.88	£58.66
58 - SCREW MET-341704240.A57 341704240	£1.50	£1.80
59 - O-RING MET-344098160.A9 344098160	£1.50	£1.80
60 - BRUSH HOLDER MET-343000920.A62 343000920	£9.62	£11.54
61 - LEAD WIRE (SWITCH) MET-344497400.A17 344497400	£3.20	£3.84
62 - COVER MET-339132750.A15 339132750	-
63 - SCREW C-K6X16 T25 MET-341704230.A13 341704230	-
64 - SCREW MET-341704250.A13 341704250	£2.94	£3.53
66 - HANDLE 2 PART MET-343394220.A8 343394220	£48.88	£58.66
69 - ON-OFF SWITCH MET-343407670.A49 343407670	£54.94	£65.93
71 - FAN MET-330001860.A19 330001860	£26.35	£31.62
72 - BALL BEARING MET-320050650.A41 320050650	£15.41	£18.49
73 - ARMATURE COMPL. 110-120 V+BEVEL GEAR MET-316048170.A0 316048170	£135.84	£163.01
74 - SEALING RING MET-344098030.A12 344098030	£19.18	£23.02
75 - RETAINING RING MET-342022070.A20 342022070	£2.94	£3.53
76 - BALL BEARING MET-320050670.A31 320050670	£22.61	£27.13
77 - GEAR COVER MET-315300620.A13 315300620	£61.08	£73.30
78 - ARMATURE W.FLANGE 110-120 V MET-316063880.A4 316063880	£249.12	£298.94
79 - INDICATION LABEL KHE 96 MET-338121200.A8 338121200	-
80 - BLANK FACEPLATE MET-343394260.A10 343394260	£19.18	£23.02
81 - FILLISTER HEAD SCREW MET-141123580.A34 141123580	£1.50	£1.80
82 - ANTI-VIBRATION HANDLE COMPL. MET-314001050.A17 314001050	£19.18	£23.02
83 - RUBBER BUSHING MET-344098020.A14 344098020	£2.94	£3.53
84 - FIELD COIL W.FIELD COIL 110-120 V MET-311010840.A7 311010840	£51.54	£61.85
85 - SCREW 4X64 MET-341704210.A37 341704210	£1.50	£1.80
86 - SCREW K5X45 T20 MET-341704220.A21 341704220	£1.50	£1.80
87 - METABO LABEL MET-338121110.A10 338121110	£5.62	£6.75
88 - O-RING MET-344098120.A14 344098120	£1.50	£1.80
89 - ELECTRONIC UNIT 110-120 V MET-343081320.A6 343081320	£55.90	£67.08
90 - CABLE CLIP MET-343394210.A53 343394210	£1.50	£1.80
91 - CABLE SLEEVE MET-344098010.A12 344098010	£6.38	£7.65
92 - CABLE M.BRIT.STECKER MET-344497450.A3 344497450	-
93 - PART NOT NEEDED MET-399999990.A2308 399999990	-
95 - CLUTCH + BEVEL GEAR MET-316048190.A1 316048190	-
96 - NEEDLE ROLLER AND CAGE MET-320050640.A21 320050640	£8.37	£10.04
97 - MOTOR HOUSING COMPL. MET-316042090.A11 316042090	£60.03	£72.04
98 - WASHERS SET MET-316043160.A14 316043160	£15.41	£18.49
880 - TUBE GREASE 45 G URETHYN MET-344131170.A1 344131170	£26.35	£31.62
885 - TUBE GREASE GADUS S5V220 MET-344131160.A25 344131160	£26.35	£31.62
1001 - WIRING DIAGRAM MET-338504730.A13 338504730	-
