Metabo KHE 56 / 00340391 / GB 110V Spare Parts

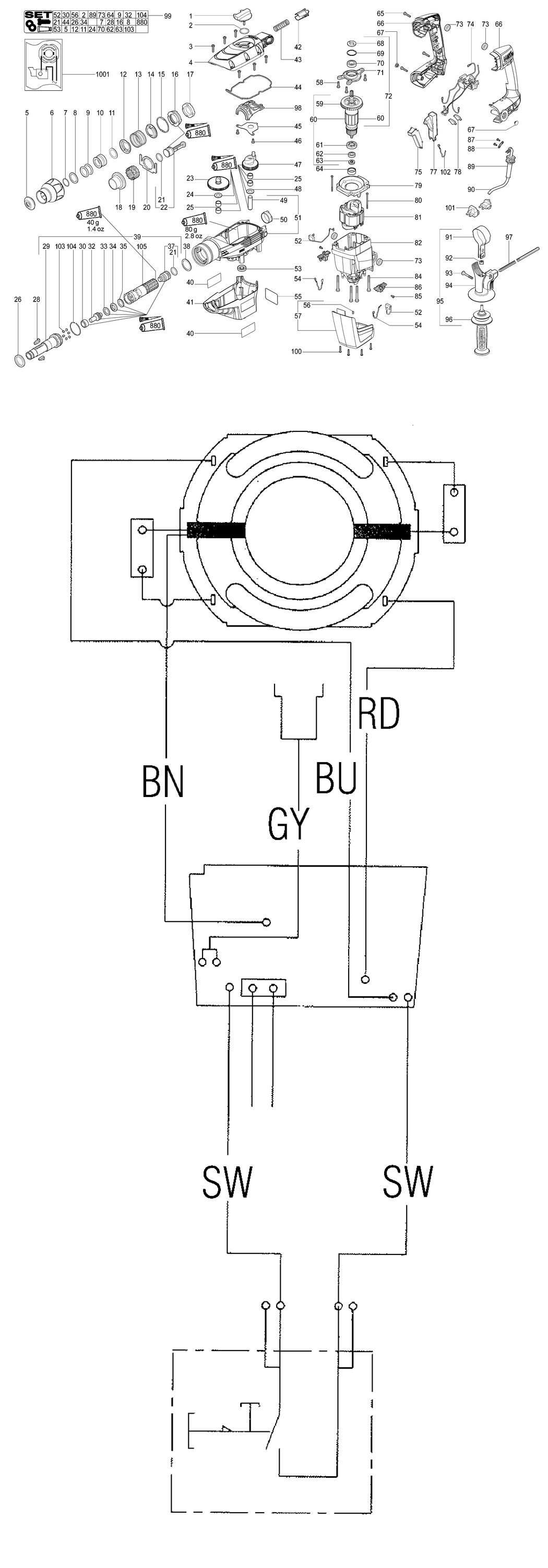

An exploded diagram and spare parts listing for the Metabo KHE 56 / 00340391 / GB 110V

	Ex VAT	Inc VAT
1 - CONTROL KNOB MET-343394400.A12 343394400	£17.55	£21.06
2 - O-RING MET-344098090.A54 344098090	£1.50	£1.80
3 - FILLISTER HEAD SCREW MET-141123560.A26 141123560	£1.50	£1.80
4 - GEAR-BOX COVER MET-315416320.A3 315416320	£73.52	£88.23
5 - RUBBER CAP MET-344098250.A19 344098250	£9.62	£11.54
6 - SLIDING SLEEVE COMPL. MET-343394410.A20 343394410	£17.55	£21.06
7 - CIRCLIP MET-141155450.A17 141155450	£1.50	£1.80
8 - WASHER MET-341012930.A26 341012930	£15.41	£18.49
9 - O-RING MET-344098130.A23 344098130	£1.50	£1.80
10 - SLEEVE MET-341058670.A39 341058670	£32.88	£39.45
11 - WASHER MET-341012940.A18 341012940	£8.37	£10.04
12 - GUIDE SHEET MET-339133290.A23 339133290	£15.41	£18.49
13 - PRESSURE SPRING MET-342003510.A28 342003510	£3.82	£4.59
14 - GUIDE PLATE MET-339133310.A21 339133310	£4.76	£5.71
15 - RETAINING RING MET-141156340.A39 141156340	£3.82	£4.59
16 - HOLDER COMPL. MET-316042700.A9 316042700	£26.35	£31.62
17 - RING MET-341070590.A27 341070590	£11.78	£14.13
18 - BEVEL GEAR MET-340032810.A4 340032810	£32.88	£39.45
19 - SETTING RING MET-343394390.A20 343394390	£22.96	£27.55
20 - RETAINING SHEET MET-339133180.A26 339133180	-
21 - O-RING MET-344098170.A24 344098170	£1.50	£1.80
22 - PISTON COMPL. MET-316042620.A18 316042620	£48.88	£58.66
23 - CLUTCH MET-316042580.A4 316042580	£81.89	£98.27
24 - WASHER MET-341012950.A23 341012950	£5.62	£6.75
25 - NEEDLE ROLLER AND CAGE MET-320050640.A23 320050640	£8.37	£10.04
26 - DAMPER MET-344098670.A21 344098670	£7.36	£8.83
28 - CARRIER MET-339133320.A23 339133320	£19.18	£23.02
29 - DRILL DRIVING SLEEVE MET-341059150.A8 341059150	£121.97	£146.36
30 - BRAKE RING MET-341012960.A19 341012960	£26.35	£31.62
32 - PISTON COMPL. MET-316042660.A23 316042660	£68.35	£82.02
33 - STOP RING MET-341012860.A23 341012860	£19.18	£23.02
34 - RUBBER RING MET-344098260.A25 344098260	£5.62	£6.75
35 - WASHER MET-341059110.A12 341059110	£19.18	£23.02
37 - STRIKER COMPL. MET-316042610.A14 316042610	£36.59	£43.91
38 - WASHER MET-341012880.A28 341012880	£3.82	£4.59
39 - SPINDLE MET-316063830.A7 316063830	£238.25	£285.90
40 - METABO LABEL MET-338121090.A15 338121090	-
41 - GEAR BOX CAP MET-343394340.A3 343394340	£15.41	£18.49
42 - PRESSURE PLATE MET-343394430.A24 343394430	£8.37	£10.04
43 - PRESSURE SPRING MET-342003520.A17 342003520	£2.94	£3.53
44 - SEAL MET-344098230.A18 344098230	£9.62	£11.54
45 - RETAINING SHEET MET-339133220.A20 339133220	£9.62	£11.54
46 - FILLISTER HEAD SCREW MET-141123580.A41 141123580	£1.50	£1.80
47 - BEVEL GEAR COMPL. MET-316042590.A11 316042590	£60.03	£72.04
48 - WASHER MET-341012910.A26 341012910	-
49 - BEARING BOLT MET-341515310.A21 341515310	£26.35	£31.62
50 - BEARING MET-320050680.A29 320050680	-
51 - GEAR HOUSING COMPL. MET-315104730.A12 315104730	£93.30	£111.96
52 - CARBON BRUSH SET MET-316042650.A21 316042650	£36.59	£43.91
53 - SHAFT SEALING RING MET-339011650.A4 339011650	£19.18	£23.02
54 - LEAD WIRE (SWITCH) MET-344497400.A10 344497400	£3.20	£3.84
55 - NAME PLATE MET-338049350.A0 338049350	-
56 - O-RING MET-344098090.A55 344098090	£1.50	£1.80
57 - MOTOR CAP CPL. MET-343394320.A4 343394320	£32.88	£39.45
58 - FILLISTER HEAD SCREW MET-141123550.A17 141123550	-
59 - FAN MET-330001870.A22 330001870	£6.38	£7.65
60 - ARMATURE COMPL. 110-120 V MET-310009320.A12 310009320	£108.01	£129.61
61 - DUST SEAL MET-344098070.A20 344098070	£13.63	£16.36
62 - BALL BEARING MET-320050650.A39 320050650	£15.41	£18.49
63 - TACHO DISC MET-343394310.A40 343394310	£26.35	£31.62
64 - RUBBER BUSHING MET-344098220.A25 344098220	£5.62	£6.75
65 - SCREW L5X35 T2025 MET-341704270.A20 341704270	£1.50	£1.80
66 - HANDLE 2 PART MET-343394330.A40 343394330	£61.08	£73.30
67 - COVER CAP MET-343394290.A39 343394290	£3.20	£3.84
68 - SEALING RING MET-344098080.A24 344098080	£26.35	£31.62
69 - RETAINING RING MET-342022070.A23 342022070	£2.94	£3.53
70 - BALL BEARING MET-320050670.A33 320050670	£22.61	£27.13
71 - GEAR COVER MET-315300630.A23 315300630	£61.08	£73.30
72 - ARMATURE W.FLANGE MET-316042530.A8 316042530	£128.14	£153.77
73 - DAMPING RING MET-339011640.A40 339011640	£19.18	£23.02
74 - ELECTRONIC UNIT 110-120 V MET-343081360.A7 343081360	£51.54	£61.85
75 - PRESSURE PLATE MET-343394350.A32 343394350	£7.36	£8.83
77 - ON-OFF SWITCH MET-343407670.A42 343407670	£54.94	£65.93
78 - LIGHT TRANSMITTER MET-343394380.A25 343394380	£7.36	£8.83
79 - BAFFLE MET-339151110.A14 339151110	£9.62	£11.54
80 - SCREW 4X64 MET-341704210.A30 341704210	£1.50	£1.80
81 - FIELD COIL W.FIELD COIL 110-120 V MET-311010860.A11 311010860	£79.43	£95.32
82 - MOTOR HOUSING MET-315013260.A6 315013260	£48.88	£58.66
84 - FILLISTER HEAD SCREW MET-141123540.A27 141123540	£2.94	£3.53
85 - SCREW MET-341704240.A68 341704240	£1.50	£1.80
86 - BRUSH HOLDER MET-343000920.A55 343000920	£9.62	£11.54
87 - SCREW MET-341704240.A69 341704240	£1.50	£1.80
88 - CABLE CLIP MET-343394210.A60 343394210	£1.50	£1.80
89 - CABLE SLEEVE MET-344098210.A17 344098210	£5.62	£6.75
90 - CABLE M.BRIT.STECKER MET-344497450.A1 344497450	-
91 - CLAMPING HOLDER MET-339133190.A11 339133190	£19.18	£23.02
92 - SQUARE NUT MET-141131020.A29 141131020	£3.20	£3.84
93 - SCREW K5X45 T20 MET-341704220.A28 341704220	£1.50	£1.80
94 - BODY COMPL. MET-316042540.A8 316042540	£30.06	£36.07
95 - SIDE SUPPORT HANDLE COMPL. MET-314001080.A13 314001080	£38.58	£46.30
96 - ANTI-VIBRATION HANDLE COMPL. MET-314001070.A11 314001070	£61.08	£73.30
97 - DEPTH STOP MET-331050750.A14 331050750	£11.78	£14.13
98 - SHIFT ELEMENT COMPL. MET-316042630.A26 316042630	£8.37	£10.04
99 - MAINTENANCE KIT MET-316045130.A22 316045130	£214.12	£256.95
100 - SCREW MET-341704260.A23 341704260	£2.94	£3.53
101 - PART NOT NEEDED MET-399999990.A2300 399999990	-
102 - STRAND COMPL. 120 V MET-344498090.A15 344498090	£7.36	£8.83
103 - PIN MET-341520220.A7 341520220	£3.20	£3.84
104 - CIRCLIP MET-342200640.A17 342200640	£2.94	£3.53
105 - CARRIER MET-341059160.A11 341059160	-
880 - TUBE GREASE 45 G URETHYN MET-344131170.A7 344131170	£26.35	£31.62
1001 - WIRING DIAGRAM MET-338504740.A16 338504740	-

Attribute Name	Value
Brand	Metabo
