Metabo KHE 5-40 / 00687000 / EU 230V Spare Parts

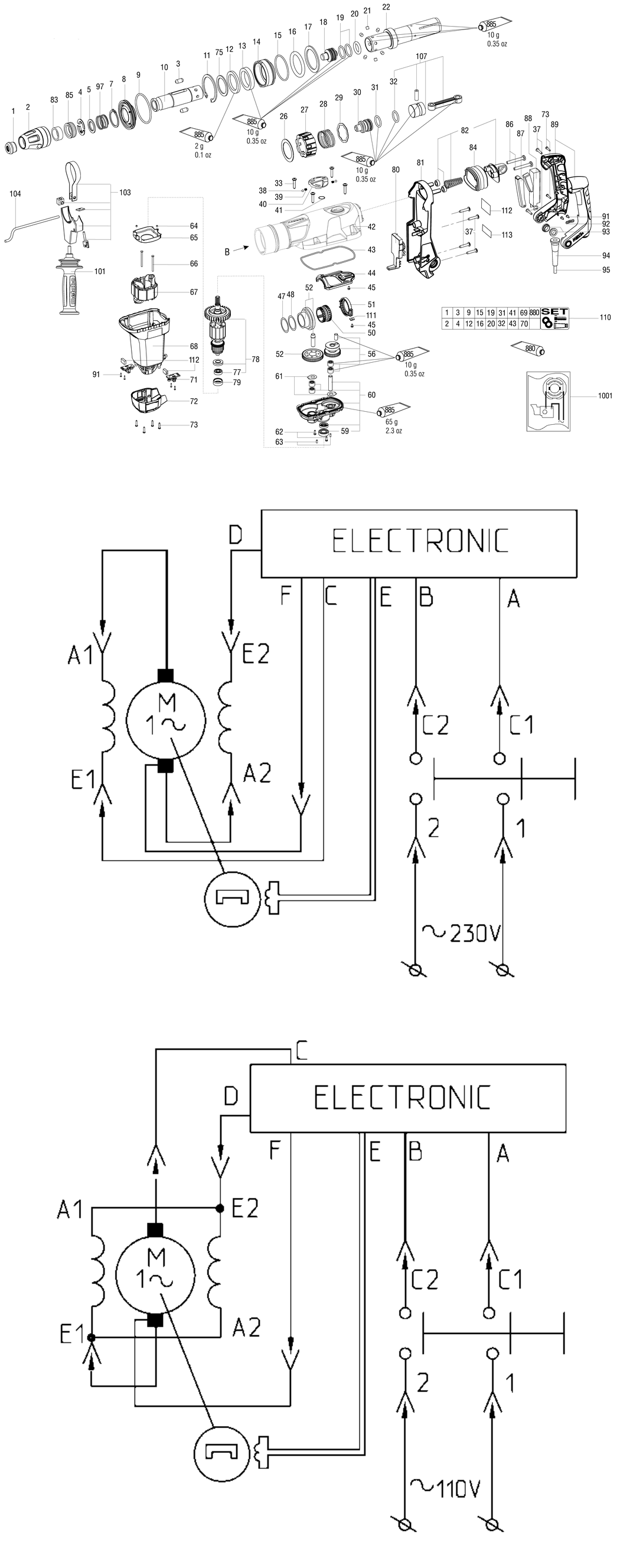

An exploded diagram and spare parts listing for the Metabo KHE 5-40 / 00687000 / EU 230V

	Ex VAT	Inc VAT
1 - RUBBER BUSHING MET-344102550.A5 344102550	£2.94	£3.53
2 - SLEEVE MET-343436510.A3 343436510	£13.63	£16.36
3 - PIN MET-341520340.A7 341520340	£5.62	£6.75
4 - SEMI RING MET-341013320.A5 341013320	£6.38	£7.65
5 - SUPPORT RING MET-341013330.A4 341013330	£8.37	£10.04
7 - RETAINING RING MET-141156710.A0 141156710	£2.94	£3.53
8 - RING MET-341020090.A4 341020090	£6.38	£7.65
9 - O-RING MET-143195680.A0 143195680	£2.94	£3.53
10 - DRILL DRIVING SLEEVE SDS MET-341210880.A0 341210880	£94.04	£112.85
11 - CIRCLIP MET-141180870.A4 141180870	£3.20	£3.84
12 - FELT RING MET-143195690.A4 143195690	£4.76	£5.71
13 - GASKET MET-344113060.A4 344113060	£7.36	£8.83
14 - SUPPORT RING MET-341013340.A1 341013340	£61.08	£73.30
15 - O-RING MET-143195700.A0 143195700	£2.94	£3.53
16 - O-RING MET-143195710.A4 143195710	£2.94	£3.53
17 - WASHER MET-339009320.A0 339009320	£11.78	£14.13
18 - PISTON MET-341210890.A4 341210890	£22.61	£27.13
19 - O-RING MET-143195720.A1 143195720	£7.36	£8.83
20 - DAMPING RING MET-341211100.A1 341211100	£2.94	£3.53
21 - ROLLER MET-341211090.A3 341211090	£8.37	£10.04
22 - DRILL DRIVING SLEEVE MET-341210900.A3 341210900	£76.70	£92.04
26 - SPACING WASHER MET-341013360.A1 341013360	-
27 - RETAINING RING MET-343440210.A4 343440210	-
28 - SPRING MET-342022620.A2 342022620	-
29 - SPACING WASHER MET-341013350.A3 341013350	-
30 - STRIKER MET-341211110.A3 341211110	£26.35	£31.62
31 - O-RING MET-143195730.A3 143195730	£7.36	£8.83
32 - O-RING MET-143195740.A1 143195740	£8.37	£10.04
33 - SCREW MET-141124410.A7 141124410	-
37 - SELF-TAP. FILL. H. SCREW MET-141124400.A2 141124400	-
38 - BALL MET-143115720.A3 143115720	£2.94	£3.53
39 - SPRING MET-342024020.A2 342024020	£2.94	£3.53
40 - CONTROL KNOB SLIDE MET-343436530.A4 343436530	£9.62	£11.54
41 - O-RING MET-143195750.A3 143195750	£2.94	£3.53
42 - GEAR HOUSING MET-315105400.A0 315105400	£60.03	£72.04
43 - SEALING RING MET-344112660.A1 344112660	£8.37	£10.04
44 - SHIFT FORK MET-343440220.A0 343440220	£9.62	£11.54
45 - SCREW MET-141124430.A2 141124430	£2.94	£3.53
47 - SPACING WASHER MET-341013380.A3 341013380	-
48 - SPACING WASHER MET-341013390.A1 341013390	-
50 - DOG CLUTCH MET-341210920.A1 341210920	-
51 - RETAINING RING MET-339147630.A2 339147630	£7.36	£8.83
52 - SAFETY CLUTCH CPL. MET-316059400.A2 316059400	£100.42	£120.50
56 - SPINDLE COMPL. MET-316061270.A2 316061270	£54.94	£65.93
59 - BEARING MET-320054010.A3 320054010	£22.61	£27.13
60 - BEARING COVER COMPL. MET-316061280.A2 316061280	£51.54	£61.85
61 - SPACER SHEET MET-339147530.A2 339147530	-
62 - SCREW MET-141124420.A3 141124420	-
63 - CYLINDRICAL PIN MET-141160330.A9 141160330	£1.50	£1.80
64 - RUBBER BUFFER MET-344112980.A6 344112980	-
65 - DISC FLANGE COVER MET-339153130.A9 339153130	-
66 - SCREW MET-141124390.A6 141124390	-
67 - FIELD W.COIL MET-311012260.A1 311012260	£68.35	£82.02
68 - MOTOR HOUSING MET-343440230.A4 343440230	-
71 - BRUSH HOLDER COMPL. MET-316059420.A2 316059420	£8.37	£10.04
72 - MOTOR CAP MET-343436470.A1 343436470	£11.78	£14.13
73 - SCREW MET-341722180.A3 341722180	-
75 - SPACING WASHER MET-341020100.A1 341020100	-
77 - BEARING MET-320054020.A6 320054020	£19.18	£23.02
78 - ARMATURE COMPL. MET-316061140.A0 316061140	£86.42	£103.71
79 - RUBBER BUSHING MET-344112670.A2 344112670	-
80 - ELECTRONIC UNIT MET-343084460.A1 343084460	£86.42	£103.71
81 - COVER MET-343440070.A5 343440070	-
82 - CONNECTING SET MET-316059450.A7 316059450	£5.62	£6.75
83 - RING MET-343440260.A0 343440260	£3.20	£3.84
84 - BELLOWS MET-344112680.A7 344112680	£8.37	£10.04
85 - GUIDE RING MET-343440970.A4 343440970	£17.55	£21.06
86 - SCREW MET-341722190.A6 341722190	-
87 - CAP MET-343440980.A0 343440980	£6.38	£7.65
88 - SWITCH COMPL. MET-343410590.A1 343410590	£63.36	£76.03
89 - HANDLE MET-343436480.A3 343436480	£26.35	£31.62
91 - SCREW MET-341722200.A2 341722200	-
92 - CABLE CLAMP MET-343440240.A0 343440240	-
93 - RUBBER BUSHING MET-344112690.A2 344112690	-
94 - CABLE SLEEVE MET-344112700.A7 344112700	£3.20	£3.84
95 - CABLE WITH PLUG MET-344499920.A1 344499920	-
97 - SPRING MET-342022640.A7 342022640	£6.38	£7.65
101 - ANTI-VIBRATION HANDLE COMPL. MET-314001410.A2 314001410	£48.88	£58.66
103 - CLAMPING PIECE CPL. MET-316061150.A2 316061150	£30.06	£36.07
104 - DEPTH STOP MET-341518210.A0 341518210	-
107 - PISTON COMPL. MET-316061160.A2 316061160	£54.94	£65.93
110 - MAINTENANCE KIT MET-316061170.A2 316061170	£47.43	£56.92
111 - PLATE MET-343440250.A4 343440250	£2.94	£3.53
112 - CARBON BRUSH MET-316067120.A0 316067120	£30.06	£36.07
113 - PART NOT NEEDED MET-399999990.A596 399999990	-
880 - SPECIAL GREASE MET-631800000.A0 631800000	£4.16	£4.99
885 - GEAR GREASE 100G TUBE MET-136012900.A0 136012900	£26.35	£31.62
1001 - WIRING DIAGRAM MET-338510010.A7 338510010	-
