1 - RUBBER CAP
MET-344099390.A25
344099390
|
£2.94
|
£3.53
|
|
|
2 - CIRCLIP
MET-342022340.A26
342022340
|
£1.50
|
£1.80
|
|
|
3 - ADJUSTING RING
MET-343432920.A6
343432920
|
£3.82
|
£4.59
|
|
|
4 - BALL
MET-143115330.A40
143115330
|
£1.50
|
£1.80
|
|
|
5 - WASHER
MET-339007650.A22
339007650
|
£1.50
|
£1.80
|
|
|
6 - PRESSURE SPRING
MET-342003890.A25
342003890
|
£1.50
|
£1.80
|
|
|
7 - GEAR HOUSING COMPL.
MET-316045660.A7
316045660
|
-
|
|
|
|
8 - SELF-TAP. FILL. H. SCREW
MET-141123610.A18
141123610
|
£1.50
|
£1.80
|
|
|
9 - SUPPORTING DISC
MET-141153750.A2
141153750
|
£3.20
|
£3.84
|
|
|
10 - RETAINING RING
MET-141180170.A4
141180170
|
£1.50
|
£1.80
|
|
|
11 - CUP SPRING
MET-342070340.A13
342070340
|
£4.76
|
£5.71
|
|
|
12 - FRICTION WASHER
MET-339004870.A47
339004870
|
£3.20
|
£3.84
|
|
|
13 - SPUR GEAR
MET-340002750.A15
340002750
|
£26.35
|
£31.62
|
|
|
14 - CIRCLIP
MET-141181290.A11
141181290
|
£1.50
|
£1.80
|
|
|
15 - DRILL DRIVING SLEEVE COMPL.
MET-316052960.A5
316052960
|
-
|
|
|
|
16 - O-RING
MET-143194790.A4
143194790
|
£1.50
|
£1.80
|
|
|
17 - PISTON COMPL.
MET-316054870.A2
316054870
|
-
|
|
|
|
18 - DAMPING RING
MET-341210600.A27
341210600
|
£3.82
|
£4.59
|
|
|
19 - O-RING
MET-143194640.A7
143194640
|
£3.20
|
£3.84
|
|
|
20 - CATCHING SLEEVE COMPL.
MET-316054880.A1
316054880
|
-
|
|
|
|
21 - O-RING
MET-143193920.A7
143193920
|
£8.37
|
£10.04
|
|
|
22 - CIRCLIP
MET-141181860.A5
141181860
|
£1.50
|
£1.80
|
|
|
23 - STRIKER COMPL.
MET-316048010.A9
316048010
|
£17.55
|
£21.06
|
|
|
24 - SEALING RING
MET-344093140.A78
344093140
|
£6.38
|
£7.65
|
|
|
25 - EXCITER SLEEVE COMPL.
MET-341210790.A4
341210790
|
-
|
|
|
|
26 - SEALING RING
MET-342022350.A7
342022350
|
£2.94
|
£3.53
|
|
|
27 - GEAR FLANGE COMPL.
MET-316045680.A5
316045680
|
-
|
|
|
|
28 - FELT SEAL
MET-344070670.A5
344070670
|
£1.50
|
£1.80
|
|
|
29 - RUBBER BUFFER
MET-344095920.A163
344095920
|
£1.50
|
£1.80
|
|
|
30 - FILL. HEAD SCREW(DIN 7985)
MET-141119440.A33
141119440
|
£1.50
|
£1.80
|
|
|
31 - ARMATURE COMPL. 230V
MET-310012200.A24
310012200
|
£42.65
|
£51.18
|
|
|
32 - BALL BEARING 6X19X6
MET-143115660.A239
143115660
|
£3.82
|
£4.59
|
|
|
33 - WASHER
MET-141153400.A63
141153400
|
£3.20
|
£3.84
|
|
|
34 - O-RING
MET-143195230.A5
143195230
|
£1.50
|
£1.80
|
|
|
35 - CONTROL KNOB COMPL.
MET-316052990.A2
316052990
|
£6.38
|
£7.65
|
|
|
36 - SEAL
MET-343398340.A7
343398340
|
£1.50
|
£1.80
|
|
|
37 - DEPTH STOP
MET-341511630.A172
341511630
|
£6.38
|
£7.65
|
|
|
38 - SUPPORT HANDLE CPL.
MET-314000840.A7
314000840
|
£11.78
|
£14.13
|
|
|
39 - SEALING WASHER
MET-343398310.A53
343398310
|
£1.50
|
£1.80
|
|
|
40 - BALL BEARING 8X 22X 7
MET-143115890.A43
143115890
|
£6.38
|
£7.65
|
|
|
41 - THRUST WASHER
MET-143115300.A10
143115300
|
£1.50
|
£1.80
|
|
|
42 - AXIAL NEEDLE BEARING
MET-143115310.A32
143115310
|
£4.76
|
£5.71
|
|
|
43 - CUP SPRING
MET-141154920.A51
141154920
|
£3.20
|
£3.84
|
|
|
44 - PINION SHAFT COMPL.
MET-316054890.A2
316054890
|
-
|
|
|
|
45 - FLANGE
MET-343398300.A7
343398300
|
£4.76
|
£5.71
|
|
|
46 - FIELD COIL COMPL. 230V
MET-311012630.A2
311012630
|
£32.88
|
£39.45
|
|
|
47 - SELF-TAP. FILL. H. SCREW
MET-341722860.A36
341722860
|
-
|
|
|
|
48 - MOTOR HOUSING
MET-343398290.A30
343398290
|
£15.41
|
£18.49
|
|
|
49 - SHIFT ELEMENT COMPL.
MET-316045600.A3
316045600
|
-
|
|
|
|
50 - SELF-TAP FILL H SCREW
MET-141116020.A67
141116020
|
£3.20
|
£3.84
|
|
|
51 - SELF-TAP. FILL. H. SCREW
MET-141116990.A167
141116990
|
£3.20
|
£3.84
|
|
|
52 - PISTOL GRIP 2 PART
MET-343398280.A6
343398280
|
£15.41
|
£18.49
|
|
|
53 - ELECTRONIC SWITCH WITHOUT DIAL 230V
MET-343411660.A20
343411660
|
£22.61
|
£27.13
|
|
|
54 - CABLE CLIP
MET-343362490.A771
343362490
|
£3.20
|
£3.84
|
|
|
55 - CARBON BRUSH SET 230 V
MET-316046950.A60
316046950
|
£17.56
|
£21.07
|
|
|
56 - BRUSH HOLDER MODULE 230V - V-EL. 850W
MET-316049160.A3
316049160
|
-
|
|
|
|
57 - CABLE SLEEVE
MET-344101140.A143
344101140
|
£3.82
|
£4.59
|
|
|
58 - CABLE WITH PLUG
MET-344489060.A17
344489060
|
£32.88
|
£39.45
|
|
|
59 - RATING PLATE
MET-338055940.A1
338055940
|
-
|
|
|
|
61 - MAINTENANCE KIT
MET-316057080.A1
316057080
|
-
|
|
|
|
90 - CATCHING SLEEVE
MET-341059290.A10
341059290
|
-
|
|
|
|
880 - GREASE FG 126
MET-344130800.A97
344130800
|
£17.55
|
£21.06
|
|
|
890 - GREASE SF 011 50GR 1.8oz
MET-344130560.A198
344130560
|
£19.18
|
£23.02
|
|
|

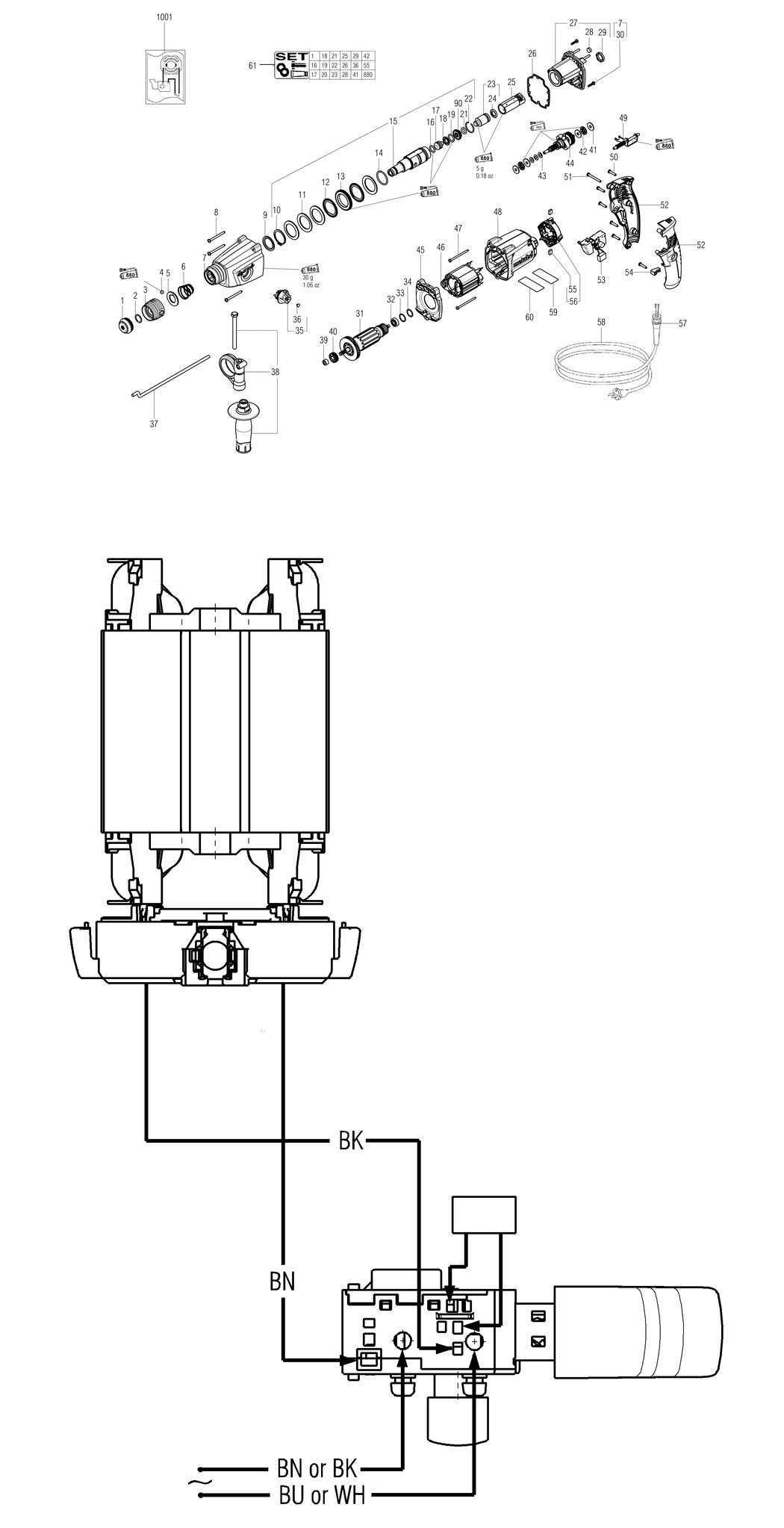

1001 - WIRING DIAGRAM 230 V
MET-338505160.A52
338505160
|
-
|
|
|
