Metabo P 4000 G / 00964000 / EU 230V Spare Parts

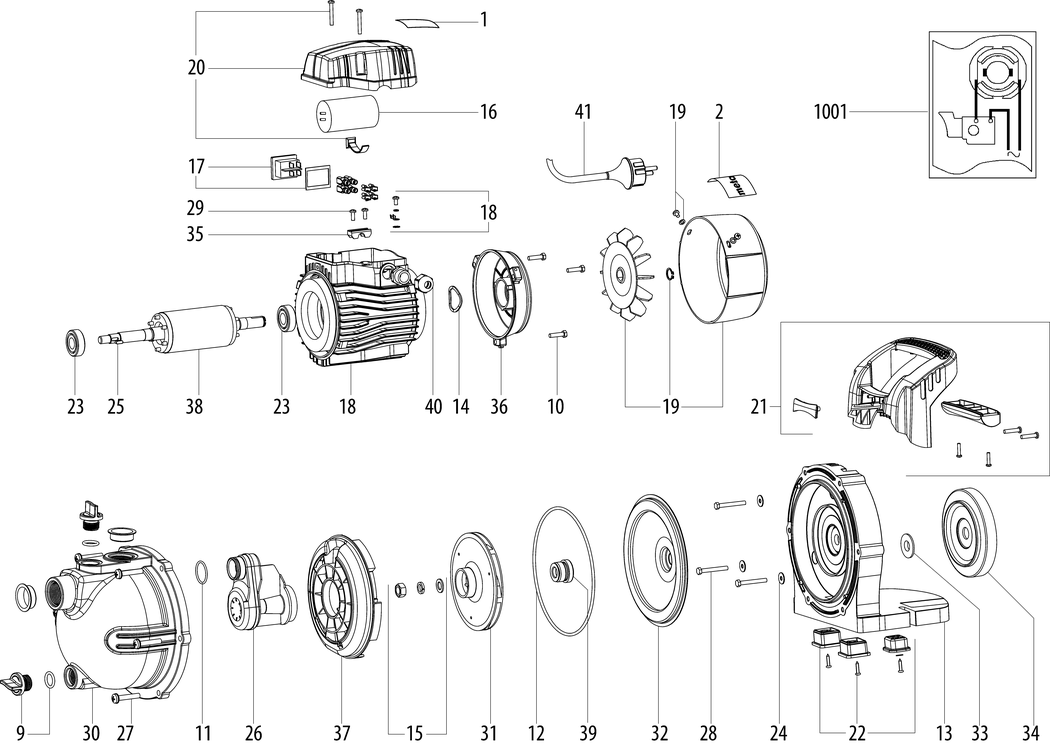

An exploded diagram and spare parts listing for the Metabo P 4000 G / 00964000 / EU 230V

	Ex VAT	Inc VAT
1 - RATING PLATE MET-338061120.A0 338061120	-
2 - METABO-TYPENSCHILD P 4000 G MET-338124670.A0 338124670	-
9 - THREADED PLUG MET-341705140.A1 341705140	-
10 - HEXAGON HEAD SCREW MET-141115940.A0 141115940	£1.50	£1.80
11 - O-RING MET-143195540.A4 143195540	-
12 - O-RING MET-143195550.A13 143195550	-
13 - MOTOR BASE MET-315418470.A3 315418470	-
14 - WAVE SPRING MET-316056160.A0 316056160	-
15 - CLAMP KIT CPL. (IMPELLER) MET-316057110.A3 316057110	-
16 - CONDENSER COMPL. 16µF/450 V MET-316057170.A2 316057170	-
17 - SWITCH COMPL. MET-316057180.A4 316057180	-
18 - STATOR COMPL. MET-316057230.A0 316057230	-
19 - FAN COMPL. MET-316057300.A1 316057300	£4.76	£5.71
20 - COVER CPL. MET-316097660.A1 316097660	-
21 - HANDLE COMPL. MET-316057370.A1 316057370	£9.62	£11.54
22 - FOOT COMPL. MET-316057390.A1 316057390	-
23 - BALL BEARING MET-320050840.A1 320050840	-
24 - WASHER MET-339006950.A20 339006950	£1.50	£1.80
25 - SLIDE BLOCK MET-341161690.A5 341161690	-
26 - TUBE (F. VALVE) MET-341161730.A5 341161730	-
27 - SCREW MET-341705060.A2 341705060	-
28 - HEXAGON HEAD SCREW MET-341705070.A3 341705070	-
29 - SCREW SELF-TAPPING MET-341705150.A11 341705150	-
30 - PUMP HOUSING MET-343435640.A1 343435640	-
31 - WHEEL MET-343436790.A2 343436790	-
32 - COVER MET-343435660.A4 343435660	-
33 - SEALING WASHER MET-343435670.A0 343435670	-
34 - FACE PLATE MET-343435680.A4 343435680	-
35 - CABLE CLIP MET-343436720.A2 343436720	-
36 - PLATE MET-343436800.A0 343436800	-
37 - DIFFUSOR MET-343436820.A1 343436820	-
38 - ARMATURE MET-343436840.A0 343436840	-
39 - GASKET MET-344099680.A1 344099680	-
40 - CABLE SLEEVE MET-344099850.A2 344099850	-
41 - CABLE MET-344499810.A2 344499810	-
1001 - VERDRAHTUNGSPLAN MET-338505870.A2 338505870	-

Attribute Name	Value
Brand	Metabo
