Metabo PWE 11-100 / 02050420 / US 120V Spare Parts

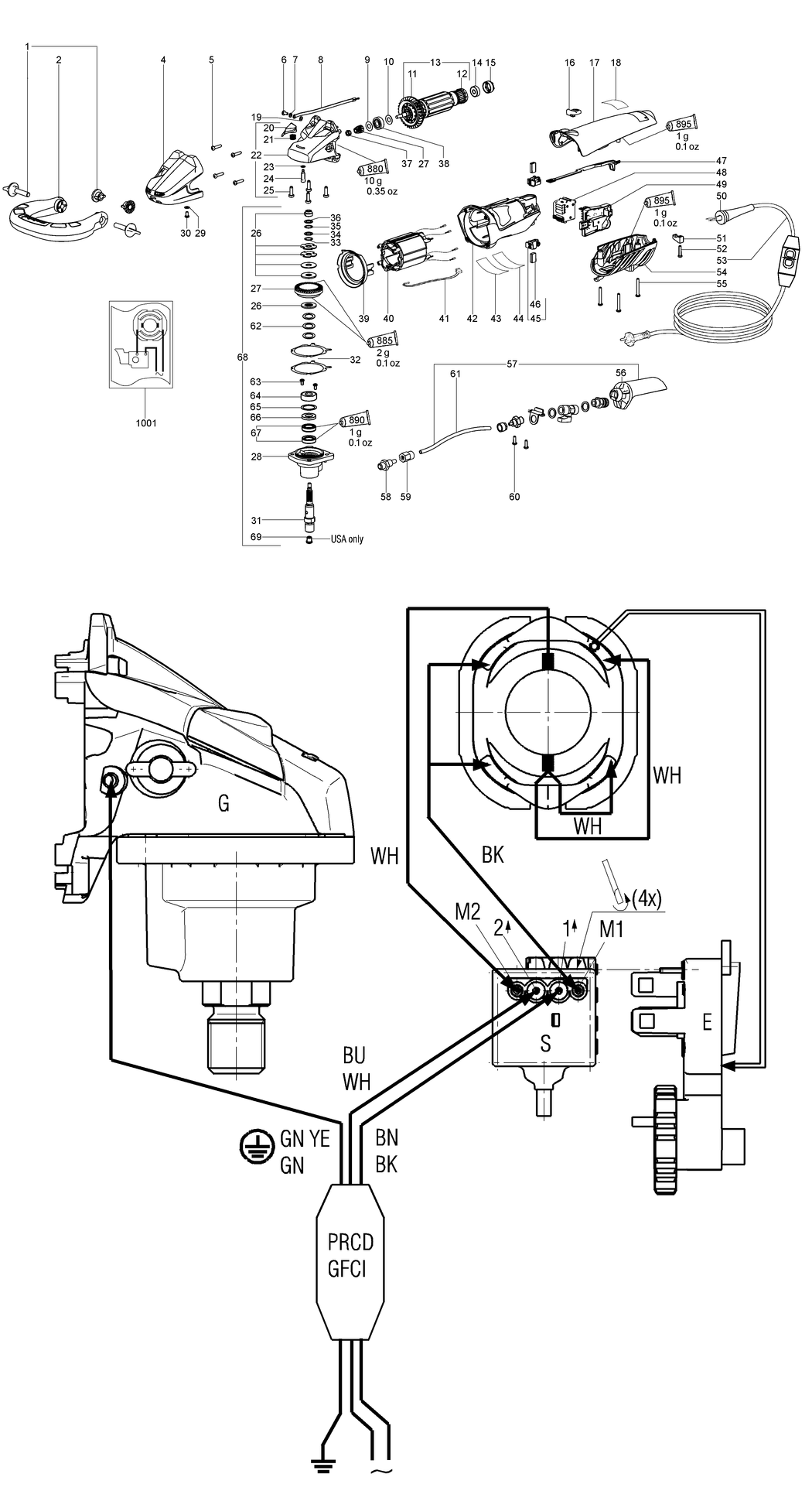

An exploded diagram and spare parts listing for the Metabo PWE 11-100 / 02050420 / US 120V

	Ex VAT	Inc VAT
1 - FIXING SET MET-316067100.A4 316067100	-
2 - LOOP HANDLE COMPL. MET-343399690.A18 343399690	£19.18	£23.02
4 - HOUSING CAP MET-343399280.A0 343399280	£7.36	£8.83
5 - SELF-TAP FILL H SCREW MET-141116020.A1146 141116020	£3.20	£3.84
6 - FILLISTER HEAD SCREW MET-141119850.A105 141119850	£1.50	£1.80
7 - SERRATED LOCK WASHER MET-141150410.A45 141150410	£3.20	£3.84
8 - EARTH CONNECTION MET-339134910.A0 339134910	£3.20	£3.84
9 - WASHER MET-339006390.A505 339006390	£1.50	£1.80
10 - WASHER MET-339132280.A18 339132280	£1.50	£1.80
11 - FAN W. PROT. GRID MET-316041450.A57 316041450	£7.36	£8.83
12 - TACHO DISC MET-343399850.A24 343399850	£3.20	£3.84
13 - ARMATURE COMPL. 120V MET-310009740.A0 310009740	£68.35	£82.02
14 - BALL BEARING 6X19X6 MET-143115690.A28 143115690	£3.82	£4.59
15 - RUBBER BUSHING MET-344097870.A287 344097870	£1.50	£1.80
16 - SWITCH SLIDE MET-343392980.A0 343392980	£1.50	£1.80
17 - HOUSING COVER MET-343393460.A4 343393460	£7.36	£8.83
18 - M-LABEL 08 TR 49-52X22 PWE 11-100 MET-338122590.A1 338122590	-
19 - SPRING WASHER MET-141150260.A9 141150260	£1.50	£1.80
20 - PUSH BUTTON RED MET-343393650.A58 343393650	£1.50	£1.80
21 - PRESSURE SPRING MET-342003390.A480 342003390	£1.50	£1.80
22 - GEAR HOUSING COMPL. MET-316047410.A0 316047410	£54.94	£65.93
23 - O-RING MET-143193650.A0 143193650	£1.50	£1.80
24 - BOLT MET-341515280.A41 341515280	£1.50	£1.80
25 - FILLISTER HEAD SCREW MET-141123660.A47 141123660	£1.50	£1.80
26 - FRICTION WASHER CPL. MET-316041650.A61 316041650	£17.55	£21.06
27 - BEVEL GEAR W.PINION MET-316046920.A7 316046920	£61.08	£73.30
28 - GEAR FLANGE MET-315202490.A0 315202490	-
29 - WASHER MET-141150010.A96 141150010	£1.50	£1.80
30 - FILLISTER HEAD SCREW MET-141123980.A24 141123980	-
31 - SPINDLE MET-341161140.A0 341161140	£48.88	£58.66
32 - GASKET MET-339011570.A100 339011570	£1.50	£1.80
33 - WASHER 10 2 X 14 MET-141155550.A122 141155550	£1.50	£1.80
34 - WASHER 10 2 X 14 MET-141151120.A112 141151120	£1.50	£1.80
35 - WASHER 10 2 X 14 MET-141152300.A232 141152300	£3.20	£3.84
36 - WASHER 10 2 X 14 MET-141153920.A112 141153920	£1.50	£1.80
37 - HEXAGON NUT W.RECESS MET-341102260.A7 341102260	-
38 - BALL BEARING 8X22X7 MET-143115700.A39 143115700	£4.76	£5.71
39 - BAFFLE MET-339151040.A39 339151040	£3.20	£3.84
40 - FIELD COIL ASSEMBLY W.FIELD COIL EL. 120 MET-311011430.A0 311011430	£51.54	£61.85
41 - TEMPERATURE SENSOR MET-343081140.A14 343081140	£15.41	£18.49
42 - MOTOR HOUSING MET-315013230.A51 315013230	£11.78	£14.13
43 - RATING PLATE MET-338055110.A0 338055110	£2.94	£3.53
44 - WARNING LABEL 60X22 MET-338122640.A0 338122640	£2.94	£3.53
45 - BRUSH HOLDER COMPL. CUT OUT 230V MET-316045170.A36 316045170	£13.63	£16.36
46 - CARBON BRUSH SET 230V MET-316042070.A19 316042070	£13.63	£16.36
47 - SWITCH ROD MET-343393530.A46 343393530	£1.50	£1.80
48 - SWITCH MET-343409450.A55 343409450	£15.41	£18.49
49 - ELECTRONIC UNIT 120V 50-60HZ MET-343082200.A0 343082200	£54.94	£65.93
50 - CABLE SLEEVE MET-344100970.A301 344100970	£3.20	£3.84
51 - CABLE CLIP MET-343362490.A376 343362490	£3.20	£3.84
52 - SELF-TAP FILL H SCREW MET-141116020.A1148 141116020	£3.20	£3.84
53 - CABLE W.UL/CSA SOCKET FI MET-344498330.A0 344498330	£54.94	£65.93
54 - HOUSING MET-343399140.A1 343399140	-
55 - FILLISTER HEAD SCREW MET-141123490.A6 141123490	£1.50	£1.80
56 - RUBBER CAP MET-344098820.A1 344098820	-
57 - WATER CONNECTION COMPL. MET-316047390.A1 316047390	£42.65	£51.18
58 - QUICK CONNECTOR MET-143160040.A0 143160040	-
59 - UNION NUT MET-143160050.A1 143160050	-
60 - SELF-TAP. FILL. H. SCREW MET-141118730.A12 141118730	£1.50	£1.80
61 - HOSE MET-135190580.A0 135190580	-
62 - WASHER 10 2 X 14 MET-339007420.A1 339007420	-
63 - FILL. HEAD SCREW(DIN 7985) MET-141119570.A59 141119570	£1.50	£1.80
64 - BALL BEARING 10X30X9 MET-143115650.A1 143115650	£4.76	£5.71
65 - WASHER MET-141156480.A1 141156480	-
66 - FELT RING MET-143194710.A5 143194710	-
67 - SHAFT SEALING RING MET-143195310.A0 143195310	-
68 - SAFETY CLUTCH W.PINION MET-316047420.A0 316047420	£100.42	£120.50
69 - NOZZLE MET-341059820.A0 341059820	-
70 - SELF-TAP. FILL. H. SCREW MET-141118270.A60 141118270	£3.20	£3.84
880 - GREASE 100G MET-344130920.A2 344130920	£19.18	£23.02
885 - GREASE SF 011 50GR 1.8oz MET-344130560.A493 344130560	£19.18	£23.02
890 - GREASE 400G MET-344131240.A1 344131240	-
895 - GREASE TUBE 100G MET-344131250.A0 344131250	-
1001 - WIRING DIAGRAM 120V MET-338505360.A0 338505360	-

Attribute Name	Value
Brand	Metabo
