1 - ANTI-VIBRATION HANDLE M 14
MET-314000960.A72
314000960
|
£30.06
|
£36.07
|
|
|
2 - PUSH BUTTON BLACK
MET-343399790.A139
343399790
|
£2.94
|
£3.53
|
|
|
3 - PRESSURE SPRING
MET-342003390.A187
342003390
|
£1.50
|
£1.80
|
|
|
4 - GUIDE BUSH
MET-341005830.A42
341005830
|
£5.62
|
£6.75
|
|
|
5 - GEAR HOUSING CPL.
MET-316045500.A44
316045500
|
£68.35
|
£82.02
|
|
|
6 - BOLT
MET-341515430.A51
341515430
|
£2.94
|
£3.53
|
|
|
7 - SELF LOCKING NUT
MET-341100660.A200
341100660
|
£4.76
|
£5.71
|
|
|
8 - BEVEL GEAR
MET-316045530.A19
316045530
|
£61.08
|
£73.30
|
|
|
9 - WASHER
MET-141123870.A54
141123870
|
£1.50
|
£1.80
|
|
|
10 - BALL BEARING 12X37X12
MET-143115510.A157
143115510
|
£6.38
|
£7.65
|
|
|
11 - FIXED BEARING COVER
MET-339007280.A78
339007280
|
£4.76
|
£5.71
|
|
|
12 - FAN W. DUST GUARD
MET-316045560.A130
316045560
|
£13.63
|
£16.36
|
|
|
13 - ARMATURE COMPL. 120V
MET-310012630.A0
310012630
|
-
|
|
|
|
14 - SEALING WASHER
MET-343390630.A159
343390630
|
£2.94
|
£3.53
|
|
|
15 - BALL BEARING 8X22X7
MET-143114980.A7
143114980
|
£15.41
|
£18.49
|
|
|
16 - RUBBER BEARING
MET-344094080.A64
344094080
|
£2.60
|
£3.12
|
|
|
17 - BAFFLE
MET-339151130.A23
339151130
|
£2.94
|
£3.53
|
|
|
18 - SELF-TAP. FILL. H. SCREW
MET-141121680.A48
141121680
|
£1.50
|
£1.80
|
|
|
19 - FIELD COIL
MET-311009590.A99
311009590
|
£36.59
|
£43.91
|
|
|
20 - CONTACT STRAP
MET-339160850.A9
339160850
|
£2.94
|
£3.53
|
|
|
21 - SELF-TAP. FILL. H. SCREW
MET-141119370.A65
141119370
|
£1.50
|
£1.80
|
|
|
22 - FILLISTER HEAD SCREW
MET-141122020.A145
141122020
|
£1.50
|
£1.80
|
|
|
23 - FILLISTER HEAD SCREW
MET-141119850.A22
141119850
|
£1.50
|
£1.80
|
|
|
24 - GASKET
MET-339011810.A52
339011810
|
£1.50
|
£1.80
|
|
|
25 - GEAR FLANGE CPL.
MET-316045550.A18
316045550
|
£54.94
|
£65.93
|
|
|
26 - MAINTENANCE KIT BRAKE
MET-316067430.A2
316067430
|
-
|
|
|
|
33 - WHEEL GUARD COMPL.
MET-316053510.A92
316053510
|
£32.88
|
£39.45
|
|
|
34 - SCREW
MET-341702050.A4
341702050
|
£1.50
|
£1.80
|
|
|
35 - BRUSH HOLDER COVER
MET-343395530.A1
343395530
|
£1.50
|
£1.80
|
|
|
36 - CARBON BRUSH SET 120 V
MET-316046780.A21
316046780
|
£22.61
|
£27.13
|
|
|
37 - BRUSH GUIDE
MET-343000950.A110
343000950
|
£9.62
|
£11.54
|
|
|
38 - SELF-TAP FILL H SCREW
MET-141116020.A351
141116020
|
£3.20
|
£3.84
|
|
|
41 - CABLE SLEEVE
MET-343447560.A0
343447560
|
-
|
|
|
|
43 - CABLE CLIP
MET-339127730.A176
339127730
|
£1.50
|
£1.80
|
|
|
44 - CABLE SLEEVE
MET-344094550.A185
344094550
|
£3.82
|
£4.59
|
|
|
45 - CABLE WITH PLUG
MET-344490920.A17
344490920
|
£36.59
|
£43.91
|
|
|
46 - MOTOR HOUSING
MET-315013890.A1
315013890
|
-
|
|
|
|
47 - RATING PLATE
MET-338070050.A0
338070050
|
-
|
|
|
|
48 - DAMPER
MET-343397490.A145
343397490
|
£11.78
|
£14.13
|
|
|
49 - LOCKING LEVER
MET-343397700.A0
343397700
|
-
|
|
|
|
50 - PRESSURE SPRING
MET-342002170.A140
342002170
|
£1.50
|
£1.80
|
|
|
52 - SELF-TAP. FILL. H. SCREW
MET-141116800.A102
141116800
|
£1.50
|
£1.80
|
|
|
57 - HANDLE BOTTOM
MET-343446210.A0
343446210
|
-
|
|
|
|
58 - HANDLE TOP
MET-343446220.A8
343446220
|
-
|
|
|
|
59 - LIGHT TRANSMISSION
MET-343397500.A10
343397500
|
-
|
|
|
|
62 - HOLDER
MET-339137720.A8
339137720
|
-
|
|
|
|
63 - GUIDER
MET-343447060.A1
343447060
|
-
|
|
|
|
64 - CYLINDRICAL PIN
MET-341513850.A1
341513850
|
£1.50
|
£1.80
|
|
|
66 - BRAKE DISC
MET-341212460.A1
341212460
|
-
|
|
|
|
67 - BRAKE PAD
MET-339137730.A0
339137730
|
-
|
|
|
|
68 - BACKING PLATE
MET-343446250.A7
343446250
|
-
|
|
|
|
69 - PRESSURE SPRING
MET-342004150.A0
342004150
|
-
|
|
|
|
70 - FEED ROD
MET-341212470.A7
341212470
|
-
|
|
|
|
71 - RETAINING SHEET
MET-339137740.A8
339137740
|
-
|
|
|
|
72 - SPINDLE COMPL. WBA M14
MET-316066980.A1
316066980
|
-
|
|
|
|
73 - ELECTRONIC SWITCH COMPL. 120 V
MET-316067420.A1
316067420
|
-
|
|
|
|
74 - STRAND SHORT 120 V
MET-344531590.A1
344531590
|
-
|
|
|
|
75 - STRAND LONG 120 V
MET-344531600.A0
344531600
|
-
|
|
|
|
76 - WARNING LABEL 52X22
MET-338122090.A104
338122090
|
-
|
|
|
|
80 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A405
141121640
|
£1.50
|
£1.80
|
|
|
85 - FILLISTER HEAD SCREW
MET-141124190.A35
141124190
|
-
|
|
|
|
88 - SPACER BUSH
MET-341006090.A155
341006090
|
£2.94
|
£3.53
|
|
|
89 - CAP SCREW
MET-141111340.A24
141111340
|
£1.50
|
£1.80
|
|
|
95 - SPACING WASHER
MET-341013510.A1
341013510
|
-
|
|
|
|
99 - GEAR FLANGE CPL.
MET-316067240.A0
316067240
|
-
|
|
|
|
880 - GREASE 100G
MET-344130910.A24
344130910
|
£19.18
|
£23.02
|
|
|

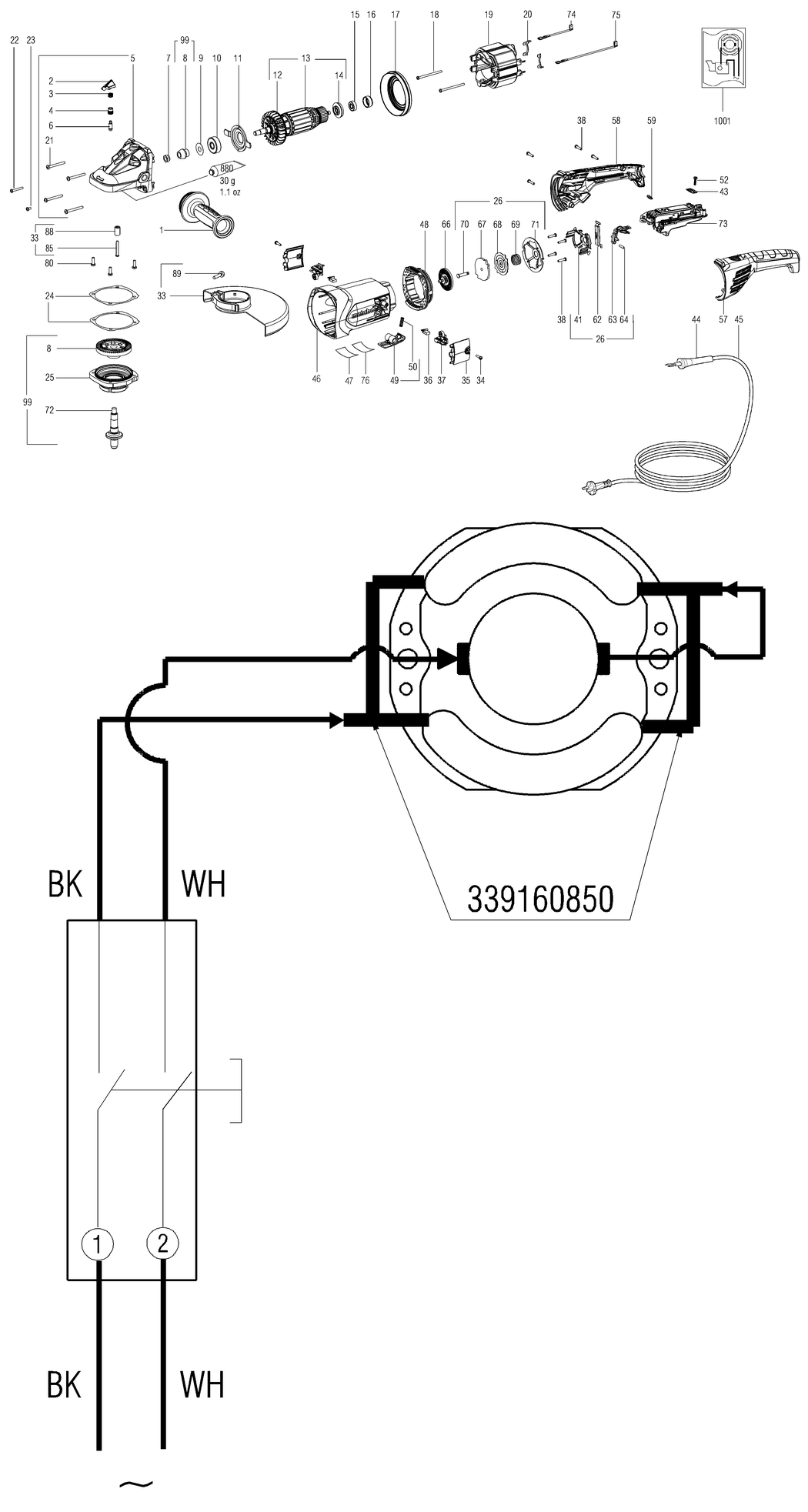

1001 - WIRING DIAGRAM
MET-338504750.A21
338504750
|
-
|
|
|
