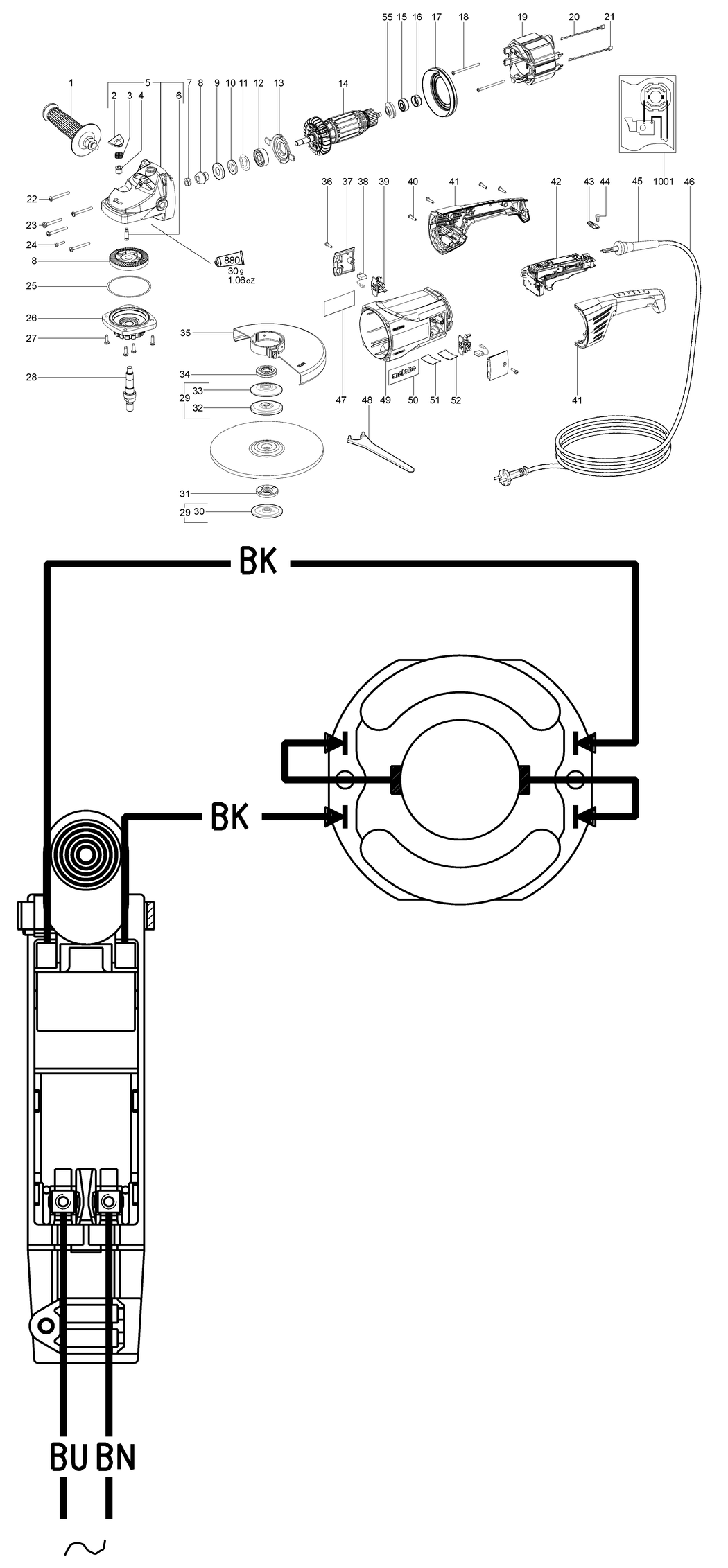

1 - HANDLE CPL.
MET-314000960.A213
314000960
|
£30.06
|
£36.07
|
|
|
2 - PUSH BUTTON
MET-343376440.A20
343376440
|
£3.82
|
£4.59
|
|
|
3 - PRESSURE SPRING
MET-342001730.A43
342001730
|
£1.50
|
£1.80
|
|
|
4 - GUIDE BUSH
MET-341003970.A15
341003970
|
£5.62
|
£6.75
|
|
|
5 - GEAR HOUSING CPL.
MET-316031720.A29
316031720
|
£61.08
|
£73.30
|
|
|
6 - THRUST BOLT
MET-341513810.A3
341513810
|
£3.20
|
£3.84
|
|
|
7 - SELF LOCKING NUT
MET-341100660.A133
341100660
|
£4.76
|
£5.71
|
|
|
8 - BEVEL GEAR
MET-316025280.A13
316025280
|
£68.35
|
£82.02
|
|
|
9 - SPACER RING
MET-341011510.A18
341011510
|
£7.36
|
£8.83
|
|
|
10 - ELT RING
MET-143192440.A22
143192440
|
£4.76
|
£5.71
|
|
|
11 - COVER WASHER
MET-339070080.A21
339070080
|
£3.20
|
£3.84
|
|
|
12 - BALL BEARING 12X37X12
MET-143115230.A3
143115230
|
£9.62
|
£11.54
|
|
|
13 - FIXED BEARING COVER
MET-339007280.A40
339007280
|
£4.76
|
£5.71
|
|
|
14 - ARMATURE COMPL.
MET-316094250.A7
316094250
|
£60.03
|
£72.04
|
|
|
15 - BALL BEARING 8X22X7
MET-143113400.A268
143113400
|
£9.82
|
£11.79
|
|
|
16 - RUBBER BEARING
MET-344094080.A23
344094080
|
£2.60
|
£3.12
|
|
|
17 - BAFFLE
MET-339150950.A0
339150950
|
£4.76
|
£5.71
|
|
|
18 - SELF-TAP. FILL. H. SCREW
MET-141121680.A14
141121680
|
£1.50
|
£1.80
|
|
|
19 - FIELD COIL COMPL.
MET-311012600.A7
311012600
|
£68.35
|
£82.02
|
|
|
20 - STRAND
MET-344493690.A13
344493690
|
£3.20
|
£3.84
|
|
|
21 - PART NOT NEEDED
MET-399999990.A1337
399999990
|
-
|
|
|
|
22 - SELF-TAP. FILL. H. SCREW
MET-141119370.A17
141119370
|
£1.50
|
£1.80
|
|
|
23 - FILLISTER HEAD SCREW
MET-141122020.A187
141122020
|
£1.50
|
£1.80
|
|
|
24 - FILLISTER HEAD SCREW
MET-141124800.A20
141124800
|
-
|
|
|
|
25 - SEALING RING
MET-339060140.A12
339060140
|
£3.20
|
£3.84
|
|
|
26 - GEAR FLANGE COMPL. D 180
MET-316047460.A2
316047460
|
-
|
|
|
|
27 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A578
141121640
|
£1.50
|
£1.80
|
|
|
28 - SPINDLE
MET-341604160.A14
341604160
|
-
|
|
|
|
29 - PART NOT NEEDED
MET-399999990.A1338
399999990
|
-
|
|
|
|
30 - PART NOT NEEDED
MET-399999990.A1339
399999990
|
-
|
|
|
|
31 - FLANGE NUT
MET-341106900.A310
341106900
|
£11.78
|
£14.13
|
|
|
32 - PART NOT NEEDED
MET-399999990.A1340
399999990
|
-
|
|
|
|
33 - PART NOT NEEDED
MET-399999990.A1341
399999990
|
-
|
|
|
|
34 - CLAMPING FLANGE
MET-341031160.A205
341031160
|
£15.41
|
£18.49
|
|
|
35 - WHEEL GUARD COMPL. D 180
MET-316045010.A8
316045010
|
£22.96
|
£27.55
|
|
|
36 - SCREW
MET-341702050.A98
341702050
|
£1.50
|
£1.80
|
|
|
37 - COVER
MET-343376430.A18
343376430
|
£3.20
|
£3.84
|
|
|
38 - CARBON BRUSH SET
MET-316047480.A6
316047480
|
£15.41
|
£18.49
|
|
|
39 - BRUSH GUIDE
MET-343000770.A14
343000770
|
£8.37
|
£10.04
|
|
|
40 - SELF-TAP FILL H SCREW
MET-141116020.A272
141116020
|
£3.20
|
£3.84
|
|
|
41 - HANDLE (UPPER+UNDER PART)
MET-343398260.A30
343398260
|
£15.41
|
£18.49
|
|
|
42 - SWITCH 230V/120V
MET-343409150.A20
343409150
|
£22.96
|
£27.55
|
|
|
43 - CABLE CLIP
MET-339127730.A147
339127730
|
£1.50
|
£1.80
|
|
|
44 - SELF-TAP. FILL. H. SCREW
MET-141116800.A36
141116800
|
£1.50
|
£1.80
|
|
|
45 - CABLE SLEEVE
MET-344094550.A131
344094550
|
£3.82
|
£4.59
|
|
|
46 - CABLE CHINESE
MET-344493630.A6
344493630
|
£36.59
|
£43.91
|
|
|
47 - INDICATION LABEL
MET-338117330.A9
338117330
|
-
|
|
|
|
48 - PIN SPANNER
MET-344160840.A47
344160840
|
£7.36
|
£8.83
|
|
|
49 - MOTOR HOUSING
MET-315012760.A28
315012760
|
£26.35
|
£31.62
|
|
|
50 - METABO LABEL
MET-338122080.A13
338122080
|
-
|
|
|
|
51 - RATING PLATE
MET-338055840.A0
338055840
|
-
|
|
|
|
52 - PART NOT NEEDED
MET-399999990.A1342
399999990
|
-
|
|
|
|
55 - SEALING WASHER
MET-343435570.A2
343435570
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130910.A187
344130910
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338502110.A62
338502110
|
-
|
|
|
