1 - SELF-TAP. FILL. H. SCREW
MET-141118730.A91
141118730
|
£1.50
|
£1.80
|
|
|
2 - HAND GUARD
MET-343379840.A3
343379840
|
-
|
|
|
|
3 - TIGHT-FIT SCREW
MET-341702990.A5
341702990
|
£1.50
|
£1.80
|
|
|
5 - BOWHANDLE COMPL.
MET-316036910.A4
316036910
|
-
|
|
|
|
6 - PRESSURE SPRING
MET-342001180.A23
342001180
|
£1.50
|
£1.80
|
|
|
8 - M-LABEL 08 52X22
MET-338122160.A74
338122160
|
£1.50
|
£1.80
|
|
|
9 - RUBBER PLUG
MET-344092220.A111
344092220
|
£1.50
|
£1.80
|
|
|
10 - SELF-TAP. FILL. H. SCREW
MET-141117060.A171
141117060
|
£3.20
|
£3.84
|
|
|
11 - HOUSING
MET-343371630.A1
343371630
|
£54.94
|
£65.93
|
|
|
12 - FELT SEAL
MET-344070660.A24
344070660
|
£1.50
|
£1.80
|
|
|
13 - PRESSURE PIN
MET-341055110.A25
341055110
|
£1.50
|
£1.80
|
|
|
14 - QUICK STOP COMPL.
MET-316026380.A0
316026380
|
£7.36
|
£8.83
|
|
|
15 - PRESSURE SPRING
MET-342002440.A42
342002440
|
£1.50
|
£1.80
|
|
|
16 - SWITCH TRIGGER
MET-343373230.A3
343373230
|
£3.20
|
£3.84
|
|
|
18 - SWITCH SLIDE
MET-343379830.A6
343379830
|
£3.20
|
£3.84
|
|
|
19 - BRUSH HOLDER MODULE
MET-316026310.A3
316026310
|
£22.61
|
£27.13
|
|
|
20 - SWITCH
MET-343406960.A2
343406960
|
£9.62
|
£11.54
|
|
|
21 - STRAND CPL. AWG18SW
MET-344493000.A3
344493000
|
£3.20
|
£3.84
|
|
|
22 - TERMINAL RAIL
MET-343050140.A43
343050140
|
£3.20
|
£3.84
|
|
|
23 - CABLE CLIP
MET-343362490.A668
343362490
|
£3.20
|
£3.84
|
|
|
24 - CABLE SLEEVE
MET-344100970.A189
344100970
|
£3.20
|
£3.84
|
|
|
25 - CABLE WITH PLUG
MET-344492980.A1
344492980
|
£15.41
|
£18.49
|
|
|
26 - FIELD COIL 230 V
MET-311009510.A5
311009510
|
£54.94
|
£65.93
|
|
|
27 - BEARING SUPPORT COMPL.
MET-316038610.A9
316038610
|
-
|
|
|
|
28 - BALL BEARING 6X19X6
MET-143115660.A58
143115660
|
£3.82
|
£4.59
|
|
|
29 - WASHER
MET-141152400.A25
141152400
|
£1.50
|
£1.80
|
|
|
30 - DRIVING HUB
MET-341005590.A1
341005590
|
£13.63
|
£16.36
|
|
|
31 - INTERMEDIATE GEAR CPL.
MET-316026450.A5
316026450
|
£73.52
|
£88.23
|
|
|
32 - ARMATURE CPL. 230 V
MET-310007520.A6
310007520
|
£63.44
|
£76.13
|
|
|
33 - FAN
MET-330000850.A12
330000850
|
£3.20
|
£3.84
|
|
|
34 - CON ROD
MET-339180390.A2
339180390
|
£8.37
|
£10.04
|
|
|
35 - COUNTERSUNK SCREW
MET-141121710.A7
141121710
|
£1.50
|
£1.80
|
|
|
36 - BALL BEARING 8X22X7
MET-143115800.A99
143115800
|
£3.82
|
£4.59
|
|
|
37 - SHIFT FORK
MET-343371680.A5
343371680
|
£9.62
|
£11.54
|
|
|
38 - CON ROD
MET-339180360.A4
339180360
|
£8.37
|
£10.04
|
|
|
40 - CIRCLIP
MET-141155400.A15
141155400
|
£1.50
|
£1.80
|
|
|
41 - STORAGE CONTAINER
MET-343372210.A1
343372210
|
£17.55
|
£21.06
|
|
|
42 - HAND PROTECTOR CPL
MET-316036920.A0
316036920
|
-
|
|
|
|
44 - UPPER BLADE
MET-344147730.A1
344147730
|
£48.88
|
£58.66
|
|
|
45 - LOWER BLADE
MET-344147760.A0
344147760
|
£42.65
|
£51.18
|
|
|
46 - HEXAGON HEAD SCREW
MET-141120210.A21
141120210
|
£1.50
|
£1.80
|
|
|
47 - WASHER
MET-339006160.A7
339006160
|
£1.50
|
£1.80
|
|
|
48 - KNIFE COMPL.
MET-316026490.A1
316026490
|
£55.90
|
£67.08
|
|
|
49 - SPACER BUSH
MET-341060030.A13
341060030
|
£3.20
|
£3.84
|
|
|
50 - HEXAGON HEAD SCREW
MET-141119780.A11
141119780
|
£3.20
|
£3.84
|
|
|
51 - COVER
MET-339128130.A3
339128130
|
£7.36
|
£8.83
|
|
|
52 - RATING PLATE
MET-338047180.A0
338047180
|
-
|
|
|
|
56 - WASHER
MET-141151940.A124
141151940
|
£1.50
|
£1.80
|
|
|
58 - SPRING
MET-342021590.A19
342021590
|
£4.76
|
£5.71
|
|
|
60 - GUMMIPUFFER
MET-344099400.A6
344099400
|
£1.50
|
£1.80
|
|
|
65 - SELF-TAP FILL H SCREW
MET-141116020.A188
141116020
|
£3.20
|
£3.84
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130930.A70
344130930
|
£36.59
|
£43.91
|
|
|
881 - GREASE SF 011 50GR 1.8oz
MET-344130560.A146
344130560
|
£19.18
|
£23.02
|
|
|

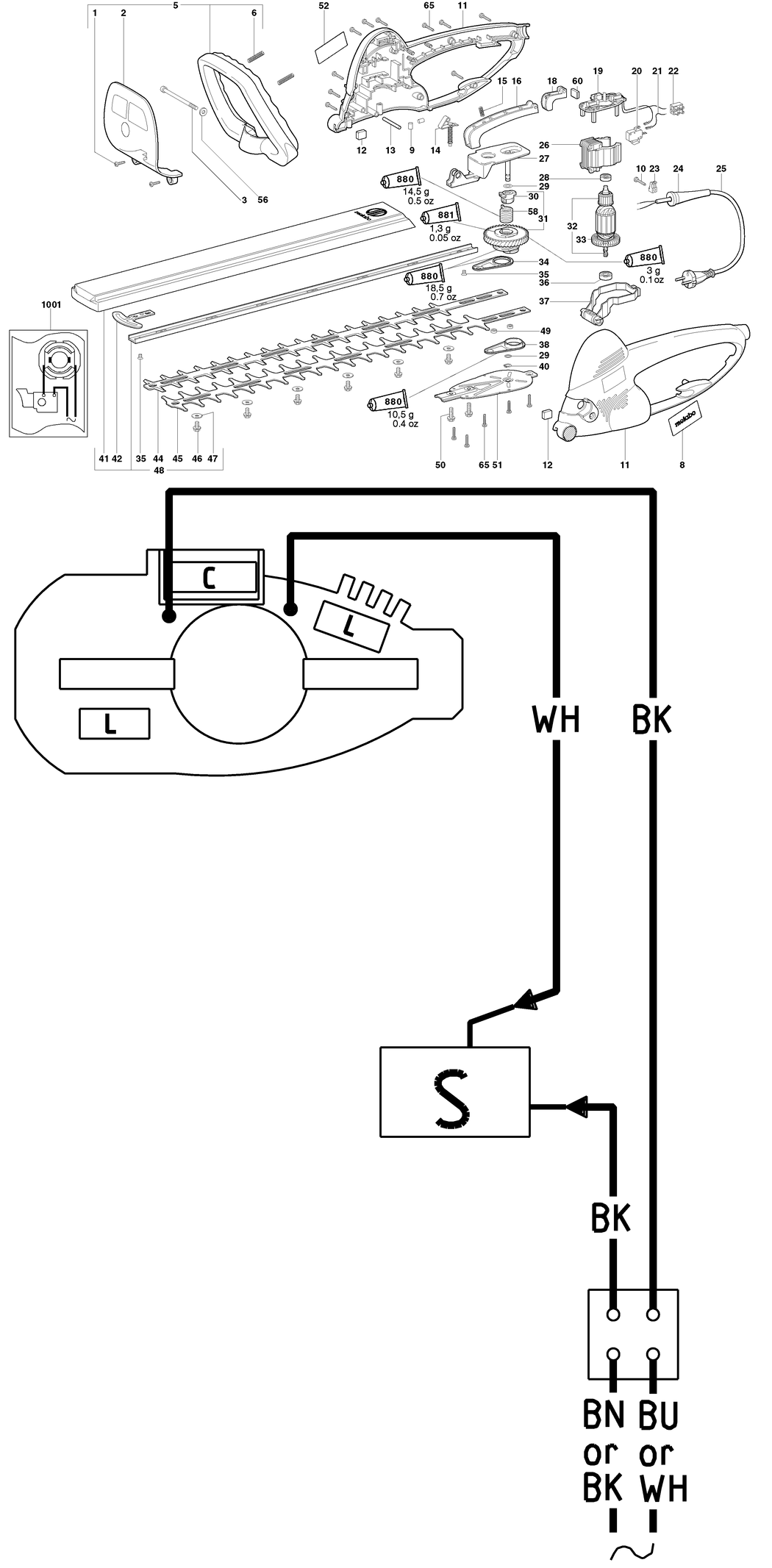

1001 - DIAGRAM
MET-338501430.A5
338501430
|
-
|
|
|
