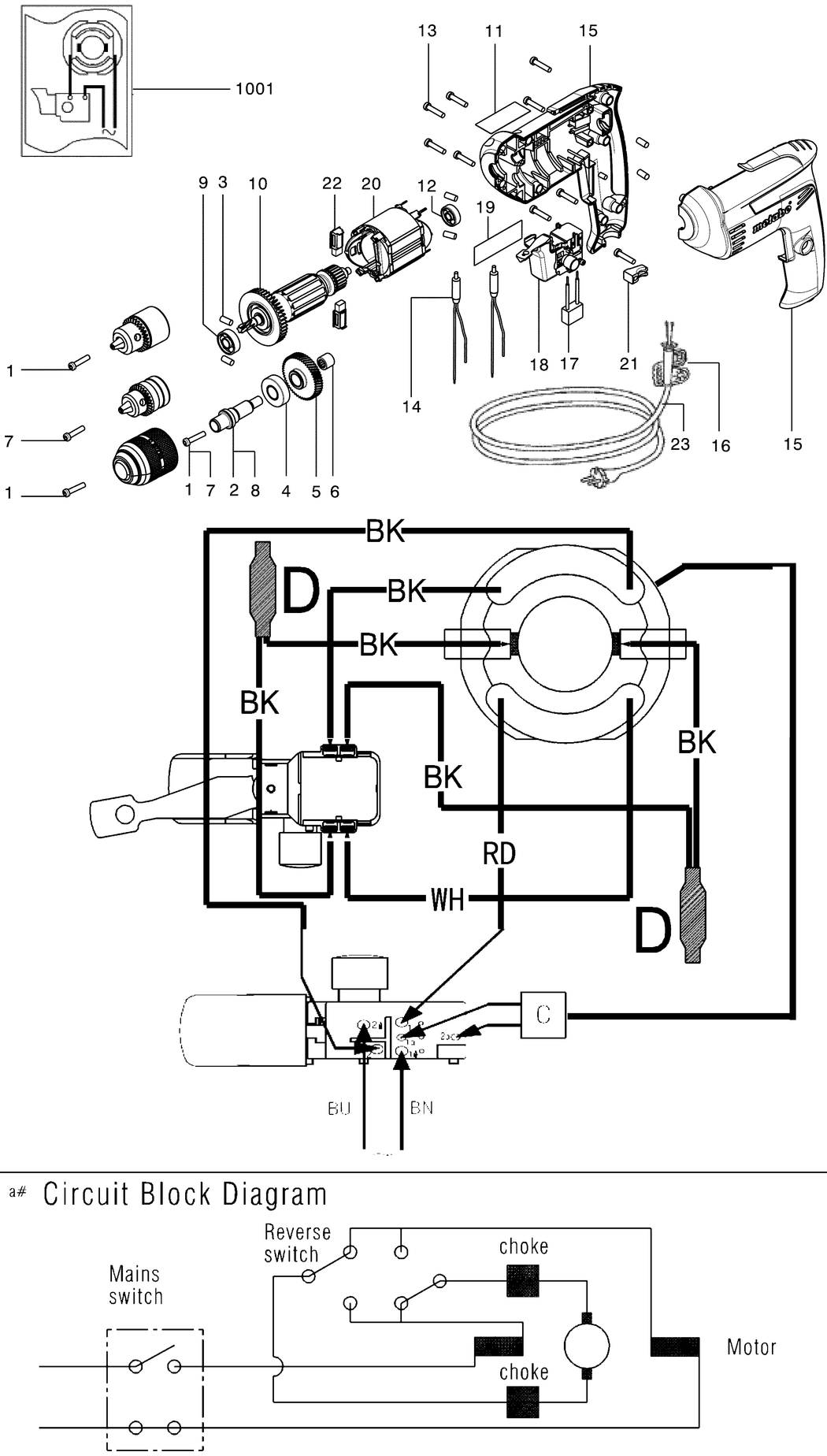

An exploded diagram and spare parts listing for the Metabo B 10 / 18114310 / CN 220V

	Ex VAT	Inc VAT
2 - SPINDLE MET-341604190.A0 341604190	£9.62	£11.54
3 - RUBBER PLUG MET-344092220.A96 344092220	£1.50	£1.80
4 - BALL BEARING 12X28X8 MET-143115640.A8 143115640	£3.82	£4.59
5 - SPUR GEAR MET-340033140.A0 340033140	£11.78	£14.13
6 - NEEDLE SLEEVE MET-143111460.A4 143111460	£5.62	£6.75
7 - CHEESE-HEAD SCREW MET-341701940.A118 341701940	£3.20	£3.84
9 - BALL BEARING 8X22X7 MET-143115800.A117 143115800	£3.83	£4.60
10 - ARMATURE COMPL. MET-310010030.A3 310010030	£54.94	£65.93
11 - PART NOT NEEDED MET-399999990.A1212 399999990	-
12 - BALL BEARING 6X19X6 MET-143115660.A35 143115660	£3.82	£4.59
13 - SELF-TAP FILL H SCREW MET-141116020.A162 141116020	£3.20	£3.84
14 - CHOKE MET-343254740.A0 343254740	-
15 - HOUSING (2K) MET-343399520.A9 343399520	-
16 - CABLE SLEEVE MET-344100590.A26 344100590	£3.82	£4.59
17 - CONDENSER MET-343254660.A6 343254660	£4.76	£5.71
18 - ON-OFF SWITCH MET-343405990.A2 343405990	£15.41	£18.49
19 - RATING PLATE MET-338056030.A0 338056030	-
20 - FIELD COIL MET-311011390.A3 311011390	£32.88	£39.45
21 - CABLE CLIP MET-343362490.A675 343362490	£3.20	£3.84
22 - CARBON BRUSH SET MET-316057480.A6 316057480	£17.55	£21.06
23 - CABLE CHINESE MET-344493610.A6 344493610	-
1001 - DIAGRAM MET-338505480.A0 338505480	-

Attribute Name	Value
Brand	Metabo
