Metabo KGT 300 / 0103300000 11 / EU 230V Spare Parts

Home Details Reviews Delivery

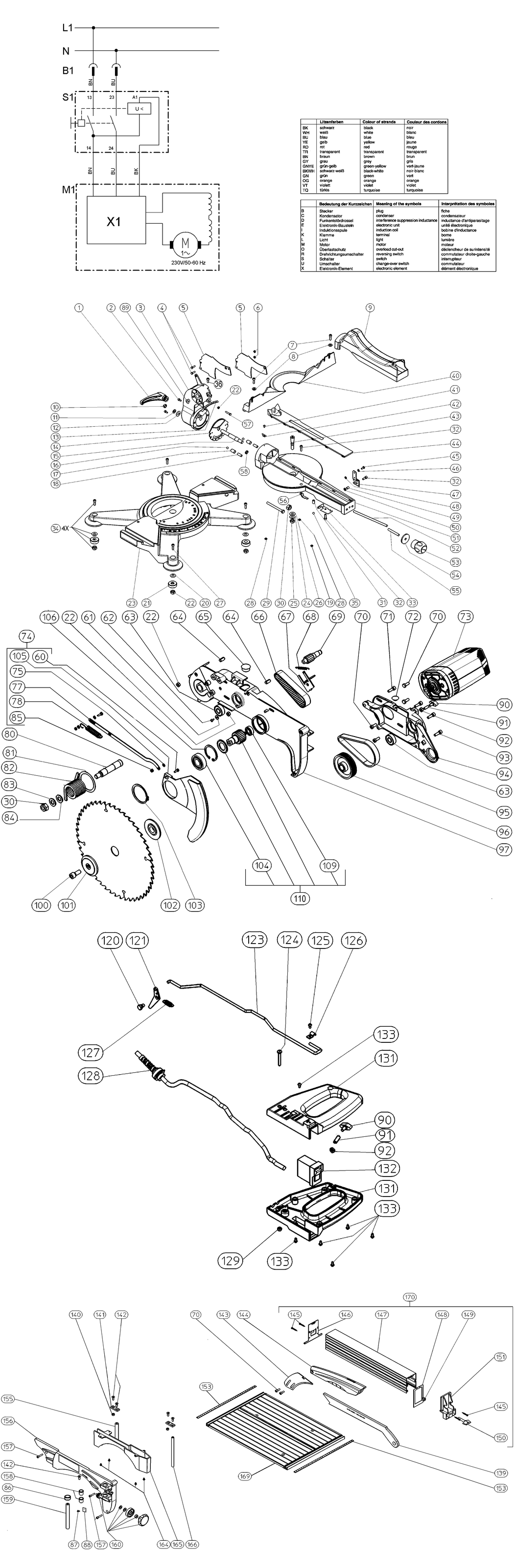

An exploded diagram and spare parts listing for the Metabo KGT 300 / 0103300000 11 / EU 230V

	Ex VAT	Inc VAT
1 - CLAMPING LEVER MET-7006028220.A12 7006028220	£19.18	£23.02
2 - HEXAGON SOCKET HEAD CAP SCREW MET-6121121296.A9 6121121296	£1.50	£1.80
3 - PIVOT KGT 300 MET-1380703498.A0 1380703498	£63.44	£76.13
4 - HEXAGON HEAD SCREW MET-141110240.A4 141110240	£1.50	£1.80
5 - GUARD PLATE BL 2 00X106 MET-1382703517.A0 1382703517	£15.41	£18.49
6 - NUT AND WASHER ASSEMBLY MET-6209018460.A32 6209018460	£1.50	£1.80
7 - THREAD ROLLING SCREW M 8X35 - ST VERZ./G MET-6143076260.A6 6143076260	£3.82	£4.59
8 - SHIM RING 8X14X1 VERZ. MET-6306017266.A9 6306017266	£1.50	£1.80
9 - SIDE PANEL KGT300 MET-1381704013.A1 1381704013	£13.63	£16.36
10 - CAP NUT SELF-LOCKING MET-6208073395.A18 6208073395	£1.50	£1.80
11 - WASHER MET-6300686603.A8 6300686603	£1.50	£1.80
12 - WASHER B 13 VERZ. MET-6305002508.A29 6305002508	£1.50	£1.80
13 - ANGLE SCALE 0 08X7 MET-1142703978.A0 1142703978	£6.38	£7.65
14 - SHIM PLATE BL3 00 KGS303 MET-1482683769.A9 1482683769	£36.59	£43.91
15 - SWIVEL ARM BOLD RD 16 3/M12X122 KGS303 MET-1385681999.A5 1385681999	£17.55	£21.06
16 - STEEL BALL RD 7 MET-7123148635.A16 7123148635	£1.50	£1.80
17 - LOCK BOLT MET-1485215979.A17 1485215979	£5.62	£6.75
18 - PRESSURE SPRING RDA=8 5 LO=25 MET-7051683751.A2 7051683751	£1.50	£1.80
19 - SLIDE BUSHING 18X20X22 MIT BUND MET-7637712815.A3 7637712815	-
20 - WASHER MET-6305002486.A91 6305002486	-
21 - RUBBER FOOT RD 30X17 5 80 SHORE MET-7057208753.A4 7057208753	£3.20	£3.84
22 - HEXAGONAL NUT MET-141130100.A27 141130100	£1.50	£1.80
23 - TABLE M.JUSTIERBLECH ET KGT 300 MET-1010712676.A2 1010712676	£142.38	£170.85
24 - SAUCER SPRING MET-141150540.A7 141150540	£1.50	£1.80
25 - HEX NUT MET-141132030.A64 141132030	£2.94	£3.53
26 - WASHER MET-141150050.A15 141150050	£1.50	£1.80
27 - CAP SCREW MET-141113870.A24 141113870	£3.20	£3.84
28 - GLIDE PIECE MET-2391202772.A46 2391202772	£1.50	£1.80
29 - HEXAGON HEAD SCREW M 8X85 VERZ. MET-6103122986.A4 6103122986	£3.20	£3.84
30 - HEXAGON NUT PREV. TORQUE TYPE MET-6202024139.A27 6202024139	£1.50	£1.80
31 - PRESSURE SPRING RDA=8 5 LO=17 MET-7051683611.A8 7051683611	£1.50	£1.80
32 - CAP SCREW W.INTERNAL HEXAGON MET-6143075247.A14 6143075247	£3.20	£3.84
33 - CLAMPING PLATE BL 2 00X35X68 MET-1482682029.A1 1482682029	£3.82	£4.59
34 - ACCESSORY BA GUMMIFÜßE KGT 300 MET-1010713400.A1 1010713400	£22.96	£27.55
35 - STEEL BALL RD 12 KGT300 MET-7123716854.A4 7123716854	£3.20	£3.84
36 - PLUG-IN BUFFER MET-2391203906.A23 2391203906	£1.50	£1.80
40 - FENC KGT300 MET-1380703960.A2 1380703960	£68.35	£82.02
41 - FILLISTER HEAD SCREW MET-6172028215.A61 6172028215	£1.50	£1.80
42 - ANGLE POINTER BL 1 50X10X21 MET-1482681987.A18 1482681987	£3.20	£3.84
43 - DREHTELLERBOLZEN KGS303 RD 16/M10X63 MET-1385682006.A5 1385682006	£11.78	£14.13
44 - TABLE INSERT KGT300 MET-1381704005.A1 1381704005	£11.78	£14.13
45 - RAISED CHEESE HEAD SCREW MET-6123612815.A22 6123612815	£1.50	£1.80
46 - CUP SPRING 10X5 2X0 MET-7053711590.A1 7053711590	-
47 - LOCKING PLATE BL 2 50X31 MET-1482711584.A1 1482711584	£13.63	£16.36
48 - WASHER MET-141150120.A2 141150120	£1.50	£1.80
49 - SPACER SLEEVE MET-6442059304.A17 6442059304	£1.50	£1.80
50 - WASHER MET-141151940.A111 141151940	£1.50	£1.80
51 - TURNTABLE KGT300 MET-1380712713.A1 1380712713	£79.10	£94.92
52 - CLAMPING ROD RD 8X185 5 KGS303 MET-1385682014.A5 1385682014	£4.76	£5.71
53 - KNOB RED MET-1388698264.A18 1388698264	£7.36	£8.83
54 - WASHER RDA44XRDI9X4 KGS 303 MET-1485683840.A3 1485683840	£3.82	£4.59
55 - HEX. SOCKET SET SCREW FLAT PT MET-141124460.A34 141124460	£2.94	£3.53
56 - POINTER BL 2 00X12X46 KGS303 MET-1482681979.A1 1482681979	£3.82	£4.59
57 - HEXAGON HEAD SCREW MET-141110280.A7 141110280	£1.50	£1.80
58 - HEXAGON THIN NUT MET-6205029131.A18 6205029131	£1.50	£1.80
60 - HEXAGON HEAD SCREW M 4X12 VERZ. MET-6103703636.A1 6103703636	-
61 - WASHER MET-141150110.A62 141150110	£1.50	£1.80
62 - SELF-TAP. FILL. H. SCREW MET-141118130.A13 141118130	£1.50	£1.80
63 - DEEP GROOVE BALL BEARING MET-7100083463.A9 7100083463	-
64 - SPACER SLEEVE RD 8/6 4X18 VERZ. MET-6442706377.A0 6442706377	-
65 - PLUG RD 21 MET-1381106094.A1 1381106094	-
66 - COGGED BELT HTD 300-5M-20 CXP KGT300 MET-7231703351.A1 7231703351	£32.88	£39.45
67 - SPINDLE LOCK MET-1482681839.A14 1482681839	£4.76	£5.71
68 - TENSION SPRING MET-7051074232.A5 7051074232	£3.20	£3.84
69 - SHAFT 14HTD5M20 RD21X70 KGT300 MET-1385703410.A1 1385703410	£26.35	£31.62
70 - FILLISTER HEAD SCREW W.FLANGE MET-6143661561.A19 6143661561	£1.50	£1.80
71 - CAP SCREW MET-141113940.A33 141113940	£1.50	£1.80
72 - PLUG RD 13 MET-1381738805.A0 1381738805	-
73 - ELECTRIC MOTOR 1 8KW 230/1/50 KGT300 MET-1010703383.A1 1010703383	£214.12	£256.95
74 - RETRACTABLE BLADE GUARD KPL. KGT 300 MET-1010712684.A1 1010712684	£61.08	£73.30
75 - WASHER MET-141150010.A13 141150010	£1.50	£1.80
77 - ZUGBLECH BL 1 50X10X290 MET-1382703622.A0 1382703622	£8.37	£10.04
78 - TENSION SPRING RDA 14X49 75X1 MET-7051703590.A1 7051703590	£5.62	£6.75
80 - MOTOR HEAD AXLE RD22 8X102 MET-1385703526.A1 1385703526	£19.18	£23.02
81 - REIBBLECH KGT 300 RD 72/52 2X1 MET-1382716961.A0 1382716961	-
82 - TORSION SPRING KGT300 MET-7051703558.A1 7051703558	£32.88	£39.45
83 - WASHER 13X26X2 5 VERZINKT MET-6300714330.A1 6300714330	-
84 - CUP SPRING MET-7053063343.A45 7053063343	£1.50	£1.80
85 - HEXAGONAL LOCK NUT MET-141130930.A8 141130930	£1.50	£1.80
86 - SHAFT COLLA A 14 / I-6KT VERZ. MET-6410178646.A0 6410178646	£6.38	£7.65
87 - HEX. HEAD THREAD ROLLING SCREW M 4X8 (GE MET-6143088225.A1 6143088225	£1.50	£1.80
88 - CLAMPING PLATE BL 0 88X13 MET-1382706389.A0 1382706389	-
89 - SLIDE BUSHING 18X20X22 MIT BUND MET-7637712815.A2 7637712815	-
90 - THUMBSCREW M6 X 12 MET-341112750.A15 341112750	£2.94	£3.53
91 - PRESSURE SPRING MET-7051711623.A6 7051711623	£2.94	£3.53
92 - HEXAGON THIN NUT MET-6205028046.A13 6205028046	£1.50	£1.80
93 - THREAD ROLLING SCREW E M 6X30 - ST VERZ. MET-6143099472.A1 6143099472	£3.20	£3.84
94 - MOTOR CARRIER KGT300 MET-1380703374.A2 1380703374	£73.52	£88.23
95 - POLY-RIB BELT 7 PJ 356 RIEMENHÖHE 4 MET-7233707699.A0 7233707699	£32.88	£39.45
96 - POLY-RIB PULLEY 7J / RDA 74 9X25 KGT300 MET-1380703420.A0 1380703420	£32.88	£39.45
97 - GEARBOX ENCLOSURE KGT300 MET-1380703323.A0 1380703323	£64.79	£77.75
100 - HEXAGON SOCKET HEAD CAP SCREW M10X25 LIN MET-6121703686.A0 6121703686	£7.36	£8.83
101 - BLADE COLLAR OUTER RD 63/10X8 KGT300 MET-1380703676.A2 1380703676	£9.62	£11.54
102 - BLADE COLLAR RD 63/19X10 45 KGT300 MET-1380703650.A0 1380703650	£22.61	£27.13
103 - CIRCLIP FOR BORE 55X2 MET-6401041131.A1 6401041131	£3.82	£4.59
104 - DEEP GROOVE BALL BEARING 20X47X14 6204-2 MET-7100016820.A9 7100016820	£15.41	£18.49
105 - RETRACTABLE BLADE GUARD M.GLEITFÜßE KGT MET-1010719441.A1 1010719441	£32.88	£39.45
106 - SPRING RING MET-141180740.A11 141180740	£1.50	£1.80
109 - DEEP GROOVE BALL BEARING MET-143115740.A11 143115740	£6.38	£7.65
110 - SAEGEBLATTWELLE KPL. KGT300 MET-1010717252.A0 1010717252	£55.90	£67.08
120 - HEX FIT BOLT MET-6104220876.A25 6104220876	£3.82	£4.59
121 - BOLT BL 2 99X23 MET-1482703581.A0 1482703581	£5.62	£6.75
123 - RELEASE LEVER RD 5 KGT300 MET-1388703560.A0 1388703560	£11.78	£14.13
124 - FILLISTER HEAD SCREW MET-141116770.A3 141116770	£2.60	£3.12
125 - FILLISTER HEAD SCREW W. CROSS HEAD MET-6172001791.A5 6172001791	£1.50	£1.80
126 - CABLE CLIP RD6 MET-8242703600.A1 8242703600	-
127 - TENSION SPRING MET-7051074232.A6 7051074232	£3.20	£3.84
128 - CABLE WITH PLUG 2X1 0X2353/2XFH KGT300 MET-8402703440.A1 8402703440	£22.96	£27.55
129 - HEXAGONAL NUT MET-141130090.A32 141130090	£1.50	£1.80
131 - HANDLE KGT300 MET-1381703467.A1 1381703467	£19.18	£23.02
132 - SWITCH ON/OF 2-POLIG UM 230V 10A KGT300 MET-8111703451.A1 8111703451	£32.88	£39.45
133 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6186602763.A19 6186602763	£1.50	£1.80
139 - PUSH STICK MET-343433180.A22 343433180	-
140 - FLANGE NUT MET-6209114230.A22 6209114230	£1.50	£1.80
141 - ADAPTOR PLATE BL 4 00X15X40 KGT300 MET-1482711606.A1 1482711606	£11.78	£14.13
142 - HEX.SOCKET COUNTERS.HEAD SCREW MET-6132661454.A28 6132661454	£1.50	£1.80
143 - SPLITTING BLADE KGT300 MET-1382703479.A0 1382703479	£11.78	£14.13
144 - SAW BLADE GUARD ASSEMBLY KGT300 MET-1010703995.A1 1010703995	£11.78	£14.13
145 - CROSS RECD PAN HEAD TAP.SCREW ST 3 9X16 MET-6172075604.A0 6172075604	£1.50	£1.80
146 - END CAP BL 2 00X97 MET-1382703860.A2 1382703860	£22.61	£27.13
147 - FENCE EXTRUSION 474 5 MM KGT300 MET-1383703880.A1 1383703880	-
148 - TENSION PLATE BL 0 88X55X95 KGT300 MET-1482703905.A2 1482703905	£22.61	£27.13
149 - HEXAGONAL NUT MET-141131010.A50 141131010	£1.50	£1.80
150 - THUMB SCREW M 8X40 VERZ. MET-6150669454.A1 6150669454	£13.63	£16.36
151 - END CAP KGT300 MET-1381703840.A1 1381703840	£5.62	£6.75
153 - SCALE 0 25X10X340 MET-1142703919.A0 1142703919	£5.62	£6.75
155 - GUIDE BAR RD 14X99 KGT300 MET-1385703828.A1 1385703828	£9.62	£11.54
156 - DISC GUARD KGT300 MET-1380711571.A1 1380711571	-
157 - HEXAGON SOCKET HEAD CAP SCREW E M 5X25 - MET-6143703710.A1 6143703710	-
158 - SLIDE BUSHING 14X16X12 MIT BUND MET-7637711444.A1 7637711444	-
159 - TOOTHED RACK RD 14H9X168 KGT300 MET-1385703810.A1 1385703810	£42.65	£51.18
160 - GEARWHEEL SHAFT KPL. ET KGT MET-1010712692.A1 1010712692	-
164 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X9 MET-141124470.A2 141124470	-
165 - PROTECTION COVER KGT300 MET-1381720353.A0 1381720353	£11.78	£14.13
166 - GUIDE BAR RD 10X156 KGT300 MET-1485711615.A0 1485711615	£11.78	£14.13
169 - TABLE ASSEMBLY KGT300 MET-1010704142.A1 1010704142	£94.04	£112.85
170 - RIP FENCE KGT 300 MET-1010712706.A1 1010712706	£41.44	£49.73
