Metabo KGS 305 M / 19305390 / GB 110V Spare Parts

Home Details Reviews Delivery

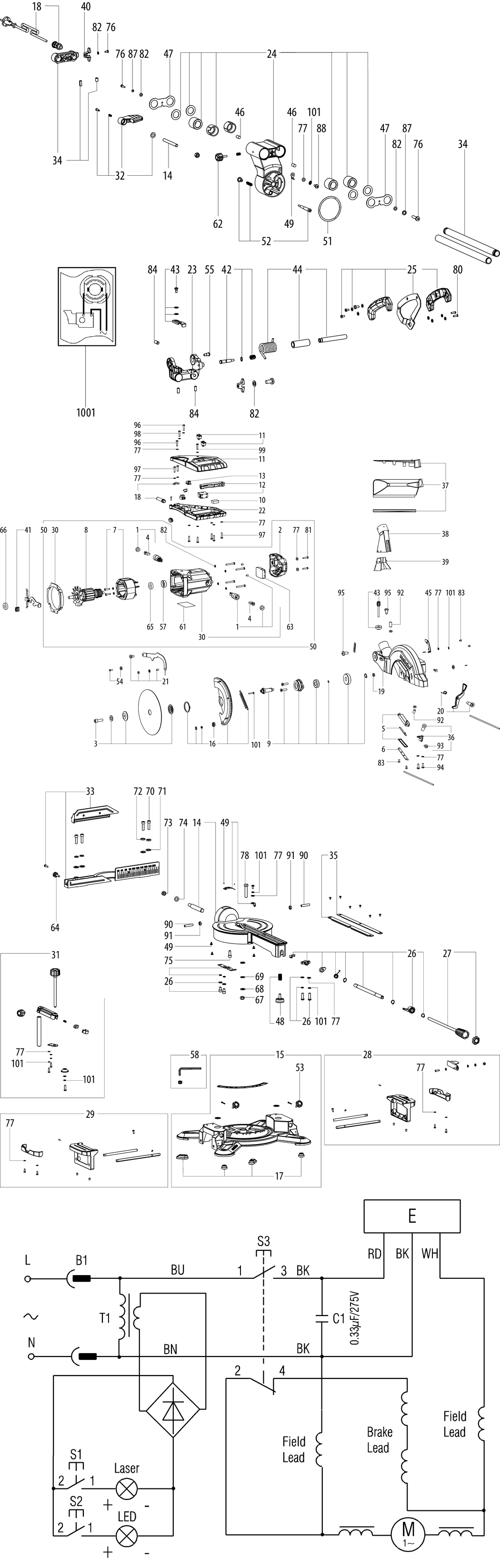

An exploded diagram and spare parts listing for the Metabo KGS 305 M / 19305390 / GB 110V

	Ex VAT	Inc VAT
1 - CARBON BRUSH HOLDER COMPL. MET-316092320.A7 316092320	£7.36	£8.83
2 - MOTOR COVER MET-343435820.A0 343435820	£5.62	£6.75
3 - FLANGE COMPL. MET-316060640.A2 316060640	£15.41	£18.49
4 - CARBON BRUSH SET MET-316092330.A2 316092330	£7.49	£8.99
5 - LED-LAMP MET-343436090.A18 343436090	£11.78	£14.13
6 - COVER LIGHTING MET-343436110.A16 343436110	£2.94	£3.53
7 - STATOR MET-310011800.A0 310011800	£60.03	£72.04
8 - ARMATURE MET-310011820.A0 310011820	£61.08	£73.30
9 - GEAR-BOX COMPL. MET-316060710.A0 316060710	£32.88	£39.45
10 - CONDENSER MET-343254900.A15 343254900	£2.94	£3.53
11 - UPPER HANDLE WITH SWITCH SET MET-316060720.A14 316060720	£5.62	£6.75
12 - SWITCH COMPL. MET-316092930.A0 316092930	£15.41	£18.49
13 - POWER SUPPLY MET-343440900.A14 343440900	£19.18	£23.02
14 - TURNTABLE COMPL. MET-316055970.A4 316055970	£60.03	£72.04
15 - TABLE COMPL. MET-316055940.A2 316055940	£71.39	£85.67
16 - SAFETY GUARD COMPL. MET-316056330.A2 316056330	£22.96	£27.55
17 - FOOT COMPL. MET-315419090.A3 315419090	£3.82	£4.59
18 - STRESS RELIEVE COMPL. MET-316092940.A0 316092940	£42.65	£51.18
19 - WHEEL GUARD COMPL. MET-316056250.A2 316056250	£55.90	£67.08
20 - RELEASE LEVER COMPL. MET-316056730.A0 316056730	£4.76	£5.71
21 - SWIVEL LEVER COMPL. MET-316056930.A3 316056930	£22.61	£27.13
22 - HANDLE BOTTOM PART MET-343435740.A14 343435740	£22.61	£27.13
23 - MOTOR BRACKET COMPL. MET-316056090.A3 316056090	£36.59	£43.91
24 - PIVOT COMPL. MET-316056120.A0 316056120	£79.10	£94.92
25 - HANDLE COMPL. MET-316060950.A5 316060950	-
26 - DETENT COMPL. MET-316092340.A5 316092340	£15.41	£18.49
27 - CONTROL GRIP COMPL. MET-316056800.A1 316056800	£10.28	£12.34
28 - TABLE SIDE EXTENSION RIGHT MET-315418530.A5 315418530	£26.35	£31.62
29 - TABLE SIDE EXTENSION LEFT MET-315418500.A2 315418500	£26.35	£31.62
30 - MOTOR HOUSING COMPL. MET-316056290.A0 316056290	-
31 - WORKPIECE HOLDER COMPL. MET-316056680.A11 316056680	£22.61	£27.13
32 - CLAMPING LEVER COMPL. MET-316056760.A3 316056760	£6.38	£7.65
33 - STOP COMPL. MET-316056010.A0 316056010	£54.94	£65.93
34 - REAR PIVOT COMPL. MET-315418550.A1 315418550	£68.35	£82.02
35 - TABLE INSERT MET-343436030.A4 343436030	£5.82	£6.99
36 - LASER WITH HOLDER MET-343436070.A15 343436070	£15.41	£18.49
37 - DUST ETRACTION KIT COMPL. MET-316075450.A12 316075450	£9.99	£11.99
38 - COVER DUST COLLECTOR MET-343435800.A3 343435800	£6.38	£7.65
39 - EXTRACTION FUNNEL MET-343436280.A3 343436280	£2.94	£3.53
40 - CABLE BRACKET MET-343436170.A14 343436170	£2.94	£3.53
41 - SPINDLE LOCK COMPL. MET-316056890.A0 316056890	£5.62	£6.75
42 - TRANSPORT LOCK COMPL. MET-316061380.A4 316061380	£3.20	£3.84
43 - DEPTH STOP COMPL. MET-316057470.A0 316057470	-
44 - TIPPING AXIS COMPL. MET-316061420.A0 316061420	£22.96	£27.55
45 - COVER (CABLE CHANNEL) MET-343441110.A3 343441110	-
46 - PLUG IN BUFFER MET-344113030.A7 344113030	-
47 - COVER PIVOT MET-339136700.A3 339136700	-
48 - SET SCREW COMPL. MET-316056830.A4 316056830	£2.94	£3.53
49 - SCALE SET COMPL. MET-316061450.A4 316061450	£5.62	£6.75
50 - MOTOR COMPL. MET-316092960.A0 316092960	£121.97	£146.36
51 - SLIDING SHEET MET-339147660.A2 339147660	£3.82	£4.59
52 - END STOP CPL. MET-316061530.A4 316061530	£5.62	£6.75
53 - STAR GRIP SCREW MET-343436220.A17 343436220	£3.22	£3.86
54 - BEARING COMPL. MET-316061540.A4 316061540	£4.76	£5.71
55 - STOP SCREW MET-341722210.A1 341722210	£2.94	£3.53
57 - RUBBER BUSHING MET-344113050.A3 344113050	-
58 - TOOL HOLDER COL. MET-316061550.A20 316061550	£2.94	£3.53
61 - RATING PLATE MET-338064910.A0 338064910	-
62 - STAR GRIP SCREW MET-343437020.A0 343437020	£2.94	£3.53
63 - ELECTRONIC UNIT MET-343085220.A0 343085220	£30.06	£36.07
64 - STAR GRIP SCREW MET-343437050.A3 343437050	£2.94	£3.53
65 - BALL BEARING 12X28X8 MET-143111440.A17 143111440	£26.35	£31.62
66 - BALL BEARING MET-143115730.A11 143115730	£4.76	£5.71
67 - HEX NUT MET-141132030.A30 141132030	£2.94	£3.53
68 - WASHER MET-141150050.A46 141150050	£1.50	£1.80
69 - LOCK WASHER MET-141150390.A3 141150390	£1.50	£1.80
70 - CAP SCREW MET-141113890.A47 141113890	£3.20	£3.84
71 - WASHER MET-141150130.A145 141150130	£1.50	£1.80
72 - LOCK WASHER MET-141155240.A11 141155240	£3.20	£3.84
73 - HEXAGONAL LOCK NUT MET-141130890.A18 141130890	£3.20	£3.84
74 - WASHER MET-141156200.A17 141156200	£2.94	£3.53
75 - CAP SCREW MET-141113840.A9 141113840	£3.20	£3.84
76 - FILLISTER HEAD SCREW MET-141110590.A16 141110590	£1.50	£1.80
77 - WASHER MET-141150010.A55 141150010	£1.50	£1.80
78 - HEXAGON HEAD SCREW MET-141113440.A8 141113440	£3.20	£3.84
79 - COUNTERSUNK SCREW MET-141112180.A54 141112180	£1.50	£1.80
80 - FILLISTER HEAD SCREW MET-141116780.A23 141116780	£1.50	£1.80
81 - FILLISTER HEAD SCREW MET-141123710.A6 141123710	-
82 - WASHER MET-141150020.A47 141150020	£1.50	£1.80
83 - COUNTERSUNK SCREW MET-141123840.A14 141123840	£2.94	£3.53
84 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A7 141124510	£2.94	£3.53
87 - LOCK WASHER MET-141150360.A14 141150360	£1.50	£1.80
88 - FILLISTER HEAD SCREW MET-141110540.A64 141110540	£1.50	£1.80
90 - HEX. SOCKET SET SCREW FLAT PT MET-141124460.A25 141124460	£2.94	£3.53
91 - HEXAGONAL NUT MET-141131010.A17 141131010	£1.50	£1.80
92 - GRUB SCREW MET-141123410.A7 141123410	-
93 - GRUB SCREW MET-141116480.A32 141116480	£1.50	£1.80
94 - CAP SCREW MET-141113590.A6 141113590	£3.20	£3.84
95 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X9 MET-141124470.A8 141124470	-
96 - FILLISTER HEAD SCREW MET-141111430.A3 141111430	£3.20	£3.84
97 - SELF-TAP. FILL. H. SCREW MET-141118730.A82 141118730	£1.50	£1.80
98 - SELF-TAP. FILL. H. SCREW MET-141116800.A61 141116800	£1.50	£1.80
99 - SELF-TAP. FILL. H. SCREW MET-141123940.A36 141123940	-
100 - FILLISTER HEAD SCREW MET-141113220.A6 141113220	£1.50	£1.80
101 - LOCK WASHER MET-141150350.A11 141150350	£1.50	£1.80
1001 - WIRING DIAGRAM MET-338505980.A1 338505980	-
