Metabo KGS 303 PLUS / 0103030000 10 / EU 230V Spare Parts

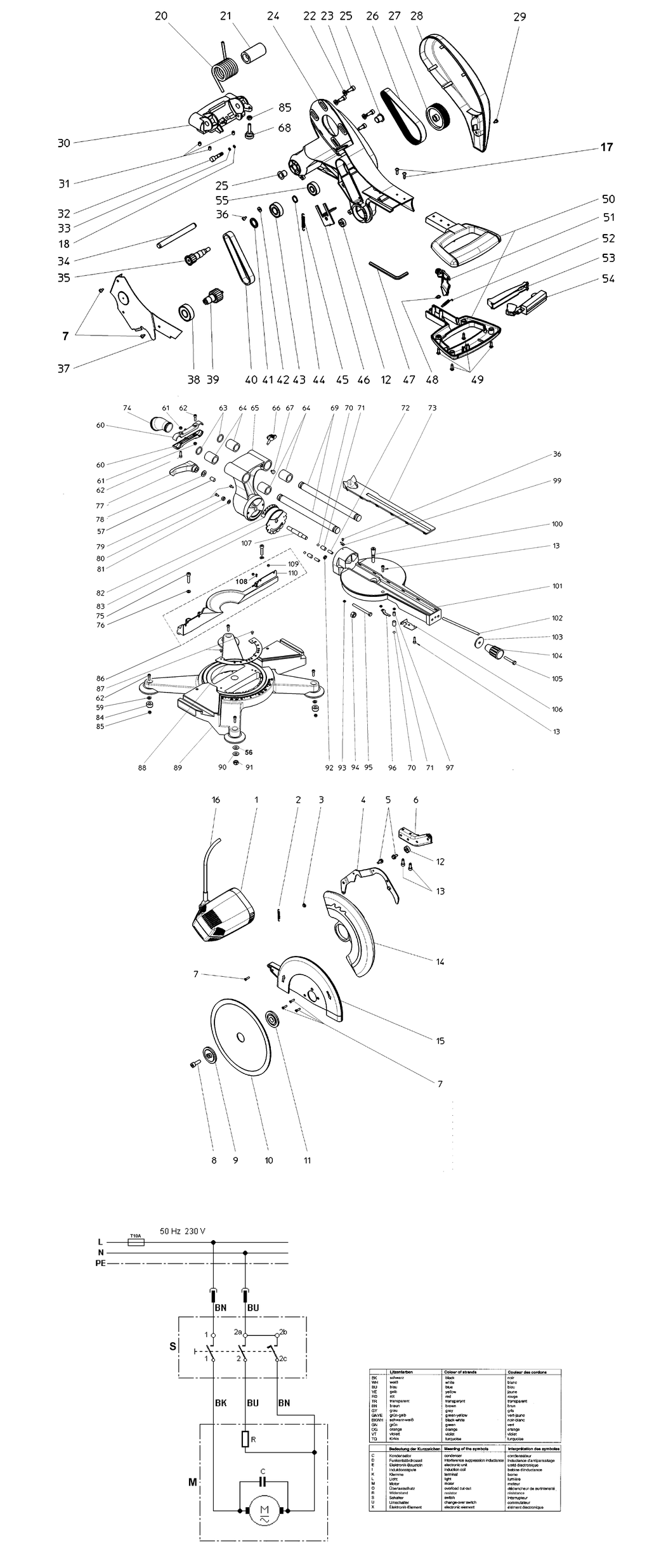

An exploded diagram and spare parts listing for the Metabo KGS 303 PLUS / 0103030000 10 / EU 230V

	Ex VAT	Inc VAT
1 - ELECTRIC MOTOR 1 8KW 230/1/50 MET-1010680618.A0 1010680618	-
2 - PRESSURE SPRING RD 1 5X12X63 MET-7051681937.A0 7051681937	-
3 - SLIDE BUSHING RDI 06 (F.3MM BLECH) MET-7637651433.A0 7637651433	£3.20	£3.84
4 - DREHBLECH KGS303 BL 2 50X82X220 MET-1482682118.A0 1482682118	-
5 - HEX. HEAD THREAD ROLLING SCREW MET-6143124744.A1 6143124744	£1.50	£1.80
6 - SPERRBLECH KGS303 BL 2 00X49 MET-1482682142.A0 1482682142	-
7 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A5 6174001900	£2.49	£2.99
8 - CAP SCREW MET-6121000839.A23 6121000839	£1.50	£1.80
9 - BLADE COLLAR OUTER MET-1482221900.A23 1482221900	£7.36	£8.83
10 - SAW BLADE TCT 250X2 MET-0910030973.A0 0910030973	-
11 - BLADE COLLAR INNER MET-1485221618.A11 1485221618	£17.55	£21.06
12 - DEEP GROOVE BALL BEARING 6X19X6 626 -2Z MET-7100047262.A9 7100047262	£5.62	£6.75
13 - CAP SCREW W.INTERNAL HEXAGON MET-6143075247.A12 6143075247	£3.20	£3.84
14 - RETRACTABLE BLADE GUARD KGS303 MET-1381679914.A0 1381679914	-
15 - DISC GUARD KGS303 MET-1380679821.A4 1380679821	£36.65	£43.98
16 - CABLE WITH PLUG 2X1 0X2336/2XKS KGS303 MET-8402680661.A4 8402680661	£17.07	£20.48
17 - FILLISTER HEAD SCREW MET-6172001830.A53 6172001830	£1.50	£1.80
18 - O-RING 4X2 5 80 SHORE A MET-7632609080.A5 7632609080	£1.50	£1.80
20 - TORSION SPRING RDI 33 KGS303 MET-7051680647.A3 7051680647	£7.04	£8.45
21 - BUSHING 30/12 3X54 KGS 303 MET-1381685795.A7 1381685795	£7.44	£8.93
22 - WASHER MET-141151940.A110 141151940	£1.50	£1.80
23 - HEXAGON SOCKET HEAD CAP SCREW M 6X16 VER MET-6122151520.A11 6122151520	£3.20	£3.84
24 - KAPPARM KGS303 MET-1380679805.A2 1380679805	£50.13	£60.16
25 - SLIDE BUSHING 12X14X15 MIT BUND MET-7637685800.A7 7637685800	£3.82	£4.59
26 - POLY-RIB BELT MET-7233680626.A5 7233680626	£15.41	£18.49
27 - POLY-RIB PULLEY 7J / RDA 62 5X19 MET-1380679902.A0 1380679902	£22.40	£26.88
28 - BELT GUARD KGS303 MET-1381679922.A0 1381679922	£14.71	£17.65
29 - FILLISTER HEAD SCREW MET-6172028215.A58 6172028215	£1.50	£1.80
30 - SWIVEL CASTING KGS303 MET-1380679783.A5 1380679783	-
31 - GRUB SCREW W.INTERNAL HEXAGON MET-6164029245.A4 6164029245	£1.50	£1.80
32 - LOCKING PIN RD 10/6 4X40 KGS303 MET-1485681953.A7 1485681953	£5.62	£6.75
33 - O-RING 4 0X1 MET-1327064092.A2 1327064092	£3.11	£3.73
34 - SHAFT RD 12X124 KGS303 MET-1485681945.A0 1485681945	£5.38	£6.45
35 - SHAFT 14HTD5M15 RD25X70 5 KGS303 MET-1385680577.A4 1385680577	£22.40	£26.88
36 - FILLISTER HEAD SCREW W. CROSS HEAD MET-6172001791.A3 6172001791	£1.50	£1.80
37 - GUARD PLATE BL 1 00X141X262 MET-1482682088.A7 1482682088	£5.38	£6.45
38 - DEEP GROOVE BALL BEARING 17X40X12 6203-2 MET-143116240.A6 143116240	£7.44	£8.93
39 - SAW BLADE SPINDLE 20HTD5M15 RD31X57 5 KG MET-1385680593.A3 1385680593	£54.94	£65.93
40 - COGGED BELT MET-7231680580.A8 7231680580	£22.96	£27.55
41 - WASHER MET-1482680670.A0 1482680670	£1.50	£1.80
42 - WASHER MET-141150110.A61 141150110	£1.50	£1.80
43 - DEEP GROOVE BALL BEARING MET-7100136915.A14 7100136915	£9.62	£11.54
44 - SNAP RING MET-141180090.A0 141180090	£3.20	£3.84
45 - TENSION SPRING MET-7051074232.A9 7051074232	£3.20	£3.84
46 - SPINDLE LOCK MET-1482681839.A12 1482681839	£4.76	£5.71
47 - ALLEN HEXAGON KEY MET-9102016766.A10 9102016766	-
48 - RETAINING RING MET-141180020.A50 141180020	£1.50	£1.80
49 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6186602763.A16 6186602763	£1.50	£1.80
50 - HANDLE KGS303 MET-1381679680.A7 1381679680	£19.18	£23.02
51 - HAUBENARRETIERUNG KGS303 MET-1381679930.A4 1381679930	£3.82	£4.59
52 - TENSION SPRING MET-7051074232.A25 7051074232	£3.20	£3.84
53 - CAP KGS303 MET-1381679698.A7 1381679698	£3.11	£3.73
54 - SWITCH ON/OF 2-POLIG UM 230V 10A KGS303 MET-8111680605.A0 8111680605	£63.36	£76.03
55 - DEEP GROOVE BALL BEARING MET-7100083463.A25 7100083463	-
56 - WASHER MET-141150050.A147 141150050	£1.50	£1.80
57 - SPACER SLEEVE MET-1485212970.A7 1485212970	£3.89	£4.67
59 - WASHER MET-6305002486.A5 6305002486	-
60 - STABILISATOR KGS303 MET-1380679880.A4 1380679880	-
61 - HEXAGONAL LOCK NUT MET-141130650.A202 141130650	£3.20	£3.84
62 - CAP SCREW MET-141113870.A42 141113870	£3.20	£3.84
63 - O-RING 22X2 MET-7632170119.A0 7632170119	£1.50	£1.80
64 - LINEAR BALL BEARING RD 25/35X40 TYP KH 2 MET-7121680658.A4 7121680658	£17.95	£21.54
65 - PIVOT KGS303 MET-1380679767.A3 1380679767	£41.44	£49.73
66 - THUMBSCREW MET-341111630.A15 341111630	£3.20	£3.84
67 - PLUG-IN BUFFER MET-2391203906.A5 2391203906	£1.50	£1.80
68 - KNURLED THUMB SCREW M 6X25 VERZ. MET-6143071144.A0 6143071144	£3.20	£3.84
69 - PISTON ROD RD 25X325 RANDSCHICHTGEHÄRTET MET-1385680631.A2 1385680631	£49.88	£59.86
70 - STEEL BALL RD 7 MET-7123148635.A4 7123148635	£1.50	£1.80
71 - LOCK BOLT MET-1485215979.A5 1485215979	£5.62	£6.75
72 - PRESSURE SPRING RDA=8 5 LO=25 MET-7051683751.A10 7051683751	£1.50	£1.80
73 - TABLE INSERT KGS303 MET-1381679949.A7 1381679949	-
74 - DUST EXTRACTION PORT RD 40/52 KGS303 MET-1381684080.A0 1381684080	-
75 - THREAD ROLLING SCREW M 8X35 - ST VERZ./G MET-6143076260.A0 6143076260	£3.82	£4.59
76 - SHIM RING 8X14X1 VERZ. MET-6306017266.A4 6306017266	£1.50	£1.80
77 - CLAMPING LEVER MET-7006028220.A4 7006028220	£19.18	£23.02
78 - WASHER B 13 VERZ. MET-6305002508.A101 6305002508	£1.50	£1.80
79 - HEXAGON SOCKET HEAD CAP SCREW MET-6121121296.A24 6121121296	£1.50	£1.80
80 - CAP NUT SELF-LOCKING MET-6208073395.A4 6208073395	£1.50	£1.80
81 - WASHER MET-6300686603.A9 6300686603	£1.50	£1.80
82 - ANGLE SCALE 0 08X14X96 48-0 0-48 GRAD MET-1142683519.A7 1142683519	-
83 - SHIM PLATE BL3 00 KGS303 MET-1482683769.A3 1482683769	£36.59	£43.91
84 - RUBBER FOOT RD 30X17 5 80 SHORE MET-7057208753.A14 7057208753	£3.20	£3.84
85 - HEXAGONAL NUT MET-141130100.A157 141130100	£1.50	£1.80
86 - FENCE ASSEMBLY ET MET-1010690141.A4 1010690141	-
87 - BLIND RIVET MUSHROOM HEAD 5X8 F FLACHRU MET-6621075371.A9 6621075371	-
88 - SHIM PLATE BL2 00 KGS303 MET-1482683505.A4 1482683505	£11.78	£14.13
89 - TABLE KGS303 MET-1380703986.A2 1380703986	£88.10	£105.72
90 - SAUCER SPRING MET-141150540.A16 141150540	£1.50	£1.80
91 - HEX NUT MET-141132030.A113 141132030	£2.94	£3.53
92 - HEXAGON THIN NUT MET-6205029131.A55 6205029131	£1.50	£1.80
93 - GLIDE PIECE MET-2391202772.A59 2391202772	£1.50	£1.80
94 - HEXAGON NUT PREV. TORQUE TYPE MET-6202024139.A4 6202024139	£1.50	£1.80
95 - HEXAGON HEAD SCREW M 8X85 VERZ. MET-6103122986.A6 6103122986	£3.20	£3.84
96 - POINTER BL 2 00X12X46 KGS303 MET-1482681979.A8 1482681979	£3.82	£4.59
97 - PRESSURE SPRING RDA=8 5 LO=17 MET-7051683611.A0 7051683611	£1.50	£1.80
99 - ANGLE POINTER BL 1 50X10X21 MET-1482681987.A2 1482681987	£3.20	£3.84
100 - DREHTELLERBOLZEN KGS303 RD 16/M10X63 MET-1385682006.A3 1385682006	£11.78	£14.13
101 - TURNTABLE KGS303 MET-1380679848.A0 1380679848	£56.63	£67.96
102 - CLAMPING ROD RD 8X185 5 KGS303 MET-1385682014.A7 1385682014	£4.76	£5.71
103 - WASHER RDA44XRDI9X4 KGS 303 MET-1485683840.A8 1485683840	£3.82	£4.59
104 - KNOB RED M8 EINSPRITZBUCHSE SCHWARZ MET-7006018305.A2 7006018305	-
105 - HEXAGON HEAD SCREW M 8X50 VERZ. MET-6103001216.A2 6103001216	£1.50	£1.80
106 - CLAMPING PLATE BL 2 00X35X68 MET-1482682029.A8 1482682029	£3.82	£4.59
107 - SWIVEL ARM BOLD RD 16 3/M12X122 KGS303 MET-1385681999.A7 1385681999	£17.55	£21.06
108 - HEX. SOCKET SET SCREW DOG PT. M 8X6 VER MET-6164686599.A3 6164686599	£1.50	£1.80
109 - THREAD ROLLING SCREW A M 5X12 - ST-Z VER MET-6143142823.A0 6143142823	£1.50	£1.80
110 - TUBBING PLATE BL 2 99X59 MET-1482684412.A3 1482684412	-
