Metabo KGS 303 / 0103030042 11 / US 120V Spare Parts

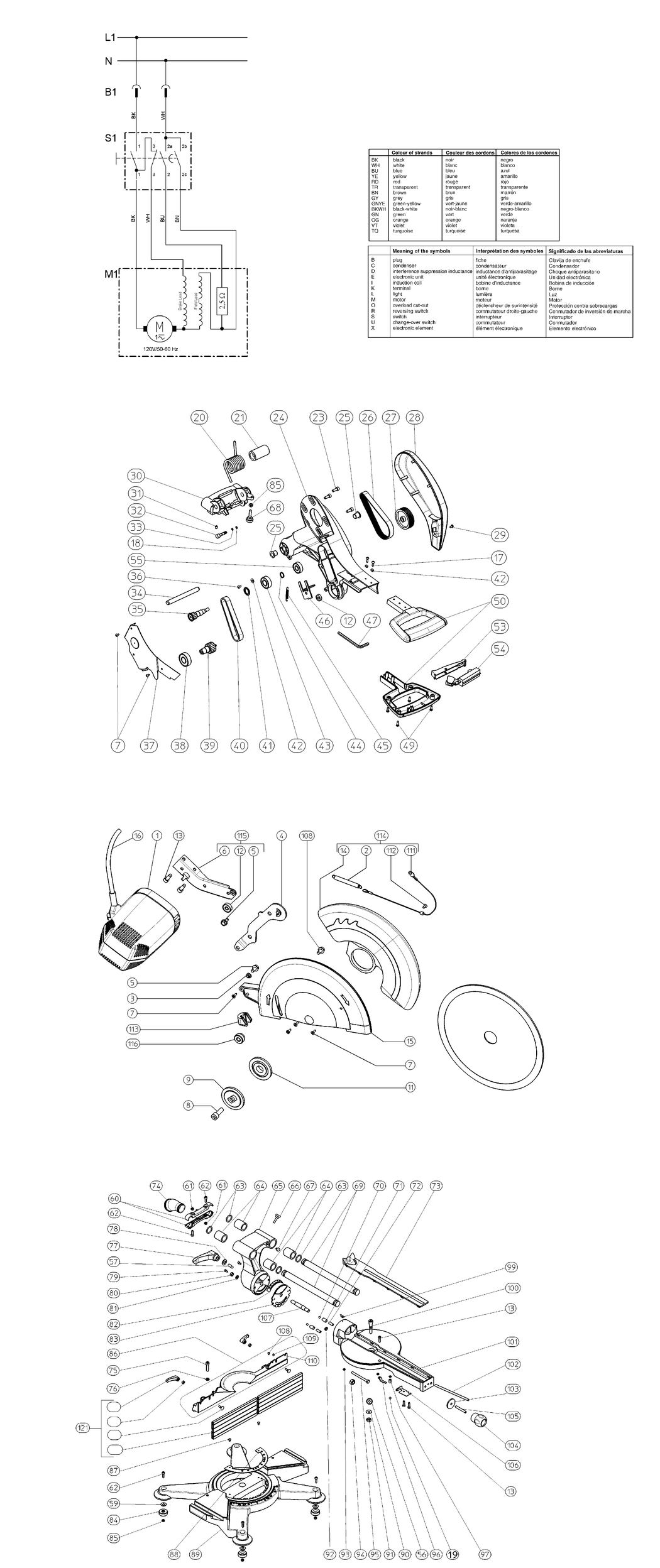

An exploded diagram and spare parts listing for the Metabo KGS 303 / 0103030042 11 / US 120V

	Ex VAT	Inc VAT
1 - ELECTRIC MOTOR 1 8KW 120/1/60 KGS 303 (U MET-1010708369.A2 1010708369	£151.92	£182.30
2 - RETURN SPRING RDA 8X69X0 8 KGT501 MET-7051679711.A6 7051679711	£4.76	£5.71
3 - SLIDE BUSHING RDI 06 (F.3MM BLECH) MET-7637651433.A3 7637651433	£3.20	£3.84
4 - DREHBLECH KGS303 BL 2 50X45X179 MET-1382692043.A5 1382692043	£22.61	£27.13
5 - HEX. HEAD THREAD ROLLING SCREW MET-6143124744.A2 6143124744	£1.50	£1.80
6 - SHEET KGS303 BL 2 00X75X135 MET-1382692000.A1 1382692000	-
7 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A2 6174001900	£2.49	£2.99
8 - CAP SCREW MET-6121000839.A21 6121000839	£1.50	£1.80
9 - BLADE COLLAR OUTER MET-1482221900.A20 1482221900	£7.36	£8.83
11 - BLADE COLLAR INNER RD 51 MET-1485708371.A0 1485708371	-
12 - DEEP GROOVE BALL BEARING 6X19X6 626 -2Z MET-7100047262.A6 7100047262	£5.62	£6.75
13 - CAP SCREW W.INTERNAL HEXAGON MET-6143075247.A9 6143075247	£3.20	£3.84
14 - RETRACTABLE BLADE GUARD SEILZUGPRINZIP K MET-1381691957.A1 1381691957	£22.96	£27.55
15 - SAW BLADE GUARD ASSEMBLY KGS 303 USA MET-1010711548.A1 1010711548	-
16 - CABLE WITH PLUG 2X1 5X2850 KGS303(USA) MET-1010710266.A1 1010710266	-
17 - FILLISTER HEAD SCREW MET-6172001830.A50 6172001830	£1.50	£1.80
18 - O-RING 4X2 5 80 SHORE A MET-7632609080.A6 7632609080	£1.50	£1.80
19 - STEEL BALL RD 12 KGT300 MET-7123716854.A6 7123716854	£3.20	£3.84
20 - TORSION SPRING RDI 33 KGS303 MET-7051680647.A0 7051680647	£7.04	£8.45
21 - BUSHING 30/12 3X54 KGS 303 MET-1381685795.A5 1381685795	£7.44	£8.93
23 - HEXAGON SOCKET HEAD CAP SCREW M 6X16 VER MET-6122151520.A14 6122151520	£3.20	£3.84
24 - KAPPARM KGS303 MET-1380679805.A0 1380679805	£50.13	£60.16
25 - SLIDE BUSHING 12X14X15 MIT BUND MET-7637685800.A4 7637685800	£3.82	£4.59
26 - POLY-RIB BELT 7 PJ 381 RIEMENHÖHE 3 MET-7233710304.A2 7233710304	£22.96	£27.55
27 - POLY-RIB PULLEY 7J / RDA 72 5X19 MET-1380710281.A0 1380710281	-
28 - BELT GUARD KGS303 MET-1381679922.A3 1381679922	£14.71	£17.65
29 - FILLISTER HEAD SCREW W. CROSS HEAD MET-6172001791.A1 6172001791	£1.50	£1.80
30 - SWIVEL CASTING KGS303 MET-1380679783.A7 1380679783	-
31 - GRUB SCREW W.INTERNAL HEXAGON MET-6164029245.A0 6164029245	£1.50	£1.80
32 - LOCKING PIN RD 10/6 4X40 KGS303 MET-1485681953.A4 1485681953	£5.62	£6.75
33 - O-RING 4 0X1 MET-1327064092.A5 1327064092	£3.11	£3.73
34 - SHAFT RD 12X124 KGS303 MET-1485681945.A3 1485681945	£5.38	£6.45
35 - SHAFT 14HTD5M15 RD25X70 5 KGS303 MET-1385680577.A6 1385680577	£22.40	£26.88
36 - FILLISTER HEAD SCREW MET-6172028215.A56 6172028215	£1.50	£1.80
37 - GUARD PLATE BL 1 00X141X262 MET-1482682088.A4 1482682088	£5.38	£6.45
38 - DEEP GROOVE BALL BEARING 17X40X12 6203-2 MET-143116240.A9 143116240	£7.44	£8.93
39 - SAW BLADE SPINDLE 20HTD5M15 RD31X57 5 KG MET-1385680593.A1 1385680593	£54.94	£65.93
40 - COGGED BELT MET-7231680580.A5 7231680580	£22.96	£27.55
41 - WASHER MET-1482680670.A2 1482680670	£1.50	£1.80
42 - WASHER MET-141150110.A65 141150110	£1.50	£1.80
43 - DEEP GROOVE BALL BEARING MET-7100136915.A12 7100136915	£9.62	£11.54
44 - SNAP RING MET-141180090.A3 141180090	£3.20	£3.84
45 - TENSION SPRING MET-7051074232.A4 7051074232	£3.20	£3.84
46 - SPINDLE LOCK MET-1482681839.A10 1482681839	£4.76	£5.71
47 - ALLEN HEXAGON KEY MET-9102689833.A43 9102689833	£6.38	£7.65
49 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6186602763.A14 6186602763	£1.50	£1.80
50 - HANDLE KGS303 MET-1381679680.A5 1381679680	£19.18	£23.02
53 - CAP KGS303 MET-1381679698.A1 1381679698	£3.11	£3.73
54 - SWITCH ON/OF 2-POLIG UM 120V BREMSK. KGS MET-8111708348.A2 8111708348	-
55 - DEEP GROOVE BALL BEARING MET-7100083463.A11 7100083463	-
56 - WASHER MET-141150050.A18 141150050	£1.50	£1.80
57 - SPACER SLEEVE MET-1485212970.A2 1485212970	£3.89	£4.67
59 - WASHER MET-6305002486.A94 6305002486	-
60 - STABILISATOR KGS303 MET-1380679880.A6 1380679880	-
61 - HEXAGONAL LOCK NUT MET-141130650.A89 141130650	£3.20	£3.84
62 - CAP SCREW MET-141113870.A27 141113870	£3.20	£3.84
63 - O-RING 22X2 MET-7632170119.A6 7632170119	£1.50	£1.80
64 - LINEAR BALL BEARING RD 25/35X40 TYP KH 2 MET-7121680658.A1 7121680658	£17.95	£21.54
65 - PIVOT KGS303 MET-1380679767.A2 1380679767	£41.44	£49.73
66 - THUMBSCREW MET-341111630.A4 341111630	£3.20	£3.84
67 - PLUG-IN BUFFER MET-2391203906.A20 2391203906	£1.50	£1.80
68 - KNURLED THUMB SCREW M 6X25 VERZ. MET-6143071144.A5 6143071144	£3.20	£3.84
69 - PISTON ROD RD 25X325 RANDSCHICHTGEHÄRTET MET-1385680631.A4 1385680631	£49.88	£59.86
70 - STEEL BALL RD 7 MET-7123148635.A13 7123148635	£1.50	£1.80
71 - LOCK BOLT MET-1485215979.A14 1485215979	£5.62	£6.75
72 - PRESSURE SPRING RDA=8 5 LO=25 MET-7051683751.A3 7051683751	£1.50	£1.80
73 - TABLE INSERT KGS303 MET-1381679949.A1 1381679949	-
74 - DUST EXTRACTION PORT 44/35-44/32 MET-1381691566.A12 1381691566	£6.38	£7.65
75 - THREAD ROLLING SCREW M 8X35 - ST VERZ./G MET-6143076260.A8 6143076260	£3.82	£4.59
76 - SHIM RING 8X14X1 VERZ. MET-6306017266.A11 6306017266	£1.50	£1.80
77 - CLAMPING LEVER MET-7006028220.A10 7006028220	£19.18	£23.02
78 - WASHER B 13 VERZ. MET-6305002508.A27 6305002508	£1.50	£1.80
79 - HEXAGON SOCKET HEAD CAP SCREW MET-6121121296.A6 6121121296	£1.50	£1.80
80 - CAP NUT SELF-LOCKING MET-6208073395.A15 6208073395	£1.50	£1.80
81 - WASHER MET-6300686603.A4 6300686603	£1.50	£1.80
82 - ANGLE SCALE 0 08X14X96 48-0 0-48 GRAD MET-1142683519.A2 1142683519	-
83 - SHIM PLATE BL3 00 KGS303 MET-1482683769.A6 1482683769	£36.59	£43.91
84 - RUBBER FOOT RD 30X17 5 80 SHORE MET-7057208753.A1 7057208753	£3.20	£3.84
85 - HEXAGONAL NUT MET-141130100.A28 141130100	£1.50	£1.80
86 - FENCE ASSEMBLY ET MET-1010690141.A1 1010690141	-
87 - BLIND RIVET MUSHROOM HEAD 5X8 F FLACHRU MET-6621075371.A0 6621075371	-
88 - SHIM PLATE BL2 00 KGS303 MET-1482683505.A1 1482683505	£11.78	£14.13
89 - TABLE KPL. M.AUFKLEBERN KGS303-USA MET-1380715097.A1 1380715097	-
90 - SAUCER SPRING MET-141150540.A5 141150540	£1.50	£1.80
91 - HEX NUT MET-141132030.A66 141132030	£2.94	£3.53
92 - HEXAGON THIN NUT MET-6205029131.A21 6205029131	£1.50	£1.80
93 - GLIDE PIECE MET-2391202772.A48 2391202772	£1.50	£1.80
94 - HEXAGON NUT PREV. TORQUE TYPE MET-6202024139.A28 6202024139	£1.50	£1.80
95 - HEXAGON HEAD SCREW M 8X85 VERZ. MET-6103122986.A3 6103122986	£3.20	£3.84
96 - POINTER BL 2 00X12X46 KGS303 MET-1482681979.A4 1482681979	£3.82	£4.59
97 - PRESSURE SPRING RDA=8 5 LO=17 MET-7051683611.A7 7051683611	£1.50	£1.80
99 - ANGLE POINTER BL 1 50X10X21 MET-1482681987.A15 1482681987	£3.20	£3.84
100 - DREHTELLERBOLZEN KGS303 RD 16/M10X63 MET-1385682006.A9 1385682006	£11.78	£14.13
101 - TURNTABLE KGT300 MET-1380703943.A1 1380703943	-
102 - CLAMPING ROD RD 8X185 5 KGS303 MET-1385682014.A1 1385682014	£4.76	£5.71
103 - WASHER RDA44XRDI9X4 KGS 303 MET-1485683840.A2 1485683840	£3.82	£4.59
104 - KNOB RED MET-1388698264.A22 1388698264	£7.36	£8.83
105 - HEX. SOCKET SET SCREW FLAT PT MET-141124460.A33 141124460	£2.94	£3.53
106 - CLAMPING PLATE BL 2 00X35X68 MET-1482682029.A4 1482682029	£3.82	£4.59
107 - SWIVEL ARM BOLD RD 16 3/M12X122 KGS303 MET-1385681999.A1 1385681999	£17.55	£21.06
108 - THREAD ROLLING SCREW A M 5X12 - ST-Z VER MET-6143142823.A3 6143142823	£1.50	£1.80
109 - HEX. SOCKET SET SCREW DOG PT. M 8X6 VER MET-6164686599.A5 6164686599	£1.50	£1.80
110 - TUBBING PLATE BL 2 99X59 MET-1482684412.A1 1482684412	-
111 - BLADE GUARD WIRE RD 1 2X286 MET-7238692053.A1 7238692053	£11.78	£14.13
112 - CROSS RECESSED FLAT HEAD SCREW M 4X8 VER MET-6131001531.A21 6131001531	-
113 - UNION 18X21 MET-7056691507.A1 7056691507	£6.38	£7.65
114 - RETRACTABLE BLADE GUARD MIT FEINDRAHTSEI MET-1010692063.A2 1010692063	-
115 - SPERRBLECH MIT LAGER KGS 303 MET-1010692012.A4 1010692012	£22.96	£27.55
116 - KNURLED THUMB NUT HIGH TYPE M 5 MET-6241125040.A1 6241125040	£2.60	£3.12
121 - ACCESSORY BA VORSATZPROFIL KGS303 MET-1010708393.A1 1010708393	-
