Metabo KGS 216 M / 19260390 / GB 110V Spare Parts

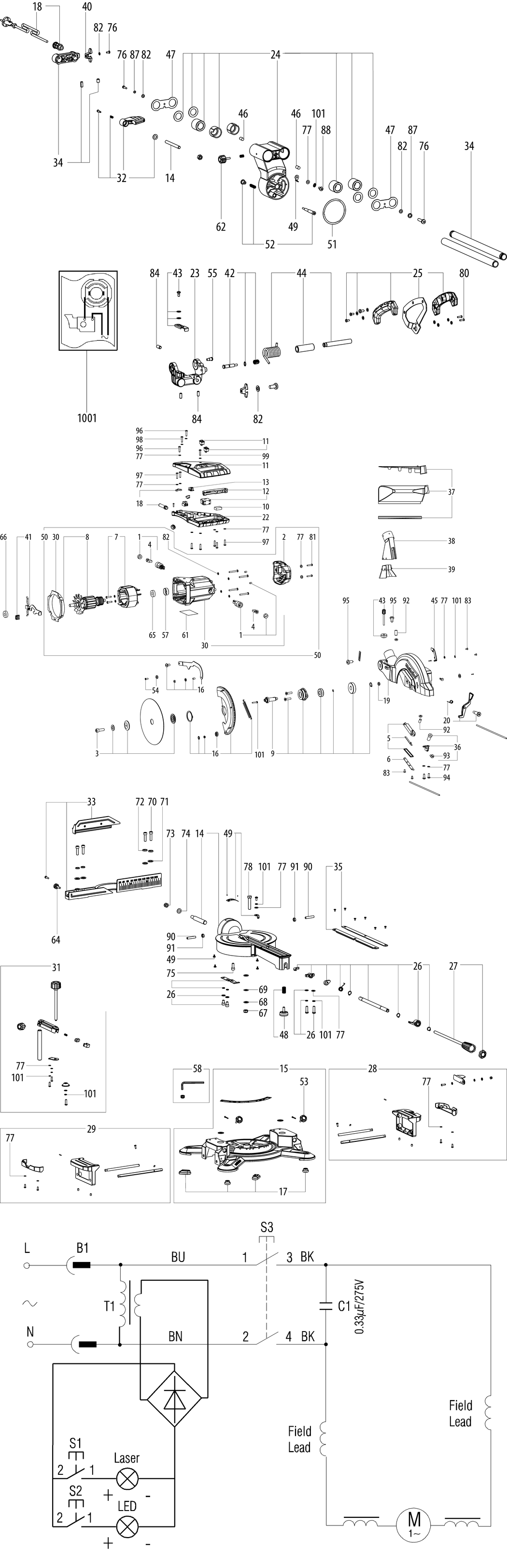

An exploded diagram and spare parts listing for the Metabo KGS 216 M / 19260390 / GB 110V

	Ex VAT	Inc VAT
1 - CARBON BRUSH HOLDER COMPL. MET-316060620.A6 316060620	£6.38	£7.65
2 - MOTOR COVER MET-343435810.A1 343435810	£4.76	£5.71
3 - FLANGE COMPL. MET-316060610.A9 316060610	£13.63	£16.36
4 - CARBON BRUSH SET MET-316060650.A2 316060650	£5.62	£6.75
5 - LED-LAMP MET-343436090.A3 343436090	£11.78	£14.13
6 - COVER LIGHTING MET-343436110.A4 343436110	£2.94	£3.53
7 - STATOR MET-310011790.A0 310011790	-
8 - ARMATURE MET-310011810.A1 310011810	£51.54	£61.85
9 - GEAR-BOX COMPL. MET-316060690.A14 316060690	£26.35	£31.62
10 - CONDENSER MET-343254900.A7 343254900	£2.94	£3.53
11 - UPPER HANDLE WITH SWITCH SET MET-316060720.A5 316060720	£5.62	£6.75
12 - SWITCH COMPL. MET-316092920.A1 316092920	£15.41	£18.49
13 - POWER SUPPLY MET-343440900.A3 343440900	£19.18	£23.02
14 - TURNTABLE COMPL. MET-316055960.A3 316055960	£55.90	£67.08
15 - TABLE COMPL. MET-316055930.A9 316055930	£55.90	£67.08
16 - SAFETY GUARD COMPL. MET-316092910.A8 316092910	£26.35	£31.62
17 - FOOT COMPL. MET-316060840.A14 316060840	£2.94	£3.53
18 - STRESS RELIEVE COMPL. MET-316092940.A1 316092940	£42.65	£51.18
19 - WHEEL GUARD COMPL. MET-316056230.A1 316056230	£63.36	£76.03
20 - RELEASE LEVER COMPL. MET-316056710.A7 316056710	£4.76	£5.71
22 - HANDLE BOTTOM PART MET-343435740.A2 343435740	£22.61	£27.13
23 - MOTOR BRACKET COMPL. MET-316056070.A2 316056070	£32.88	£39.45
24 - PIVOT COMPL. MET-316056100.A9 316056100	£51.54	£61.85
25 - HANDLE COMPL. MET-316056740.A2 316056740	£17.55	£21.06
26 - DETENT COMPL. MET-316060960.A9 316060960	£13.63	£16.36
27 - CONTROL GRIP COMPL. MET-316056790.A3 316056790	£9.62	£11.54
28 - TABLE SIDE EXTENSION RIGHT MET-315418520.A6 315418520	£22.96	£27.55
29 - TABLE SIDE EXTENSION LEFT MET-315418490.A5 315418490	£30.06	£36.07
30 - MOTOR HOUSING COMPL. MET-316056270.A8 316056270	£30.06	£36.07
31 - WORKPIECE HOLDER COMPL. MET-316056680.A27 316056680	£22.61	£27.13
32 - CLAMPING LEVER COMPL. MET-316056760.A16 316056760	£6.38	£7.65
33 - STOP COMPL. MET-316055990.A10 316055990	£42.65	£51.18
34 - REAR PIVOT COMPL. MET-315418540.A6 315418540	£61.08	£73.30
35 - TABLE INSERT MET-343436020.A5 343436020	£4.76	£5.71
36 - LASER WITH HOLDER MET-343436070.A4 343436070	£15.41	£18.49
37 - DUST ETRACTION KIT COMPL. MET-316056340.A3 316056340	£8.37	£10.04
38 - COVER DUST COLLECTOR MET-343435780.A9 343435780	£4.76	£5.71
39 - EXTRACTION FUNNEL MET-343436260.A6 343436260	£2.94	£3.53
40 - CABLE BRACKET MET-343436170.A4 343436170	£2.94	£3.53
41 - SPINDLE LOCK COMPL. MET-316056870.A6 316056870	£4.76	£5.71
42 - TRANSPORT LOCK COMPL. MET-316061380.A13 316061380	£3.20	£3.84
43 - DEPTH STOP COMPL. MET-316057450.A13 316057450	£2.94	£3.53
44 - TIPPING AXIS COMPL. MET-316061400.A8 316061400	£17.55	£21.06
45 - COVER (CABLE CHANNEL) MET-343441090.A11 343441090	-
46 - PLUG IN BUFFER MET-344113030.A19 344113030	-
47 - COVER PIVOT MET-339136680.A8 339136680	£2.94	£3.53
48 - SET SCREW COMPL. MET-316056820.A10 316056820	£2.94	£3.53
49 - SCALE SET COMPL. MET-316061440.A4 316061440	£5.62	£6.75
50 - MOTOR COMPL. MET-316092950.A0 316092950	£128.14	£153.77
51 - SLIDING SHEET MET-339147650.A5 339147650	-
52 - END STOP CPL. MET-316061520.A6 316061520	£5.62	£6.75
53 - STAR GRIP SCREW MET-343436220.A4 343436220	£3.22	£3.86
54 - BEARING COMPL. MET-316061540.A19 316061540	£4.76	£5.71
55 - STOP SCREW MET-341722210.A12 341722210	£2.94	£3.53
57 - RUBBER BUSHING MET-344113040.A4 344113040	-
58 - TOOL HOLDER COL. MET-316061550.A4 316061550	£2.94	£3.53
61 - RATING PLATE MET-338064900.A0 338064900	-
62 - STAR GRIP SCREW MET-343437020.A14 343437020	£2.94	£3.53
64 - STAR GRIP SCREW MET-343437040.A4 343437040	£2.94	£3.53
65 - BALL BEARING 8X22X7 MET-143115700.A74 143115700	£4.76	£5.71
66 - BALL BEARING MET-143115730.A17 143115730	£4.76	£5.71
67 - HEX NUT MET-141132030.A134 141132030	£2.94	£3.53
68 - WASHER MET-141150050.A95 141150050	£1.50	£1.80
69 - LOCK WASHER MET-141150390.A33 141150390	£1.50	£1.80
70 - CAP SCREW MET-141113890.A23 141113890	£3.20	£3.84
71 - WASHER MET-141150130.A89 141150130	£1.50	£1.80
72 - LOCK WASHER MET-141155240.A24 141155240	£3.20	£3.84
73 - HEXAGONAL LOCK NUT MET-141130890.A5 141130890	£3.20	£3.84
74 - WASHER MET-141156200.A6 141156200	£2.94	£3.53
75 - CAP SCREW MET-141113840.A73 141113840	£3.20	£3.84
76 - FILLISTER HEAD SCREW MET-141110590.A30 141110590	£1.50	£1.80
77 - WASHER MET-141150010.A81 141150010	£1.50	£1.80
78 - HEXAGON HEAD SCREW MET-141113440.A26 141113440	£3.20	£3.84
79 - COUNTERSUNK SCREW MET-141112180.A20 141112180	£1.50	£1.80
80 - FILLISTER HEAD SCREW MET-141116780.A6 141116780	£1.50	£1.80
81 - FILLISTER HEAD SCREW MET-141123710.A16 141123710	-
82 - WASHER MET-141150020.A31 141150020	£1.50	£1.80
83 - COUNTERSUNK SCREW MET-141123840.A35 141123840	£2.94	£3.53
84 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A22 141124510	£2.94	£3.53
87 - LOCK WASHER MET-141150360.A1 141150360	£1.50	£1.80
88 - FILLISTER HEAD SCREW MET-141110540.A15 141110540	£1.50	£1.80
90 - HEX. SOCKET SET SCREW FLAT PT MET-141124460.A7 141124460	£2.94	£3.53
91 - HEXAGONAL NUT MET-141131010.A78 141131010	£1.50	£1.80
92 - GRUB SCREW MET-141123410.A18 141123410	-
93 - GRUB SCREW MET-141116480.A19 141116480	£1.50	£1.80
94 - CAP SCREW MET-141113590.A34 141113590	£3.20	£3.84
95 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X9 MET-141124470.A22 141124470	-
96 - FILLISTER HEAD SCREW MET-141111430.A21 141111430	£3.20	£3.84
97 - SELF-TAP. FILL. H. SCREW MET-141118730.A29 141118730	£1.50	£1.80
98 - SELF-TAP. FILL. H. SCREW MET-141116800.A150 141116800	£1.50	£1.80
99 - SELF-TAP. FILL. H. SCREW MET-141123940.A55 141123940	-
100 - FILLISTER HEAD SCREW MET-141113220.A51 141113220	£1.50	£1.80
101 - LOCK WASHER MET-141150350.A33 141150350	£1.50	£1.80
1001 - WIRING DIAGRAM MET-338505990.A0 338505990	-

Attribute Name	Value
Brand	Metabo
