Metabo KGS 216 M / 0102160418 10 / CH 230V Spare Parts

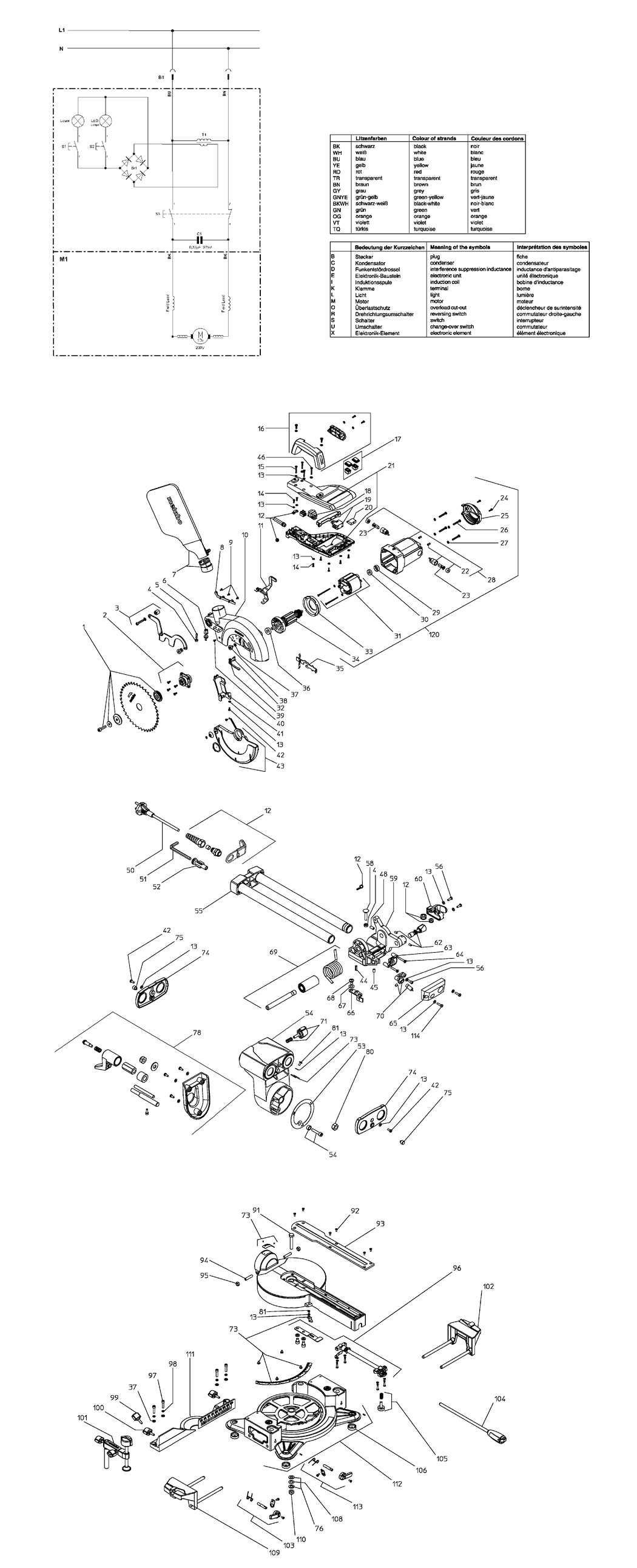

An exploded diagram and spare parts listing for the Metabo KGS 216 M / 0102160418 10 / CH 230V

	Ex VAT	Inc VAT
1 - FLANGE COMPL. MET-316060610.A20 316060610	£13.63	£16.36
2 - GEAR-BOX COMPL. MET-1010734602.A6 1010734602	-
3 - SWIVEL LEVER COMPL. MET-1010734130.A5 1010734130	£11.78	£14.13
4 - HEXAGONAL NUT MET-141130100.A31 141130100	£1.50	£1.80
5 - HEX. SOCKET SET SCREW FLAT PT M 6X20 VE MET-141124480.A29 141124480	£2.94	£3.53
6 - DEPTH STOP COMPL. MET-1010734564.A6 1010734564	£2.94	£3.53
7 - DUST ETRACTION KIT COMPL. MET-1010734572.A1 1010734572	-
8 - COVER CABLE DUCT MET-1381734729.A0 1381734729	-
9 - CROSS RECESSED FLAT HEAD SCREW M 4X8 VER MET-6131001531.A23 6131001531	-
10 - WHEEL GUARD COMPL. MET-1010734580.A5 1010734580	£54.94	£65.93
11 - UNLOCK LEVER COMPL. MET-1010734548.A4 1010734548	-
12 - STRAIN RELIEF COMPL. MET-1010734165.A3 1010734165	£5.62	£6.75
13 - WASHER MET-141150010.A15 141150010	£1.50	£1.80
14 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X13 MET-6172722847.A13 6172722847	-
15 - FILLISTER HEAD SCREW MET-141111420.A6 141111420	-
16 - HANDLE COMPL. MET-1010734190.A11 1010734190	£6.38	£7.65
17 - SWITCH SET MET-1010734203.A0 1010734203	£5.62	£6.75
18 - POWER SUPPLY PACK MET-8106734071.A6 8106734071	£11.78	£14.13
19 - SWITCH COMPL. MET-1010734084.A5 1010734084	£7.04	£8.45
20 - CONDENSER MET-8050734103.A0 8050734103	£2.94	£3.53
21 - HANDLE COMPL. MET-1010734173.A3 1010734173	£22.61	£27.13
22 - CARBON BRUSH HOLDER COMPL. MET-1010733983.A5 1010733983	£3.20	£3.84
23 - CARBON BRUSH MET-1388734023.A5 1388734023	£6.36	£7.63
24 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A35 6172015687	£1.50	£1.80
25 - MOTOR COVER MET-1381733960.A5 1381733960	£22.96	£27.55
26 - FILLISTER HEAD SCREW MET-141116770.A4 141116770	£2.60	£3.12
27 - WASHER MET-141150020.A85 141150020	£1.50	£1.80
28 - MOTOR HOUSING COMPL. MET-1010734009.A6 1010734009	-
29 - RUBBER BUSHING MET-7057734846.A2 7057734846	£1.50	£1.80
30 - BALL BEARING 8X22X7 MET-143115700.A477 143115700	£4.76	£5.71
31 - STATOR MET-8014734059.A0 8014734059	£42.65	£51.18
32 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A1 6174001900	£1.50	£1.80
33 - AIR GUIDE COVER MET-1331734868.A5 1331734868	£1.50	£1.80
34 - ARMATURE MET-8014734890.A1 8014734890	£48.88	£58.66
35 - SPINDLE LOCK COMPL. MET-1010734815.A2 1010734815	£1.50	£1.80
36 - DEEP GROOVE BALL BEARING MET-143115740.A10 143115740	£6.38	£7.65
37 - WASHER MET-141151940.A108 141151940	£1.50	£1.80
38 - BEARING COMPL. MET-1010734807.A7 1010734807	-
39 - COVER SPRING MET-1381735660.A5 1381735660	-
40 - COUNTERSUNK HEAD TAPPING SCREW ST 2 9X9 MET-6174188961.A0 6174188961	-
41 - EXTRACTION CHANNEL MET-1381734788.A0 1381734788	-
42 - RAISED CHEESE HEAD SCREW MET-141124560.A14 141124560	£2.94	£3.53
43 - SAFETY GUARD COMPL. MET-1010734629.A5 1010734629	£14.07	£16.88
44 - TIGHTENING PIN MET-141161150.A0 141161150	£1.50	£1.80
45 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A1 141124510	£2.94	£3.53
46 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X32 MET-6172006963.A5 6172006963	£1.50	£1.80
48 - GRUB SCREW MET-341701070.A9 341701070	£7.36	£8.83
50 - CABLE WITH PLUG MET-8402735679.A2 8402735679	-
51 - ALLEN HEXAGON KEY MET-9102689833.A39 9102689833	£6.38	£7.65
52 - TOOL HOLDER MET-1381734834.A3 1381734834	-
53 - SLIDING SHEET MET-1382735095.A2 1382735095	£1.50	£1.80
54 - PIVOT COMPL. MET-1010734424.A1 1010734424	£42.65	£51.18
55 - FEED ROD COMPL. MET-1010734513.A1 1010734513	£73.52	£88.23
56 - FILLISTER HEAD SCREW MET-141113040.A11 141113040	£1.51	£1.81
58 - HEXAGON HEAD SCREW MET-141110290.A73 141110290	£3.20	£3.84
59 - MOTOR BRACKET COMPL. MET-1010734491.A2 1010734491	£30.06	£36.07
60 - CABLE HOOK MET-1381734710.A3 1381734710	£1.50	£1.80
62 - TRANSPORT LOCK COMPL. MET-1010734530.A10 1010734530	£2.94	£3.53
63 - LED-LAMP MET-8602734766.A4 8602734766	-
64 - RAISED CHEESE HEAD SCREW M 4X20 VERZ. MET-6123084703.A19 6123084703	£1.50	£1.80
65 - COVER LIGHTING MET-1381734974.A4 1381734974	£1.50	£1.80
66 - STOP SHEET MET-1482734738.A6 1482734738	£1.50	£1.80
67 - LOCK WASHER MET-141150750.A6 141150750	£1.50	£1.80
68 - CUP SQUARE NECK SCREW M 8X16 VERZ. MET-6110000632.A14 6110000632	£1.50	£1.80
69 - MOTOR HEAD AXLE COMPL. MET-1010734661.A0 1010734661	£13.63	£16.36
70 - LASER WITH HOLDER MET-1010734467.A9 1010734467	£11.78	£14.13
71 - THUMBSCREW COMPL. MET-1010734742.A7 1010734742	-
73 - SCALE SET COMPL. MET-1010734408.A2 1010734408	£1.50	£1.80
74 - COVER PIVOT MET-1010734440.A2 1010734440	£3.20	£3.84
75 - PLUG IN BUFFER MET-7056734753.A3 7056734753	£2.94	£3.53
76 - WASHER MET-141150050.A99 141150050	£1.50	£1.80
78 - COVER PIVOT MET-1381734923.A0 1381734923	£3.82	£4.59
79 - CLAMPING LEVER COMPL. MET-1010734378.A0 1010734378	-
80 - HEXAGONAL NUT MET-141130130.A0 141130130	£3.20	£3.84
81 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3004 141113040	£1.51	£1.81
90 - TURNTABLE COMPL. MET-1010734386.A6 1010734386	£68.35	£82.02
91 - HEXAGON HEAD SCREW MET-141113440.A27 141113440	£3.20	£3.84
92 - COUNTERSUNK SCREW MET-141112180.A12 141112180	£1.50	£1.80
93 - TABLE INSERT MET-1381734966.A3 1381734966	£3.82	£4.59
94 - HEX. SOCKET SET SCREW FLAT PT MET-141124460.A2 141124460	£2.94	£3.53
95 - HEXAGONAL NUT MET-141131010.A73 141131010	£1.50	£1.80
96 - DETENT COMPL. MET-1010734211.A3 1010734211	£9.62	£11.54
97 - CAP SCREW MET-141113890.A34 141113890	£3.20	£3.84
98 - SERRATED LOCK WASHER MET-141150410.A35 141150410	£3.20	£3.84
99 - THUMBSCREW MET-341111630.A23 341111630	£3.20	£3.84
100 - THUMBSCREW M6 X 12 MET-341112750.A0 341112750	£2.94	£3.53
101 - WORKPIECE HOLDER COMPL. MET-1010734351.A4 1010734351	-
102 - TABLE SIDE EXTENSION RIGHT MET-1010734319.A0 1010734319	£30.06	£36.07
103 - CLAMPING LEVER COMPL. LEFT MET-1010734335.A4 1010734335	£3.20	£3.84
104 - CONTROL GRIP COMPL. MET-1010734238.A1 1010734238	-
105 - SET SCREW COMPL. MET-1010734912.A6 1010734912	£2.94	£3.53
106 - FOOT SET MET-1010734114.A0 1010734114	-
108 - LOCK WASHER MET-141150390.A25 141150390	£1.50	£1.80
109 - TABLE SIDE EXTENSION LEFT MET-1010734289.A2 1010734289	£32.88	£39.45
110 - HEX NUT MET-141132030.A143 141132030	£2.94	£3.53
111 - STOP COMPL. MET-1010734980.A1 1010734980	£30.06	£36.07
112 - TABLE COMPL. MET-1010734254.A0 1010734254	£73.52	£88.23
113 - CLAMPING LEVER COMPL. RIGHT MET-1010734343.A7 1010734343	£3.20	£3.84
114 - FILLISTER HEAD SCREW MET-141113200.A5 141113200	£1.50	£1.80
120 - MOTOR ASSEMBLY 230V KGS 216 MET-1010735609.A1 1010735609	£55.90	£67.08
