Metabo BS 18 LTX-3 BL I / 02354000 / - Spare Parts

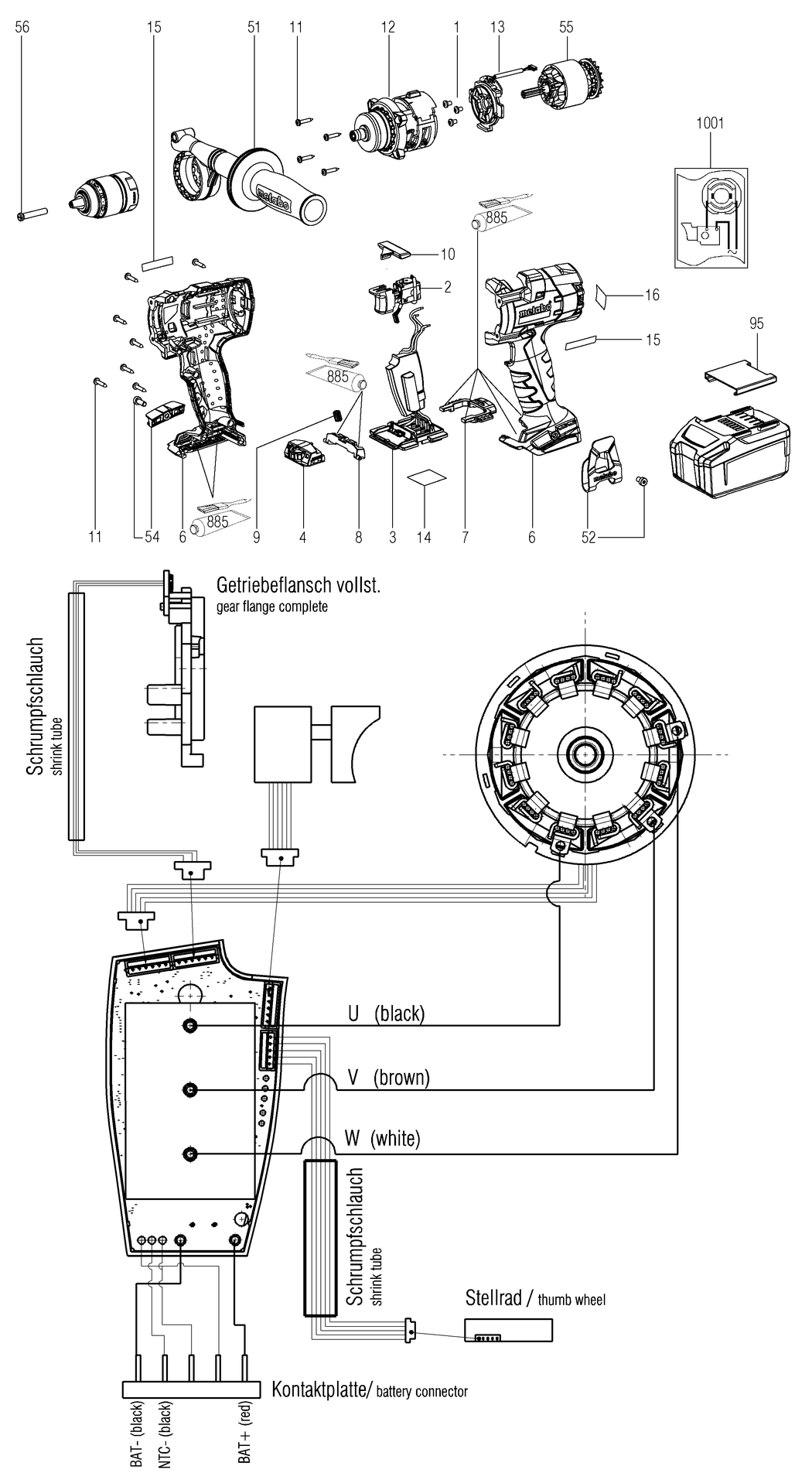

An exploded diagram and spare parts listing for the Metabo BS 18 LTX-3 BL I / 02354000 / -

	Ex VAT	Inc VAT
1 - FILLISTER HEAD SCREW MET-141122220.A0 141122220	£3.20	£3.84
2 - POTI SWITCH MET-343412620.A16 343412620	£12.49	£14.99
3 - ELECTRONIC UNIT COMPL. MET-343085740.A2 343085740	£79.10	£94.92
4 - SELECTOR WHEEL COMPL. MET-343083610.A7 343083610	£22.96	£27.55
6 - HOUSING W.COVER MET-343438360.A2 343438360	-
7 - LOCKING SLIDE MET-343438580.A18 343438580	£3.20	£3.84
8 - LOCKING PIECE MET-343430520.A43 343430520	£2.94	£3.53
9 - PRESSURE SPRING MET-342004070.A12 342004070	£2.94	£3.53
10 - SWITCH SLIDE R/L MET-343433260.A1 343433260	£2.94	£3.53
11 - SELF-TAP. FILL. H. SCREW MET-141113180.A216 141113180	£1.50	£1.80
12 - GEAR-BOX COMPL. BS MET-316062160.A0 316062160	-
13 - FLANGE WITH ELEKTRONIC MET-316065130.A2 316065130	-
14 - RATING PLATE MET-338066630.A0 338066630	-
15 - TYPE LABEL SB 18 LTX BL I MET-338127610.A0 338127610	-
16 - INDICATION LABEL MET-338129940.A22 338129940	£3.20	£3.84
51 - SIDE SUPPORT HANDLE COMPL. MET-314001020.A35 314001020	£17.55	£21.06
52 - HOOK MET-339137270.A24 339137270	£3.82	£4.59
54 - BIT-DEPOT 18 V MET-343448690.A21 343448690	£3.82	£4.59
55 - MOTOR COMPL. MET-316063770.A2 316063770	£100.42	£120.50
56 - CHEESE-HEAD SCREW MET-341701940.A87 341701940	£3.20	£3.84
95 - COVER CAP MET-343439680.A28 343439680	£2.94	£3.53
885 - CONTACT GREASE MET-136010950.A4 136010950	-
1001 - DIAGRAM MET-338506100.A1 338506100	-

Attribute Name	Value
Brand	Metabo
