Metabo BS 18 LT / 02138000 / - Spare Parts

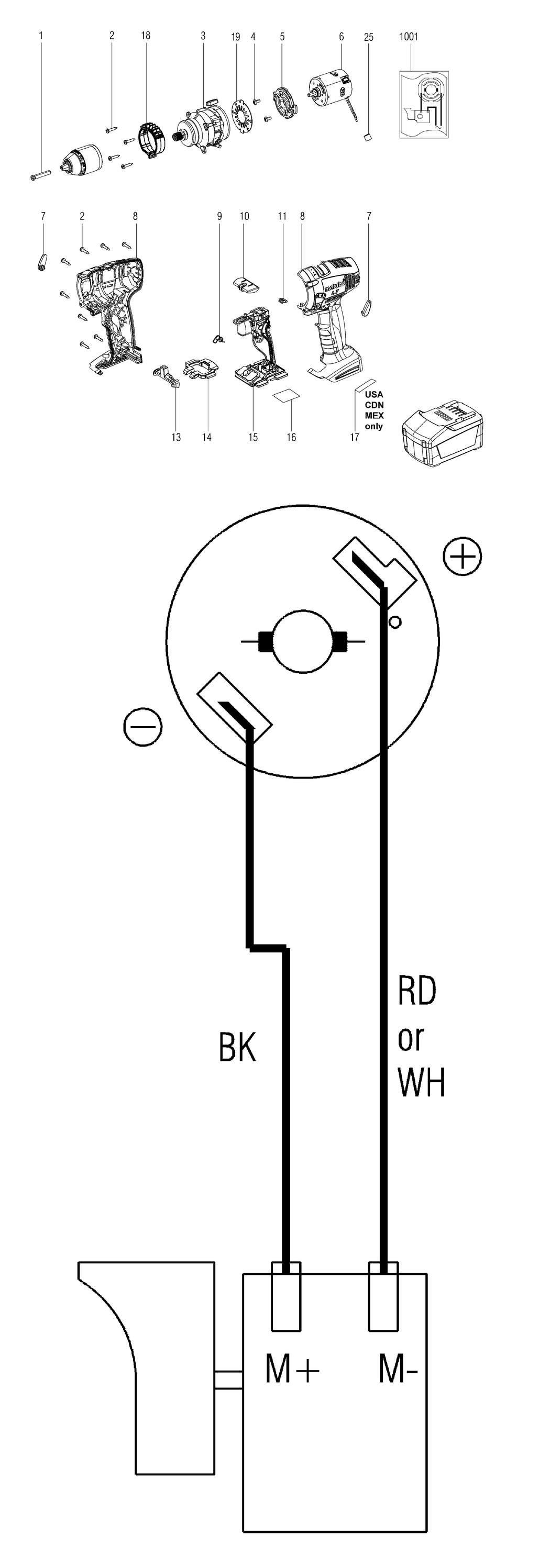

An exploded diagram and spare parts listing for the Metabo BS 18 LT / 02138000 / -

	Ex VAT	Inc VAT
1 - CHEESE-HEAD SCREW MET-341701940.A12 341701940	£3.20	£3.84
2 - SELF-TAP. FILL. H. SCREW MET-141113180.A149 141113180	£1.50	£1.80
3 - GEAR-BOX COMPL. MET-316043180.A2 316043180	-
4 - FILLISTER HEAD SCREW MET-141119850.A159 141119850	£1.50	£1.80
5 - MOTOR FLANGE MET-343395380.A6 343395380	£2.94	£3.53
6 - DC-MOTOR 18 V MET-317003670.A1 317003670	£61.08	£73.30
7 - SHIFT ELEMENT MET-343394150.A27 343394150	£1.50	£1.80
8 - HOUSING W.COVER MET-343394820.A10 343394820	£22.96	£27.55
9 - SPRING CLIP MET-342021670.A27 342021670	£1.50	£1.80
10 - SWITCH SLIDE MET-343394800.A11 343394800	£1.50	£1.80
11 - FLAT SPRING MET-342050860.A17 342050860	£1.50	£1.80
13 - PRESSURE PLATE MET-343394770.A22 343394770	£1.50	£1.80
14 - SWITCH SLIDE MET-343394790.A42 343394790	£1.50	£1.80
15 - ELECTRONIC SWITCH 18 V IMPULS MET-343408680.A0 343408680	£55.90	£67.08
16 - RATING PLATE MET-338051680.A0 338051680	-
17 - WARNING LABEL SERIAL 40X14 MET-338121750.A3 338121750	-
18 - SCREWDRIBER-BIT DEPOT MET-343396590.A20 343396590	£3.20	£3.84
19 - CUP SPRING K MET-141156390.A9 141156390	£1.50	£1.80
25 - TOROIDAL FERRITE MET-143160090.A3 143160090	-
1001 - WIRING DIAGRAM MET-338504870.A31 338504870	-

Attribute Name	Value
Brand	Metabo
