Metabo BS 14.4 LT Quick / 02107000 / - Spare Parts

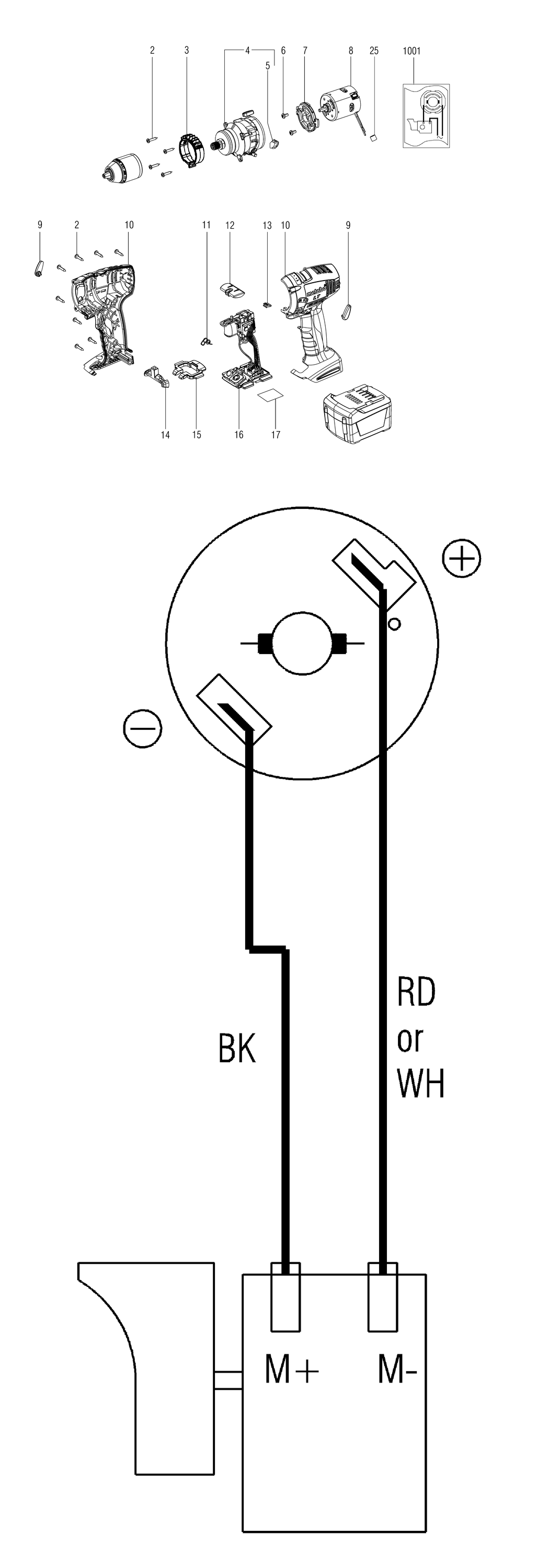

An exploded diagram and spare parts listing for the Metabo BS 14.4 LT Quick / 02107000 / -

	Ex VAT	Inc VAT
2 - SELF-TAP. FILL. H. SCREW MET-141113180.A140 141113180	£1.50	£1.80
3 - SCREWDRIBER-BIT DEPOT MET-343396590.A15 343396590	£3.20	£3.84
4 - GEAR-BOX COMPL. QUICK MET-316047150.A1 316047150	-
5 - ELECTRONIC UNIT 6-20V MET-343081780.A10 343081780	£26.35	£31.62
6 - FILLISTER HEAD SCREW MET-141119850.A163 141119850	£1.50	£1.80
7 - MOTOR FLANGE MET-343395380.A10 343395380	£2.94	£3.53
8 - DC-MOTOR MET-317003660.A2 317003660	£61.08	£73.30
9 - SHIFT ELEMENT MET-343394150.A24 343394150	£1.50	£1.80
10 - HOUSING W.COVER MET-343394820.A6 343394820	£22.96	£27.55
11 - SPRING CLIP MET-342021670.A46 342021670	£1.50	£1.80
12 - SWITCH SLIDE MET-343394800.A14 343394800	£1.50	£1.80
13 - FLAT SPRING MET-342050860.A12 342050860	£1.50	£1.80
14 - PRESSURE PLATE MET-343394770.A26 343394770	£1.50	£1.80
15 - SWITCH SLIDE MET-343394790.A32 343394790	£1.50	£1.80
16 - ELECTRONIC SWITCH 14 4 V IMPULS MET-343408670.A4 343408670	£55.90	£67.08
17 - RATING PLATE MET-338054380.A0 338054380	-
25 - TOROIDAL FERRITE MET-143160090.A7 143160090	-
1001 - WIRING DIAGRAM MET-338504870.A36 338504870	-

Attribute Name	Value
Brand	Metabo
