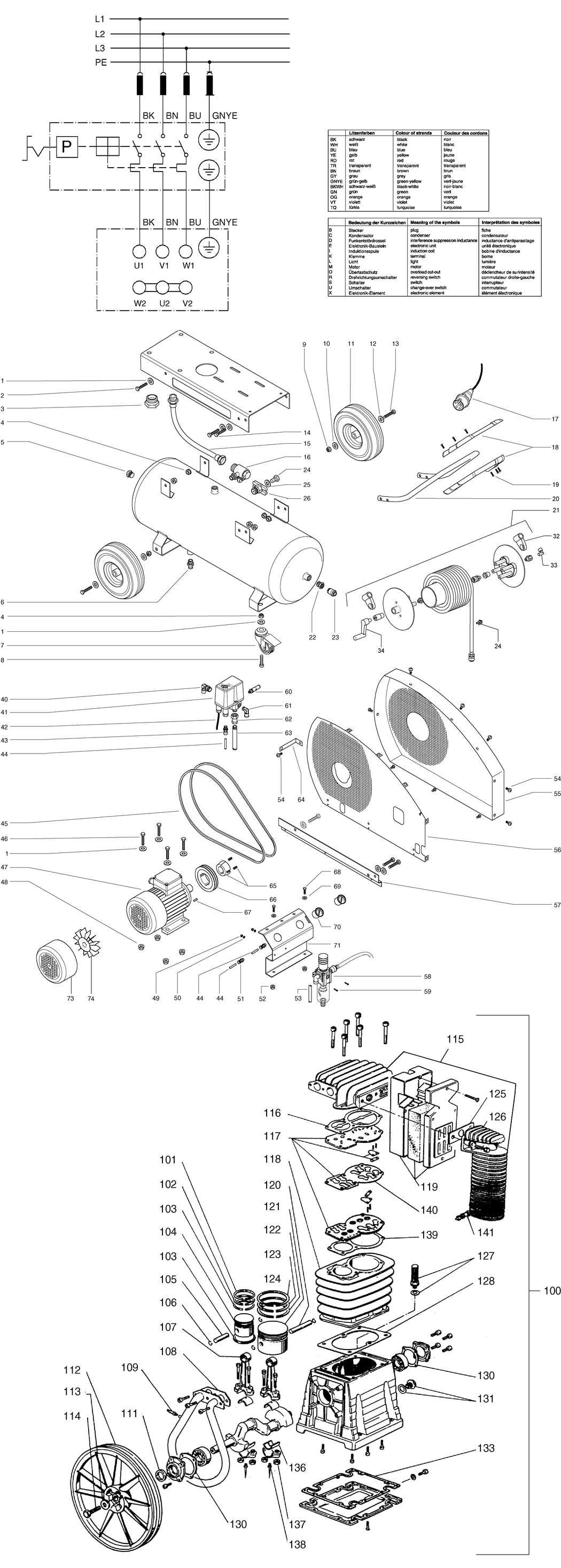

1 - WASHER
MET-141150050.A55
141150050
|
£1.50
|
£1.80
|
|
|
2 - HEXAGON HEAD SCREW M 10X20 VERZ.
MET-6103005270.A51
6103005270
|
-
|
|
|
|
3 - REDUCER NIPPL 1 1/4X1/2 NR.241 / VERZ.
MET-7871027042.A1
7871027042
|
-
|
|
|
|
4 - HEX NUT
MET-141132030.A40
141132030
|
£2.94
|
£3.53
|
|
|
5 - THREADED PLUG 1 NR.596 / VERZ.
MET-7871675990.A11
7871675990
|
-
|
|
|
|
6 - DRAIN VALVE R 1/2
MET-7830029286.A18
7830029286
|
£28.45
|
£34.14
|
|
|
7 - SWIVEL PLATE CASTER RD 75X25 M.FESTSTELL
MET-7271663832.A15
7271663832
|
£20.12
|
£24.14
|
|
|
8 - HEXAGON SOCKET HEAD CAP SCREW M 10X25 VE
MET-6127609460.A9
6127609460
|
£1.50
|
£1.80
|
|
|
9 - HEXAGON NUT PREV. TORQUE TYPE
MET-6202024139.A35
6202024139
|
£1.50
|
£1.80
|
|
|
10 - WASHER B 13 VERZ.
MET-6305002508.A58
6305002508
|
£1.50
|
£1.80
|
|
|
11 - WHEEL PNEUMATIC TYRE RD 300/100
MET-7270663812.A5
7270663812
|
-
|
|
|
|
12 - WASHER
MET-6300016705.A26
6300016705
|
£1.50
|
£1.80
|
|
|
13 - HEXAGON HEAD SCRE M 12X100 VERZ.
MET-6103001275.A5
6103001275
|
-
|
|
|
|
14 - HEXAGON HEAD SCREW M 10X50 VERZ.
MET-6103001380.A3
6103001380
|
-
|
|
|
|
15 - STEEL MESH HOSE NW13X500/16BAR M26X1
MET-7853663993.A8
7853663993
|
-
|
|
|
|
16 - CHECK VALVE ELBOW TYPE R 1/2X RD 18 M.
MET-1001676705.A4
1001676705
|
-
|
|
|
|
17 - CABLE RUBBER JACKET
MET-8402415682.A5
8402415682
|
-
|
|
|
|
18 - HANDLE
MET-1341630874.A5
1341630874
|
-
|
|
|
|
19 - CROSS RECD PAN HEAD TAP.SCREW ST 3 5X19
MET-6172039616.A19
6172039616
|
£1.50
|
£1.80
|
|
|
20 - HANDLE TUBE RDA 20X1 5X1231 GEBOGEN
MET-1317677835.A6
1317677835
|
-
|
|
|
|
21 - HOSE COIL ASSEMBLY ET
MET-1001678430.A0
1001678430
|
-
|
|
|
|
22 - REDUCER NIPPL 1X1/2 NR.241 / VERZ.
MET-7871026968.A15
7871026968
|
-
|
|
|
|
23 - QUICK CONNECTION COUPLING EURO 1/2 AG
MET-7802009105.A17
7802009105
|
-
|
|
|
|
24 - HEX HEAD SCREW
MET-6103001178.A15
6103001178
|
£1.50
|
£1.80
|
|
|
25 - PACKING RIN 8-14-1
MET-7631027126.A2
7631027126
|
-
|
|
|
|
26 - TEST FLANGE R 3/8
MET-7818026352.A2
7818026352
|
-
|
|
|
|
27 - HOSE CLAMP
MET-1341645472.A15
1341645472
|
-
|
|
|
|
32 - BEARING BLOCK
MET-1341634594.A15
1341634594
|
£3.11
|
£3.73
|
|
|
33 - ELBOW TAP CONNECTOR R 1/4A X 10MM M.O-R
MET-7872675854.A18
7872675854
|
-
|
|
|
|
34 - CRANK
MET-1341634608.A5
1341634608
|
£3.11
|
£3.73
|
|
|
40 - ELBOW TAP CONNECTOR R 1/4A X 10MM M.O-R
MET-7872675854.A19
7872675854
|
-
|
|
|
|
41 - AUTOM. PRESSURE CONTROL SWITCH MDR 3/16
MET-8101664105.A0
8101664105
|
-
|
|
|
|
42 - CABLE RUBBER JACKET
MET-8401664077.A7
8401664077
|
-
|
|
|
|
43 - RELIEF VALVE EV3 S
MET-7834664121.A11
7834664121
|
-
|
|
|
|
44 - PLASTIC HOSE COMPL.
MET-316061030.A48
316061030
|
£26.35
|
£31.62
|
|
|
45 - V-BELT SPA 1707
MET-7230663933.A1
7230663933
|
-
|
|
|
|
46 - HEXAGON SOCKET HEAD CAP SCREW M 10X35 VE
MET-6127056666.A8
6127056666
|
-
|
|
|
|
47 - ELECTRIC MOTOR 400/3/50 2800UPM B3 /M.KL
MET-8013663905.A5
8013663905
|
-
|
|
|
|
48 - FLANGE NUT M 10
MET-6209675984.A8
6209675984
|
£1.50
|
£1.80
|
|
|
49 - HEXAGONAL LOCK NUT
MET-141130650.A35
141130650
|
£3.20
|
£3.84
|
|
|
50 - WASHER
MET-141151940.A39
141151940
|
£1.50
|
£1.80
|
|
|
51 - ELBOW TAP CONNECTOR 1/8 X RD 6
MET-7872190850.A6
7872190850
|
£19.18
|
£23.02
|
|
|
52 - FLANGE NUT
MET-6209110995.A76
6209110995
|
£1.50
|
£1.80
|
|
|
53 - PLASTIC HOSE RD 6X2X100000 DRUCK./HITZEB
MET-7851675935.A16
7851675935
|
-
|
|
|
|
54 - FILLISTER HEAD SCREW W.FLANGE
MET-6143661561.A35
6143661561
|
£1.50
|
£1.80
|
|
|
56 - REPAIR KIT ENCLOSURE
MET-316050470.A5
316050470
|
-
|
|
|
|
57 - SPACER PLATE ASSY ET
MET-1001678422.A2
1001678422
|
-
|
|
|
|
58 - FILTER PRESSURE REGULATOR ASS` FR 1/4/0
MET-7820675848.A0
7820675848
|
-
|
|
|
|
59 - HEX HEAD SCREW
MET-6103001127.A31
6103001127
|
£1.50
|
£1.80
|
|
|
60 - SAFETY VALVE R 1/4 16 BAR
MET-7833009626.A0
7833009626
|
-
|
|
|
|
61 - ELBOW TAP CONNECTOR 1/4A X 6MM M.O-RING
MET-7872663090.A7
7872663090
|
-
|
|
|
|
62 - TUBE FITTING 1/2I X 1/2A LÖSBAR
MET-7871664190.A8
7871664190
|
-
|
|
|
|
63 - PIPE NIPPL 1/2X150 VERZINKT
MET-7812052440.A12
7812052440
|
-
|
|
|
|
64 - CONNECTING PLATE BL 2 00X16X119
MET-1312679589.A2
1312679589
|
-
|
|
|
|
65 - LOCKING BUSH 2012-28 / NUT 8 MM TAPER
MET-7243676686.A4
7243676686
|
-
|
|
|
|
66 - V-BELT PULLEY TBA 140-2-2012
MET-7240663958.A1
7240663958
|
-
|
|
|
|
67 - FEATHER KEY A 8X7X35 ET
MET-6721608849.A3
6721608849
|
-
|
|
|
|
68 - HEXAGON HEAD SCREW
MET-141114860.A65
141114860
|
£3.20
|
£3.84
|
|
|
69 - WASHER
MET-141151340.A7
141151340
|
£1.50
|
£1.80
|
|
|
70 - INTEGRATED PRESSURE GAUGE RD 40 R1/8 0-
MET-7823664081.A3
7823664081
|
-
|
|
|
|
71 - RETENTION PLATE ASSY ET
MET-1001678414.A0
1001678414
|
-
|
|
|
|
73 - FAN COVER BAUGRÖßE 100/ET MEGA 600/700/7
MET-1312713981.A5
1312713981
|
-
|
|
|
|
74 - FAN WING BAUGRÖßE 100/ET MEGA 600/700/71
MET-1312713973.A7
1312713973
|
-
|
|
|
|
100 - COMPRESSOR PUMP B 5900/B LÜFTERRAD BEARB
MET-1313650223.A8
1313650223
|
-
|
|
|
|
101 - PISTON RING RD 55X2 ET
MET-1319164258.A5
1319164258
|
-
|
|
|
|
102 - PISTON RING RD 55X2 ET
MET-1319164266.A4
1319164266
|
-
|
|
|
|
103 - OIL WIPING RING RD 55X4 ET
MET-1319164274.A5
1319164274
|
-
|
|
|
|
104 - PISTON HP RD 55
MET-1319161844.A8
1319161844
|
-
|
|
|
|
105 - GUDGEON PIN RD 18X45 ET
MET-1315161858.A4
1315161858
|
-
|
|
|
|
106 - CIRCLIP FOR BORES 18X1 ET
MET-6401627209.A5
6401627209
|
-
|
|
|
|
107 - CONNECTING ROD ASSEMBLY ET
MET-1319161836.A0
1319161836
|
-
|
|
|
|
108 - INTERMEDIATE COOLER ET
MET-1319636281.A8
1319636281
|
-
|
|
|
|
109 - SAFETY VALVE R 1/4 4
MET-7833626781.A4
7833626781
|
-
|
|
|
|
111 - ROTARY SHAFT SEAL 30X42X7 ET
MET-7635638910.A5
7635638910
|
-
|
|
|
|
112 - FLYWHEEL RD 430 ET
MET-1319155852.A2
1319155852
|
-
|
|
|
|
113 - WASHER 8 5X30X5 ET
MET-1315166400.A14
1315166400
|
-
|
|
|
|
114 - CAP SCREW
MET-6121000839.A11
6121000839
|
£1.50
|
£1.80
|
|
|
115 - CYLINDER HEAD ET
MET-1319650594.A2
1319650594
|
-
|
|
|
|
116 - CYLINDER HEAD GASKET ET
MET-1319156247.A3
1319156247
|
-
|
|
|
|
117 - VALVE ASSEMBLY ET
MET-1319156204.A6
1319156204
|
£176.36
|
£211.63
|
|
|
118 - CYLINDER ET
MET-1310157097.A4
1310157097
|
-
|
|
|
|
119 - AIR FILTER ET
MET-7825156318.A3
7825156318
|
-
|
|
|
|
120 - GUDGEON PIN RD 18X95 ET
MET-1315161874.A5
1315161874
|
-
|
|
|
|
121 - PISTON LP RD 105
MET-1319161860.A1
1319161860
|
-
|
|
|
|
122 - OIL WIPING RING RD 105X5 5 ET
MET-1319164339.A6
1319164339
|
-
|
|
|
|
123 - PISTON RING RD 105X2 5 ET
MET-1319164320.A5
1319164320
|
-
|
|
|
|
124 - PISTON RING RD 105X2 5 ET
MET-1319164312.A4
1319164312
|
-
|
|
|
|
125 - PACKING AFTERCOOLER ET
MET-1319161747.A7
1319161747
|
-
|
|
|
|
126 - AFTERCOOLER ET
MET-1313631792.A4
1313631792
|
-
|
|
|
|
127 - CRANKCASE BREATHER 3/8 ET
MET-1319155909.A3
1319155909
|
-
|
|
|
|
128 - CYLINDER FOOT GASKET ET
MET-1319162000.A3
1319162000
|
-
|
|
|
|
130 - PACKING BEARING CAP ET
MET-1319164525.A3
1319164525
|
-
|
|
|
|
131 - OIL SIGHT GLASS 1 ET
MET-1319155879.A3
1319155879
|
-
|
|
|
|
133 - CRANKCASE PACKING ET
MET-1319164460.A6
1319164460
|
-
|
|
|
|
136 - CONROD BEARING SHELL ET
MET-1319166714.A3
1319166714
|
-
|
|
|
|
137 - HEXAGON NUT PREV. TORQUE TYPE
MET-6202002305.A58
6202002305
|
£1.50
|
£1.80
|
|
|
138 - OIL SPLASH NEEDLE ET
MET-1319164789.A5
1319164789
|
-
|
|
|
|
139 - CYLINDER GASKET ET
MET-1319156239.A3
1319156239
|
-
|
|
|
|
140 - PACKING VALVE PLATE ET
MET-1319156212.A6
1319156212
|
£40.73
|
£48.88
|
|
|
141 - THREADED PLUG 1/4
MET-6109069173.A0
6109069173
|
-
|
|
|
