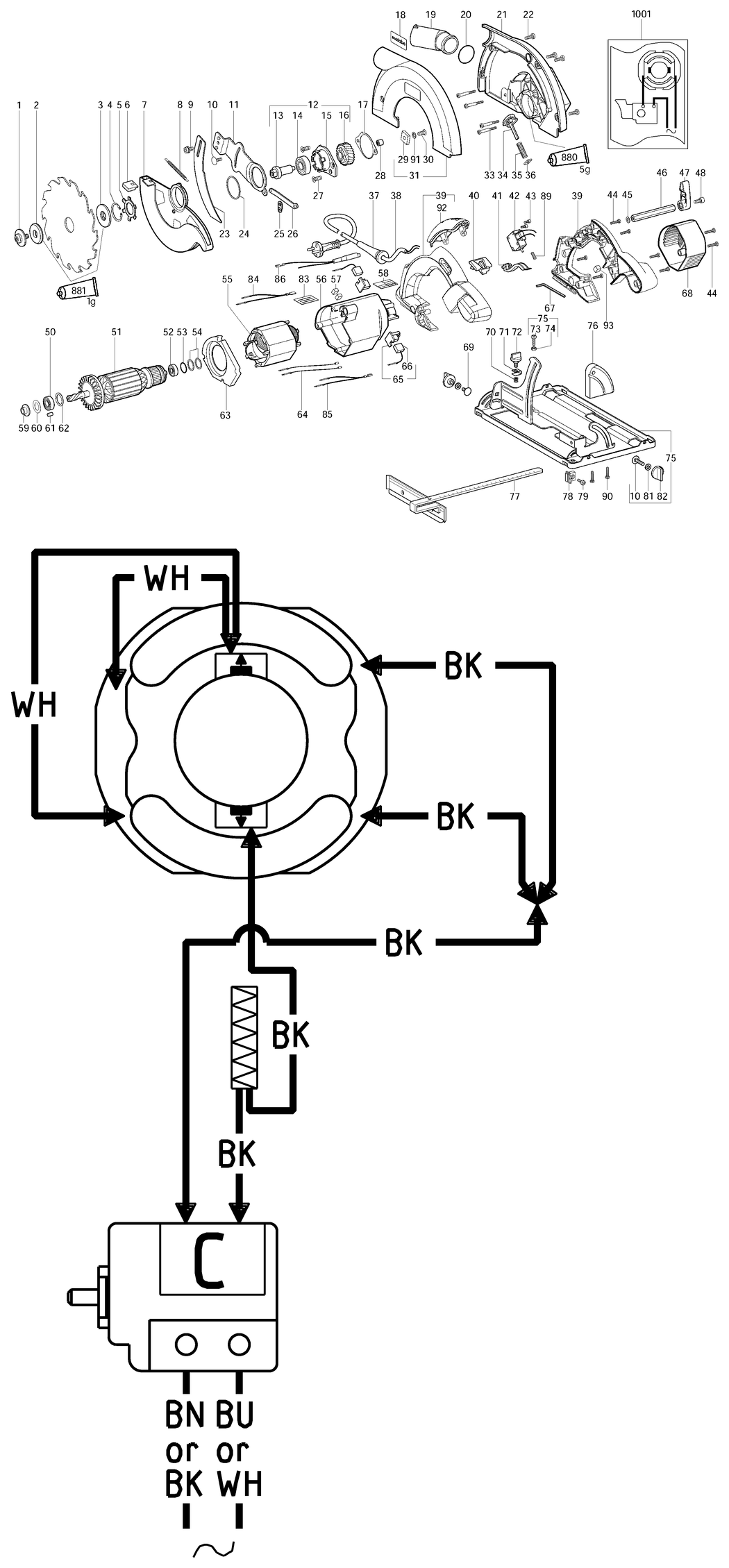

1 - SCREW COMPL.
MET-316034800.A1
316034800
|
£11.78
|
£14.13
|
|
|
2 - CLAMPING FLANGE
MET-341031790.A4
341031790
|
£8.37
|
£10.04
|
|
|
3 - CLAMPING FLANGE
MET-341031780.A10
341031780
|
£8.37
|
£10.04
|
|
|
4 - RETAINING RING
MET-141180390.A25
141180390
|
£3.20
|
£3.84
|
|
|
5 - TOOTHED SEGMENT
MET-339131510.A10
339131510
|
£3.82
|
£4.59
|
|
|
6 - CAP
MET-343378080.A4
343378080
|
£3.20
|
£3.84
|
|
|
7 - SAFETY GUARD
MET-339133380.A11
339133380
|
£42.65
|
£51.18
|
|
|
8 - TENSION SPRING
MET-342010260.A4
342010260
|
£1.50
|
£1.80
|
|
|
9 - CYLINDER HEAD SCREW
MET-141122830.A12
141122830
|
£3.20
|
£3.84
|
|
|
10 - TRUSS HEAD SCREW
MET-341703660.A9
341703660
|
£1.50
|
£1.80
|
|
|
11 - RIV.KNIFE GUIDE
MET-339134340.A5
339134340
|
-
|
|
|
|
12 - SAW SPINDLE CPL.
MET-316034590.A5
316034590
|
£68.35
|
£82.02
|
|
|
13 - SAW AXLE
MET-341057010.A6
341057010
|
£22.61
|
£27.13
|
|
|
14 - BALL BEARING 15X35X11
MET-143114870.A7
143114870
|
£19.18
|
£23.02
|
|
|
15 - GEAR FLANGE
MET-315415670.A12
315415670
|
£26.35
|
£31.62
|
|
|
16 - SPUR GEAR
MET-341057020.A8
341057020
|
£9.62
|
£11.54
|
|
|
17 - GEARGASKET
MET-339210870.A2
339210870
|
£1.50
|
£1.80
|
|
|
18 - METABO PLATE
MET-338121810.A2
338121810
|
-
|
|
|
|
19 - EXHAUST NOZZLE
MET-343377760.A10
343377760
|
£4.76
|
£5.71
|
|
|
20 - O-RING
MET-143194270.A6
143194270
|
£1.50
|
£1.80
|
|
|
21 - SAW HOUSING
MET-316034570.A5
316034570
|
£63.44
|
£76.13
|
|
|
22 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A357
141121640
|
£1.50
|
£1.80
|
|
|
23 - RIVING KNIFE
MET-339131570.A12
339131570
|
£9.62
|
£11.54
|
|
|
24 - WASHER
MET-141154070.A2
141154070
|
£3.20
|
£3.84
|
|
|
25 - CONNECTING PIECE
MET-341070690.A4
341070690
|
£5.62
|
£6.75
|
|
|
26 - SHEET COVER
MET-339133890.A4
339133890
|
£3.82
|
£4.59
|
|
|
27 - COUNTERSUNK SCREW
MET-141123040.A8
141123040
|
£1.50
|
£1.80
|
|
|
28 - NEEDLE BUSHING
MET-143111180.A12
143111180
|
£11.78
|
£14.13
|
|
|
29 - RUBBER BUFFER
MET-344096260.A7
344096260
|
-
|
|
|
|
30 - COUNTERSUNK SCREW
MET-141123190.A8
141123190
|
-
|
|
|
|
31 - COVER CPL.
MET-316034580.A6
316034580
|
£61.08
|
£73.30
|
|
|
33 - TIGHT-FIT SCREW
MET-341701490.A42
341701490
|
£1.50
|
£1.80
|
|
|
34 - SPINDLE LOCK
MET-316034810.A7
316034810
|
£9.62
|
£11.54
|
|
|
35 - PRESSURE SPRING
MET-342007800.A14
342007800
|
£3.20
|
£3.84
|
|
|
36 - FELT
MET-344070600.A14
344070600
|
£1.50
|
£1.80
|
|
|
37 - CABLE SLEEVE
MET-344100970.A87
344100970
|
£3.20
|
£3.84
|
|
|
38 - CABLE WITH UL-CSA-PLUG
MET-344494030.A13
344494030
|
£26.35
|
£31.62
|
|
|
39 - HANDLE COMPL.
MET-316041860.A13
316041860
|
£42.65
|
£51.18
|
|
|
40 - SWITCH LOCK RED
MET-343394510.A12
343394510
|
-
|
|
|
|
41 - SWITCH TRIGGER
MET-343394500.A4
343394500
|
-
|
|
|
|
42 - SWITCH
MET-343406260.A16
343406260
|
£11.78
|
£14.13
|
|
|
43 - FILLISTER HEAD SCREW
MET-141116970.A135
141116970
|
£3.20
|
£3.84
|
|
|
44 - SELF-TAP FILL H SCREW
MET-141116020.A303
141116020
|
£3.20
|
£3.84
|
|
|
45 - WASHER
MET-339004350.A11
339004350
|
£9.62
|
£11.54
|
|
|
46 - SPACING ELEMENT
MET-341056960.A12
341056960
|
£7.36
|
£8.83
|
|
|
47 - CLAMPING LEVER
MET-343398140.A10
343398140
|
£3.82
|
£4.59
|
|
|
48 - CAP SCREW
MET-141113840.A18
141113840
|
£3.20
|
£3.84
|
|
|
50 - BALL BEARING 10X26X8
MET-143114840.A8
143114840
|
£15.41
|
£18.49
|
|
|
51 - ARMATURE CPL. 120V
MET-310008450.A1
310008450
|
£86.42
|
£103.71
|
|
|
52 - BALL BEARING 8X22X7
MET-143115800.A77
143115800
|
£3.83
|
£4.60
|
|
|
53 - O-RING
MET-143192130.A4
143192130
|
£3.20
|
£3.84
|
|
|
54 - WASHER
MET-141151320.A4
141151320
|
£3.20
|
£3.84
|
|
|
55 - FIELD COIL
MET-311010120.A6
311010120
|
£63.36
|
£76.03
|
|
|
56 - MOTOR HOUSING
MET-343377690.A2
343377690
|
£22.96
|
£27.55
|
|
|
57 - INSERT
MET-344098520.A10
344098520
|
-
|
|
|
|
58 - RATING PLATE
MET-338043300.A1
338043300
|
-
|
|
|
|
59 - SLEEVE
MET-343377790.A4
343377790
|
£1.50
|
£1.80
|
|
|
60 - WASHER
MET-141153220.A8
141153220
|
£1.50
|
£1.80
|
|
|
61 - RUBBER PLUG
MET-344097580.A46
344097580
|
£1.50
|
£1.80
|
|
|
62 - WASHER
MET-141152930.A7
141152930
|
£3.20
|
£3.84
|
|
|
63 - BAFFLE
MET-343377740.A4
343377740
|
£5.62
|
£6.75
|
|
|
64 - PART NOT NEEDED
MET-399999990.A2113
399999990
|
-
|
|
|
|
65 - BRUSH HOLDER CP 120V
MET-316032100.A9
316032100
|
£22.61
|
£27.13
|
|
|
66 - BRUSH SET 120V
MET-316034690.A5
316034690
|
£22.61
|
£27.13
|
|
|
67 - CRANKED WRENCH KEY
MET-344161520.A55
344161520
|
£3.20
|
£3.84
|
|
|
68 - MOTOR COVER
MET-343377730.A10
343377730
|
£9.62
|
£11.54
|
|
|
69 - TRUSS HEAD SCREW
MET-141116050.A4
141116050
|
£3.20
|
£3.84
|
|
|
70 - PRESSURE SPRING
MET-342001430.A2
342001430
|
£3.20
|
£3.84
|
|
|
71 - PRESSURE PLATE
MET-339131590.A7
339131590
|
£3.20
|
£3.84
|
|
|
72 - THUMBSCREW
MET-341111920.A10
341111920
|
£3.82
|
£4.59
|
|
|
73 - FILLISTER HEAD SCREW
MET-141116780.A16
141116780
|
£1.50
|
£1.80
|
|
|
74 - HEXAGONAL NUT
MET-141130090.A23
141130090
|
£1.50
|
£1.80
|
|
|
75 - GUIDE PLATE CPL.
MET-316034560.A4
316034560
|
£55.90
|
£67.08
|
|
|
76 - CONSOLE
MET-343377670.A9
343377670
|
£7.36
|
£8.83
|
|
|
77 - PARALLEL GUIDE
MET-331050710.A7
331050710
|
£26.35
|
£31.62
|
|
|
78 - CUT INDICATOR
MET-343378070.A5
343378070
|
£1.50
|
£1.80
|
|
|
79 - SELF-TAP. FILL. H. SCREW
MET-141118730.A73
141118730
|
£1.50
|
£1.80
|
|
|
81 - WASHER
MET-141151940.A34
141151940
|
£1.50
|
£1.80
|
|
|
82 - THUMB-NUT
MET-341111870.A20
341111870
|
£3.82
|
£4.59
|
|
|
83 - WARNING LABEL
MET-338115880.A19
338115880
|
-
|
|
|
|
84 - TWIN WIRE STRAND
MET-344495050.A0
344495050
|
-
|
|
|
|
85 - TWIN LEAD
MET-344495060.A3
344495060
|
-
|
|
|
|
86 - SUPPRESSOR COMPL.
MET-344495040.A3
344495040
|
-
|
|
|
|
89 - PRESSURE SPRING
MET-342003140.A12
342003140
|
£1.50
|
£1.80
|
|
|
90 - SELF-TAP. FILL. H. SCREW
MET-141116800.A70
141116800
|
£1.50
|
£1.80
|
|
|
91 - WASHER ZN5BK
MET-141153390.A7
141153390
|
£1.50
|
£1.80
|
|
|
92 - HANDLE ELEMENT
MET-343393720.A14
343393720
|
-
|
|
|
|
93 - INSERT
MET-344098540.A4
344098540
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A561
344130920
|
£19.18
|
£23.02
|
|
|
881 - GREASE SF 011 50GR 1.8oz
MET-344130560.A11
344130560
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338503960.A2
338503960
|
-
|
|
|
