Metabo DSD 250 / 19250420 / 3 / 400V/60Hz Spare Parts

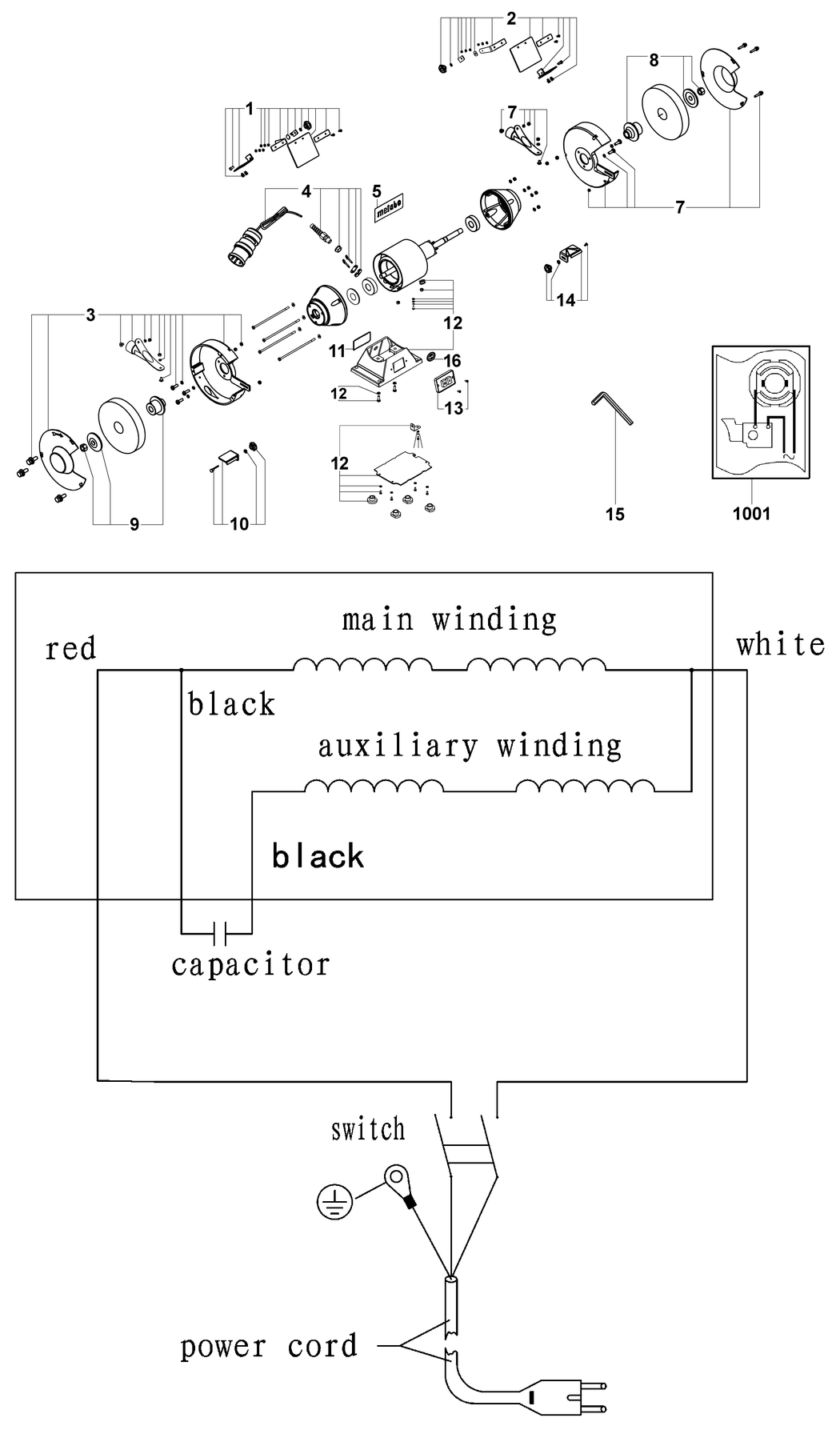

An exploded diagram and spare parts listing for the Metabo DSD 250 / 19250420 / 3 / 400V/60Hz

	Ex VAT	Inc VAT
1 - EYE PROTECTION CPL.LEFT MET-316046640.A1 316046640	£13.63	£16.36
2 - EYE PROTECTION RIGHT CPL. MET-316046650.A0 316046650	£13.63	£16.36
3 - WHEEL GUARD CPL.LEFT MET-316046430.A1 316046430	£94.04	£112.85
4 - CABLE W.SOCKET 120V MET-344498720.A0 344498720	-
5 - METABO LABEL MET-338122240.A1 338122240	-
7 - WHEEL GUARD COMPL.RIGHT MET-316046620.A1 316046620	-
8 - FLANGE COMPL. RECHTS MET-316048910.A0 316048910	£36.59	£43.91
9 - FLANGE COMPL. LINKS MET-316048880.A0 316048880	-
10 - SUPPORTING ANGLE CPL.LEFT MET-316046660.A1 316046660	£5.62	£6.75
11 - RATING PLATE MET-338055060.A0 338055060	-
12 - FOOT COMPL. MET-316046670.A0 316046670	£5.62	£6.75
13 - SWITCH COMPL. MET-343409550.A0 343409550	£30.06	£36.07
14 - SUPPORTING ANGLE RIGHT CPL. MET-316046680.A1 316046680	-
15 - HEXAGONAL KEY MET-344161530.A31 344161530	£3.20	£3.84
16 - INDICATION LABEL FULL-VIEW SAFETY GOGGLE MET-338122630.A3 338122630	-
1001 - DIAGRAM MET-338505440.A0 338505440	-
