Metabo DSD 200 / 19201000 / 3 / 400V/50Hz Spare Parts

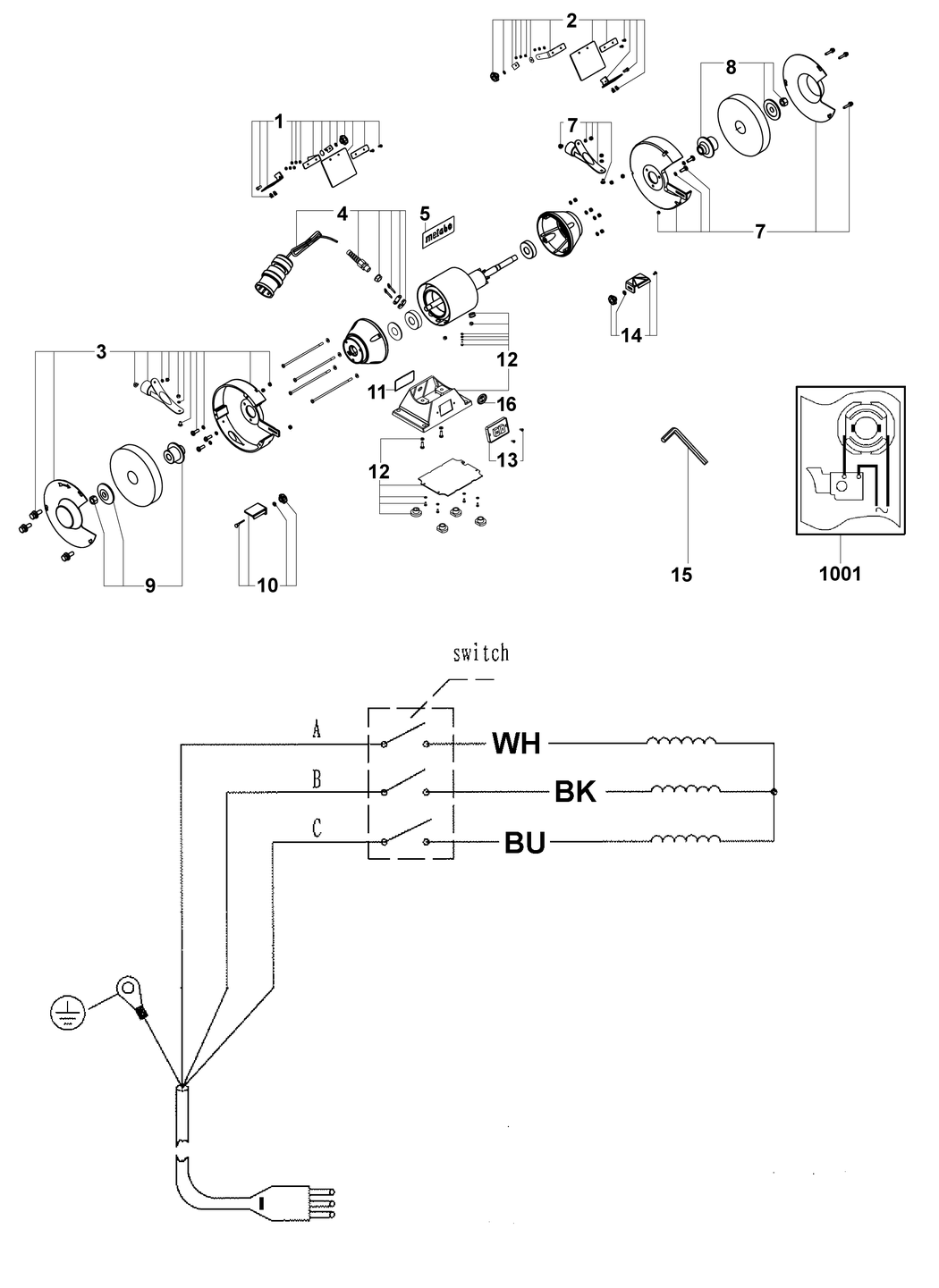

An exploded diagram and spare parts listing for the Metabo DSD 200 / 19201000 / 3 / 400V/50Hz

	Ex VAT	Inc VAT
1 - EYE PROTECTION CPL.LEFT MET-316046380.A0 316046380	£9.62	£11.54
2 - EYE PROTECTION RIGHT CPL. MET-316046390.A2 316046390	£9.62	£11.54
3 - WHEEL GUARD CPL.LEFT MET-316042500.A1 316042500	£64.30	£77.16
4 - CABLE W.SOCKET 400V MET-344498220.A0 344498220	£36.59	£43.91
5 - METABO LABEL MET-338122290.A0 338122290	-
7 - WHEEL GUARD COMPL.RIGHT MET-316046360.A1 316046360	£64.30	£77.16
8 - FLANGE RIGHT CPL. MET-316047450.A0 316047450	£26.35	£31.62
9 - CLAMPING FLANGE COMPL.LEFT MET-316046350.A0 316046350	£26.35	£31.62
10 - SUPPORTING ANGLE CPL.LEFT MET-316046400.A0 316046400	£4.76	£5.71
11 - NAME PLATE MET-338053550.A0 338053550	-
12 - FOOT COMPL. MET-316046420.A0 316046420	-
13 - SWITCH COMPL. MET-343409360.A0 343409360	£36.59	£43.91
14 - SUPPORTING ANGLE RIGHT CPL. MET-316046410.A2 316046410	£4.76	£5.71
15 - HEXAGONAL KEY MET-344161530.A33 344161530	£3.20	£3.84
16 - INDICATION LABEL FULL-VIEW SAFETY GOGGLE MET-338122630.A2 338122630	-
1001 - WIRING DIAGRAM 400V MET-338505240.A0 338505240	-
