Metabo DS 150 / 19150000 / EU 230V Spare Parts

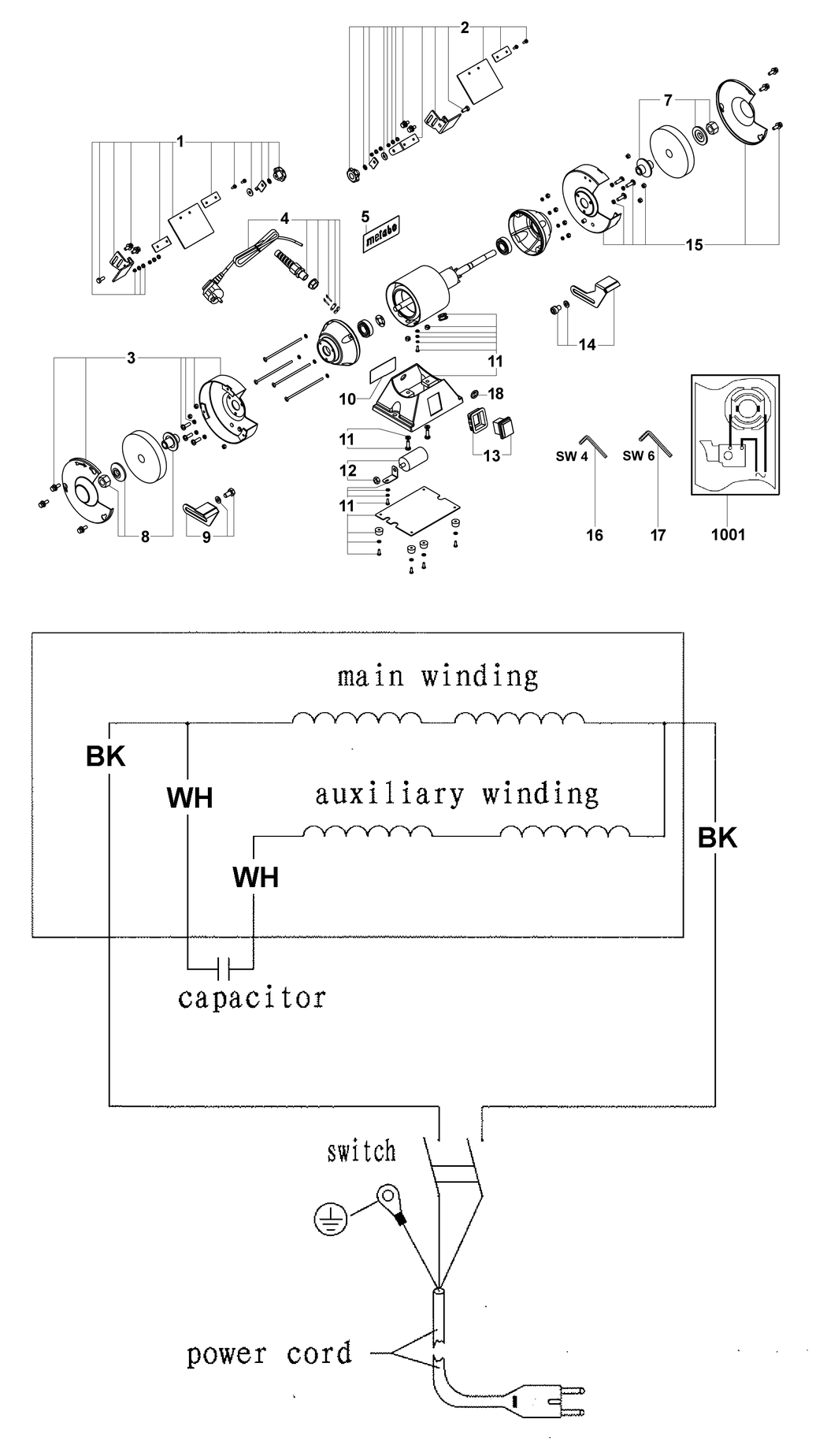

An exploded diagram and spare parts listing for the Metabo DS 150 / 19150000 / EU 230V

	Ex VAT	Inc VAT
1 - EYE PROTECTION CPL.LEFT MET-316046290.A2 316046290	£13.63	£16.36
2 - EYE PROTECTION RIGHT CPL. MET-316046300.A2 316046300	£13.63	£16.36
3 - WHEEL GUARD CPL.LEFT MET-316046450.A2 316046450	-
4 - CABLE WITH PLUG MET-344498200.A4 344498200	£17.55	£21.06
5 - METABO LABEL MET-338122250.A2 338122250	-
7 - FLANGE RIGHT CPL. MET-316046480.A0 316046480	-
8 - CLAMPING FLANGE COMPL.LEFT MET-316046460.A0 316046460	-
9 - SUPPORTING ANGLE CPL.LEFT MET-316046310.A2 316046310	£5.62	£6.75
10 - NAME PLATE MET-338053520.A0 338053520	-
11 - FOOT COMPL. MET-316047920.A0 316047920	-
12 - CONDENSER COMPL. MET-343254600.A0 343254600	-
13 - SWITCH COMPL. MET-343409340.A2 343409340	£9.62	£11.54
14 - SUPPORTING ANGLE RIGHT CPL. MET-316046330.A2 316046330	£5.62	£6.75
15 - WHEEL GUARD COMPL.RIGHT MET-316046470.A2 316046470	-
16 - HEXAGONAL KEY MET-344161530.A25 344161530	£3.20	£3.84
17 - HEXAGONAL KEY MET-344161510.A27 344161510	£3.20	£3.84
18 - INDICATION LABEL FULL-VIEW SAFETY GOGGLE MET-338122630.A10 338122630	-
1001 - WIRING DIAGRAM 230V MET-338505170.A5 338505170	-

Attribute Name	Value
Brand	Metabo
