Metabo DS 125 / 19125000 / EU 230V Spare Parts

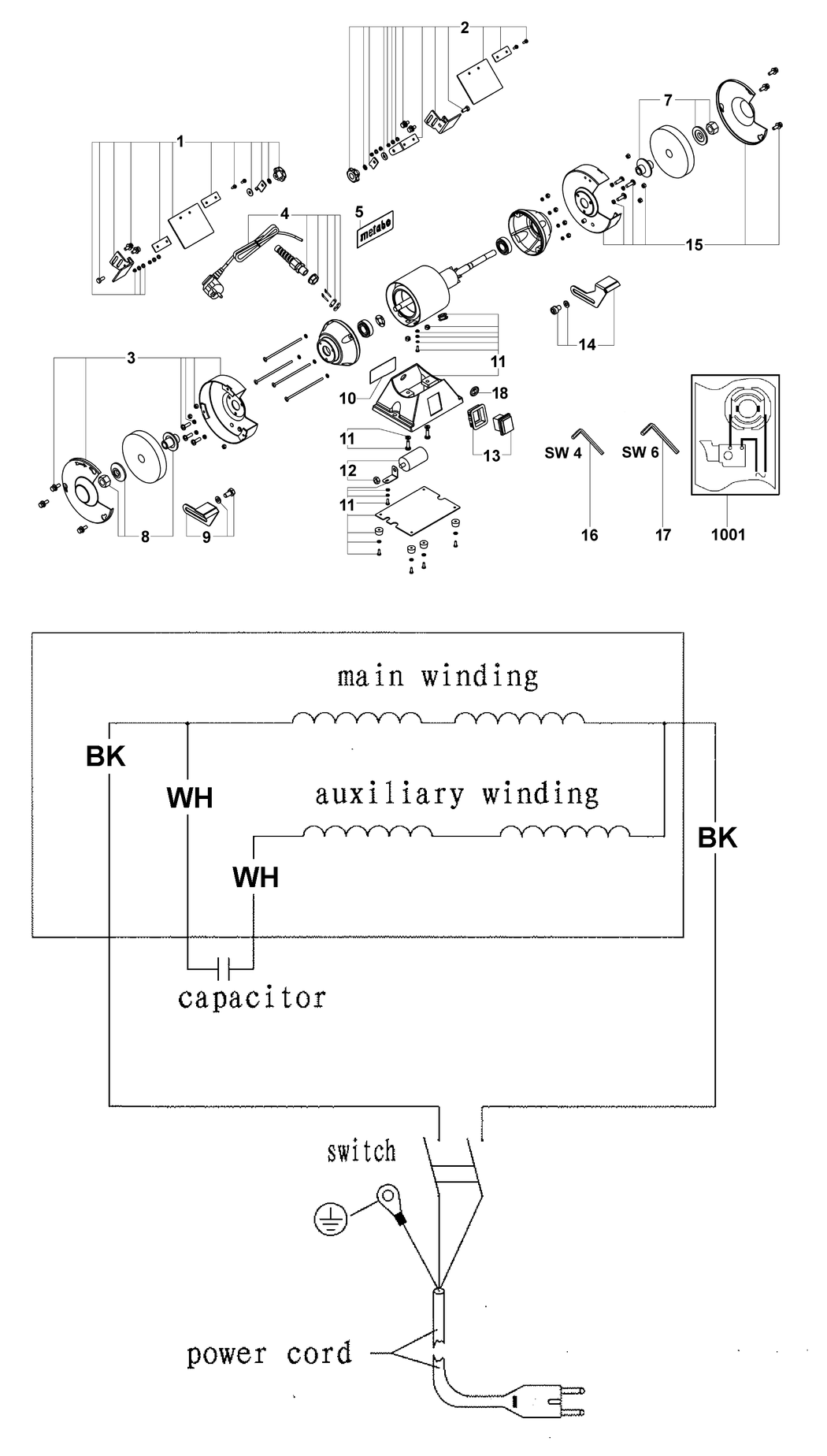

An exploded diagram and spare parts listing for the Metabo DS 125 / 19125000 / EU 230V

	Ex VAT	Inc VAT
1 - EYE PROTECTION CPL.LEFT MET-316046290.A0 316046290	£13.63	£16.36
2 - EYE PROTECTION RIGHT CPL. MET-316046300.A4 316046300	£13.63	£16.36
3 - WHEEL GUARD CPL.LEFT MET-316046250.A0 316046250	-
4 - CABLE WITH PLUG MET-344498200.A5 344498200	£17.55	£21.06
5 - METABO LABEL MET-338122260.A1 338122260	-
7 - FLANGE RIGHT CPL. MET-316046280.A0 316046280	£11.78	£14.13
8 - CLAMPING FLANGE COMPL.LEFT MET-316046260.A0 316046260	-
9 - SUPPORTING ANGLE CPL.LEFT MET-316046310.A0 316046310	£5.62	£6.75
10 - NAME PLATE MET-338053510.A0 338053510	-
11 - FOOT COMPL. MET-316046320.A1 316046320	-
12 - CONDENSER COMPL. MET-343254590.A0 343254590	-
13 - SWITCH COMPL. MET-343409340.A0 343409340	£9.62	£11.54
14 - SUPPORTING ANGLE RIGHT CPL. MET-316046330.A0 316046330	£5.62	£6.75
15 - WHEEL GUARD COMPL.RIGHT MET-316046270.A0 316046270	-
16 - HEXAGONAL KEY MET-344161530.A23 344161530	£3.20	£3.84
17 - HEXAGONAL KEY MET-344161510.A26 344161510	£3.20	£3.84
18 - INDICATION LABEL FULL-VIEW SAFETY GOGGLE MET-338122630.A8 338122630	-
1001 - WIRING DIAGRAM 230V MET-338505170.A6 338505170	-
