Metabo BS 175 / 01750000 / EU 230V Spare Parts

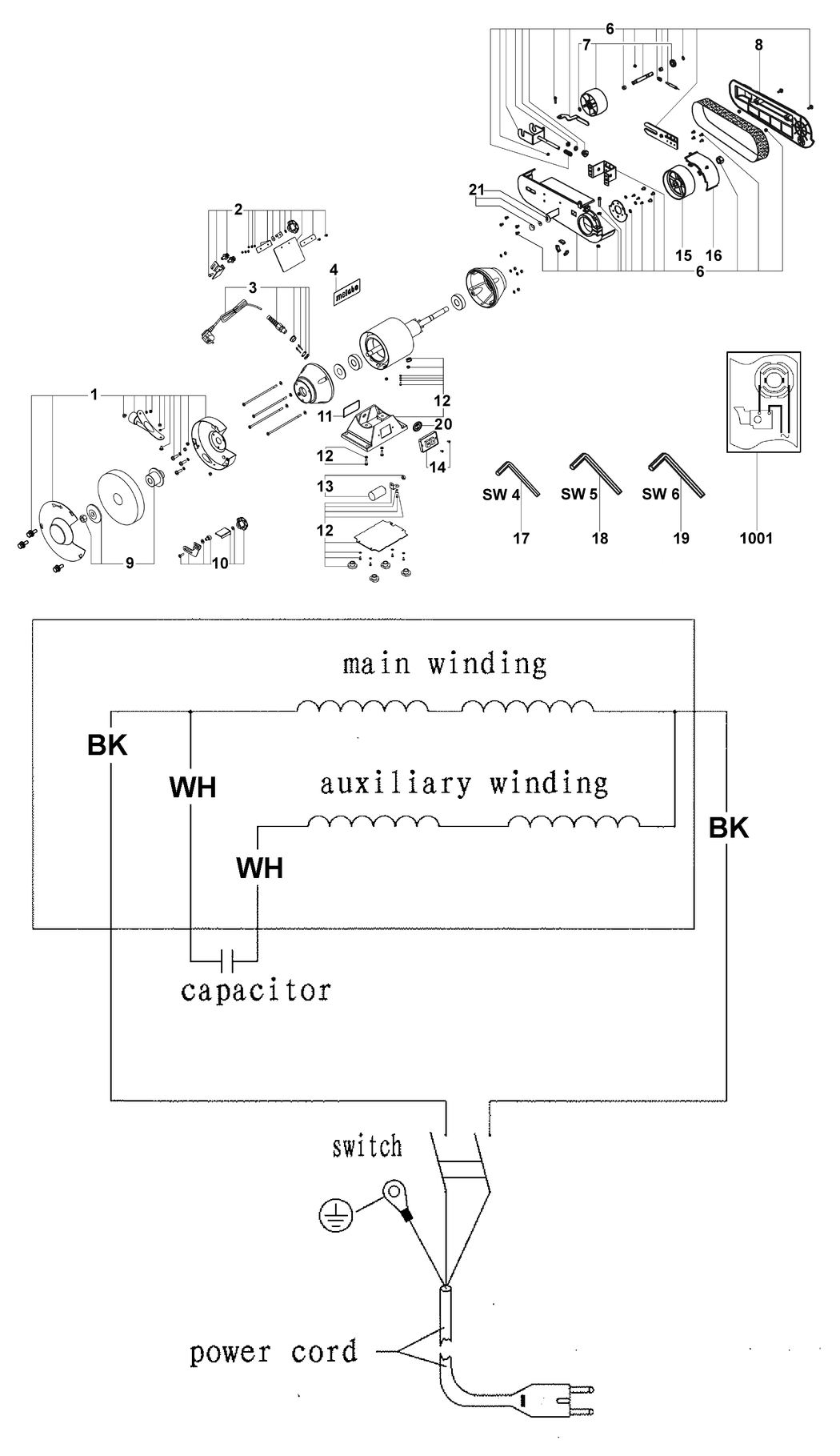

An exploded diagram and spare parts listing for the Metabo BS 175 / 01750000 / EU 230V

	Ex VAT	Inc VAT
1 - WHEEL GUARD CPL.LEFT MET-316046490.A2 316046490	£54.94	£65.93
2 - EYE PROTECTION CPL.LEFT MET-316046530.A2 316046530	£13.63	£16.36
3 - CABLE WITH PLUG MET-344498200.A6 344498200	£17.55	£21.06
4 - METABO LABEL MET-338122300.A0 338122300	-
6 - GRINDING ATTACHMENT COMPL. MET-316046760.A0 316046760	£114.40	£137.28
7 - CASTER COMPL. MET-316046180.A0 316046180	£32.88	£39.45
8 - COVER MET-343398460.A0 343398460	£17.55	£21.06
9 - CLAMPING FLANGE COMPL.LEFT MET-316046500.A1 316046500	-
10 - SUPPORTING ANGLE CPL.LEFT MET-316046550.A2 316046550	£6.38	£7.65
11 - NAME PLATE MET-338053620.A0 338053620	-
12 - FOOT COMPL. MET-316046560.A0 316046560	£61.08	£73.30
13 - CONDENSER COMPL. MET-343254610.A1 343254610	£9.62	£11.54
14 - SWITCH COMPL. MET-343409350.A1 343409350	£32.88	£39.45
15 - DRIVING ROLLER MET-341201050.A0 341201050	-
16 - COVER LOWER MET-343398450.A0 343398450	£4.76	£5.71
17 - HEXAGONAL KEY MET-344161530.A22 344161530	£3.20	£3.84
18 - CRANKED WRENCH KEY MET-344161520.A25 344161520	£3.20	£3.84
19 - HEXAGONAL KEY MET-344161510.A25 344161510	£3.20	£3.84
20 - INDICATION LABEL FULL-VIEW SAFETY GOGGLE MET-338122630.A7 338122630	-
21 - STOP COMPL. MET-316052790.A0 316052790	£4.76	£5.71
1001 - WIRING DIAGRAM 230V MET-338505170.A7 338505170	-
