Metabo Table SIDE EXTENSION TKHS 315 C/M / BKS / 0910014030 10 / - Spare Parts

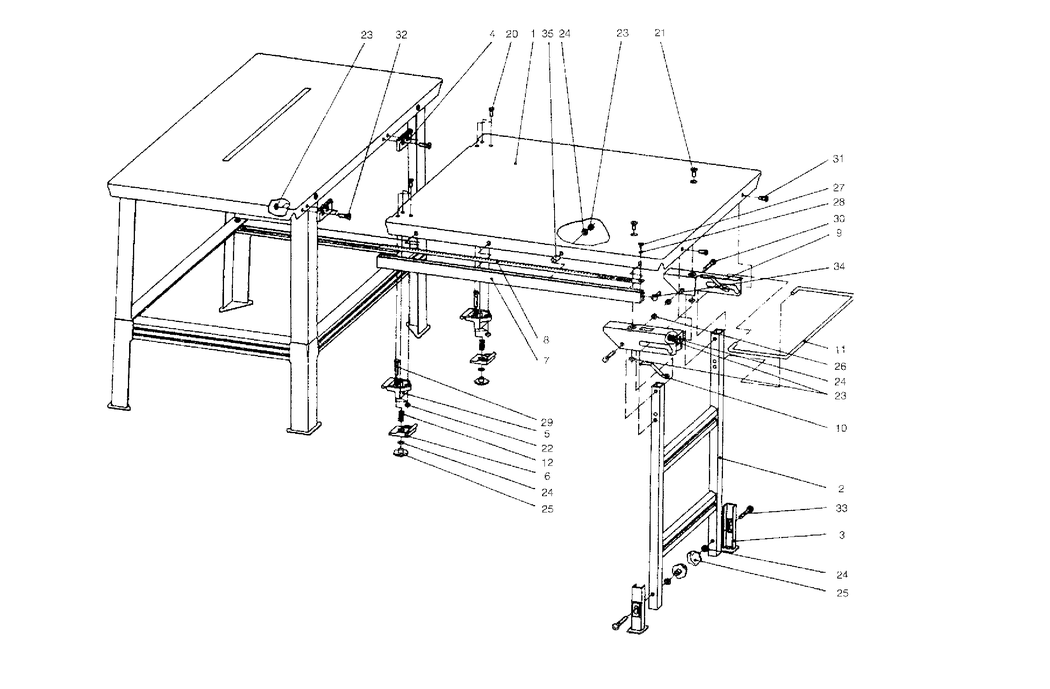

An exploded diagram and spare parts listing for the Metabo Table SIDE EXTENSION TKHS 315 C/M / BKS / 0910014030 10 / -

	Ex VAT	Inc VAT
1 - TABLE PANEL BL 2 5X736X1017 MET-1392205787.A0 1392205787	-
2 - FOLDING LEG MET-2010201007.A0 2010201007	-
3 - ADJUSTABLE FOOT MET-2010201015.A2 2010201015	£22.61	£27.13
4 - CLAMPING PAD MET-2390206065.A2 2390206065	£13.63	£16.36
5 - CONNECTOR 37X52X92 MET-2390205891.A2 2390205891	£15.41	£18.49
6 - CLAMPING LEVER MET-2390206057.A0 2390206057	£13.63	£16.36
7 - FENCE GUIDE EXTRUSION 1000 MM MET-1393205985.A0 1393205985	-
8 - SCALE 0 165X13X994 +34 MET-1142413791.A0 1142413791	£36.59	£43.91
9 - JOINT PLATE BL 2X160X290 MET-1392205850.A1 1392205850	-
10 - SPRING HINGE BL 1X15X160 MET-1392205876.A2 1392205876	-
11 - BOLT TABLE EXTENSION RD 10X897 GESTRECK MET-1392205884.A0 1392205884	-
12 - PRESSURE SPRING RD 13X38 MET-7051091226.A0 7051091226	£4.76	£5.71
20 - CROSS RECESSED FLAT HEAD SCREW M 6X16 VE MET-6131047582.A43 6131047582	£1.50	£1.80
21 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A8 6131009460	-
22 - HEXAGONAL LOCK NUT MET-141130650.A19 141130650	£3.20	£3.84
23 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A45 6202002305	£1.50	£1.80
24 - WASHER MET-141151340.A14 141151340	£1.50	£1.80
25 - STARKNOB NUT M 8 (DIN 934) VERZINKT MET-7000028937.A53 7000028937	£3.82	£4.59
26 - HEX NUT MET-141132030.A13 141132030	£2.94	£3.53
27 - CROSS RECD PAN HEAD TAP.SCREW ST 2 9X9 MET-6172039632.A1 6172039632	-
28 - WASHER MET-6305052335.A5 6305052335	£1.50	£1.80
29 - HEXAGON HEAD SCREW M 8X50 VERZ. MET-6103001216.A4 6103001216	£1.50	£1.80
30 - HEXAGON HEAD SCREW M 10X50 VERZ. MET-6103001380.A1 6103001380	-
31 - HEX HEAD SCREW MET-6103001178.A5 6103001178	£1.50	£1.80
32 - CUP SQUARE NECK SCREW M 8X25 VERZ. MET-6110000640.A23 6110000640	£1.50	£1.80
33 - TRUSS HEAD SCREW MET-6110059297.A7 6110059297	£1.50	£1.80
34 - TRUSS HEAD SCREW MET-6110000659.A19 6110000659	£1.50	£1.80
35 - SPACER SLEEVE MET-1485412910.A26 1485412910	£3.20	£3.84

Attribute Name	Value
Brand	Metabo
