Metabo Saw table FLEXO 500 UK290/UK333 (CH) / 0910064576 10 / CH 230V Spare Parts

Metabo Saw table FLEXO 500 UK290/UK333 ʌH) / 0910064576 10 / CH 230V Spare Parts

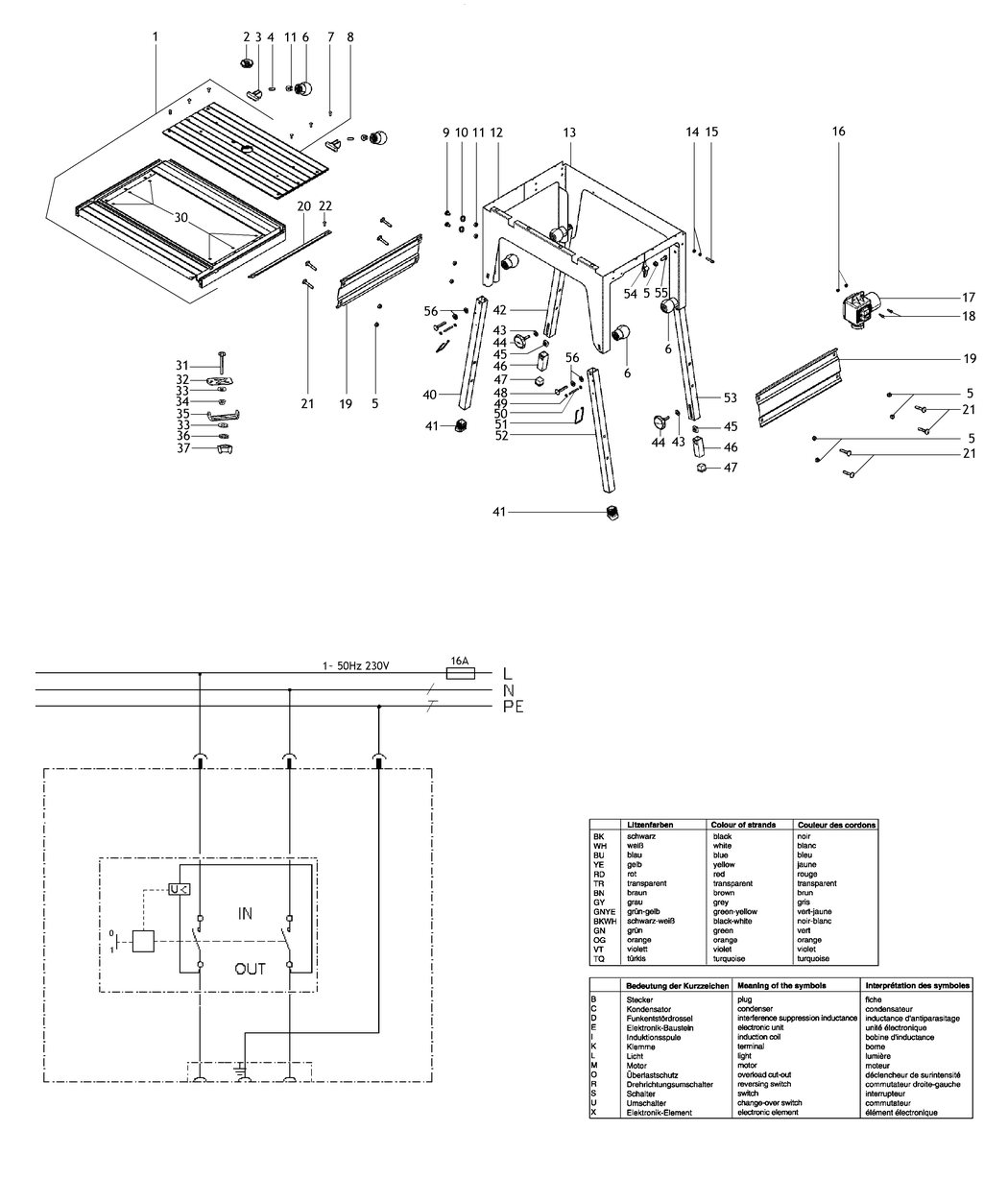

An exploded diagram and spare parts listing for the Metabo Saw table FLEXO 500 UK290/UK333 (CH) / 0910064576 10 / CH 230V

	Ex VAT	Inc VAT
1 - TABLE UNIVERSALTISCH-UK290 MET-1010727614.A1 1010727614	-
2 - TABLE RINGS RD 46 UNIVERSALTISCH-UK290 MET-1381727986.A1 1381727986	-
3 - LOCK PLATE MET-1380215981.A2 1380215981	£9.62	£11.54
4 - HEX. SOCKET SET SCREW DOG PT. MET-6163198736.A2 6163198736	£5.62	£6.75
5 - FLANGE NUT MET-6209110995.A128 6209110995	£1.50	£1.80
6 - KNOB RED MET-1388698264.A3 1388698264	£7.36	£8.83
7 - HEX.SOCKET COUNTERS.HEAD SCREW M 5X20 Z2 MET-6131730266.A1 6131730266	-
8 - EXTRUSION REMOV.TABLE SECTION 610MM UNI MET-1383727665.A0 1383727665	-
9 - BEARING BOLT MET-1395200611.A12 1395200611	£4.76	£5.71
10 - WASHER MET-6305002486.A10 6305002486	-
11 - HEXAGONAL NUT MET-141131010.A85 141131010	£1.50	£1.80
12 - SIDE PANEL BL 1 50X387 MET-1382727696.A0 1382727696	-
13 - SIDE PANEL BL 1 50X355 MET-1382727718.A1 1382727718	-
14 - HEXAGONAL NUT MET-141130100.A147 141130100	£1.50	£1.80
15 - CAP SCREW MET-6127059207.A91 6127059207	£1.50	£1.80
16 - NUT AND WASHER ASSEMBLY MET-6209018460.A3 6209018460	£1.50	£1.80
17 - SWITCH SSK (CH) UNIVERSALTISCH-UK290 MET-8132729680.A0 8132729680	-
18 - HEXAGON HEAD SCREW MET-141110240.A1 141110240	£1.50	£1.80
19 - CROSSHEAD BL 1 50X170X428 UNIVERSALTISCH MET-1382727815.A1 1382727815	-
20 - SCAL 0 25X9 MET-1142728610.A2 1142728610	-
21 - TRUSS HEAD SCREW MET-6110015990.A15 6110015990	£1.50	£1.80
22 - FILLISTER HEAD SCREW MET-6172091014.A82 6172091014	£1.50	£1.80
30 - CAGE NUT MET-6264714948.A8 6264714948	-
31 - CUP SQUARE NECK SCREW M 6X45/40 VERZ. MET-6110729730.A1 6110729730	-
32 - RETENTION PLATE BL 1 50X35 MET-1382727742.A0 1382727742	-
33 - WASHER MET-141150130.A7 141150130	£1.50	£1.80
34 - FLANGE NUT MET-6209114230.A119 6209114230	£1.50	£1.80
35 - CLAMPING PLATE BL 2 99X20X79 UNIVERSALTI MET-1482727758.A2 1482727758	-
36 - SERRATED LOCK WASHER MET-141150410.A0 141150410	£3.20	£3.84
37 - WING NUT M 6 A2K MET-7005729976.A0 7005729976	£1.50	£1.80
40 - LEG 30X30X2 0X550 UNIVERSALTISCH-UK290 MET-1383727770.A1 1383727770	-
41 - FOOT MET-1381726173.A6 1381726173	£4.76	£5.71
42 - LEG 30X30X2 0X550 UNIVERSALTISCH-UK290 MET-1383728645.A0 1383728645	-
43 - WASHER MET-6307121334.A1 6307121334	£1.50	£1.80
44 - STARKNOB SCREW M 8X28 (DIN 933) VERZINKT MET-7001115310.A0 7001115310	£3.89	£4.67
45 - CLAMPING PLATE FL 14 5X5X40 MET-1482653428.A0 1482653428	£7.04	£8.45
46 - EXTENSIO 25X25X2 00X78 UNIVERSALTISCH-UK MET-1382728676.A1 1382728676	-
47 - PLUG 25X25X1-3 MET-1381728664.A2 1381728664	-
48 - CUP SQUARE NECK SCREW M 8X50 VERZ. MET-6110080245.A15 6110080245	£1.50	£1.80
49 - STARLOCK MET-7016122305.A6 7016122305	£1.50	£1.80
50 - PARALLEL PIN 5 H8X45 MET-6500000153.A0 6500000153	£1.50	£1.80
51 - RETAINING CLIP KGT 501 MET-1382680185.A0 1382680185	£3.82	£4.59
52 - LEG 30X30X2 0X518 UNIVERSALTISCH-UK290 MET-1383727797.A0 1383727797	-
53 - LEG 30X30X2 0X518 UNIVERSALTISCH-UK290 MET-1383728629.A1 1383728629	-
54 - THUMB-NUT MET-7005135529.A22 7005135529	£3.20	£3.84
55 - HEXAGON HEAD SCREW MET-141114860.A1 141114860	£3.20	£3.84
56 - WASHER MET-141150140.A19 141150140	£1.50	£1.80
