Metabo Rip FENCE UK 290/333 / 0910063707 11 / - Spare Parts

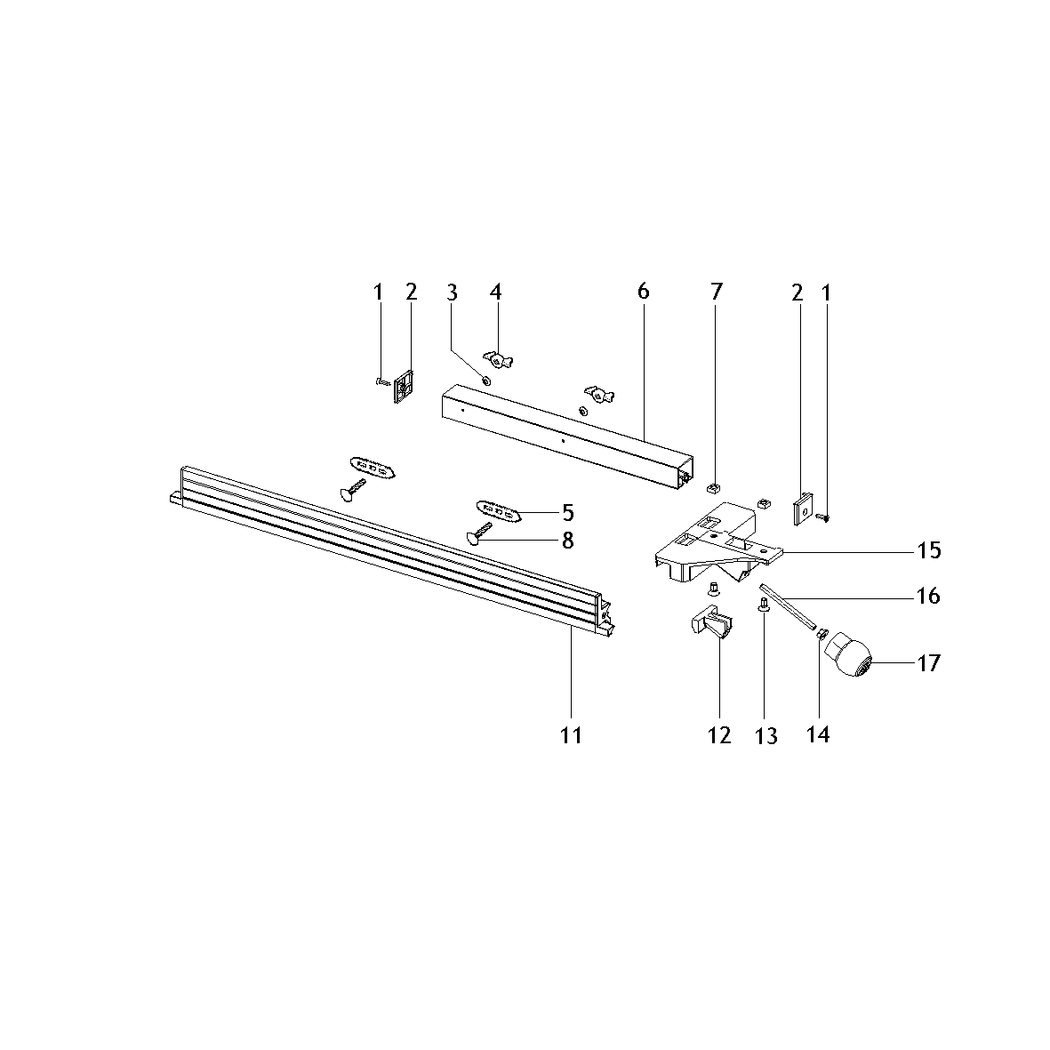

An exploded diagram and spare parts listing for the Metabo Rip FENCE UK 290/333 / 0910063707 11 / -

	Ex VAT	Inc VAT
1 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A30 6174155800	£1.50	£1.80
2 - EXTRUSION END CAP MET-1381220822.A5 1381220822	£3.82	£4.59
3 - WASHER MET-141151940.A181 141151940	£1.50	£1.80
4 - WING NUT M 6 GEW.-EINSATZ VERZINKT MET-7005125213.A4 7005125213	-
5 - GUIDE PLATE FLIPSTOP MET-1392201587.A34 1392201587	£1.50	£1.80
6 - FENCE CARRIER EXTRUSION MET-1383220862.A5 1383220862	£26.85	£32.22
7 - SQUARE NUT MET-141131020.A0 141131020	£3.20	£3.84
8 - TRUSS HEAD SCREW MET-6110019490.A0 6110019490	£2.94	£3.53
11 - AUXILIARY FENCE EXTRUSION 700 MM MET-1383214447.A6 1383214447	£48.88	£58.66
12 - LOCK PLATE MET-1380215981.A1 1380215981	£9.62	£11.54
13 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A40 6131009460	-
14 - FLANGE NUT MET-6209110995.A129 6209110995	£1.50	£1.80
15 - CLAMPING PAD MET-1380220845.A5 1380220845	£63.36	£76.03
16 - HEX. SOCKET SET SCREW DOG PT. MET-6163198736.A0 6163198736	£5.62	£6.75
17 - KNOB RED MET-1388698264.A5 1388698264	£7.36	£8.83
