Black & Decker WM225 Type 5 Workmate Spare Parts

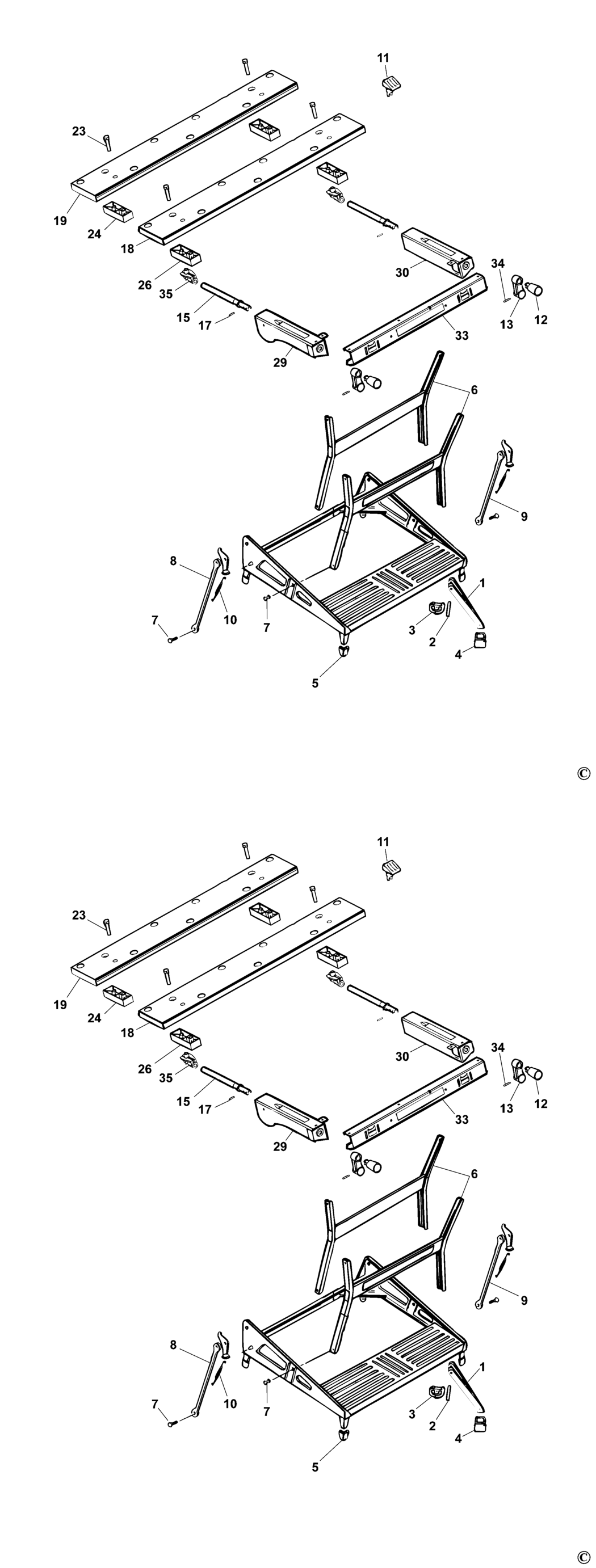

An exploded drawing and spare parts listing for the Black & Decker WM225 Type 5 Workmate

	Ex VAT	Inc VAT
1 - LEG BDE-242415-01.A0 242415-01	-
1 - LEG BDE-242415-02.A0 242415-02	£2.78	£3.34
2 - AXLE BDE-242400-01.A6 242400-01	£1.50	£1.80
3 - LATCH BDE-374985-49.A40 374985-49	£2.50	£3.00
4 - FOOT BDE-242393-00.A4 242393-00	£1.50	£1.80
5 - FOOT BDE-242394-00.A0 242394-00	£1.50	£1.80
7 - RIVET BDE-242434-00.A3 242434-00	-
7 - RIVET BDE-242434-00.A4 242434-00	-
8 - STAY LH BDE-242431-01.A0 242431-01	£17.48	£20.97
8 - STAY LH BDE-242431-02.A0 242431-02	£9.41	£11.29
9 - STAY RH BDE-242430-01.A1 242430-01	£7.18	£8.62
9 - STAY RH BDE-242430-02.A0 242430-02	£9.41	£11.29
10 - SPRING BDE-242854-00.A1 242854-00	-
10 - SPRING BDE-242425-00.A1 242425-00	£1.50	£1.80
11 - GRIP BDE-807530-02.A22 807530-02	£1.66	£1.99
12 - KNOB BDE-242440-00.A5 242440-00	£1.50	£1.80
13 - ARM BDE-242302-00.A7 242302-00	£1.50	£1.80
15 - ARM BDE-242302-00.A8 242302-00	£1.50	£1.80
15 - VICE SCREW BDE-429922-00.A3 429922-00	-
17 - PIN BDE-242834-00.A0 242834-00	-
17 - VICE SCREW BDE-429922-00.A2 429922-00	-
18 - VICE JAW FRONT BDE-243041-05.A2 243041-05	-
19 - VICE JAW REAR BDE-243041-03.A1 243041-03	-
19 - VICE JAW FRONT BDE-243041-05.A1 243041-05	-
23 - BOLT BDE-98025-40.A4 98025-40	£1.50	£1.80
24 - NUT BDE-242445-01.A1 242445-01	-
24 - BLOCK BDE-1004683-00.A15 1004683-00	£3.30	£3.96
26 - BLOCK FRONT BDE-242436-02.A1 242436-02	£1.50	£1.80
29 - BRACKET RH BDE-242824-05.A1 242824-05	£18.42	£22.10
30 - BRACKET LH BDE-242823-05.A0 242823-05	£18.42	£22.10
30 - BRACKET LH BDE-429922-09.A0 429922-09	-
33 - GUARD SA BDE-242832-00.A3 242832-00	£3.30	£3.96
33 - LABEL BDE-264520-03.A0 264520-03	£3.70	£4.44
34 - PIN BDE-242311-00.A0 242311-00	£1.50	£1.80
34 - IDENTITY LABEL BDE-264520-02 264520-02	-
35 - NUT BDE-242445-01.A2 242445-01	-

Attribute Name	Value
Brand	Black & Decker
