Stanley APC-MPU Type 1 Nailer Spare Parts

Home Details Reviews Delivery

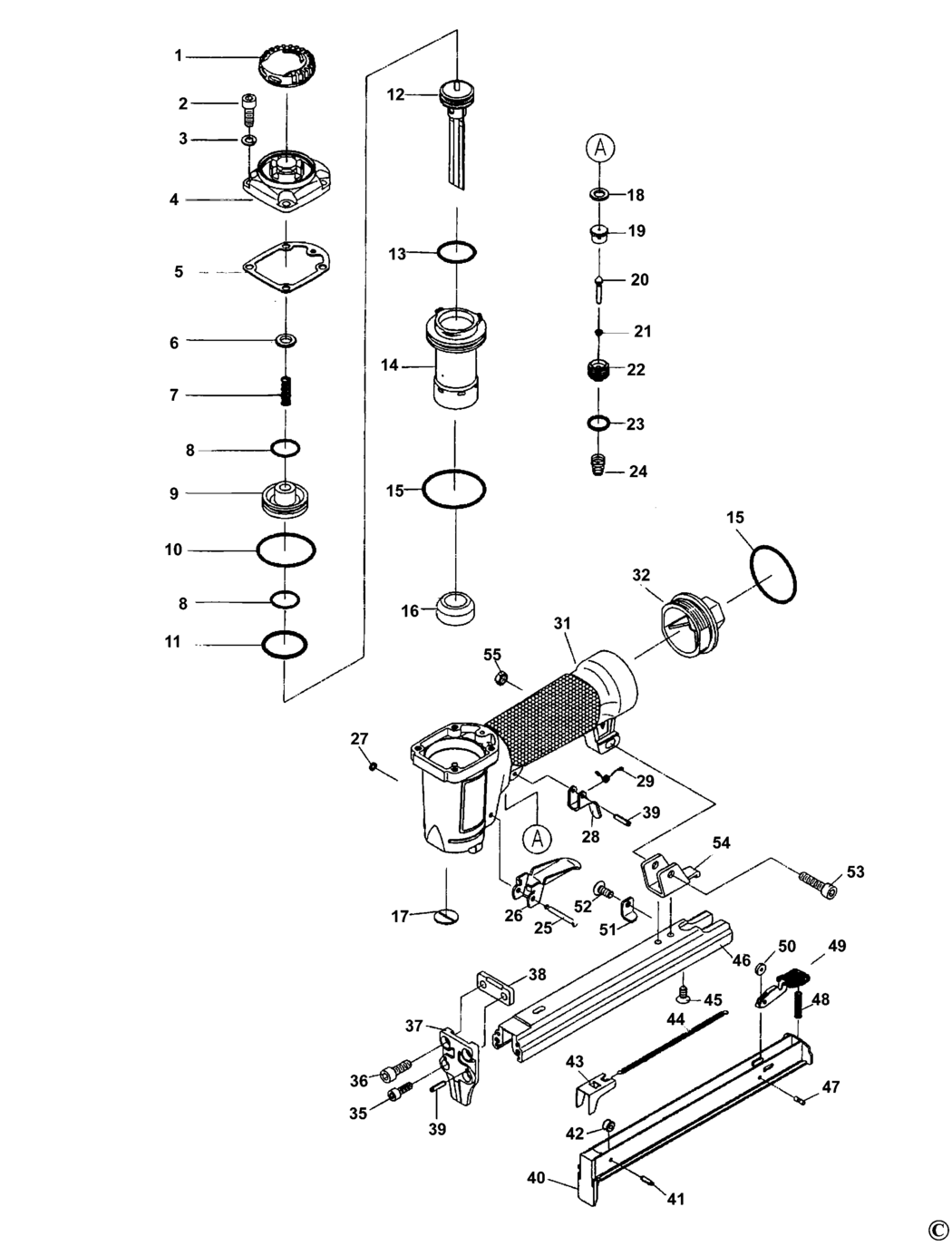

An exploded drawing and spare parts listing for the Stanley APC-MPU Type 1 Nailer

	Ex VAT	Inc VAT
1 - COVER BDE-P0590000200.A4 P0590000200	£6.06	£7.27
2 - BOLT BDE-174306.A17 174306	£1.66	£1.99
3 - WASHER SPRING BDE-1D104.A1 1D104	£1.66	£1.99
4 - DEFLECTOR BDE-P1110000640 P1110000640	£7.18	£8.62
5 - GASKET BDE-P1110001500 P1110001500	£1.66	£1.99
6 - O RING BDE-P1112000700 P1112000700	£1.66	£1.99
7 - SPRING BDE-P1115200862 P1115200862	£1.66	£1.99
8 - O RING BDE-S06P001400 S06P001400	£1.66	£1.99
9 - VALVE BDE-P1112000900 P1112000900	£7.18	£8.62
10 - O RING BDE-S06Z002000 S06Z002000	£1.66	£1.99
11 - O RING BDE-175557.A12 175557	£1.66	£1.99
12 - DRIVER BDE-G0204700 G0204700	£9.41	£11.29
13 - O RING BDE-S06P001900 S06P001900	£1.66	£1.99
14 - CYLINDER BDE-P1112001100 P1112001100	£10.85	£13.02
15 - O RING BDE-S06A012600 S06A012600	£1.66	£1.99
16 - BUMPER BDE-P1110001200 P1110001200	£1.66	£1.99
17 - GUIDE BDE-P1125200162 P1125200162	£1.66	£1.99
18 - O RING BDE-P0010000300 P0010000300	-
19 - VALVE BDE-P0012000105 P0012000105	-
20 - VALVE BDE-P0015200562 P0015200562	-
21 - O RING BDE-174339.A5 174339	£1.66	£1.99
22 - GUIDE BDE-G1100500 G1100500	£1.66	£1.99
23 - O RING BDE-184452.A0 184452	£1.66	£1.99
24 - SPRING COMPRESSION BDE-174300.A9 174300	£1.66	£1.99
25 - PIN BDE-JA2071W1.A2 JA2071W1	£1.66	£1.99
26 - TRIGGER BDE-P0595104601 P0595104601	£1.66	£1.99
27 - O RING BDE-174073.A5 174073	£1.66	£1.99
28 - TRIGGER BDE-P1115103201 P1115103201	-
29 - SPRING BDE-P1115203362 P1115203362	£1.66	£1.99
31 - HOUSING BDE-G4222700 G4222700	£30.08	£36.10
32 - END CAP BDE-P1110001340 P1110001340	£3.80	£4.56
35 - SCREW BDE-MSC4070-10.A19 MSC4070-10	£1.66	£1.99
36 - BOLT BDE-S0110516100 S0110516100	£1.66	£1.99
37 - COVER BDE-P1120001001 P1120001001	£16.03	£19.24
38 - SPACER BDE-P1115101901 P1115101901	£1.66	£1.99
39 - PIN BDE-S0802510000 S0802510000	-
41 - PIN BDE-S0802511200 S0802511200	£1.66	£1.99
42 - PULLEY BDE-P1115202562 P1115202562	£1.66	£1.99
43 - PUSHER BDE-P1125200762 P1125200762	£1.66	£1.99
44 - SPRING BDE-P1115200162 P1115200162	£1.66	£1.99
45 - SCREW BDE-9R199443.A5 9R199443	£1.66	£1.99
46 - MAGAZINE BDE-P1120000863 P1120000863	£16.03	£19.24
47 - PIN BDE-P1125200962 P1125200962	£1.66	£1.99
48 - SPRING BDE-P1115202862 P1115202862	-
49 - LEVER BDE-P1110004665 P1110004665	£7.18	£8.62
50 - WASHER BDE-174093.A1 174093	£1.66	£1.99
51 - STOP PLATE BDE-P1115100501 P1115100501	£1.66	£1.99
52 - NO LONGER AVAILABLE BDE-000000-00.A129704 000000-00	-
53 - BOLT BDE-S0110522100 S0110522100	£1.66	£1.99
54 - BRACKET BDE-P1115102901 P1115102901	£1.82	£2.19
55 - LOCK-NUT BDE-174065.A3 174065	£1.66	£1.99

Attribute Name	Value
Brand	Stanley
