Fein Dustex 35 MX / 92031223000 Spare Parts

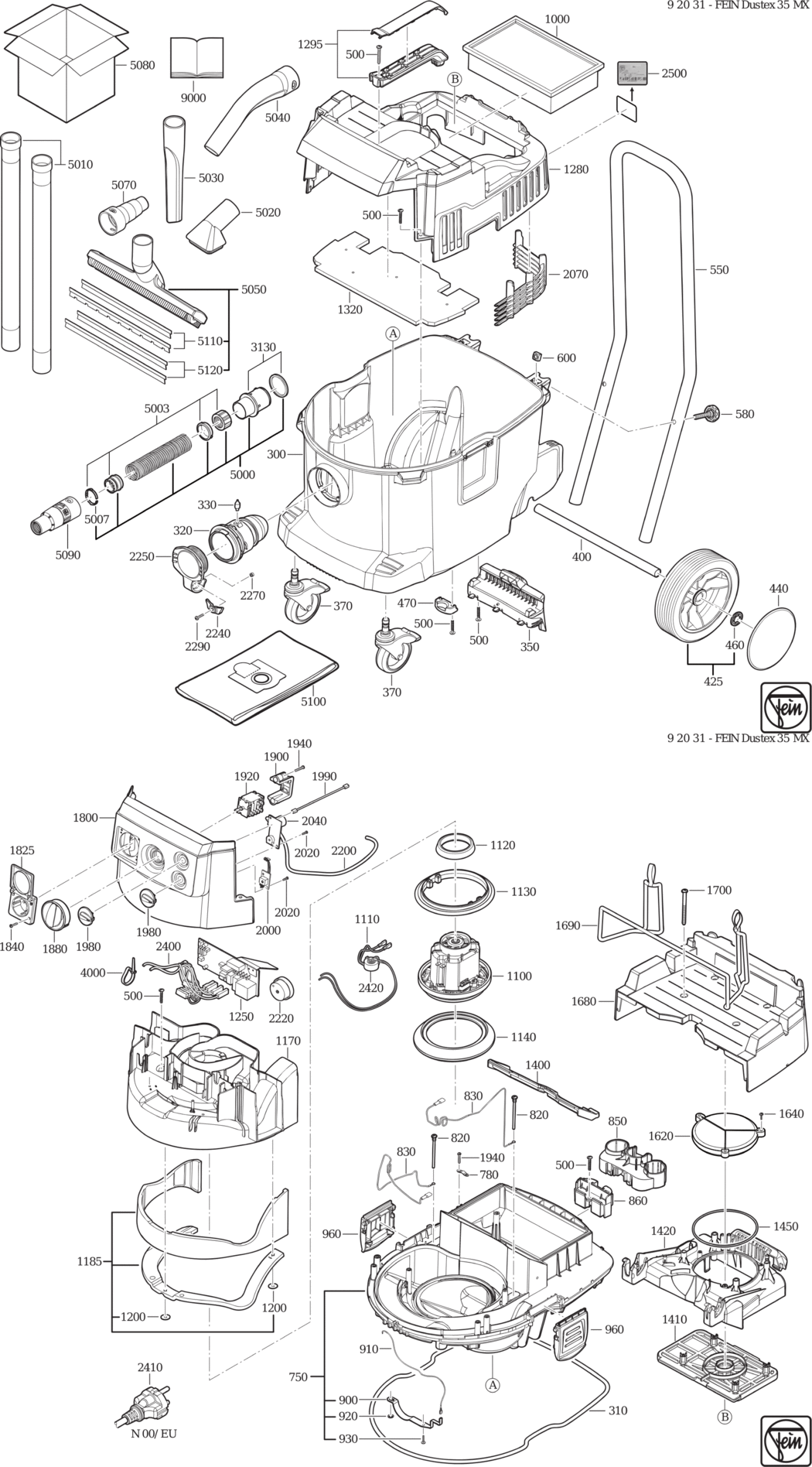

An exploded diagram and spare parts listing for the Fein Dustex 35 MX / 92031223000

	Ex VAT	Inc VAT
300 - CONTAINER 35 L M FEI-31345144000.A0 31345144000	£159.43	£191.32
310 - SEALING RING FEI-31345145000.A7 31345145000	£9.70	£11.64
320 - HOSE CONNECTION FEI-31345146000.A3 31345146000	£22.16	£26.59
330 - BOLT FEI-31345147000.A12 31345147000	£2.98	£3.58
350 - HOLDER FEI-31345148000.A3 31345148000	-
370 - ROLLER FEI-31345150000.A7 31345150000	-
400 - SHAFT FEI-31345151000.A3 31345151000	-
425 - WHEEL SET FEI-31345152010.A7 31345152010	£28.37	£34.04
440 - COVER FEI-31345153000.A3 31345153000	-
460 - CIRCLIP FEI-31345154000.A7 31345154000	-
470 - HOLDER FEI-31345155000.A3 31345155000	-
500 - SCREW FEI-31345051000.A20 31345051000	£1.60	£1.92
550 - CLAMP FEI-31345156000.A7 31345156000	-
580 - HANDLE FEI-31345157000.A3 31345157000	-
600 - NUT FEI-31345158000.A7 31345158000	-
750 - HOUSING SET FEI-31345160010.A3 31345160010	-
780 - CABLE CLAMPING PIECE FEI-31345161000.A0 31345161000	-
820 - SONDE FEI-31345162000.A10 31345162000	-
830 - CABLE FEI-31345163000.A0 31345163000	-
850 - HOLDER FEI-31345165000.A10 31345165000	£8.75	£10.50
860 - ADAPTER FEI-31345166000.A0 31345166000	£8.55	£10.26
900 - CONTACT SPRING FEI-31345167000.A16 31345167000	-
910 - CABLE FEI-31345168000.A0 31345168000	-
920 - TERMINAL FEI-31345170000.A16 31345170000	-
930 - FILLISTER HEAD SCREW FEI-31345171000.A1 31345171000	-
960 - LUG FEI-31345013000.A20 31345013000	£6.45	£7.74
1000 - FLAT-FOLD FILTER FEI-31345059010.A7 31345059010	£84.98	£101.98
1100 - MOTOR 220V/230V FEI-31345172000.A6 31345172000	£147.06	£176.47
1110 - CABLE FEI-31345046000.A17 31345046000	£3.15	£3.78
1120 - SEAL FEI-31345175000.A7 31345175000	-
1130 - SEAL FEI-31345176000.A3 31345176000	-
1140 - SEAL FEI-31345177000.A7 31345177000	-
1170 - HOUSING FEI-31345179000.A3 31345179000	-
1185 - INSERT SET FEI-31345181010.A7 31345181010	-
1200 - CIRCLIP FEI-31345183000.A3 31345183000	-
1250 - ELECTRONICS 220-240V 50/60HZ FEI-31345187000.A0 31345187000	£214.58	£257.49
1280 - HOOD FEI-31345191000.A2 31345191000	£40.53	£48.64
1295 - HANDLE FEI-31345193010.A8 31345193010	-
1320 - INSERT FEI-31345194000.A2 31345194000	-
1400 - SEAL FEI-31345198000.A9 31345198000	-
1410 - PLATE FEI-31345199000.A1 31345199000	-
1420 - COVER FEI-31345196000.A6 31345196000	£28.88	£34.66
1450 - SEALING RING FEI-31345201000.A8 31345201000	-
1620 - COVER FEI-31345215000.A3 31345215000	-
1640 - FILLISTER HEAD SCREW FEI-31345216000.A0 31345216000	-
1680 - COVER FEI-31345217000.A10 31345217000	£34.23	£41.08
1690 - ROPE FEI-31345218000.A0 31345218000	-
1700 - FILLISTER HEAD SCREW FEI-31345219000.A10 31345219000	£1.60	£1.92
1800 - OPERATING ELEMENT FEI-31345223000.A0 31345223000	-
1825 - SOCKET FEI-31345034010.A6 31345034010	£39.05	£46.86
1840 - SCREW FEI-31345052000.A2 31345052000	-
1880 - ROTARY KNOB FEI-31345038000.A22 31345038000	£16.18	£19.42
1900 - HOLDER FEI-31345040000.A1 31345040000	-
1920 - SWITCH FEI-31345041000.A22 31345041000	£33.88	£40.66
1940 - SCREW FEI-31345049000.A22 31345049000	-
1980 - ROTARY KNOB FEI-31345225000.A0 31345225000	£1.60	£1.92
1990 - CABLE FEI-31345226000.A3 31345226000	-
2000 - SPEED SETTING SWITCH FEI-31345227000.A0 31345227000	-
2020 - FILLISTER HEAD SCREW FEI-31345228000.A10 31345228000	-
2040 - REGULATOR FEI-31345229000.A0 31345229000	£142.85	£171.42
2070 - PROTECTIVE GRILLE FEI-31345231000.A3 31345231000	-
2200 - HOSE FEI-31345232000.A0 31345232000	-
2220 - HORN FEI-31345233000.A3 31345233000	-
2240 - TERMINAL FEI-31345235000.A3 31345235000	-
2250 - PLUG FEI-31345234000.A0 31345234000	-
2270 - NUT FEI-31345236000.A0 31345236000	-
2290 - FILLISTER HEAD SCREW FEI-31345237000.A3 31345237000	-
2400 - CABLE HARNESS FEI-31345240010.A6 31345240010	-
2410 - CABLE WITH PLUG EU FEI-31345242010.A3 31345242010	-
2420 - FERRITE SLEEVE FEI-31345026000.A4 31345026000	-
2500 - TYPE PLATE VE10 FEI-31345141040.A0 31345141040	-
3130 - HOSE CONNECTION FEI-31345140010.A20 31345140010	£32.92	£39.50
4000 - CABLE TIE FEI-30234026008.A39 30234026008	£1.60	£1.92
5000 - ANTISTATIC SUCTION HOSE FEI-31345120010.A3 31345120010	£234.97	£281.96
5003 - REPAIR SET FEI-31345069010.A23 31345069010	£48.33	£58.00
5007 - CLAMPING RING FEI-31345094000.A3 31345094000	£2.43	£2.92
5010 - SUCTION TUBE FEI-31345071010.A10 31345071010	£48.33	£58.00
5020 - SUCTION BRUSH FEI-31345076010.A9 31345076010	£21.46	£25.75
5030 - CREVICE NOZZLE FEI-31345074010.A1 31345074010	£11.32	£13.59
5040 - ELBOW FEI-31345070010.A9 31345070010	£23.68	£28.41
5050 - COMBINATION NOZZLE FEI-31345073010.A9 31345073010	£57.96	£69.55
5070 - STEPPED COLLAR FEI-31345079010.A7 31345079010	£25.30	£30.36
5080 - CARDBOARD FEI-31345257010.A0 31345257010	-
5090 - ANTISTATIC TOOL COLLAR FEI-31345300010.A15 31345300010	£41.38	£49.65
5100 - PREMIUM FLEECE FILTER BAG FEI-31345251010.A5 31345251010	£77.38	£92.86
5110 - BRUSH STRIPS FEI-31345138010.A3 31345138010	£15.09	£18.11
5120 - RUBBER LIP FEI-31345139010.A7 31345139010	£17.48	£20.97
9020 - SAFETY INSTRUCTION FEI-34130425060.A3 34130425060	-
